Features
GIANT REVOLT ADVANCED 0 (2022) - KNIGHT SHIELD
Ride roads, gravel or dirt with this all-new aluminium all-rounder. A composite fork gives it a smooth ride, and a flip chip lets you adjust wheelbase and tyre clearance.
A NEW CARBON FRAME
New Advanced composite frame and fork save more than 160 grams compared to previous model. Updated geometry includes a lower bottom bracket, longer reach and steeper headtube angle for improved acceleration and climbing.
COMFORT
New frame features thinner, dropped seatstays to absorb road shocks and vibrations. D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.
VERSATILE
A flip chip on the rear dropout adjusts the wheelbase short for quicker handling and acceleration, or long for improved stability at speed. The long setting allows for larger diameter tyres up to 53mm.
You can choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.
Specifications
| Sizes | XS, S, M, M/L, L, XL |
| Colour | Knight Shield |
| Frame | Advanced-Grade Composite // 12x142mm thru-axle, disc, flip chip dropout |
| Fork | Advanced-Grade Composite // Full-composite OverDrive steerer, 12mm thru-axle, disc |

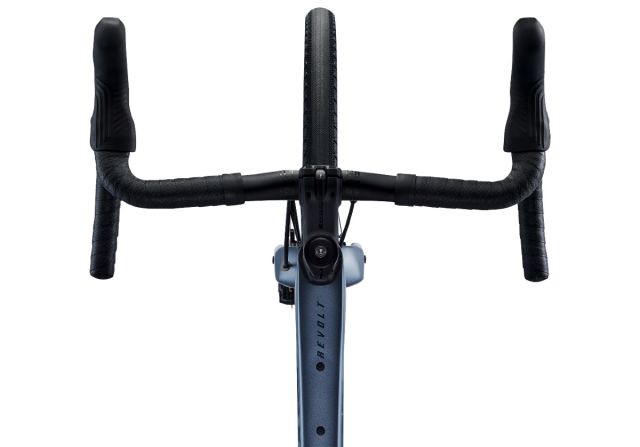

| Handlebar | Giant Contact XR D-Fuse, 31.8mm // XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm |
| Grips | Stratus Lite 3.0 |
| Stem | Giant Contact, 8-degree // XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm |
| Seatpost | Giant D-Fuse, carbon, 14mm offset |
| Saddle | Giant Approach |
| Pedals | NA |
| Shifters | Shimano GRX RX-810, 22 speed |
| Front Derailleur | NA |
| Rear Derailleur | Shimano GRX RX-810 |
| Brakes | Shimano GRX RX-810 hydraulic // Shimano SM-RT70 rotors [F]160mm, [R]160mm |
| Brake Levers | Shimano GRX RX-810 hydraulic |
| Cassette | Shimano CS-HG800, 11T-34T, 11 speed |
| Chain | KMC X11SL-1 |
| Crankset | Shimano GRX RX-810, 31T/48T // XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm |
| Bottom Bracket | Shimano, press fit |
| Rims | Giant CXR 2 Carbon Disc WheelSystem |
| Hubs | Giant CXR 2 Carbon Disc WheelSystem |
| Spokes | Giant CXR 2 Carbon Disc WheelSystem |
| Tyres | Maxxis Receptor, 700x40c, tubeless |
| Extras | Tubeless prepared, 53mm max tyre size in “long” flip chip position, 45mm max tyre size in “short” flip chip position |
Please note that our specifications may be impacted by running substitution changes.
