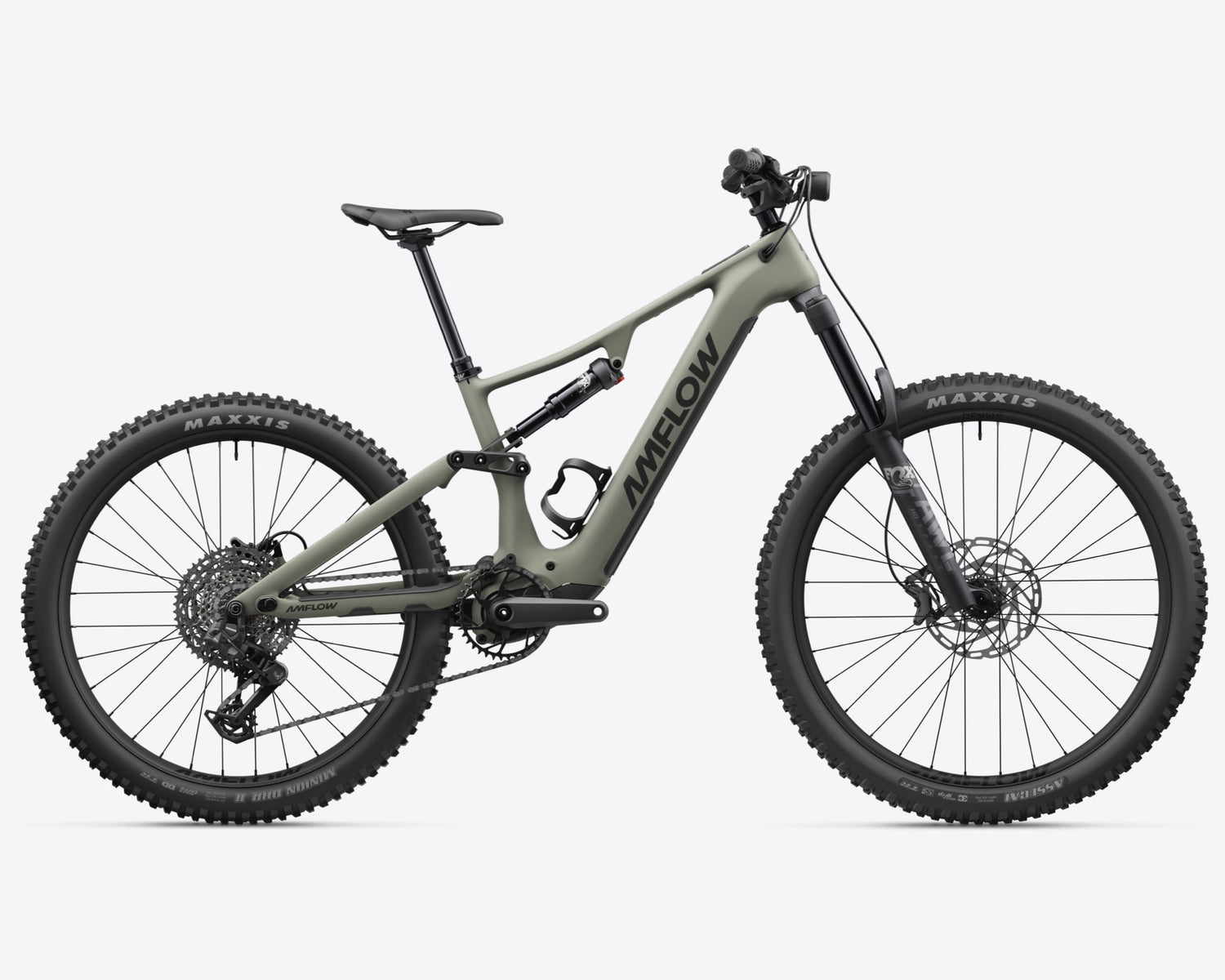

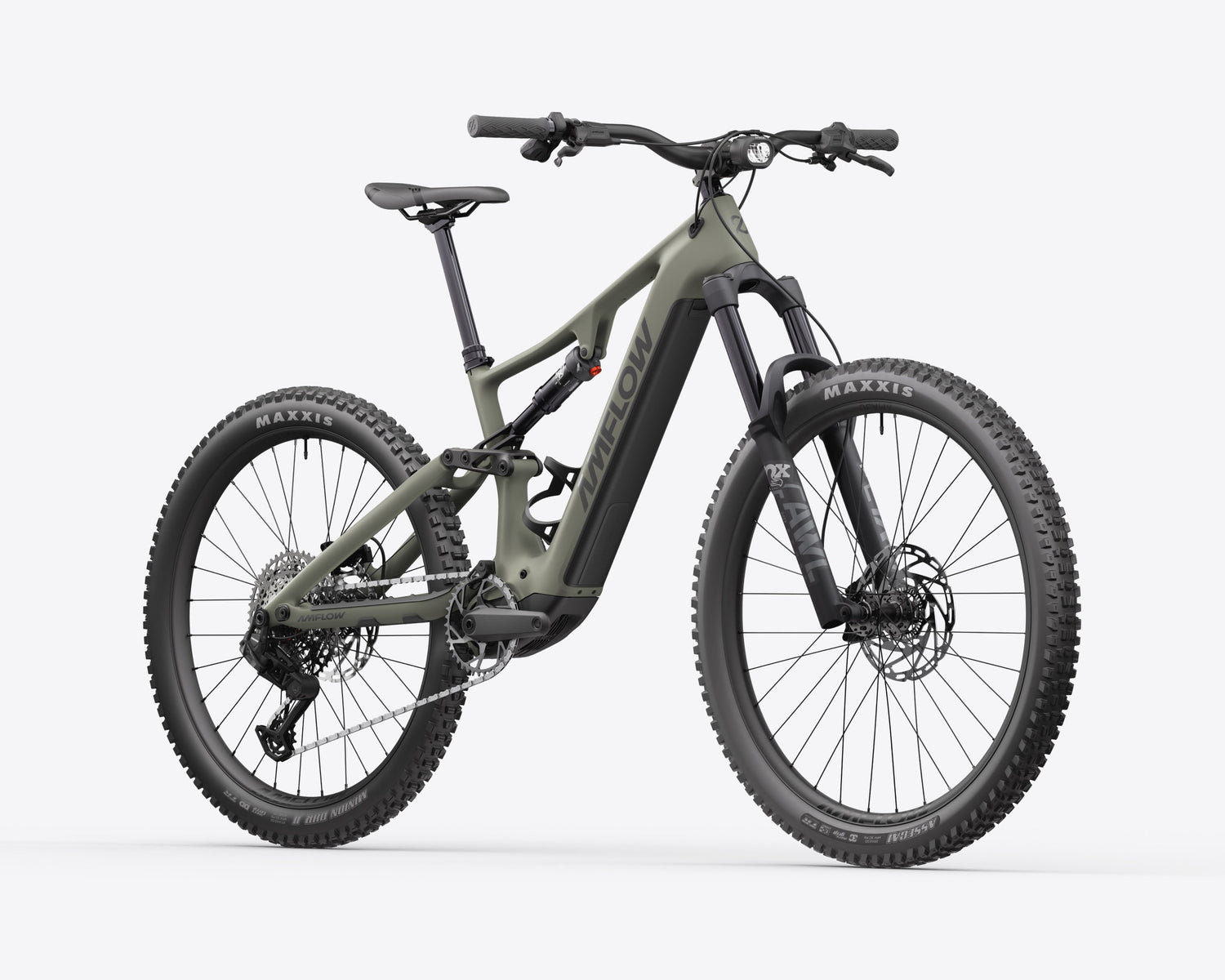

Amflow PR Carbon

The Amflow PR Carbon is a full-suspension electric mountain bike that brings together a full-carbon frame, the Avinox M2 Drive Unit, and a premium component specification to deliver an eMTB that performs as impressively as it looks.

With 125Nm of peak torque, an 800Wh removable battery, and up to 40 adjustable geometry configurations, the PR Carbon is built for riders who want a serious, capable machine for trail and enduro riding across Victoria's best mountain bike destinations - from the alpine singletrack of Falls Creek and Mount Buller to the technical descents of the Dandenong Ranges and the trails of the Otway Ranges.

Ultra-Light Full-Carbon Frame

The Amflow PR Carbon frame is engineered to be both exceptionally light and uncompromisingly strong.

Built from full carbon with the rigidity to handle aggressive riding demands without flex or fatigue, it delivers a composed, responsive ride feel that heavier aluminium-framed eMTBs simply cannot match.

40 Geometry Configurations

The PR Carbon's geometry adjustment system is one of its most compelling features. Five head tube angle positions, two bottom bracket height settings, and four chain-stay length configurations combine to deliver up to 40 distinct geometry combinations.

Riders can dial in a slack, planted setup for aggressive descending on Victoria's steepest trail networks, a steeper and more efficient position for long climbing days, or any number of configurations in between to suit their preferred riding style.

Compatibility with both 27.5" and 29" rear wheels adds further versatility - the standard mullet configuration (29" front, 27.5" rear) provides an excellent balance of rollover and agility, while a full 29" setup remains an option for riders who prefer it.

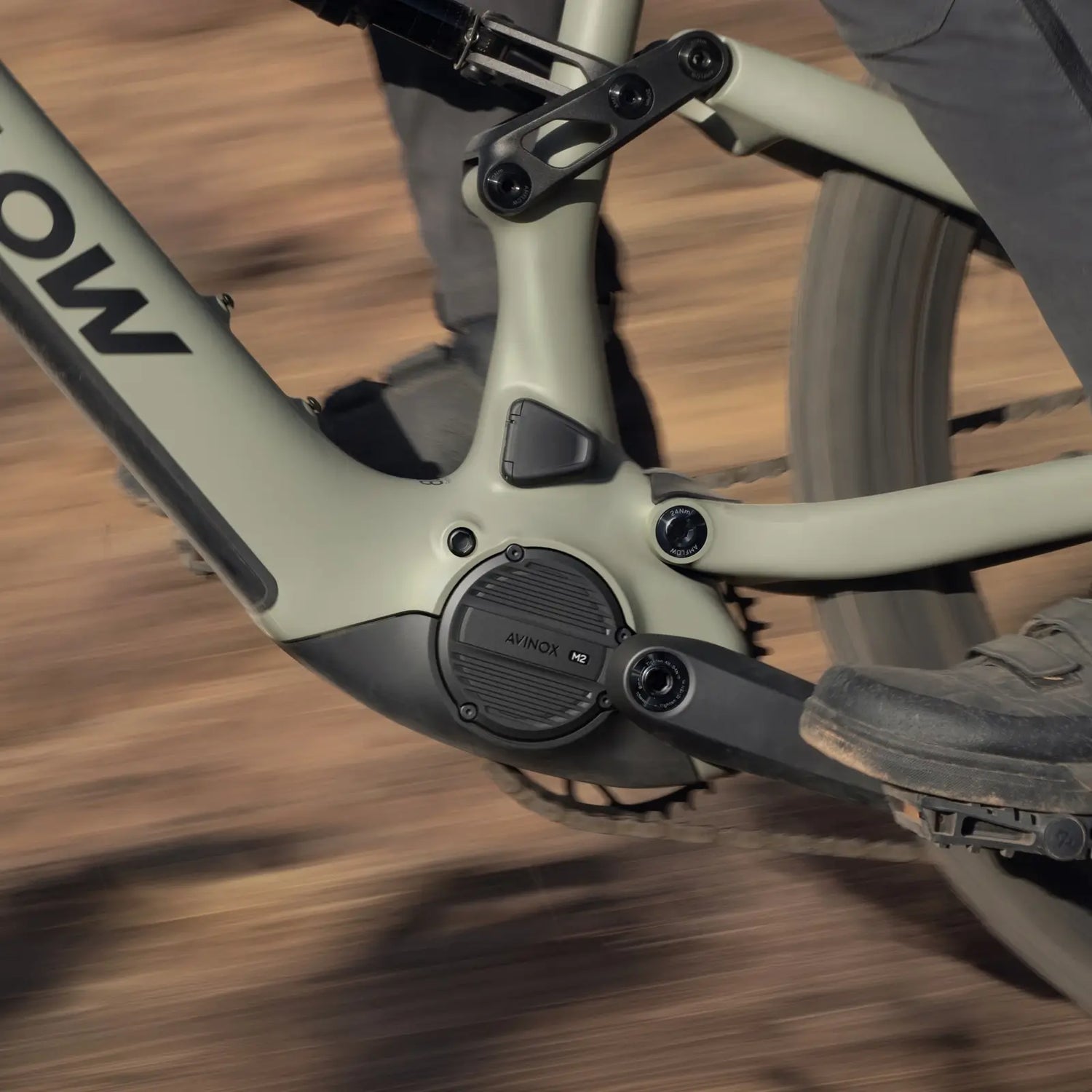

Avinox M2 Drive Unit

The Avinox M2 Drive Unit delivers a nominal 110Nm and peak 125Nm of torque with smooth, natural-feeling assistance thanks to multiple high-precision sensors and intelligent real-time output algorithms.

Operating noise is suppressed to as low as 45dBA through compound planetary gears and helical gear design - keeping the motor quiet enough that trail feedback and wind remain the dominant sounds on the ride rather than mechanical noise.

Auto mode adjusts assistance continuously based on conditions and riding position, while Boost mode delivers maximum torque instantly for steep climbs and the most demanding technical trail sections.

At approximately 2.65kg, the drive unit achieves a 4.6% increase in power density over the previous generation while maintaining its lightweight advantage.

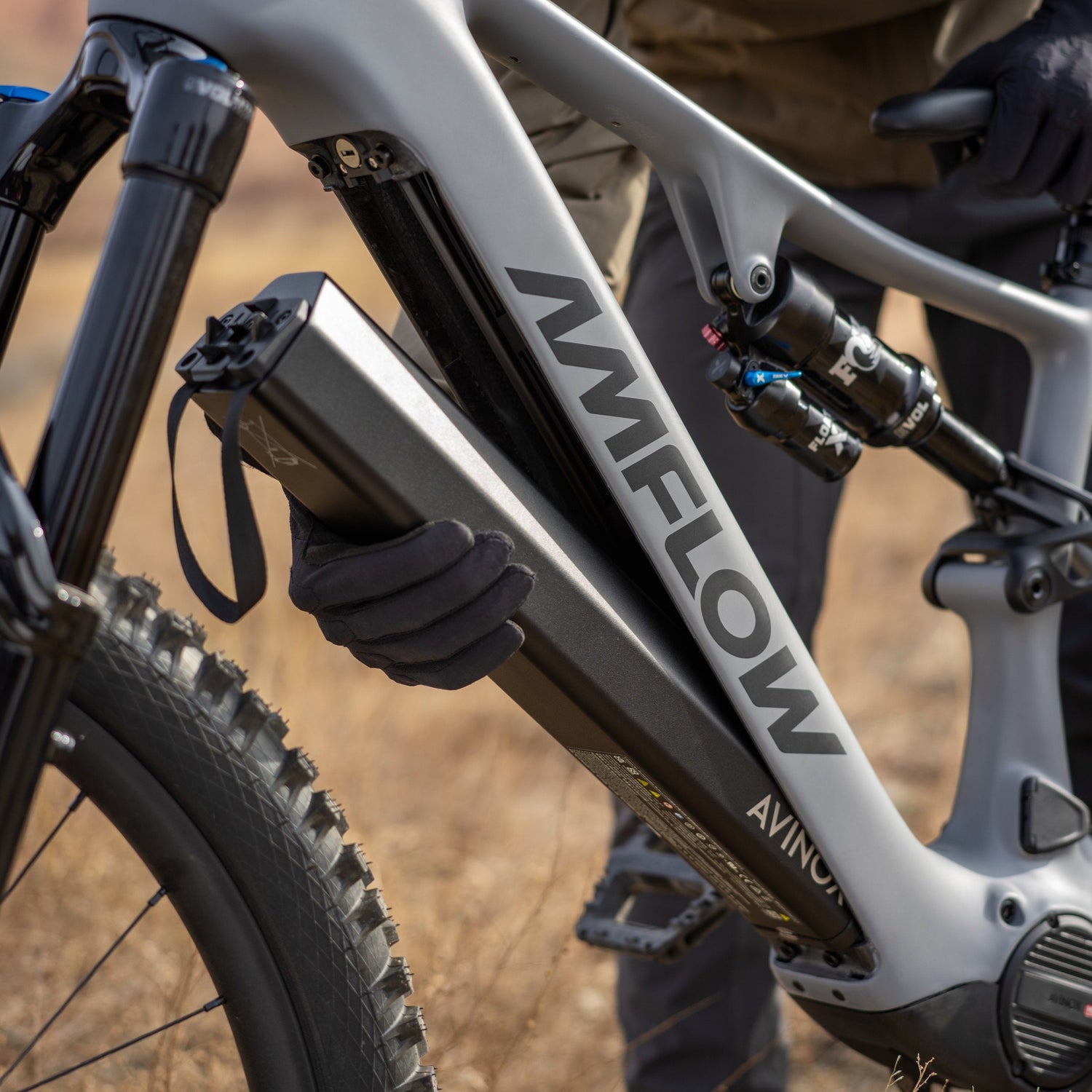

800Wh Removable Battery

An 800Wh removable battery powers the system via an innovative slide rail design with Battery Lock - a secure, tool-free removal mechanism that balances everyday ease of use with confidence on the trail.

The battery can be pulled independently for charging at home, at the trailhead carpark, or in a hire accommodation on multi-day riding trips, and swapped quickly for a fresh cell when extended range is needed.

The included 4A/168W charger keeps recharge times practical between sessions without requiring a dedicated fast-charging setup.

Smart Connectivity and Navigation

The Avinox 2-inch OLED Control Display brings genuinely useful smart connectivity to every ride.

Offline navigation supports third-party route imports in GPX, FIT, and TCX formats, with real-time turn-by-turn guidance and off-course alerts that operate independently of a phone connection - invaluable in the areas of limited mobile coverage that characterise much of Victoria's best riding terrain.

Apple Find My integration leverages Apple's global network to track bike location and battery level at any time, with a one-tap buzzer function for locating the bike at a busy trailhead.

Smart Heart Rate Control automatically adjusts drive unit output to keep you within a target heart rate zone - a genuinely practical feature for managing effort across long days in the mountains.

SmoothShift functionality, deeply integrated with the SRAM electronic rear derailleur, enables gear changes while coasting to maintain rhythm and cadence through technical terrain without interrupting pedalling.

Suspension

A FOX AWL HD Sport fork delivers 160mm of travel with RAIL 2.0 damper, Sweep and LSR adjustment, and 15x110mm axle spacing up front.

The FOX Float Rhythm rear shock at 210x55mm with custom tune and LSR adjustment completes a well-matched suspension pairing that handles the full spectrum of trail and enduro terrain with composure.

Together they provide the platform needed to ride with genuine confidence on technical Australian singletrack.

Drivetrain and Brakes

The drivetrain centres on SRAM's S1000 Eagle Transmission rear derailleur with AXS Pod Controllers, SRAM XS-1270 Eagle Transmission 10-52T cassette, SRAM Eagle 70 Transmission Flattop chain, and a 38T Avinox-specific Eagle Transmission chainring.

The wireless electronic setup integrates seamlessly with the Avinox drive system for SmoothShift gear changes - shifting without pedalling to keep your rhythm intact through the most demanding trail sections.

Tektro TKD173 hydraulic disc brakes with four-piston Amflow custom calipers and 203mm Tektro Sensor rotors provide powerful, consistent stopping across all trail conditions and rider weights.

Wheels, Tyres and Cockpit

The Amflow XMA-30 mullet wheelset runs 29" front and 27.5" rear alloy rims at 30mm inner width, 32H tubeless ready, laced with SAPIM E-Light spokes.

A Maxxis Assegai 29x2.5 3C MaxxGrip EXO+ tubeless-ready front tyre delivers maximum cornering grip and braking traction, paired with a Maxxis DHR II 27.5x2.5 MaxxTerra Double Down tubeless-ready rear.

A proven enduro tyre combination that handles the loose, variable surfaces of Australian trail riding with authority.

The cockpit runs an Amflow Enduro alloy handlebar at 800mm wide, 40mm rise, and 35mm diameter with 5-degree upsweep and 9-degree backsweep, on a 35mm Amflow split stem with Amflow Enduro Lock-On grips.

The Amflow dropper post offers adjustable travel via shim. 190mm on the M frame, 210mm on L/XL, and 230mm on XXL. With 5/10 travel reduction spacers included as standard.

Avinox wireless controllers, a full geometry adjustment kit (0.5° and 1° headset cups plus chainstay flip-chip), two battery keys, a torque wrench, shock pump, and clear frame protection film all ship in the box - a comprehensive package that reflects the flagship ambitions of the Amflow PR Carbon.
