Shogun | SKU: 9341983050486

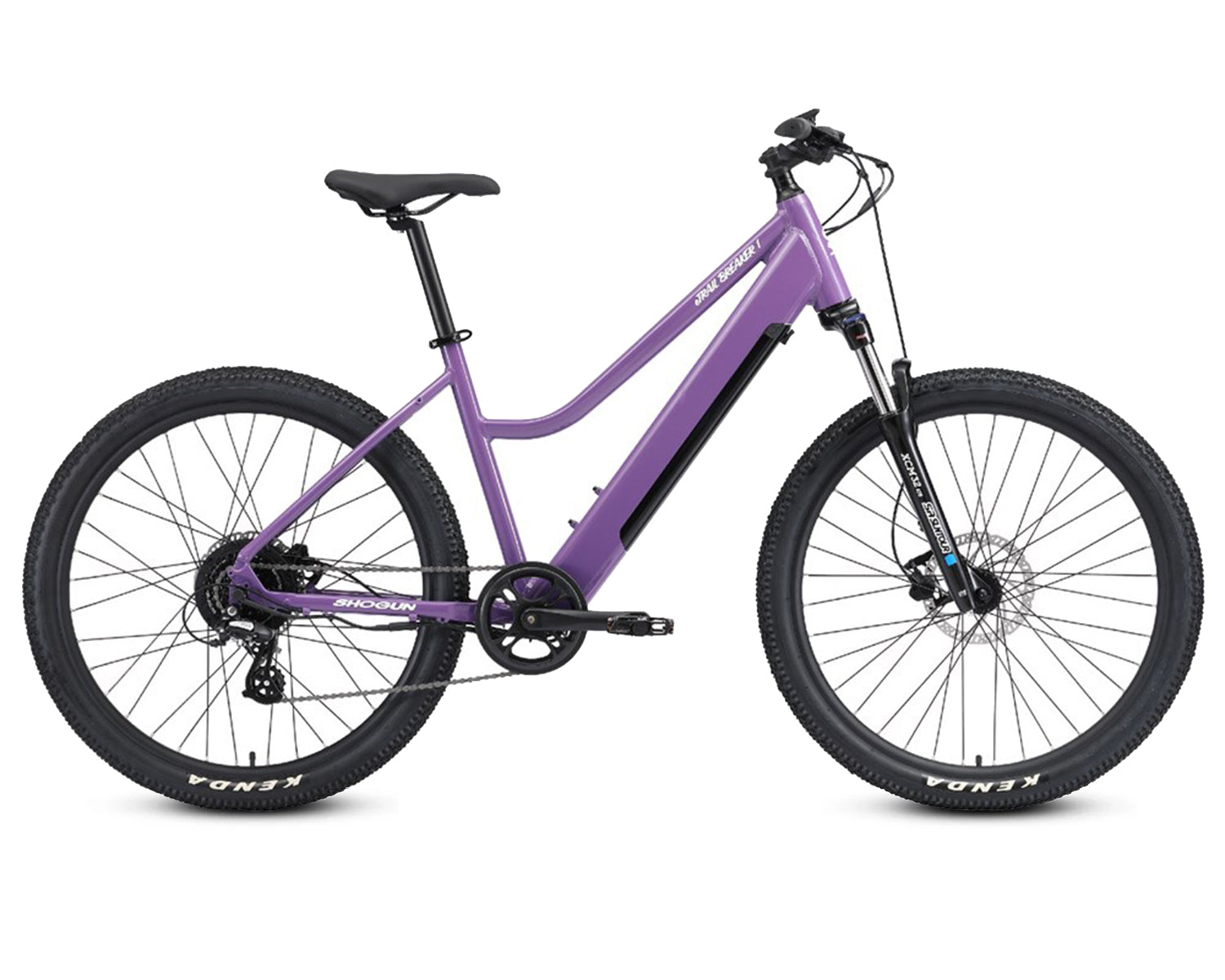

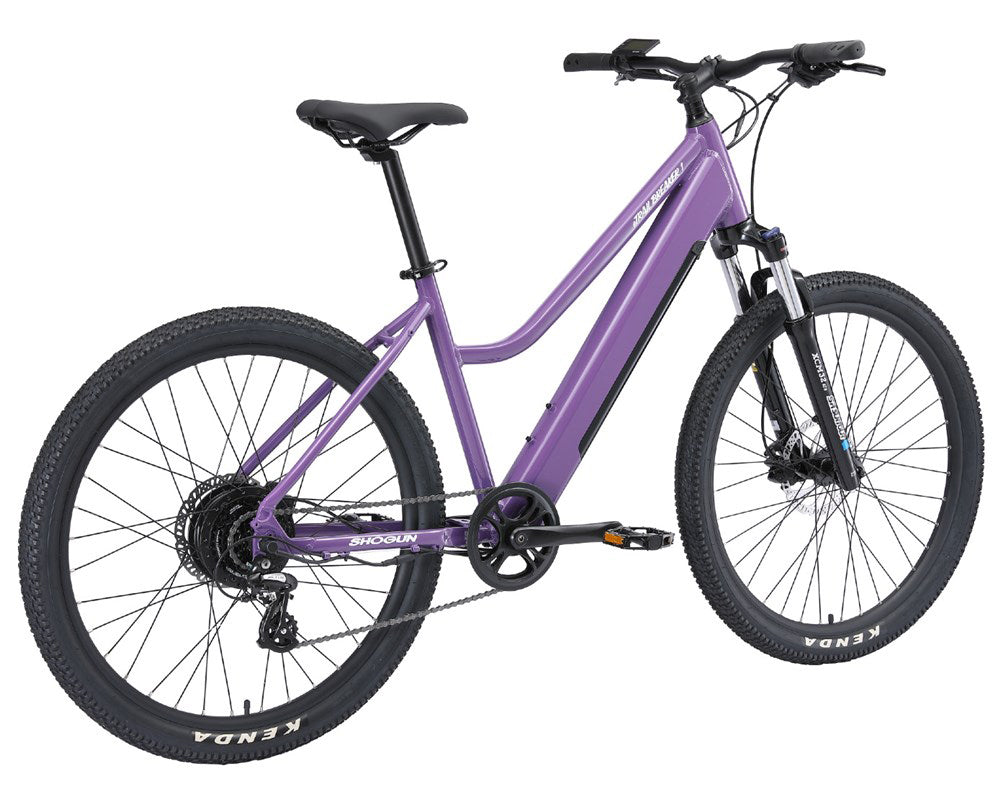

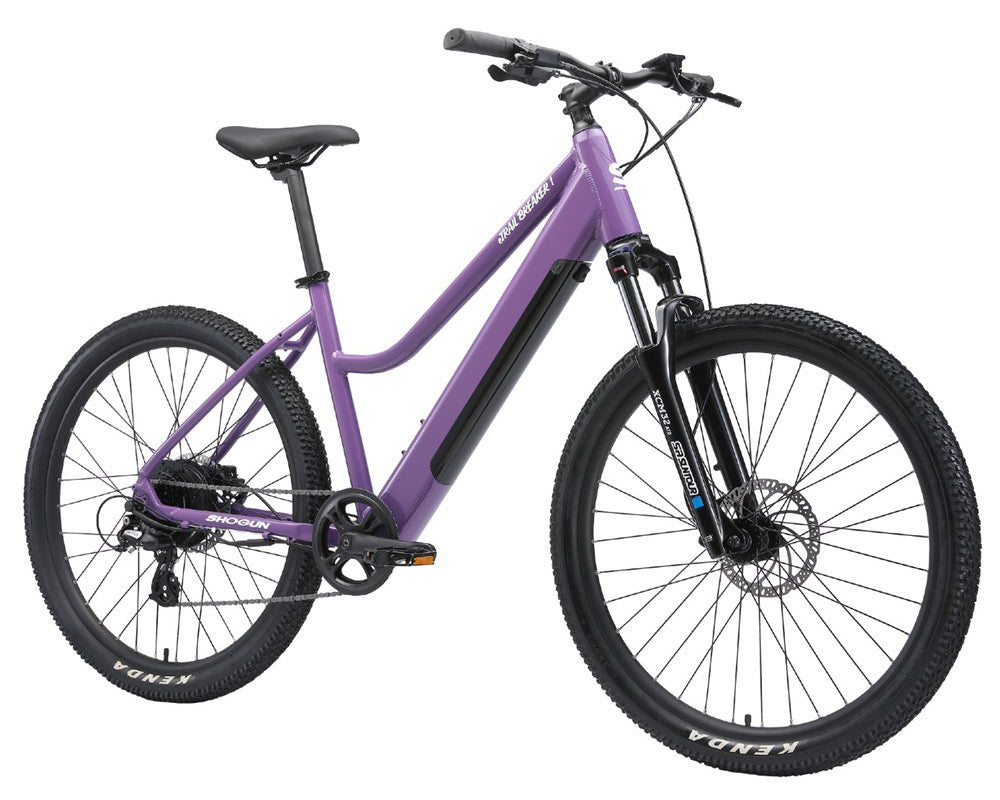

Shogun eTrail Breaker 1 ST

$1,499⁰⁰ ~~$2,099⁰⁰~~

Rear hub drive 250W Bafang Motor
Shimano 1x8 speed drivetrain
27.5" Wheels with 2.35" Tyres
Suntour suspension with 100mm travel

Colour: Purple

Shogun eTrail Breaker 1 ST

Size

S M

Product variants

Pickup in-store only. Shipping not available.

Shipping Information

Certain bike brands cannot be shipped and are only available for Click and Collect.

These include but are not limited to the following brands: Giant, GT, Liv, Momentum and Mongoose.

For all other brands, we can provide a shipping quote to your postcode. Please contact us by email at staff@ivanhoecycles.com.au, or text us on 0417 122 950.

Fully assembled when you Click & Collect in-store

Buy Now, Pay Later with ZIP

Free service adjustment within first 6 months

Shogun eTrail Breaker 1 ST

The Shogun eTrail Breaker 1 ST is an entry-level electric mountain bike designed for off-road adventures.

It features a lightweight alloy frame with a fully integrated, detachable 36V 10.4Ah battery powering a 250W Bafang rear hub motor.

The bike offers a range of 40-50km, depending on rider weight, terrain, gradient, and power usage.

Equipped with a Suntour XCM32 fork providing 100mm travel, Tektro M275 hydraulic brakes, and an 8-speed Shimano Altus drivetrain, it ensures a smooth and controlled ride.

The handlebar-mounted KD-21C LCD display shows speed, distance, battery level, and assistance level.

27.5" wheels excel at cornering and tight technical moves.

KEY FEATURES

Shimano 1x8 Speed drive-train
Tektro hydraulic disc brakes
27.5" wheels built with 30mm wide eyelet rims for extra strength
Suntour XCM32 fork for improved entry level off-road use
5 hours to 100% charge
40-50km (Distance can vary depending on rider weight, terrain, gradient & power usage)
1 year warranty on electric components

Motor

Bafang 250W, rear hub drive
Controller

KD-21C
Display

KD-21C LCD | Speed, distance, battery level, assistance level
Battery

Integrated 10.4Ah/36V, 374Wh
Charger

A/S standard wall charger included
Frame material

Aluminium
Frame

Alloy
Fork

SR Suntour XCM32, 100mm travel
Handlebar

Alloy, 31.8mm
Grips

Rubber
Seatpost

Alloy
Saddle

Velo
Pedals

Platform
Shifters

L-TWOO A3, 8 speed
Front Derailleur

N/A
Rear Derailleur

Shimano Altus, 8 speed
Brakes

Tektro M275 hydraulic disc, 160mm rotors
Brake Levers

Tektro M275 hydraulic
Cassette/Freewheel

Shimano HG200, 12-32T, 8 speed
Chain

KMC Z8.3
Crankset

Alloy 40T, 170mm crank length
Bottom Bracket

Sealed
Rims

Alloy, double wall, 36H
Hubs

[F] Alloy, Quick-Release | [R] Motor, nutted
Spokes

Stainless steel
Tyres

Kenda 27.5”x2.35”
Notes

Please note that, based on component availability and other factors, specifications are subject to change without notice.
Speeds (rear)

8 Speed
Age Group

Adults
Gender

Womens
Discipline

Lifestyle, Electric
SKUs

Purple/S: 9341983050486, Purple/M: 9341983050479
