Giant | SKU: 9125002105

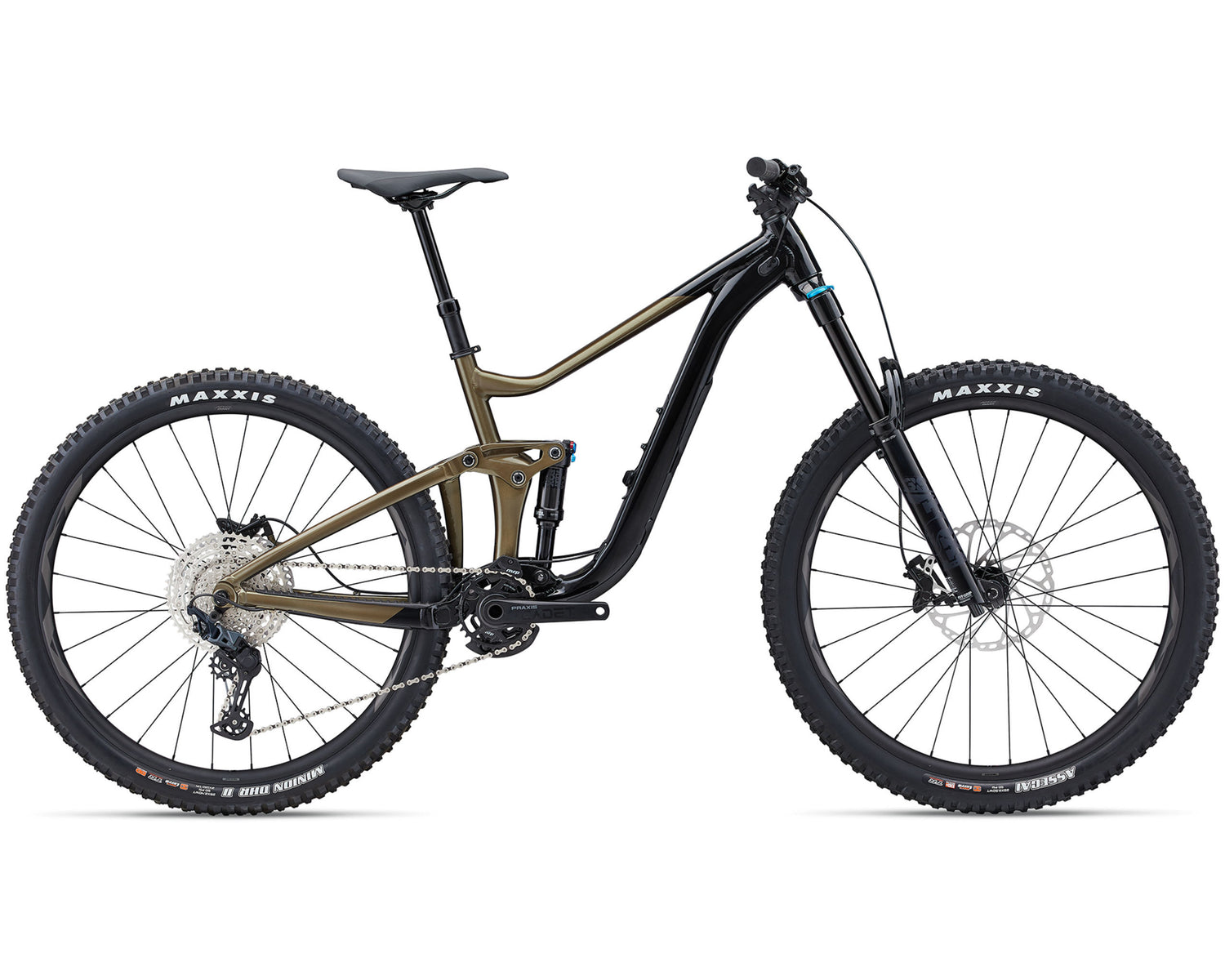

Giant Reign 2 Dual Suspension Mountain Bike (2024)

$4,299⁰⁰ ~~$4,799⁰⁰~~

ALUXX SL-Grade Aluminium front and rear triangles w/ Maestro suspension | 160mm travel
Fox 38 Rhythm fork | 170mm travel
Fox Float Performance shock
Shimano SLX 12-speed drivetrain

Colour: Black/Pyrite Brown

Giant Reign 2 Dual Suspension Mountain Bike (2024)

S M L XL

Product variants

Special Order: This product will be ordered from our supplier upon purchase and available for collection within 7-14 business days. Read T&Cs here.

Fully assembled when you Click & Collect in-store

Buy Now, Pay Later with ZIP

Free service adjustment within first 6 months

Sizing Chart

Sizing and Geometry

Giant Reign

Sizing to be used as a reference only. The best way to determine your size is to visit us in-store and take the bike for a test-ride.

Frame size	Rider height
S	163-172cm
M	171-180cm
L	179-188cm
XL	187-198cm

Geometry

bike diagram with measurements referenced in table that follows

		S	M	L	XL
		LOW \| MID \| HIGH	LOW \| MID \| HIGH	LOW \| MID \| HIGH	LOW \| MID \| HIGH
A	Seat Tube Length (mm)	400	425	450	475
A1	Seat Post Insertion Depth (mm)	257	383	308	333
B	Seat Tube Angle	78.3° \| 78.7° \| 79.0°	78.3° \| 78.7° \| 79.0°	77.3° \| 77.7° \| 78.0°	77.3° \| 77.7° \| 78.0°
C	Top Tube Length (mm)	556 \| 555 \| 555	587 \| 586 \| 585	620 \| 620 \| 619	652 \| 652 \| 651
D	Head Tube Length (mm)	100	105	115	120
E	Head Tube Angle	63.5° \| 63.9° \| 64.2°	63.5° \| 63.9° \| 64.2°	63.5° \| 63.9° \| 64.2°	63.5° \| 63.9° \| 64.2°
F	Fork Rake (mm)	44	44	44	44
G	Trail (mm)	140 \| 138 \| 135	140 \| 138 \| 135	140 \| 138 \| 135	140 \| 138 \| 135
H	Wheelbase (mm)	1214 \| 1213 \| 1212	1246 \| 1245 \| 1244	1271 \| 1270 \| 1269	1304 \| 1303 \| 1302
I	Chain Stay Length (mm)	445 \| 443 \| 442	445 \| 443 \| 442	445 \| 443 \| 442	445 \| 443 \| 442
J	Bottom Bracket Drop (mm)	35 \| 30 \| 25	35 \| 30 \| 25	35 \| 30 \| 25	35 \| 30 \| 25
K	Stack (mm)	627 \| 624 \| 622	632 \| 629 \| 626	641 \| 638 \| 635	645 \| 642 \| 639
L	Reach (mm)	426 \| 430 \| 434	456 \| 460 \| 464	476 \| 480 \| 484	506 \| 510 \| 514
M	Stand Over Height (mm)	723 \| 727 \| 732	743 \| 747 \| 752	756 \| 760 \| 765	771 \| 777 \| 782
O	Stem Length (mm)	40	40	40	40
P	Crank Length (mm)	165	170	170	170
Q	Wheel Size	29"	29"	29"	29"

Bike Shipping

Delivery is available upon specific request for our special order bikes.

Bikes may only be shipped directly to a qualified bike mechanic or bike shop of your choosing, who must complete the assembly of the bike. We strictly cannot ship an unbuilt bike direct to consumer.

The buyer is responsible for all shipping and assembly costs, and is responsible for arranging assembly with their nominated bike store or mechanic.

To request a shipping quote, please submit a request and include the delivery postcode, business name of your nominated bike shop or bike mechanic, and the exact model & frame size of the bike.

Please note: All bikes sold by Ivanhoe Cycles must be assembled by a qualified mechanic or bike shop. Any assembly undertaken without professional assistance is at the customer's risk and any injury as a result of the build without professional assistance will not be covered by the warranty.

Assembly

Every bike purchased or collected in-store at Ivanhoe Cycles is fully assembled by our qualified mechanics free of charge.

Bikes ordered online for shipping* will require partial assembly, including but not limited to: installing handlebar, seatpost, front wheel; adjusting gears and brakes; tuning suspension; installing accessories or bar tape.

Disclaimer: Ivanhoe Cycles strongly advises having your assembly completed by an experienced bicycle mechanic. Any assembly undertaken without professional assistance is at the customer's risk and any injury as a result of the build without professional assistance will not be covered by the warranty.

*Shipping is restricted to certain brands due to assembly requirements.

Returns / Cancellations

If your special ordered item arrives faulty, damaged, or is differently than described, you are entitled to a full refund or replacement.

Cancellations and returns are not accepted on special orders if the consumer:
- changed their mind
- found the item cheaper elsewhere
- decided they didn't like the purchase or had no use for it
- ordered the wrong item

For more information, please read our Special Order terms and conditions.

Sizing and Geometry

Giant Reign

Sizing to be used as a reference only. The best way to determine your size is to visit us in-store and take the bike for a test-ride.

Frame size	Rider height
S	163-172cm
M	171-180cm
L	179-188cm
XL	187-198cm

Geometry

bike diagram with measurements referenced in table that follows

		S	M	L	XL
		LOW \| MID \| HIGH	LOW \| MID \| HIGH	LOW \| MID \| HIGH	LOW \| MID \| HIGH
A	Seat Tube Length (mm)	400	425	450	475
A1	Seat Post Insertion Depth (mm)	257	383	308	333
B	Seat Tube Angle	78.3° \| 78.7° \| 79.0°	78.3° \| 78.7° \| 79.0°	77.3° \| 77.7° \| 78.0°	77.3° \| 77.7° \| 78.0°
C	Top Tube Length (mm)	556 \| 555 \| 555	587 \| 586 \| 585	620 \| 620 \| 619	652 \| 652 \| 651
D	Head Tube Length (mm)	100	105	115	120
E	Head Tube Angle	63.5° \| 63.9° \| 64.2°	63.5° \| 63.9° \| 64.2°	63.5° \| 63.9° \| 64.2°	63.5° \| 63.9° \| 64.2°
F	Fork Rake (mm)	44	44	44	44
G	Trail (mm)	140 \| 138 \| 135	140 \| 138 \| 135	140 \| 138 \| 135	140 \| 138 \| 135
H	Wheelbase (mm)	1214 \| 1213 \| 1212	1246 \| 1245 \| 1244	1271 \| 1270 \| 1269	1304 \| 1303 \| 1302
I	Chain Stay Length (mm)	445 \| 443 \| 442	445 \| 443 \| 442	445 \| 443 \| 442	445 \| 443 \| 442
J	Bottom Bracket Drop (mm)	35 \| 30 \| 25	35 \| 30 \| 25	35 \| 30 \| 25	35 \| 30 \| 25
K	Stack (mm)	627 \| 624 \| 622	632 \| 629 \| 626	641 \| 638 \| 635	645 \| 642 \| 639
L	Reach (mm)	426 \| 430 \| 434	456 \| 460 \| 464	476 \| 480 \| 484	506 \| 510 \| 514
M	Stand Over Height (mm)	723 \| 727 \| 732	743 \| 747 \| 752	756 \| 760 \| 765	771 \| 777 \| 782
O	Stem Length (mm)	40	40	40	40
P	Crank Length (mm)	165	170	170	170
Q	Wheel Size	29"	29"	29"	29"

Push new limits on challenging terrain with this enduro-ready mountain bike. Featuring 160mm of rear suspension, it smooths out rocks, drops, and rough trails with total control.

The three-position flip chip lets you fine-tune the geometry and easily switch between 29-inch and 27.5-inch rear wheels for a customised ride.

Designed for aggressive trail riders, this bike delivers precision, stability, and versatility on every descent.

Race-bred suspension

A Maestro rear suspension system with 160mm of travel was developed and tested under the extreme conditions of Enduro World Series races. The trunnion mount shock has a longer stroke (62.5mm compared to 60mm on the previous generation).

Adjustable enduro geometry

Flip chip technology lets you switch between three settings depending on the terrain. You can select a 63.5, 63.9 or 64.2-degree head angle and corresponding 78.3, 78.7 or 79-degree seat tube angle, resulting in a 35, 30 or 25mm bottom bracket drop depending on the frame size.

Rear wheel options

Riders can choose either the stock 29-inch rear wheel or switch to 27.5. The larger 29-inch option improves stability and roll-over capabilities, while the 27.5 option delivers a more agile, snappier feel. It’s a quick and easy way to adjust the bike’s handling.

Frame material

Aluminium
Frame

ALUXX SL-Grade Aluminium front and rear triangles, 160mm Maestro suspension, flip chip 3 position, 12x148mm thru-axle, 27.5 or 29-inch rear wheel compatible, integrated downtube storage, 55mm Chainline
Fork

Fox 38 Rhythm, 170mm, GRIP damper, 15x110 Kabolt X, 44mm offset, custom tuned for Giant
Shock

Fox Float Performance, custom tuned for Giant
Handlebar

Giant Contact TR35, alloy, 35mm
Grips

Giant Tactal Pro Single lock-on
Stem

Giant Contact SL 35 S:40mm, M:40mm, L:40mm, XL:40mm
Seatpost

Giant Contact Switch AT dropper, adjustable travel, remote
Saddle

Giant Romero
Pedals

N/A
Shifters

Shimano Deore SL-M6100, 1x12
Rear Derailleur

Shimano SLX RD-M7100
Brakes

Shimano Deore BR-MT520, hydraulic, Shimano RT-66 rotors [F]220mm, [R]200mm
Brake Levers

Shimano Deore BL-MT501
Cassette/Freewheel

Shimano Deore M6100, 10x51
Chain

KMC X12
Crankset

Praxis Cadet HD M24, 32t, 55mm chainline S:165mm, M:170mm, L:170mm, XL:170mm
Bottom Bracket

Praxis, press fit
Rims

Giant AM 29, tubeless ready sleeve-joint rim, 30mm inner width
Hubs

[F] Giant MTB alloy, 6-bolt [R] Giant MTB alloy, 3-pawl driver, 6-bolt
Spokes

Stainless steel
Tyres

[F] Maxxis Assegai 29x2.5 WT, 3C MaxxTerra, EXO+, TR [R] Maxxis Minion DHR II 29x2.4 WT, 3C MaxxTerra, DD, TR tubeless
Extras

Tubeless prepared, 2.5" max tyre size, 36t max chainring size, MRP AMG CS chain guide
Notes

Please note that, based on component availability and other factors, specifications are subject to change without notice.
Speeds (rear)

12 Speed
Age Group

Adults, Teenagers
Gender

Mens, Unisex
Discipline

Mountain
SKUs

Black/Pyrite Brown/S: 9125002104, Black/Pyrite Brown/M: 9125002105, Black/Pyrite Brown/L: 9125002107, Black/Pyrite Brown/XL: 9125002108
