Giant Revolt Advanced 0 (2025)

$5,19900
Colour: Prizmatic Haze
Size

PICKUP IN-STORE ONLY. Shipping not available on bikes.

 More payment options
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay

Fully assembled, ready to ride
Buy Now, Pay Later with ZIP
Free service adjustment within first 6 months

Warehouse - Out of stock
,
Heidelberg Heights - Out of stock
72 Bell Street Heidelberg Heights, Victoria 3081
+61394505200
Hoppers Crossing - Out of stock
319 Old Geelong Road Hoppers Crossing, Victoria 3029
+61387421975
Hallam - Out of stock
21/2-10 Hallam South Road Hallam, Victoria 3803
+61387951600
Supplier Warehouse - Out of stock
, Victoria
Order from supplier. Usually despatched within 7 days.

Sizing Chart

Sizing and Geometry

Giant Revolt

Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.

Sizing Rider Height Rider Height (cm)
S 5′ 3″ – 5′ 7″ 159 – 171
M 5′ 7″ – 5′ 11″ 169 – 181
ML 5′ 9″ – 6′ 1″ 174 – 186
L 5′ 10″ – 6′ 3″ 179 – 191
XL 6′ 2″ – 6′ 7″ 189 – 200


Geometry

bike diagram with measurements referenced in table that follows

    XS S M ML L XL
    SHORT | LONG SHORT | LONG SHORT | LONG SHORT | LONG SHORT | LONG SHORT | LONG
A Seat Tube Length (mm) 430 450 470 490 510 530
B Seat Tube Angle 74.0° 73.5° 73.5° 73.0° 73.0° 73.0°
C Top Tube Length (mm) 540 550 560 575 585 600
D Head Tube Length (mm) 125 135 150 165 180 195
E Head Tube Angle 70.0° 71.0° 71.5° 72.0° 72.0° 72.0°
F Fork Rake (mm) 50 50 50 50 50 50
G Trail (mm) 78 | 82 72 | 75 68 | 72 65 | 68 65 | 68 65 | 68
H Wheelbase (mm) 1024 | 1034 1020 | 1030 1026 | 1036 1031 | 1041 1041 | 1051 1056 | 1066
I Chain Stay Length (mm) 425 | 435 425 | 435 425 | 435 425 | 435 425 | 435 425 | 435
J Bottom Bracket Drop (mm) 80 | 81 80 | 81 80 | 81 80 | 81 80 | 81 80 | 81
K Stack (mm) 556 570 586 602 616 630
L Reach (mm) 381 381 387 391 397 407
M Stand Over Height (mm) 724 | 731 740 | 747 757 | 764 774 | 780 791 | 797 807 | 814
O Stem Length (mm) 50 60 70 80 80 90
P Crank Length (mm) 170 170 172.5 172.5 175 175
Q Wheel Size 700c 700c 700c 700c 700c 700c

Shipping Information

Certain bike brands cannot be shipped and are only available for Click and Collect.

These include but are not limited to the following brands: Giant, GT, Liv, Momentum and Mongoose.

For all other brands, we can provide a shipping quote to your postcode. Please contact us by email at staff@ivanhoecycles.com.au, or text us on 0417 122 950.

Giant Revolt Advanced 0 (2025)

For those who like their gravel riding fast and free, this lightweight composite flyer lets you choose your objective:

Pin on a number and go for the win, or chart a weekend adventure and discover how far you can go.

With a new composite frameset featuring fully integrated cable housing, this lively gravel bike helps you push your limits on variable terrain.

The D-Fuse seatpost and handlebar absorb shocks and vibrations, giving you greater control and less fatigue.

A flip chip on the all-new, full composite rear dropout adjusts wheelbase and tyre clearance, and you can choose the included D-Fuse seatpost for maximum compliance or a 30.9mm round seatpost or dropper post.

Details include a new internal storage compartment on the down tube and additional frame mounts to add bottle cages, racks and other accessories.

Fast and Versatile

An Advanced-grade composite frame and fork combine for lightweight efficiency and smooth control.

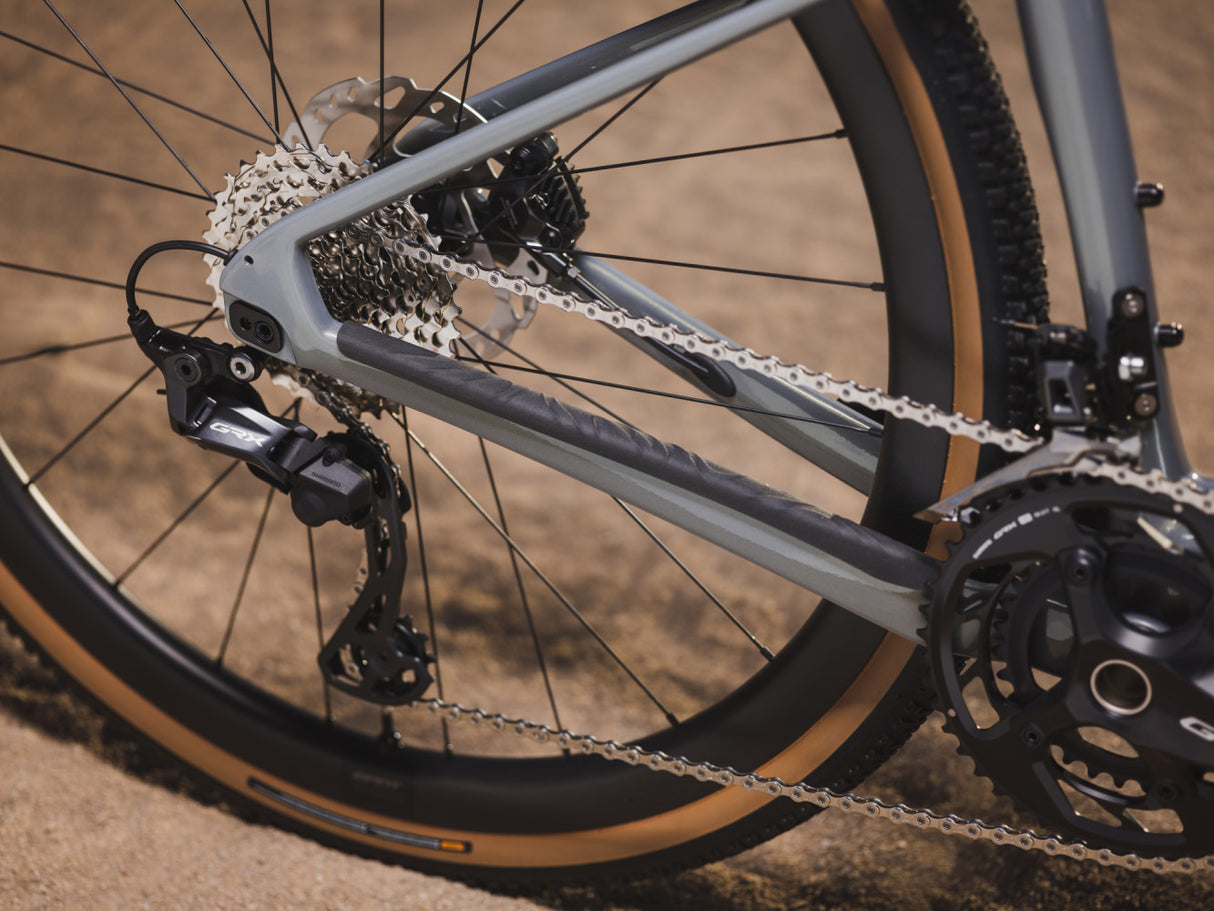

A two-position flip chip on the rear dropout lets you adjust the wheelbase: short for quicker handling, or long for added tyre clearance (up to 53mm) and improved stability.

You can use the included D-Fuse seatpost* for more flex and compliance, or switch to a traditional 30.9mm round seatpost or dropper post.

TUNED COMPLIANCE

Dropped seatstays with small-diameter tubing absorb road shocks and vibrations on all types of gravel. The Contact SL XR D-Fuse alloy handlebar and carbon D-Fuse seatpost* help smooth out rough tracks, improving control and minimising fatigue over long distances.

SMART INTEGRATION

Internally routed cables offer clean, uncluttered cockpit aesthetics and improved aero performance. An easily accessed storage compartment inside the top tube lets you securely carry tools, snacks and other essentials. And additional integrated mounts on the top tube, fork and rear dropout make it easy to modify with additional packs or fenders. All-new, moulded, chainstay and down tube protection help defend the frame against impacts and quell noise.


New content loaded

Giant Revolt Advanced 0 (2025)

$5,19900

Colour

Size

  • XS
  • S
  • M
  • ML
  • L
  • XL

Motor

N/A

Controller

N/A

Display

N/A

Battery

N/A

Charger

N/A

Sizes

N/A

Frame material

Carbon

Frame

Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout, down tube storage

Fork

Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc

Handlebar

Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm

Grips

N/A

Bar Tape

Stratus Lite 3.0

Headset

N/A

Stem

Giant Contact AeroLight, -10 degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm

Seatpost

Giant D-Fuse SL, composite, -5/+15mm offset

Saddle

Giant Approach

Pedals

N/A

Shifters

Shimano GRX RX-820, 2x12

Front Derailleur

Shimano GRX RX-820

Rear Derailleur

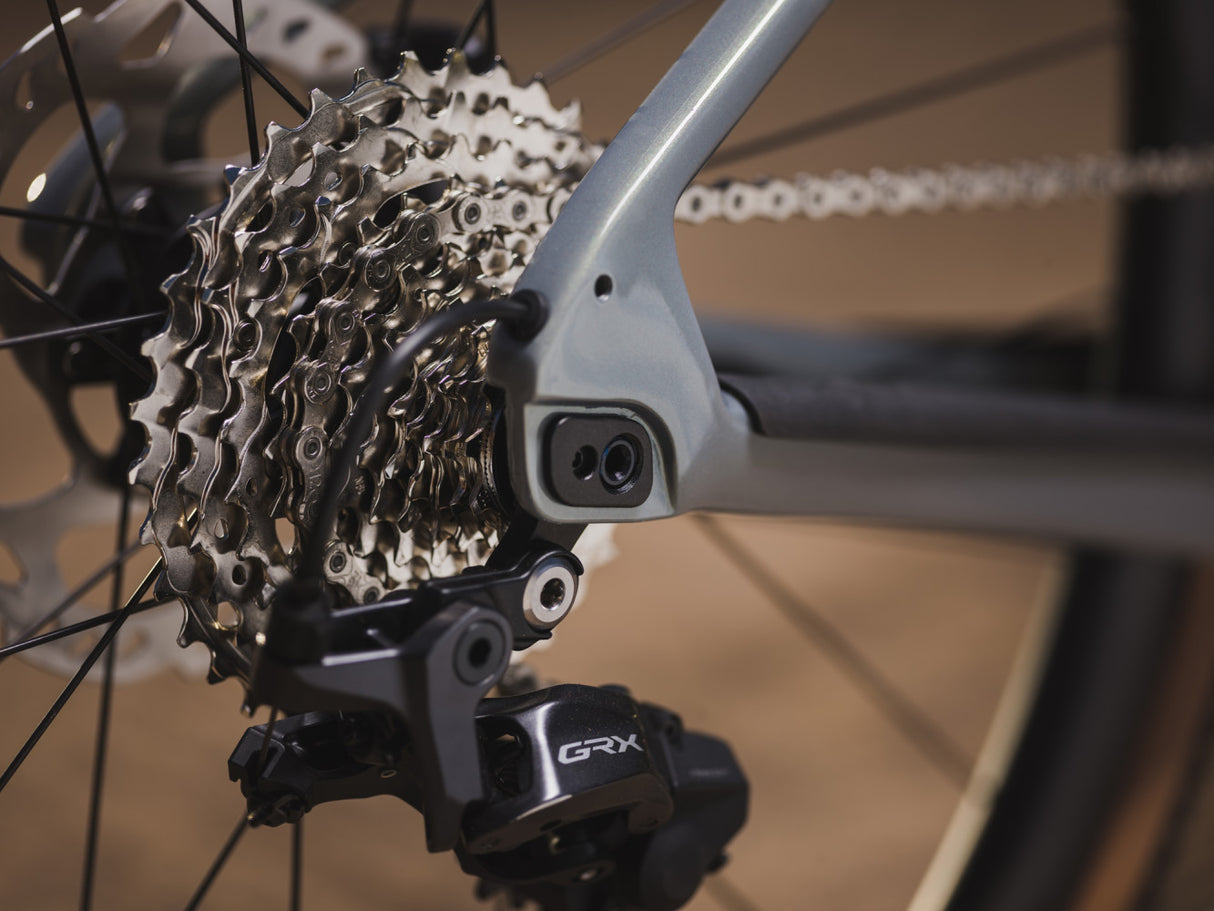

Shimano GRX RX-820

Brakes

Shimano GRX RX-820 hydraulic, Shimano SM-RT70 rotors [F]160mm, [R]160mm

Brake Levers

Shimano GRX RX-820 hydraulic

Cassette/Freewheel

Shimano CS-HG710, 12-speed, 11x36

Chain

KMC X12L-1

Crankset

Shimano GRX RX-820, 31/48 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm

Bottom Bracket

Shimano, press fit

Rims

Giant CXR 2 Carbon Disc WheelSystem, [F] 35mm, [R] 35mm

Hubs

[F] Giant alloy, CenterLock, 12mm thru-axle [R] Giant alloy, 3-pawl 36t driver, CenterLock, 12mm thru-axle

Spokes

Sapim Sprint

Tyres

CADEX GX, 700x40c, tubeless

Wheel Size

N/A

Extras

Tubeless prepared, 53mm max ttre size in "long" flip chip position, 45mm max tyre size in "short" flip chip position, in-frame storage bag
