Liv  |  SKU: 9017036124

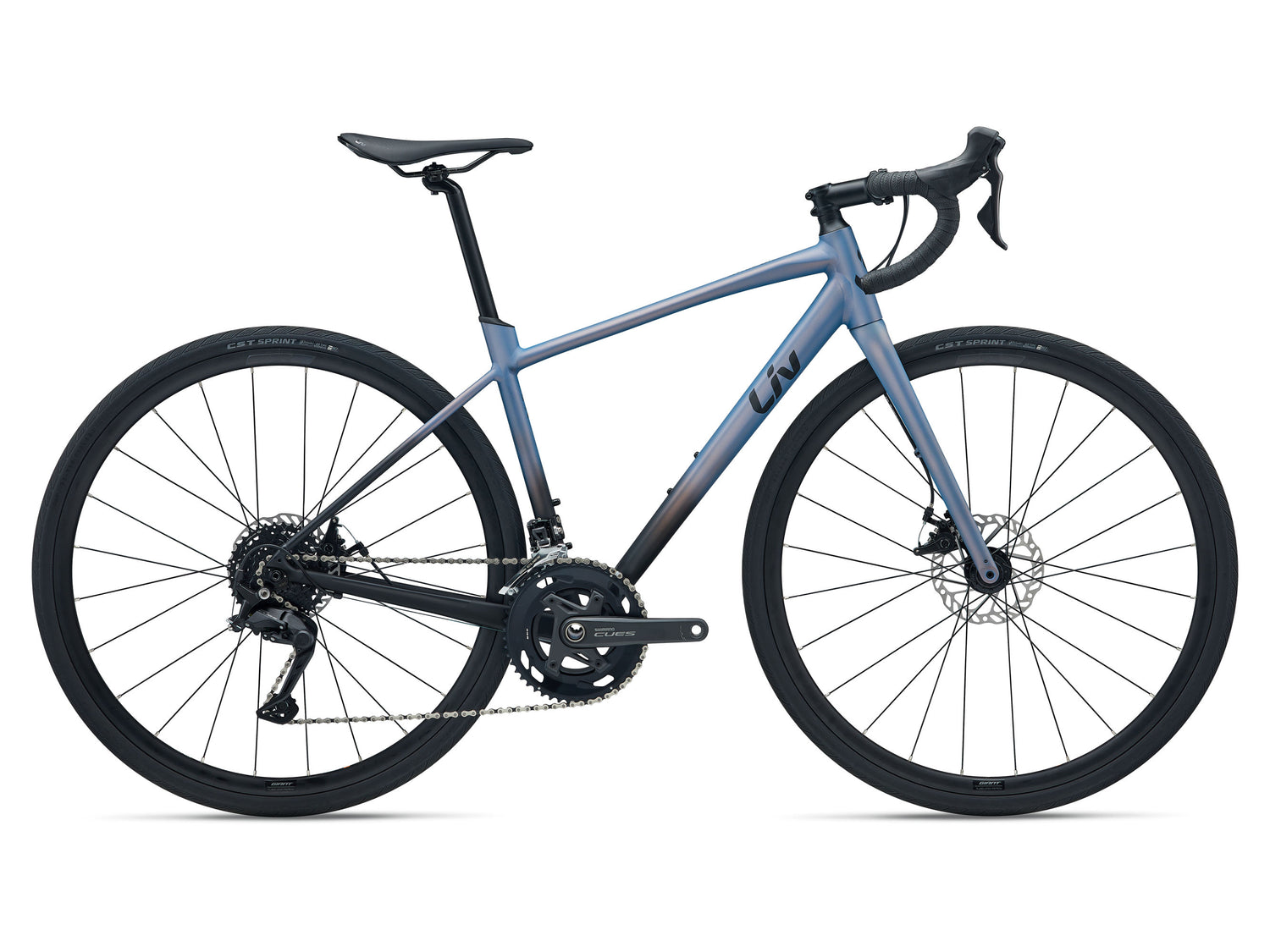

Liv Avail AR 3 (2026)

$1,79900
  • Lightweight alloy frame
  • Shimano Cues 2x9s gears
  • Tektro mechanical disc brakes
  • Alloy wheelset with CST 700x33c tyres. 38mm max tyre clearance
Colour: Lunar Eclipse
Size

Pickup in-store only. Shipping not available.
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay

Sizing Chart

Sizing to be used as a reference only.

SIZE CHART

Size Height (cm) Height (feet)
XS 153 cm – 162 cm 5’0” – 5’4”
S 158 cm – 169 cm 5’2” – 5’7”
M 165 cm – 174 cm 5’5” – 5’9”



GEOMETRY

bike diagram with measurements referenced in table that follows

Size XS S M
mm inch mm inch mm inch
A Seat Tube Length 430 16.9 465 18.3 500 19.7
B Seat Tube Angle 75.0° 74.5° 74.0°
C Top Tube Length 515 20.3 525 20.7 540 21.3
D Head Tube Length 135 5.3 150 5.9 170 6.7
E Head Tube Angle 70.5° 72.0° 72.0°
F Fork Rake 45 1.8 45 1.8 45 1.8
G Trail 73 2.9 63.5 2.5 63.5 2.5
H Wheelbase 998 39.3 990 39.0 1000 39.4
I Chain Stay Length 420 16.5 420 16.5 420 16.5
J Bottom Bracket Drop 70 2.8 70 2.8 70 2.8
K Stack 530 20.9 550 21.7 569 22.4
L Reach 372 14.6 372 14.6 377 14.8
M Stand Over Height 687 27.0 716 28.2 744 29.3
O Stem Length 70 2.8 80 3.1 90 3.5
P Crank Length 165 6.5 170 6.7 170 6.7

Shipping Information

Certain bike brands cannot be shipped and are only available for Click and Collect.

These include but are not limited to the following brands: Giant, GT, Liv, Momentum and Mongoose.

For all other brands, we can provide a shipping quote to your postcode. Please contact us by email at staff@ivanhoecycles.com.au, or text us on 0417 122 950.

Fully assembled when you Click & Collect in-store
Buy Now, Pay Later with ZIP
Free service adjustment within first 6 months

Whether it’s navigating asphalt or venturing through an unpaved shortcut, the Avail AR is smooth on flats, spry on climbs and confident on descents.

Comfort

The lightweight ALUXX aluminium frame features the latest endurance geometry with an Advanced-grade composite fork and D-Fuse seatpost to diminish vibrations.

Control

The 32c tyres provide stability on both road and off-road surfaces, with compatibility for tubeless tyres up to 38c. The OverDrive steerer and powerful disc brakes ensure precise handling and reliable stopping power, giving you confidence on any terrain.

Carrying Capacity

Equipped with frame mounts for racks and fenders, the Avail AR ensures you're ready for longer journeys with all the necessary gear and protection.



SPECIFICATIONS

Sizes XS, S, M
Colours Lunar Eclipse
Frame ALUXX-grade aluminum, 12x142mm thru-axle, disc
Fork Advanced-grade composite, full-composite OverDrive steerer, 12x100mm, disc
Shock N/A
Handlebar Liv Connect, 31.8mm XS:38cm, S:40cm, M:40cm
Grips Liv All Condition
Stem Giant Sport XS:70mm, S:80mm, M:90mm
Seatpost Giant D-Fuse, alloy, 14mm offset
Saddle Liv Approach
Pedals N/A
Shifters Shimano CUES U3030
Front Derailleur Shimano Cues U6030F
Rear Derailleur Shimano Cues U4020-9
Brakes Tektro MD-C550 mechanical, Giant MPH rotors, [F]160mm, [R]160mm
Brake Levers Shimano CUES U3030
Cassette Shimano CS-LG300, 9-speed, 11x36
Chain KMC X11
Crankset Shimano Cues FCU6030-2, 34/50 XS:165mm, S:170mm, M:170mm
Bottom Bracket Shimano BB-RS501
Rims Giant P-R2, [F]30mm, [R]30mm
Hubs Giant alloy, 12mm thru-axle
Spokes stainless
Tires CST Sprint, 700x33c
Extras 38mm max tyre size
Max Tyre Clearance 38mm
Weight The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Liv Avail AR 3 (2026)

$1,79900

Colour

Size

  • XS
  • S
  • M

Motor

N/A

Controller

N/A

Display

N/A

Battery

N/A

Charger

N/A

Sizes

N/A

Frame material

Aluminium

Frame

ALUXX-grade aluminum, 12x142mm thru-axle, disc

Fork

Advanced-grade composite, full-composite OverDrive steerer, 12x100mm, disc

Handlebar

Liv Connect, 31.8mm XS:38cm, S:40cm, M:40cm

Grips

N/A

Bar Tape

Liv All Condition

Headset

N/A

Stem

Giant Sport XS:70mm, S:80mm, M:90mm

Seatpost

Giant D-Fuse, alloy, 14mm offset

Saddle

Liv Approach

Pedals

N/A

Shifters

Shimano CUES U3030

Front Derailleur

Shimano Cues U6030F

Rear Derailleur

Shimano Cues U4020-9

Brakes

Tektro MD-C550 mechanical, Giant MPH rotors, [F]160mm, [R]160mm

Brake Levers

Shimano CUES U3030

Cassette/Freewheel

Shimano CS-LG300, 9-speed, 11x36

Chain

KMC X11

Crankset

Shimano Cues FCU6030-2, 34/50 XS:165mm, S:170mm, M:170mm

Bottom Bracket

Shimano BB-RS501

Rims

Giant P-R2, [F]30mm, [R]30mm

Hubs

Giant alloy, 12mm thru-axle

Spokes

Stainless

Tyres

CST Sprint, 700x33c

Wheel Size

N/A

Extras

38mm max tyre size
