Liv Tempt E+ 3 (2022)
Liv Tempt E+ 3 (2022) - Gunmetal Black / L (29) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Sizing Chart
Sizing Chart
Sizing and Geometry
Liv Tempt
Sizing to be used as a reference only. The best way to determine your size is to visit us in-store and take the bike for a test-ride.

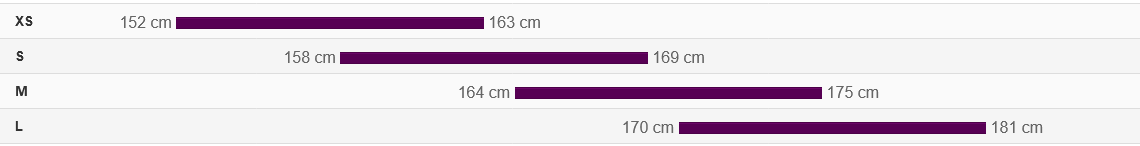

| Frame size | Rider height |
| S (29") | 158-169cm |
| M (29") | 164-175cm |
| L (29") | 170-181cm |
Geometry
| S (29") | M (29") | L (29") | ||
|---|---|---|---|---|
| A | Seat Tube Length (mm) | 370 | 420 | 450 |
| A1 | Seat Post Insertion Depth (mm) | 320 | 375 | 220 |
| B | Seat Tube Angle | 74.0° | 74.0° | 74.0° |
| C | Top Tube Length (mm) | 570 | 590 | 610 |
| D | Head Tube Length (mm) | 90 | 95 | 105 |
| E | Head Tube Angle | 68.5° | 68.5° | 68.5° |
| F | Fork Rake (mm) | 51 | 51 | 51 |
| G | Trail (mm) | 94.3 | 94.3 | 94.3 |
| H | Wheelbase (mm) | 1119 | 1139 | 1160 |
| I | Chain Stay Length (mm) | 455 | 455 | 455 |
| J | Bottom Bracket Drop (mm) | 55 | 55 | 55 |
| K | Stack (mm) | 596 | 601 | 610 |
| L | Reach (mm) | 399 | 418 | 435 |
| M | Stand Over Height (mm) | 705 | 737 | 757 |
| O | Stem Length (mm) | 40 | 50 | 50 |
| P | Crank Length (mm) | 170 | 170 | 175 |
| Q | Wheel Size | 29" | 29" | 29" |
Shipping Information
Shipping Information
Certain bike brands cannot be shipped and are only available for Click and Collect.
These include but are not limited to the following brands: Giant, GT, Liv, Momentum and Mongoose.
For all other brands, we can provide a shipping quote to your postcode. Please contact us by email at staff@ivanhoecycles.com.au, or text us on 0417 122 950.
Sizing and Geometry
Liv Tempt
Sizing to be used as a reference only. The best way to determine your size is to visit us in-store and take the bike for a test-ride.
| Frame size | Rider height |
| S (29") | 158-169cm |
| M (29") | 164-175cm |
| L (29") | 170-181cm |
Geometry
| S (29") | M (29") | L (29") | ||
|---|---|---|---|---|
| A | Seat Tube Length (mm) | 370 | 420 | 450 |
| A1 | Seat Post Insertion Depth (mm) | 320 | 375 | 220 |
| B | Seat Tube Angle | 74.0° | 74.0° | 74.0° |
| C | Top Tube Length (mm) | 570 | 590 | 610 |
| D | Head Tube Length (mm) | 90 | 95 | 105 |
| E | Head Tube Angle | 68.5° | 68.5° | 68.5° |
| F | Fork Rake (mm) | 51 | 51 | 51 |
| G | Trail (mm) | 94.3 | 94.3 | 94.3 |
| H | Wheelbase (mm) | 1119 | 1139 | 1160 |
| I | Chain Stay Length (mm) | 455 | 455 | 455 |
| J | Bottom Bracket Drop (mm) | 55 | 55 | 55 |
| K | Stack (mm) | 596 | 601 | 610 |
| L | Reach (mm) | 399 | 418 | 435 |
| M | Stand Over Height (mm) | 705 | 737 | 757 |
| O | Stem Length (mm) | 40 | 50 | 50 |
| P | Crank Length (mm) | 170 | 170 | 175 |
| Q | Wheel Size | 29" | 29" | 29" |
Liv Tempt E+ 3 (2022)
MORE THAN JUST A WAY TO GET AROUND, TEMPT E+ POWERS YOUR LIFE WITH THE FREEDOM TO FIND YOUR JOY.
The Tempt E+ is fully outfitted with 100mm front suspension, hydraulic disc brakes, and plenty of power assist to get you up those hills with a smile on your face.
Designed to match you with just the right wheel size for balance and manoeuvrability, XS and S frames come with 27.5-inch wheels, while M and L frames come with 29-inch wheels.
The handlebar-mounted RideControl ONE lets you adjust riding modes, and it has key data indicators – battery level and support level.
Tempt E+ gives you the power to choose from five levels of assistance, so you can control your speed, how hard you want to pedal, and extend the battery life.
Built specifically for women in both frame geometry and contact points, along with an integrated battery and motor design, Tempt E+ provides a speedy power-assisted ride.
RELIABLE
An attractive price point gives you access to new trails and experiences thanks to the large range of the ultra-reliable EnergyPak battery.
INTEGRATED DESIGN
The reliable and easy-to-access EnergyPak side-release battery is beautifully integrated into a lightweight and durable ALUXX-Grade aluminium frame, designed and tuned for women using Liv’s 3F Design Philosophy.
SMOOTH
SyncDrive Core motor with 50Nm torque creates a natural yet powerful riding feel.
SPECIFICATIONS
| Sizes | XS(27.5”), S(27.5”), M(29”), L(29”) |
| Colour | Gunmetal Black |
| Motor | SyncDrive Core, 50Nm, Powered by Yamaha |
| Battery | EnergyPak 400Wh |
| Controls | RideControl Dash // Full colour LCD screen |
| Display | RideControl Dash // Full colour LCD screen |
| Charger | EnergyPak 4A fast charger |
| Frame | ALUXX-grade aluminum |
| Fork | SR Suntour XCM ATB Coil 100mm travel |
| Shock | NA |
| Handlebar | Giant Connect TR Riser 31.8mm |
| Grips | Liv Connect Ergo |
| Stem | Giant Sport // 7 degree // XS: 40, S:40mm, M:50mm, L:60mm |
| Seatpost | Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium |
| Saddle | Liv Sport |
| Pedals | Platform |
| Shifters | Shimano Altus |
| Front Derailleur | NA |
| Rear Derailleur | Shimano Alivio, 9 speed |
| Brakes | Tektro HD-M286, hydraulic // [F]180mm, [R] 160mm |
| Brake Levers | Tektro HD-M286 |
| Cassette | Shimano HG200, 11T-36T, 9 speed |
| Chain | KMC e.9 Sport, e-bike optimized |
| Crankset | Forged alloy, 36T // XS:165mm, S:165mm, M:170mm, L:170mm |
| Bottom Bracket | NA |
| Rims | Giant alloy disc |
| Hubs | Giant eTracker Sport |
| Spokes | Stainless Steel |
| Tyres | Maxxis Rekon 2.40” // XS:27.5”, S-L:29” |
-
Motor
-
Controller
-
Display
-
Battery
-
Charger
-
Frame material
-
Frame
-
Fork
-
Handlebar
-
Grips
-
Stem
-
Seatpost
-
Saddle
-
Pedals
-
Shifters
-
Front Derailleur
-
Rear Derailleur
-
Brakes
-
Brake Levers
-
Cassette/Freewheel
-
Chain
-
Crankset
-
Bottom Bracket
-
Rims
-
Hubs
-
Spokes
-
Tyres
-
Notes
-
Speeds (rear)9 Speed
-
Age GroupAdults
-
GenderWomens
-
DisciplineMountain, Electric
