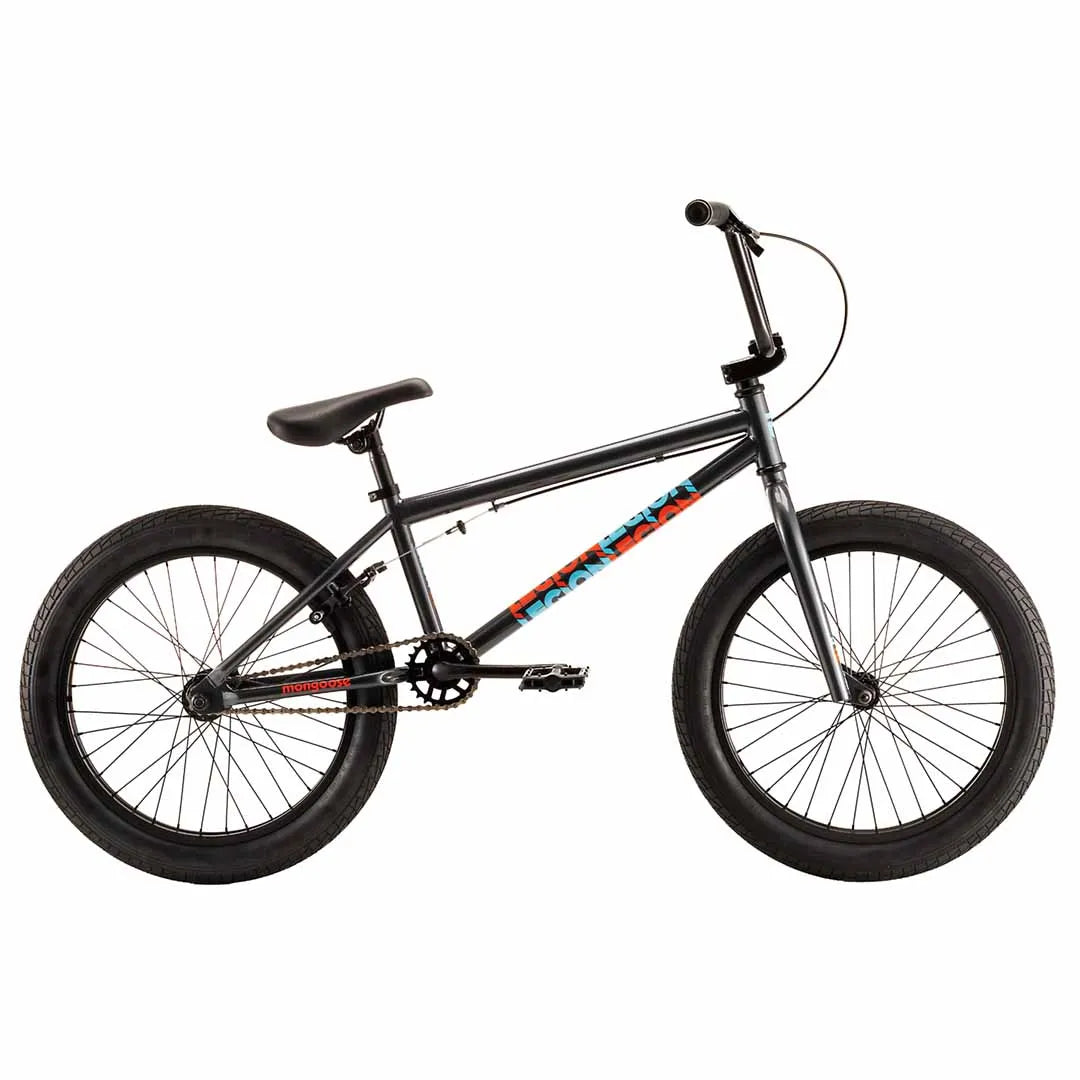

20" Mongoose Legion L10 (2025)
Mongoose Legion L10 BMX
20" Top Tube | Ages 6-8 years
With the Legion Series, Mongoose offers a full line of freestyle BMX bikes for riders of all ages and ability levels. The Legion L10 is a great first 20” BMX bike that features the geometry and feel preferred by today’s riders!
SPECIFICATIONS
| Frame | Hi-Ten steel, BMX freestyle geometry |
| Fork | Hi-Ten steel |
| Crank | 3-piece, tubular chromoly, 25T steel chainring |
| Chain | KMC S1 |
| Bottom Bracket | American loose ball |
| Rear Cog | Single-speed, 9T cassette driver |
| Rims | Aluminum single wall, 24 mm ID, 36H |
| Front Hub | Steel, ball bearing, 3/8 in axle, 36H |
| Rear Hub | Steel, ball bearing, 3/8 in axle, 36H |
| Spokes | 14G, steel, black |
| Tyres | 20 in x 2.25 in, wire bead |
| Pedals | Mongoose, nylon |
| Brakes | U-brake, aluminum |
| Handlebar | Mongoose, Hi-Ten steel, 27.5 in width, 8 in rise |
| Stem | Mongoose, threadless top load, 48 mm |
| Headset | Threadless, 1-1/8” external, retainer bearing |
| Seat Post | Steel, 250 mm, 25.4 mm |
| Saddle | Mongoose, steel rails |
| Grips | Mongoose Mush, 145 mm |
| Sizes | One size |
| Extras | Brake detangler |
-
Pedals
-
Notes
-
Speeds (rear)Single Speed
-
Age GroupKids, Teenagers
-
GenderGirls, Boys, Unisex, Mens, Womens
-
DisciplineBMX
-
SKUCharcoal: M41363U10OS
