Norco  |  SKU: 058817752711

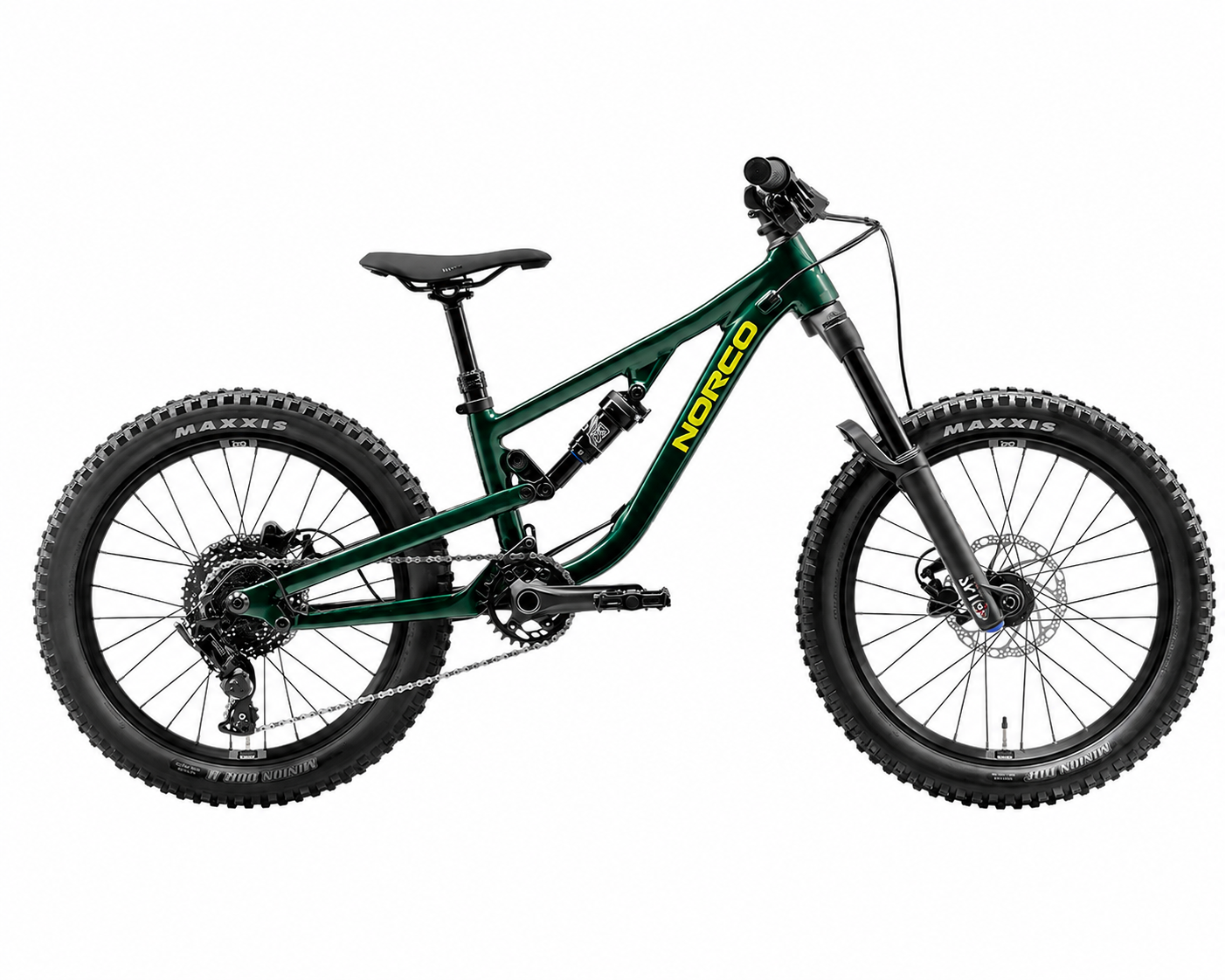

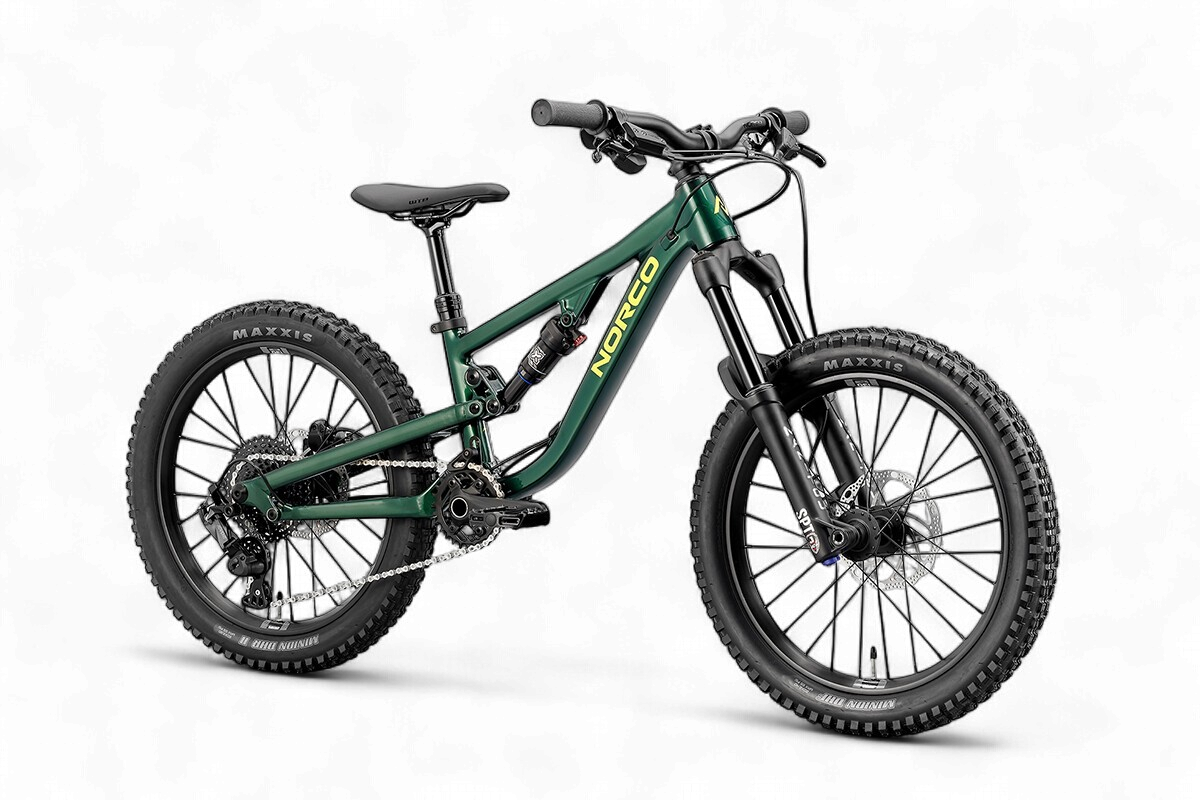

20" Norco Fluid FS Youth (2026)

$2,49900
  • Recommended Age: 7-10 / Rider Height 3'8" - 4'3"
  • 120mm Full Suspension
  • microSHIFT Advent 9-speed gears
  • Hydraulic disc brakes
  • Dropper seatpost, kids-specific tune
Colour: Dark Metallic Green
Size

Pickup in-store only. Shipping not available.
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay

Sizing Chart

Sizing and Geometry

Norco Fluid FS Aluminium

Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.

Frame Size Rider Height
S 155 - 165cm
M 164 - 174cm
L 173 - 182cm
XL 183 - 192cm
XXL 190 - 200cm


Geometry



Norco Fluid FS Aluminium Geometry
Measure (mm) SM MD LG XL XXL
Seat tube length 360 390 410 460 510
Seat tube angle effective 76° 76.3° 76.7° 77° 77.3°
Top tube horizontal 574 602 630 659 687
Head tube angle 65.0° 65.0° 65.0° 65.0° 65.0°
Standover 678 690 699 736 767
Head tube length 110 120 130 140 150
Stem length 40 40 40 40 40
Wheelbase 1166 1205 1245 1284 1323
Chainstay length 425 430 435 440 445
Crank length 175 175 175 175 175
Bottom bracket drop 30 30 30 30 30
Bottom bracket height 348 348 348 348 348
Trail 128 128 128 128 128
Stack 617 626 635 644 653
Reach 420 450 480 510 540
Travel front 140 140 140 140 140
Travel rear 130 130 130 130 130

Shipping Information

This product: Pickup in-store only. Shipping not available.

Shipping available†

We offer shipping on select brands including: Rocky Mountain, Orbea, XDS, Icon, Jamis, Shogun, Schwinn, BYK, Kidvelo. These bikes are shipped unbuilt in their original box.

†Only bikes stocked at our Warehouse location are available for shipping.

Shipping upon request to your local bike shop

Some brands require the bike is delivered directly to a bicycle shop or mechanic for assembly, and shipping is not available to your residence. These include GT, Cannondale, .

Request a shipping quote to proceed.

Pickup in-store only

Certain bike brands cannot be shipped and are only available for Click and Collect or purchase in-store.

These include but are not limited to the following brands: Giant, Norco, Liv, Momentum, Malvern Star and Mongoose.

Pre-assembled bikes

†Any bikes in stock at our Heidelberg Heights, Hallam or Hoppers Crossing store locations are already fully assembled, and therefore only available for Click and Collect or purchase in-store.

Fully assembled when you Click & Collect
Buy Now, Pay Later with ZIP
Free service adjustment in first 6 months

The Fluid FS 20 features progressive handling, low standover, youth-tuned suspension and a dropper that is optimized for 7-10-year-old riders below 40 kgs.

Built for young riders who are ready to tackle real mountain bike trails, this full-suspension bike delivers the confidence, control and capability to keep up with bigger adventures. Its lightweight alloy frame, 120mm of front and rear suspension travel and trail-ready geometry help smooth out rough terrain, while quality components from Manitou, X-Fusion, microSHIFT and Maxxis provide reliable performance ride after ride. Powerful hydraulic disc brakes and a dropper seatpost give young riders more confidence on technical descents, making it an ideal choice for progressing skills on everything from local trails to bike parks.

FEATURES

  • 120mm full suspension – Smooths out bumps for greater comfort and control on rough trails.
  • Lightweight 6061 alloy frame – Strong, durable and easier for young riders to handle.

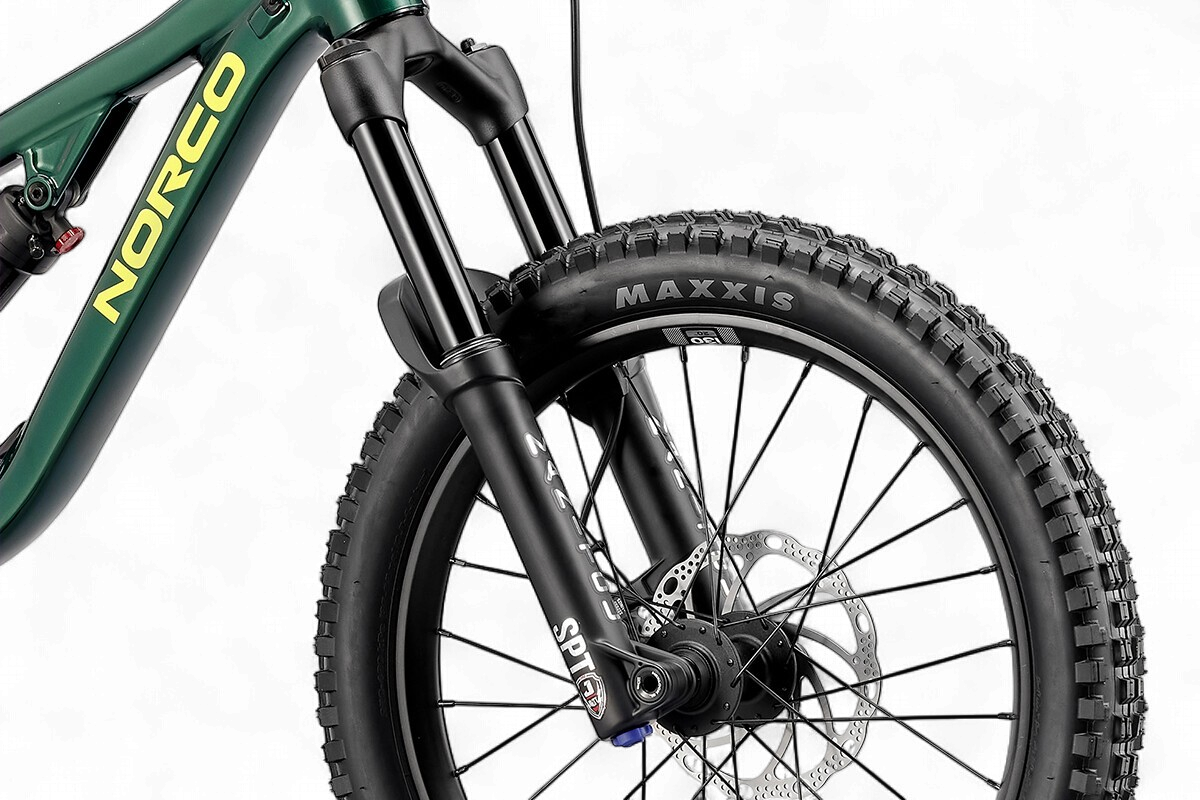

  • Manitou JUNIT 120mm suspension fork – Absorbs impacts to improve grip and steering confidence.
  • X-Fusion rear shock – Keeps the rear wheel planted for better traction and a smoother ride.

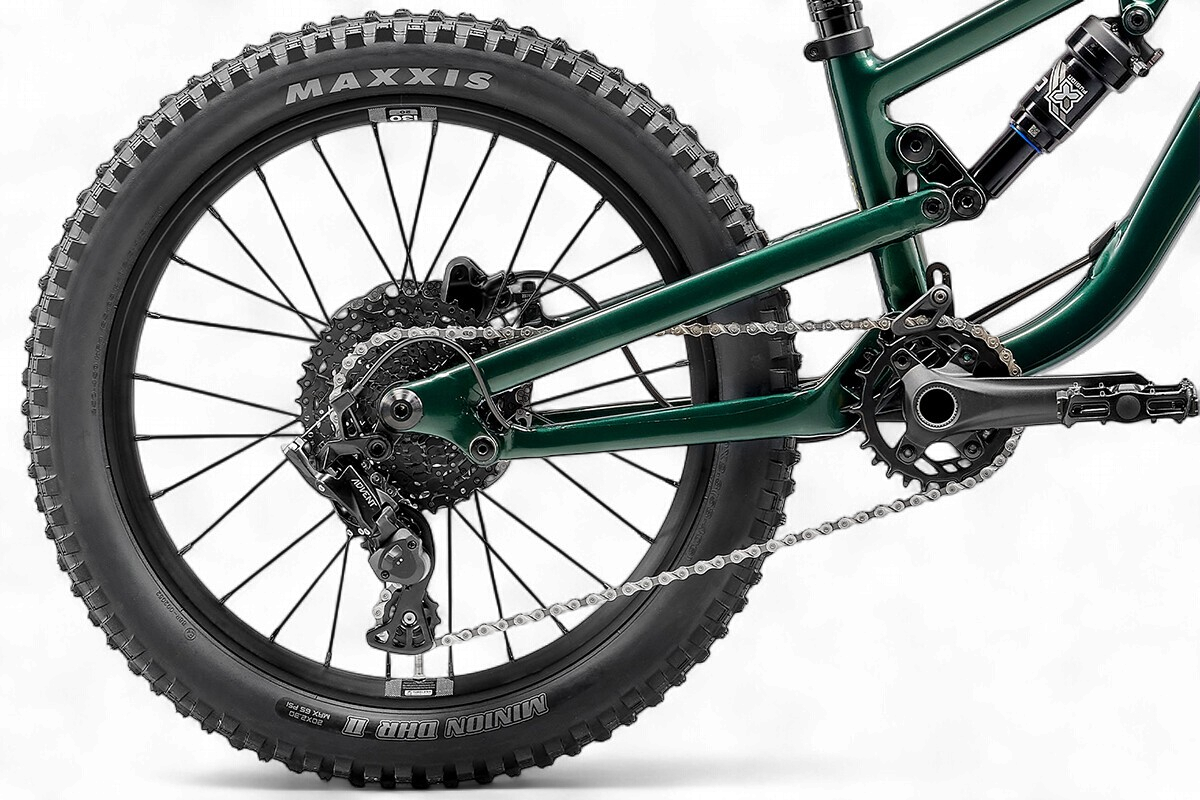

  • microSHIFT Advent 9-speed drivetrain – Simple, reliable shifting with a wide gear range for climbs and descents.
  • Clutch rear derailleur – Reduces chain slap and helps prevent dropped chains on rough terrain.
  • Hydraulic disc brakes – Powerful, consistent braking with light lever effort for smaller hands.
  • TranzX kids-tuned dropper seatpost – Lower the saddle instantly for more confidence on descents and technical sections.
  • Maxxis Minion DHF & DHR II tyres – Excellent grip and predictable handling in loose, rocky and muddy conditions.
  • Boost hubs and tubeless-ready WTB rims – Stronger wheels with the option to run tubeless for improved grip and fewer punctures.

SPECIFICATIONS

Frame 6061 Alloy, 120mm Travel, UDH
Fork Manitou JUNIT Sport 20", 120mm Travel, 40mm Offset, alloy stanchion
Rear Shock X-Fusion 02 Pro R, 170x30mm Standard, A-Tune Soft
Rear Shifter microSHIFT Advent, 9spd
Rear Derailleur microSHIFT Advent, 9spd, Short Cage Clutch
Crankset Prowheel Junior Alloy, 28T, 127mm
Bottom Bracket Prowheel Cartridge BB
Cassette microSHIFT Advent, 11-38T, 9spd
Chain KMC X9, 9spd
Front Brake Tektro HD-J285, 2-P, Resin Pads, 2 finger lever blade
Front Brake Rotor Tektro TR160-22, 160mm, 6-bolt
Rear Brake Tektro HD-J285, 2-P, Resin Pads, 2 finger lever blade
Rear Brake Rotor Tektro TR160-22, 160mm, 6-bolt
Brake Levers Tektro HD-J285

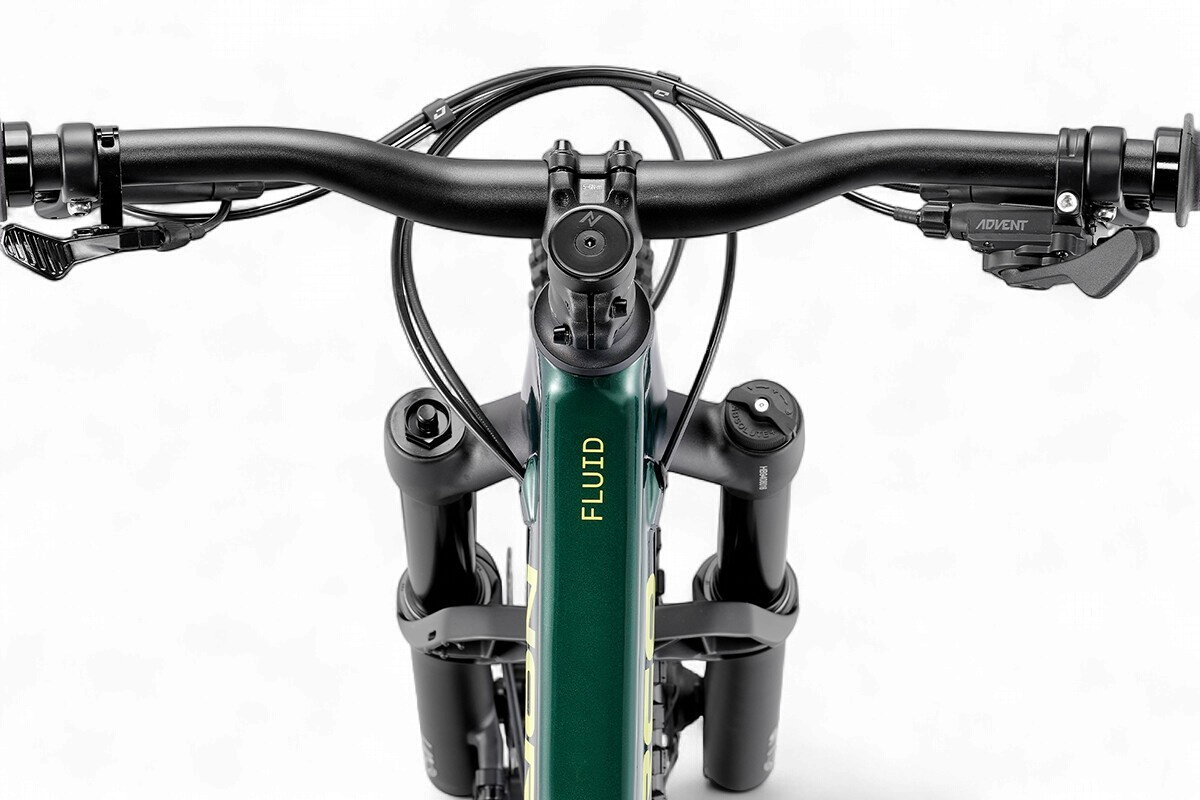

Handlebar Norco 6061 Alloy DB, 660mm, 20mm Rise
Stem Norco 6061, 35mm Length, 31.8mm Clamp
Seatpost TranzX YSP18BKL, 31.6mm, 100mm, Kids Tune
Headset Tapered 1-1/8"–1.5" (ZS44/28.6 | ZS56/40)
Saddle WTB Solano Med, 142 x 240mm, Steel Rails
Grips Norco Youth Lock-On, 115mm Length
Seatpost Clamp Norco Alloy Nutted Clamp, 34.9mm ID
Front Hub Formula DC-511, 15x110mm Boost, 28h, 6-bolt
Rear Hub Formula DC-3248, 12x148mm Boost, HG, 28h, 6-bolt
Rims WTB TCS 2.0, 27mm Internal Width, 28H
Front Tyre Maxxis Minion DHF, EXO, 20 x 2.4", Folding
Rear Tyre Maxxis Minion DHR II, EXO, 20 x 2.3", Folding

20" Norco Fluid FS Youth (2026)

$2,49900

Colour

Size

  • One Size

Motor

N/A

Controller

N/A

Display

N/A

Battery

N/A

Charger

N/A

Sizes

N/A

Frame material

Aluminium

Frame

6061 Alloy, 120mm Travel, UDH

Fork

Manitou JUNIT Sport 20", 120mm Travel, 40mm Offset, alloy stanchion

Handlebar

Norco 6061 Alloy DB, 660mm, 20mm Rise

Grips

Norco Youth Lock-On, 115mm Length

Bar Tape

N/A

Headset

Tapered 1-1/8"–1.5" (ZS44/28.6 | ZS56/40)

Stem

Norco 6061, 35mm Length, 31.8mm Clamp

Seatpost

TranzX YSP18BKL, 31.6mm, 100mm, Kids Tune, Clamp: Norco Alloy Nutted Clamp, 34.9mm ID

Saddle

WTB Solano Med, 142 x 240mm, Steel Rails

Pedals

N/A

Shifters

microSHIFT Advent, 9spd

Front Derailleur

N/A

Rear Derailleur

microSHIFT Advent, 9spd, Short Cage Clutch

Brakes

Tektro HD-J285, 2-P, Resin Pads, 2 finger lever blade, Rotor: Tektro TR160-22, 160mm, 6-bolt

Brake Levers

Tektro HD-J285

Cassette/Freewheel

microSHIFT Advent, 11-38T, 9spd

Chain

KMC X9, 9spd

Crankset

Prowheel Junior Alloy, 28T, 127mm

Bottom Bracket

Prowheel Cartridge BB

Rims

WTB TCS 2.0, 27mm Internal Width, 28H

Hubs

[F] Formula DC-511, 15x110mm Boost, 28h, 6-bolt, [R] Formula DC-3248, 12x148mm Boost, HG, 28h, 6-bolt

Spokes

N/A

Tyres

[F] Maxxis Minion DHF, EXO, 20 x 2.4", Folding, [R] Maxxis Minion DHR II, EXO, 20 x 2.3", Folding

Wheel Size

N/A

Extras

N/A
