Norco  |  SKU: 058817781643

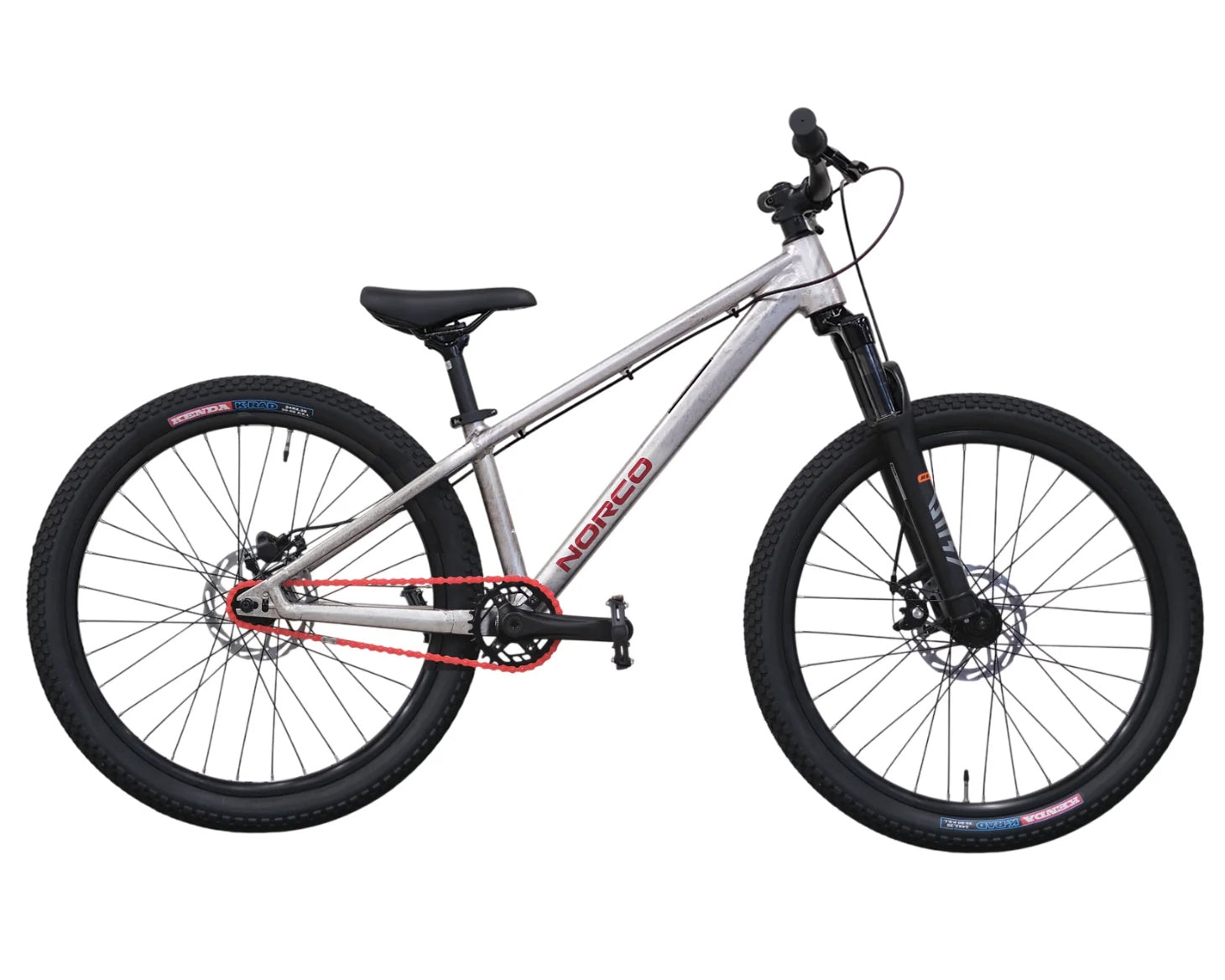

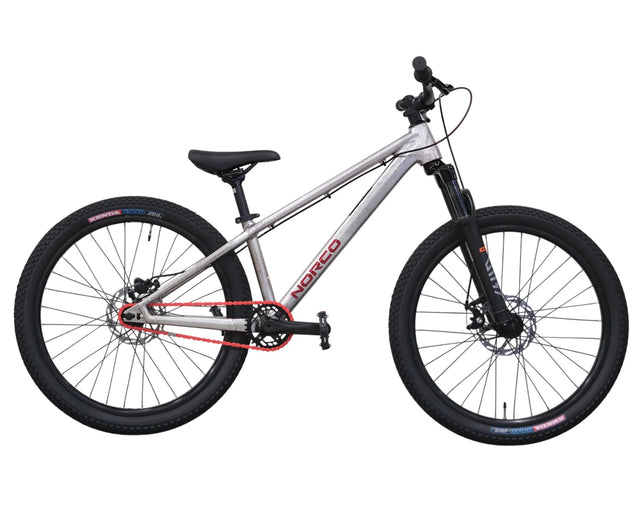

24" Norco Rampage Youth (2027)

$1,09900
Colour: Silver

Pickup in-store only. Shipping not available.
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay

Sizing Chart

The chart provided is to be used as a guide only, to help you narrow down which category to begin your search.

Wheel size Rider Height
12" 80-100cm
14" 85-105cm
16" 90-110cm
18" 95-115cm
20" 110-130cm
24" 125-150cm
26"+ 145cm+

Shipping Information

This product: Pickup in-store only. Shipping not available.

Shipping available†

We offer shipping on select brands including: Rocky Mountain, Orbea, XDS, Icon, Jamis, Shogun, Schwinn, BYK, Kidvelo. These bikes are shipped unbuilt in their original box.

†Only bikes stocked at our Warehouse location are available for shipping.

Shipping upon request to your local bike shop

Some brands require the bike is delivered directly to a bicycle shop or mechanic for assembly, and shipping is not available to your residence. These include GT, Cannondale, .

Request a shipping quote to proceed.

Pickup in-store only

Certain bike brands cannot be shipped and are only available for Click and Collect or purchase in-store.

These include but are not limited to the following brands: Giant, Norco, Liv, Momentum, Malvern Star and Mongoose.

Pre-assembled bikes

†Any bikes in stock at our Heidelberg Heights, Hallam or Hoppers Crossing store locations are already fully assembled, and therefore only available for Click and Collect or purchase in-store.

Fully assembled when you Click & Collect
Buy Now, Pay Later with ZIP
Free service adjustment in first 6 months

This bike is the starter kit to future stardom: Hit big air at the dirt jumps, dial your flow at the pump track, or learn to whip a 180 in the skatepark. They feature a proper scaled-down frame with the same tubing and features as the model Matt MacDuff rides.

FEATURES

  • Pro-rider-inspired dirt jump frame design to young riders.
  • Short chainstays, short-reach brakes, added tyre clearance, and low standover height
  • Hydroformed aluminum frame and virtually invisible welds.
  • Hydraulic rear brake and Mechanical front brake
  • Sealed bearing hubs

SPECIFICATIONS

Bottom Bracket Square taper axle BB (BB-19E), 122.5mm axle, 73mm threaded BB
Cassette Single speed cassette 14T (KT)
Chain KMC Z1 single speed chain 1/2 x 3/32", Wide, Natural Black
Crankset JY 140mm 3pc direct mount narrow/wide 30T ring, Anodized Black w/o logo
Fork RST Dirt R 80mm 26", Post Mount
Frame Aluminum DJ 24"
Front Brake Tektro MD-280 160mm Mech Disc, 6 Bolt
Front Rotor 160mm, 6 Bolt
Front Hub Norco Alloy Disc Hub 32H w/flange nuts, 6 Bolt
Front Tyre Kenda K-Rad 24" x 2.3", 30 tpi, Wire Bead, Black sidewall
Grips Norco JR Grip 115mm length, lock on w/alloy clamp, Black
Handlebar Alloy 660mm, 30mm rise, 31.8 bar bore, SB Black
Headset Internal tapered 1.5" to 1-1/8", Alloy cups, ACB 1-1/8" Upper, 1.5" Lower, W/5.3mm top cover (H2051A), Sealed Bearing, SB Black, Stack 13.4mm
Pedals BMX flat pedal with metal pins, 9/16" steel axle, Black
Rear Brake Tektro HD-M281 Hydraulic 160mm, 1650 hose length
Rear Rotor 160mm, 6 Bolt
Rear Hub Novatec alloy sealed bearing 32H disc hub, w/14T single spd cassette, Axle M10x180x135mm, D:20mm, 6Bolt, W/Flange Nuts & Lockring x 1, Polishing Anodized Black, W/Novatec Logo
Rear Tyre Kenda K-Rad 24" x 2.3", 30 tpi, Wire Bead, Black sidewall
Rims XDS 24", Inner width 24.7mm, 32H, Black anodized
Saddle Norco One Piece Saddle, w/ SB Black 27.2x200mm seat post
Seatpost 27.2mm ID, 200mm Length
Seat Clamp Zoom, Norco alloy QR, 31.8mm, BB black anodized
Stem Short reach 45mm ext MTB stem, 31.8 bar bore, SB Black w/o logo

24" Norco Rampage Youth (2027)

$1,09900

Colour

Motor

N/A

Controller

N/A

Display

N/A

Battery

N/A

Charger

N/A

Sizes

N/A

Frame material

Aluminium

Frame

Aluminum

Fork

RST Dirt R 80mm, Post Mount

Handlebar

Alloy 660mm, 30mm rise, 31.8 bar bore, SB Black

Grips

Norco JR Grip 115mm length, lock on w/alloy clamp, Black

Bar Tape

N/A

Headset

Internal tapered 1.5" to 1-1/8", Alloy cups, ACB 1-1/8" Upper, 1.5" Lower, W/5.3mm top cover (H2051A), Sealed Bearing, SB Black, Stack 13.4mm

Stem

Short reach 45mm ext MTB stem, 31.8 bar bore, SB Black w/o logo

Seatpost

27.2mm ID, 200mm Length

Saddle

Norco One Piece Saddle, w/ SB Black 27.2x200mm seat post

Pedals

Platform

Shifters

N/A

Front Derailleur

N/A

Rear Derailleur

N/A

Brakes

[F] Tektro MD-280 160mm Mech Disc, 6 Bolt, [R] Tektro HD-M281 Hydraulic 160mm, 1650 hose length

Brake Levers

Tektro Alloy

Cassette/Freewheel

Single speed cassette 14T (KT)

Chain

KMC Z1 single speed chain 1/2 x 3/32", Wide, Natural Black

Crankset

JY 140mm 3pc direct mount narrow/wide 30T ring, Anodized Black w/o logo

Bottom Bracket

Square taper axle BB (BB-19E), 122.5mm axle, 73mm threaded BB

Rims

XDS 24", Inner width 24.7mm, 32H, Black anodized

Hubs

KT sealed bearing, 3/8" nutted axle, 32H, 6 bolt

Spokes

Stainless Steel, 14g

Tyres

Kenda K-Rad 24" x 2.3", 30 tpi, Wirebead, Black sidewall

Wheel Size

N/A

Extras

N/A
