24" Norco Storm Youth
24" Norco Storm Youth - Peach : This product is available for backorder only. Will ship as soon as it is back in stock.
Couldn't load pickup availability
Sizing Chart
Sizing Chart
Sizing and Geometry
Norco Storm Youth
Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.
| Sizing | Rider Height |
|---|---|
| 20" | 115 – 125cm |
| 24" | 125 – 146cm |
| 26" | 133 – 150cm |
| 27.5" | 136 – 155cm |
Geometry
| Wheel Size | 20" | 24" | 26" | 27.5" | |
|---|---|---|---|---|---|
| Suspension travel (mm) | 80 | 80 | 100 | 100 | |
| ST | Seat Tube Length (mm) | 255 | 305 | 370 | 385 |
| STA | Seat Tube Angle | 73.0° | 73.0° | 73.0° | 74.25° |
| HTT | Top Tube Length (mm) | 462 | 525 | 547 | 532 |
| HT | Head Tube Length (mm) | 90 | 90 | 100 | 110 |
| HTA | Head Tube Angle | 65.0° | 66.0° | 66.5° | 67.0° |
| OS | Fork Rake/Offset (mm) | 40 | 40 | 42 | 42 |
| Trail | 77 | 94 | 102 | 104 | |
| WB | Wheelbase (mm) | 911 | 1000 | 1052 | 1076 |
| RC | Chain Stay Length (mm) | 338 | 380 | 410 | 430 |
| BB | Bottom Bracket Drop (mm) | 7 | 43 | 50 | 30 |
| BBH | Bottom Bracket Height (mm) | 253 | 267 | 290 | 323 |
| S | Stack (mm) | 433 | 523 | 578 | 575 |
| R | Reach (mm) | 330 | 365 | 370 | 370 |
| SOH | Stand Over Height (mm) | 468 | 523 | 609 | 627 |
| Stem Length (mm) | 45 | 45 | 45 | 50 | |
| Crank Length (mm) | 140 | 152 | 152 | 465 | |
| Max. Tyre Size | 2.40" | 2.40" | 2.40" | 2.40" | |
| Water Bottle Compatible | 1 x 620mL | 1 x 620mL | 1 x 620mL | 1 x 620mL |
Â
Shipping Information
Shipping Information
This product:
Shipping availableâ€
We offer shipping on select brands including: Rocky Mountain, Orbea, XDS, Icon, Jamis, Shogun, Schwinn, BYK, Kidvelo. These bikes are shipped unbuilt in their original box.
†Only bikes stocked at our Warehouse location are available for shipping.
Shipping upon request to your local bike shop
Some brands require the bike is delivered directly to a bicycle shop or mechanic for assembly, and shipping is not available to your residence. These include GT, Cannondale, .
Request a shipping quote to proceed.
Pickup in-store only
Certain bike brands cannot be shipped and are only available for Click and Collect or purchase in-store.
These include but are not limited to the following brands:Â Giant, Norco, Liv, Momentum, Malvern Star and Mongoose.Â
Pre-assembled bikes
†Any bikes in stock at our Heidelberg Heights, Hallam or Hoppers Crossing store locations are already fully assembled, and therefore only available for Click and Collect or purchase in-store.
Sizing and Geometry
Norco Storm Youth
Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.
| Sizing | Rider Height |
|---|---|
| 20" | 115 – 125cm |
| 24" | 125 – 146cm |
| 26" | 133 – 150cm |
| 27.5" | 136 – 155cm |
Geometry
| Wheel Size | 20" | 24" | 26" | 27.5" | |
|---|---|---|---|---|---|
| Suspension travel (mm) | 80 | 80 | 100 | 100 | |
| ST | Seat Tube Length (mm) | 255 | 305 | 370 | 385 |
| STA | Seat Tube Angle | 73.0° | 73.0° | 73.0° | 74.25° |
| HTT | Top Tube Length (mm) | 462 | 525 | 547 | 532 |
| HT | Head Tube Length (mm) | 90 | 90 | 100 | 110 |
| HTA | Head Tube Angle | 65.0° | 66.0° | 66.5° | 67.0° |
| OS | Fork Rake/Offset (mm) | 40 | 40 | 42 | 42 |
| Trail | 77 | 94 | 102 | 104 | |
| WB | Wheelbase (mm) | 911 | 1000 | 1052 | 1076 |
| RC | Chain Stay Length (mm) | 338 | 380 | 410 | 430 |
| BB | Bottom Bracket Drop (mm) | 7 | 43 | 50 | 30 |
| BBH | Bottom Bracket Height (mm) | 253 | 267 | 290 | 323 |
| S | Stack (mm) | 433 | 523 | 578 | 575 |
| R | Reach (mm) | 330 | 365 | 370 | 370 |
| SOH | Stand Over Height (mm) | 468 | 523 | 609 | 627 |
| Stem Length (mm) | 45 | 45 | 45 | 50 | |
| Crank Length (mm) | 140 | 152 | 152 | 465 | |
| Max. Tyre Size | 2.40" | 2.40" | 2.40" | 2.40" | |
| Water Bottle Compatible | 1 x 620mL | 1 x 620mL | 1 x 620mL | 1 x 620mL |
Â

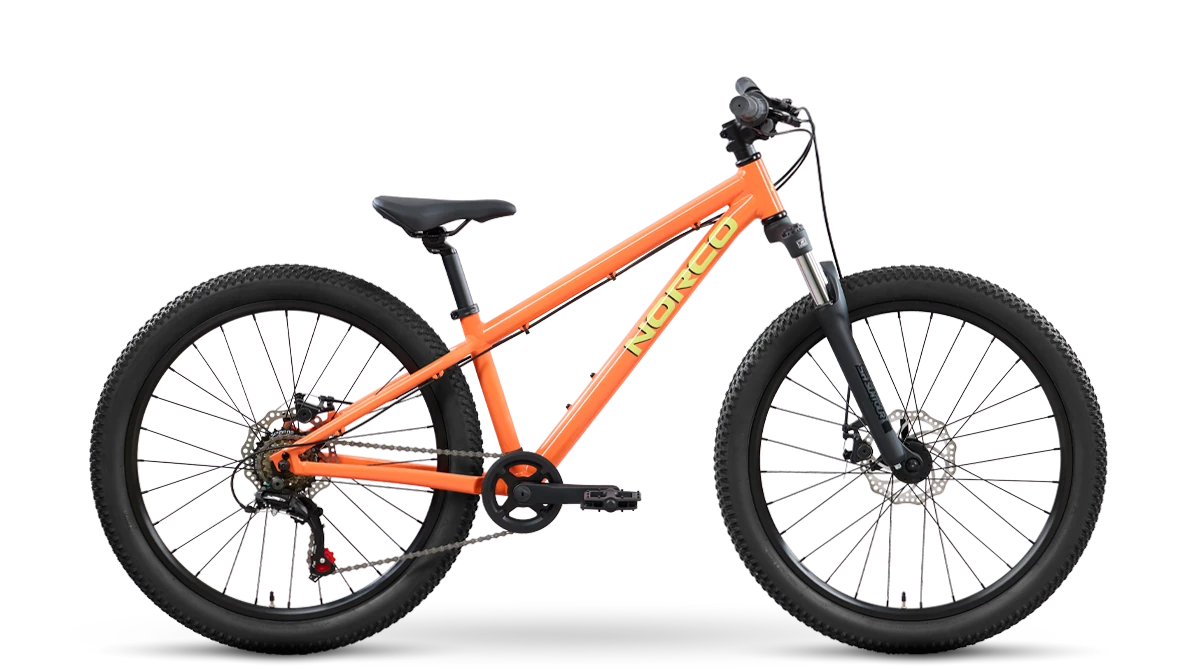

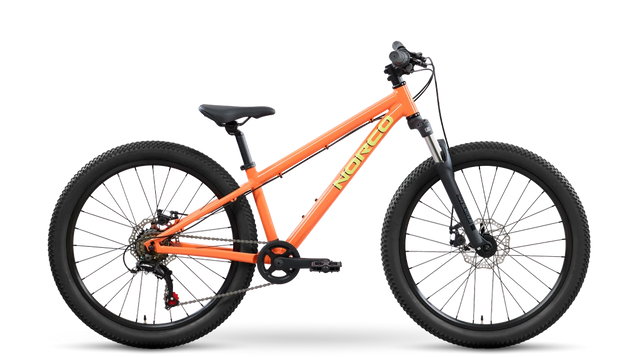

24" Norco Storm Youth
The durable and lightweight Storm 24 provides simple upkeep and operation to help young riders find the best line and stop on a dime.
- Just enough fork travel to ease skill building and save weight.
- Quicker starts and easy climbs make every ride enjoyable.
- Putting a stop to sketchy brakes.
- Models to meet the needs of every young rider.
- No Other Way Limited Lifetime Warranty.
-
Frame material
-
Frame
-
Fork
-
Handlebar
-
Grips
-
Headset
-
Stem
-
Seatpost
-
Saddle
-
Pedals
-
Shifters
-
Rear Derailleur
-
Brakes
-
Brake Levers
-
Cassette/Freewheel
-
Chain
-
Crankset
-
Bottom Bracket
-
Rims
-
Hubs
-
Spokes
-
Tyres
-
Notes
-
Weight
-
Speeds (rear)6 Speed
-
Age GroupKids
-
GenderBoys, Girls
-
DisciplineMountain
-
SKUsPeach: 058817774201, Blue: 058817739071, Blue/White: 058817774164
