Avanti  |  SKU: 7615523720279

Avanti Hammer-E LT1

$4,99900 $7,49900
  • Bosch Gen 4 Mid-Drive Motor, 85Nm Torque
  • Long-range 625Wh Battery
  • Rockshox ZEB 150mm Air Fork // Rockshox Dlx Select Rear Shock
  • Microshift XDS 11 Speed Drivetrain
  • SRAM 4-Piston Hydraulic Disc Brakes
  • Burly Kenda Regolith 2.6" Tyres, tubeless ready
Colour: Khaki Green
Size
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay

Shipping Information

This product:

Shipping available†

We offer shipping on select brands including: Rocky Mountain, Orbea, XDS, Icon, Jamis, Shogun, Schwinn, BYK, Kidvelo. These bikes are shipped unbuilt in their original box.

†Only bikes stocked at our Warehouse location are available for shipping.

Shipping upon request to your local bike shop

Some brands require the bike is delivered directly to a bicycle shop or mechanic for assembly, and shipping is not available to your residence. These include GT, Cannondale, .

Request a shipping quote to proceed.

Pickup in-store only

Certain bike brands cannot be shipped and are only available for Click and Collect or purchase in-store.

These include but are not limited to the following brands: Giant, Norco, Liv, Momentum, Malvern Star and Mongoose.

Pre-assembled bikes

†Any bikes in stock at our Heidelberg Heights, Hallam or Hoppers Crossing store locations are already fully assembled, and therefore only available for Click and Collect or purchase in-store.

Fully assembled when you Click & Collect
Buy Now, Pay Later with ZIP
Free service adjustment in first 6 months

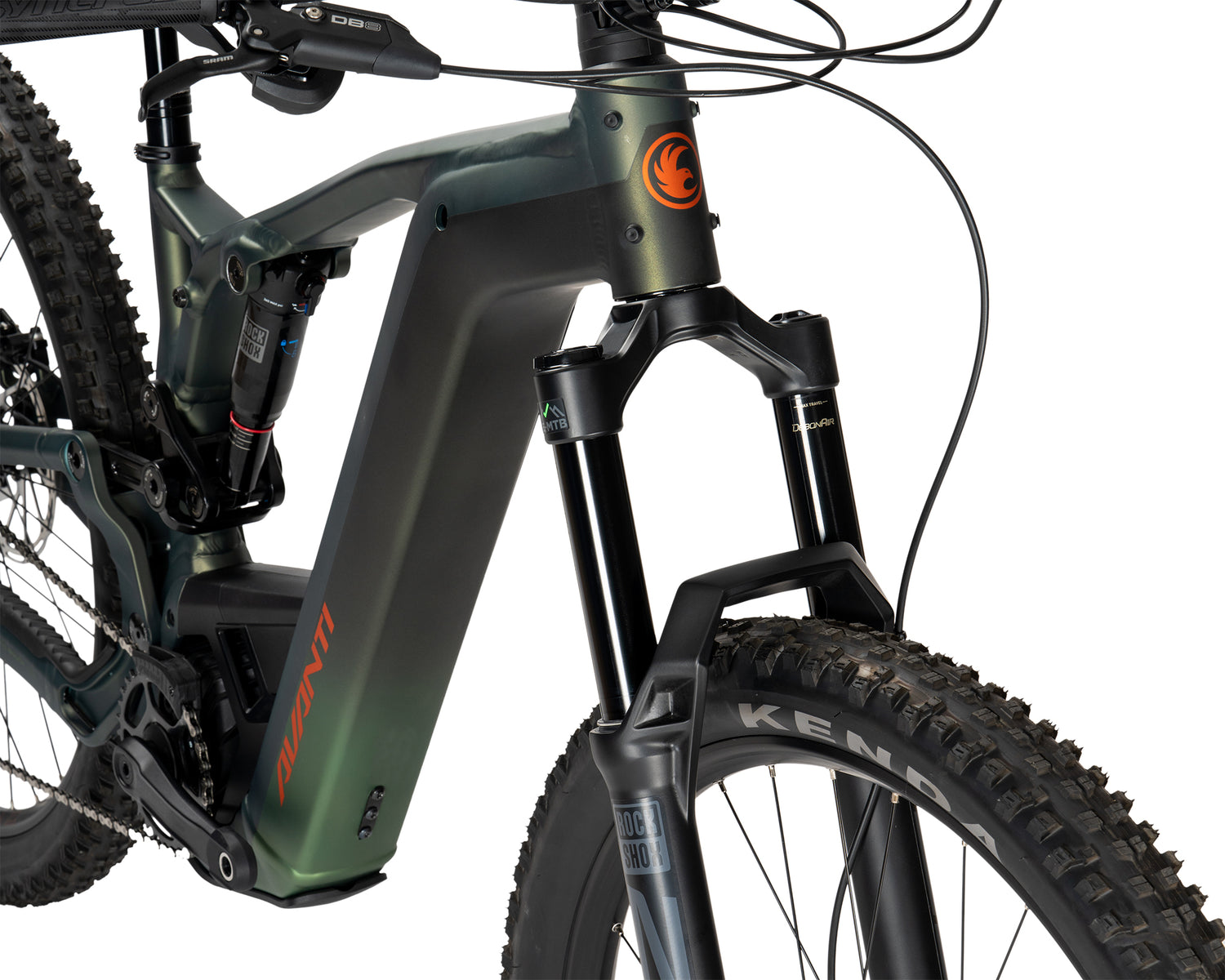

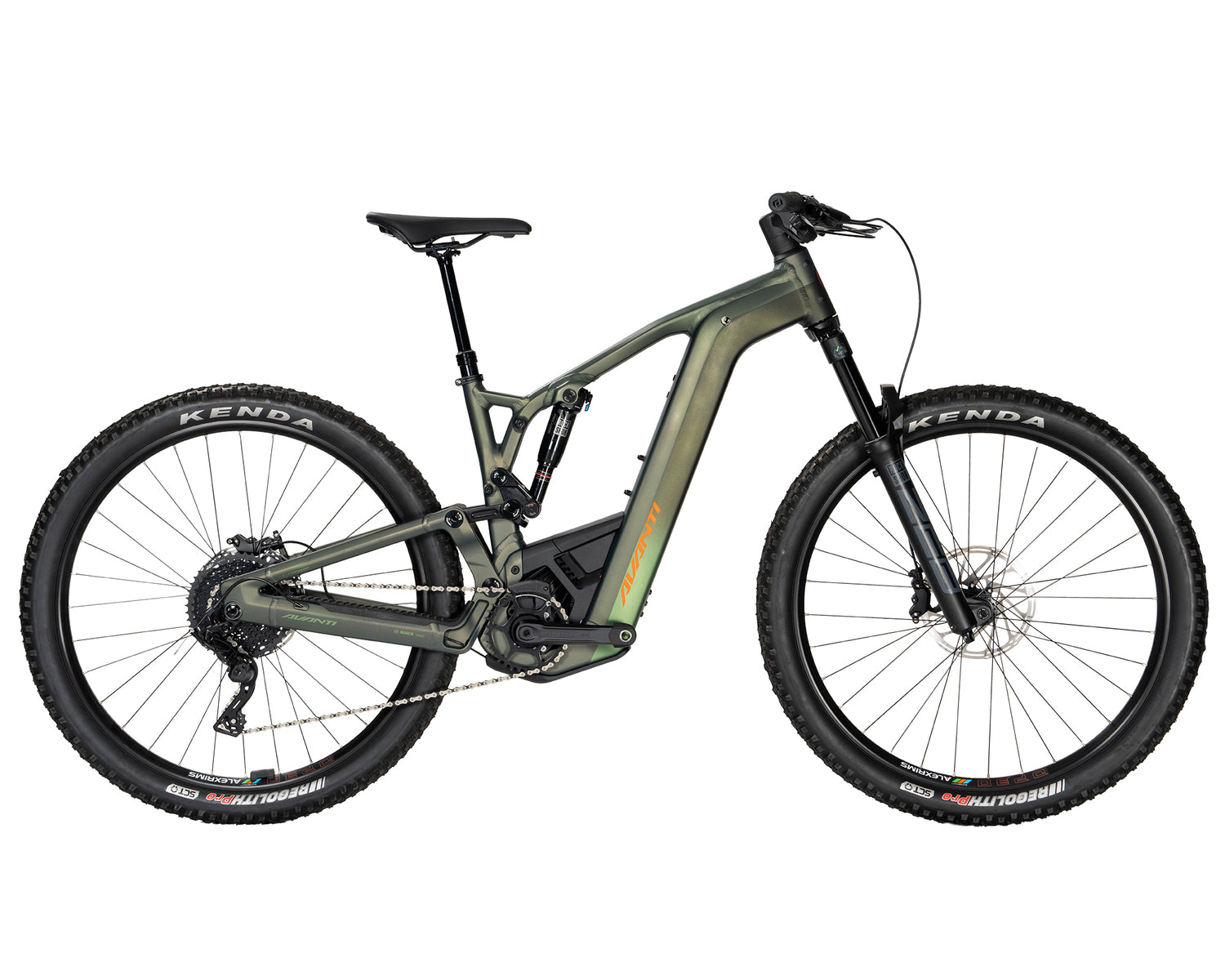

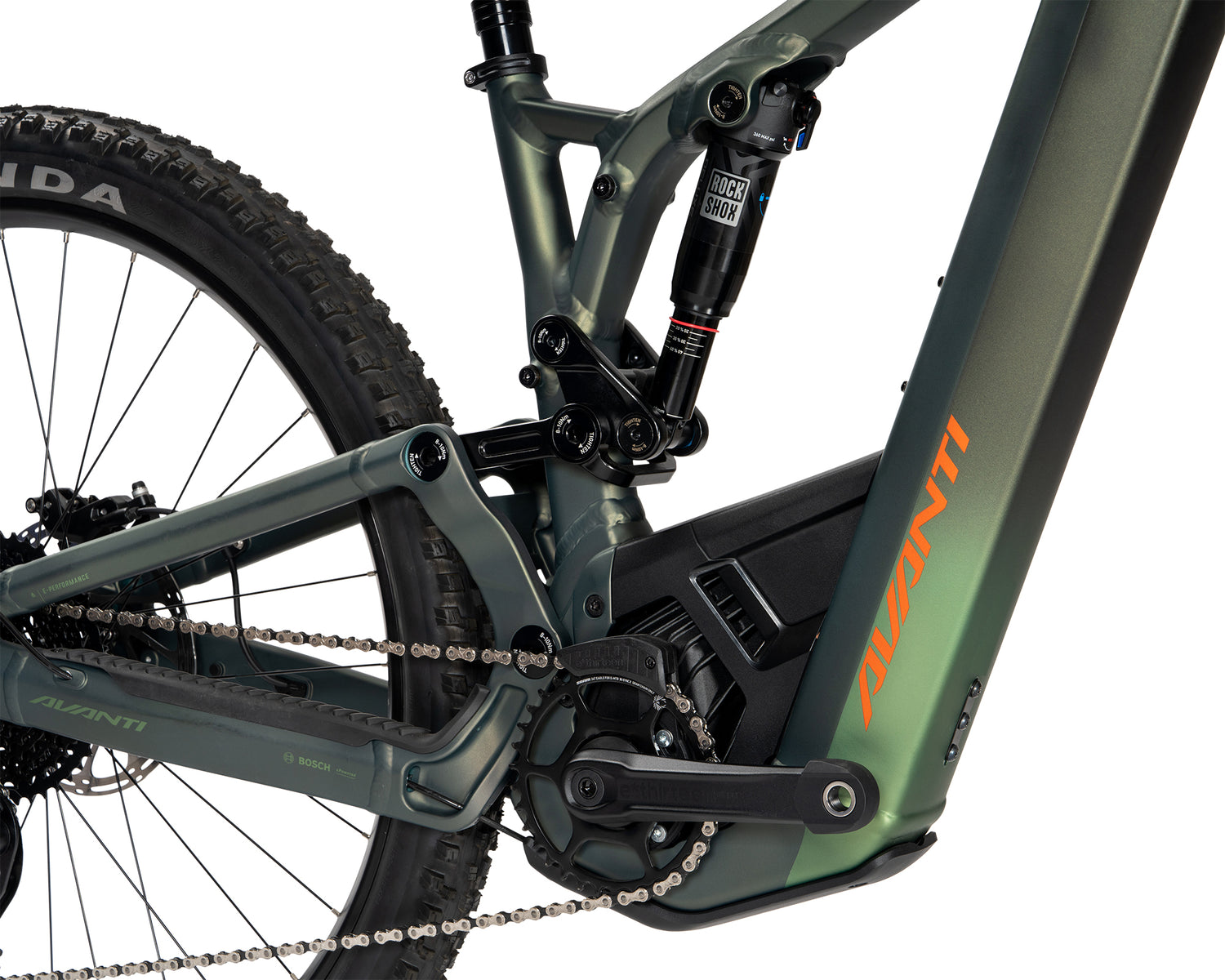

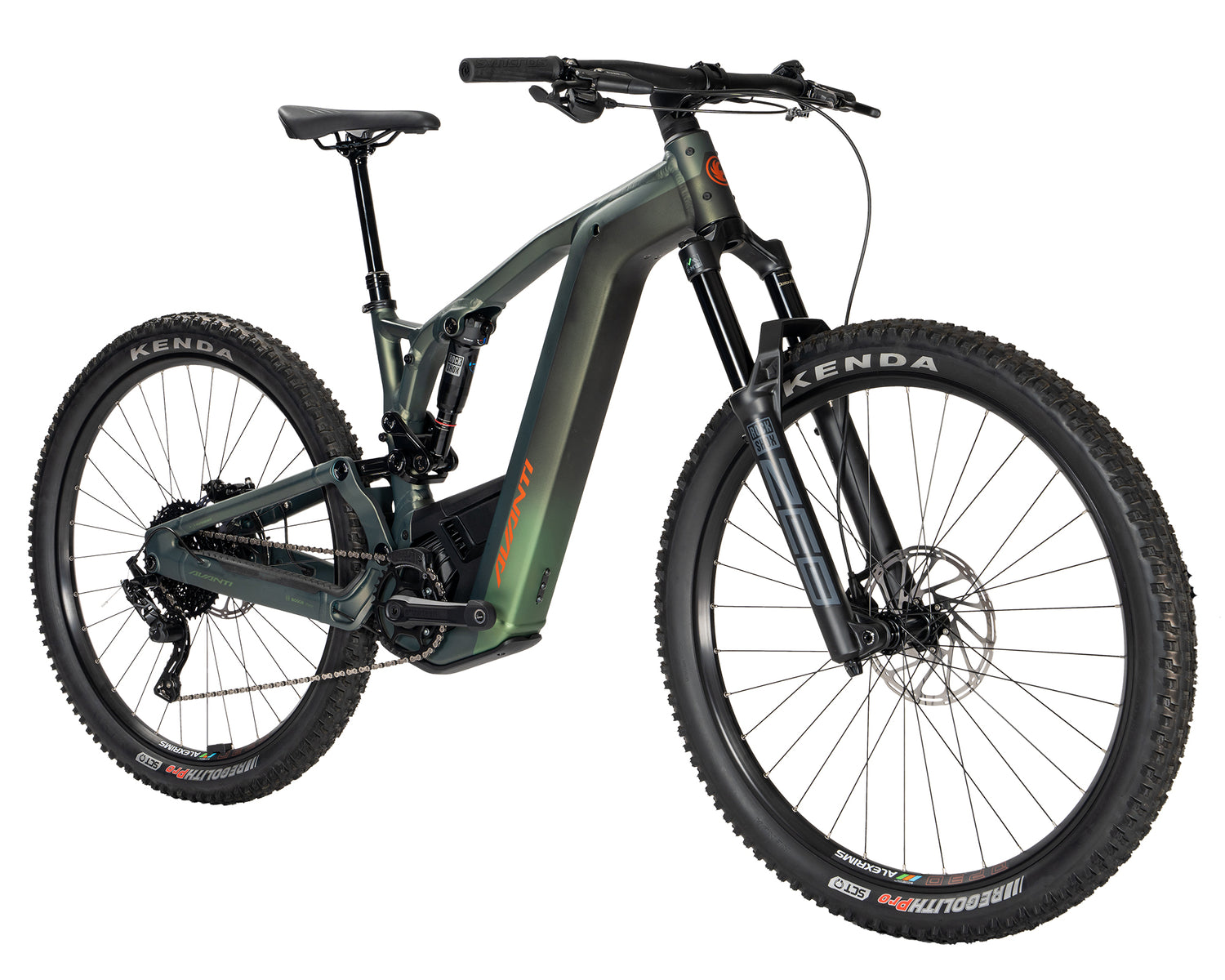

The Hammer-E LT1 electric mountain bike is built around an ultra-durable German-engineered frame, and equipped with full suspension and a powerful motor, designed to take on the most demanding technical terrain. Powered by Bosch’s latest Smart System Performance Line CX motor and a large 625Wh battery (range extendable*), it delivers smooth, consistent torque for all-day riding.

Up front, a RockShox ZEB fork provides confident control, while powerful 4-piston SRAM brakes and high-grip tyres ensure stability through the toughest trails—all with the added ease of electric assist.

*Range extender batteries and components sold separately (compatible with Bosch PowerPack 400Wh & 600Wh, and PowerMore 250Wh range extender).

Features:

  • Bosch Smart System Performance Line CX motor
  • Long-range 625Wh integrated battery
  • ACROS internal cable routing
  • RockShox ZEB Base 150mm air fork
  • RockShox Deluxe Select+ RT rear shock
  • Microshift/e*13 clutch-equipped 1x11 drivetrain
  • SRAM 4-piston hydraulic disc brakes
  • Reinforced e-bike-specific drivetrain components



SPECIFICATIONS

Brakes SRAM DB8 4-Piston hydraulic
Brake Rotors 200mm Centrelock rotors
Cassette Microshift E-cassette, 11-46T, 11sp
Chain KMC E-bike chain
Chainguide E13 E-spec chain guide
Chainring 34T Narrow/Wide
Crankset E13 E-Spec+ Gen4 Bosch ISIS 34T Narrow/Wide
Drive Unit Bosch Gen 4 SmartSystem Performance Line CX, 85Nm, 250W, 32kph for NZ, 25kph for AU
E Motor Bosch Gen 4 SmartSystem Performance Line CX

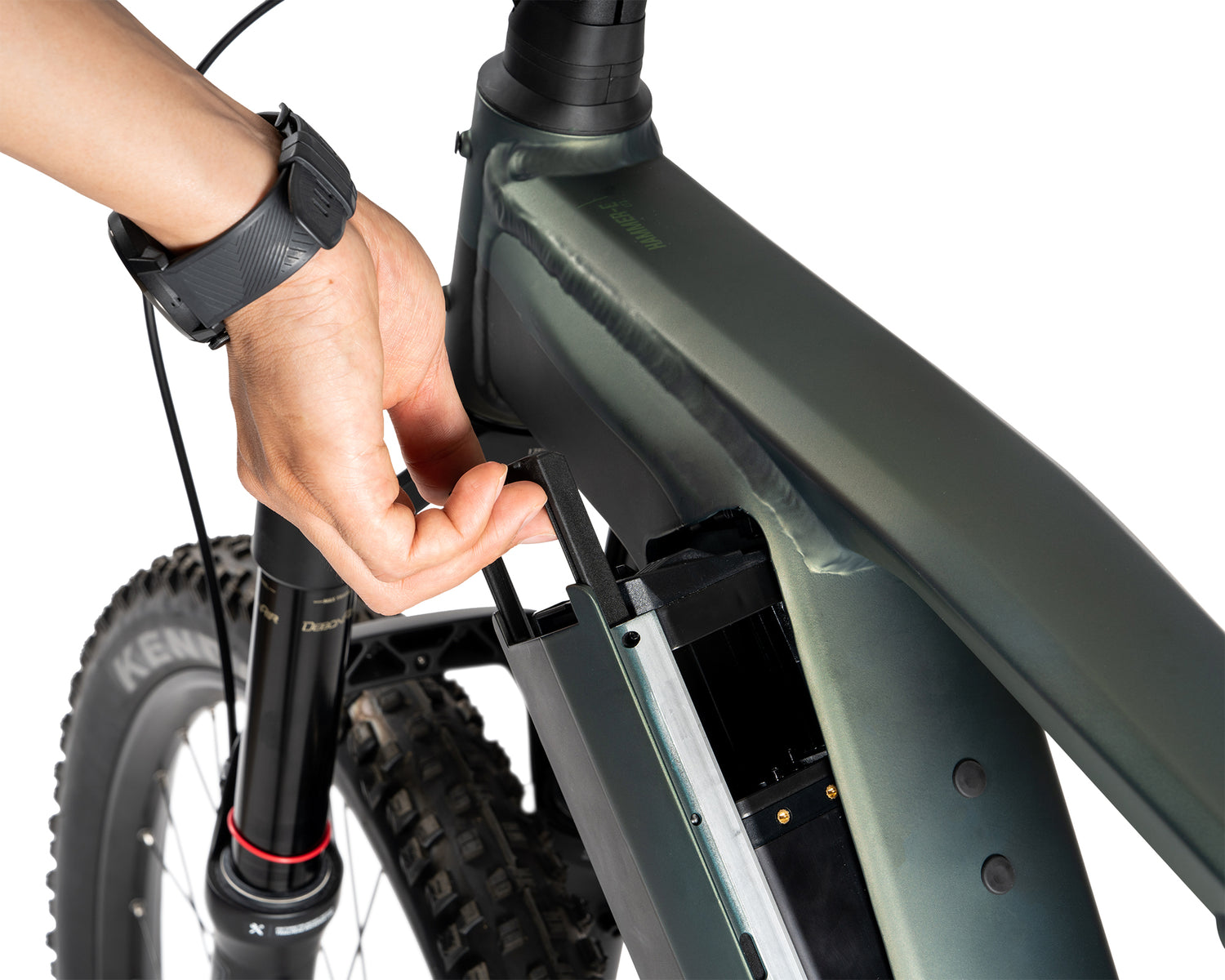

E Motor Battery Bosch SmartSystem Powertube 625Wh Internal
E Motor Charger Bosch SmartSystem 4A
E Motor Display Bosch SmartSystem BRC3600 LED remote
Fork Rockshox ZEB Base, 150mm, air spring, 1.5" taper, rebound + compression adjust, Boost 110 15mm axle - S=27.5, M/L/XL=29er
Frame AL-6061 Ultralight tubing, 140mm travel, cartridge bearing pivots, 1.5" tapered headtube, PowerTube internal battery and internal cables
Front Hub Formula Boost Sealed Bearing 110x15 32H, Rr: Formula Boost Sealed Bearing 148x12 32H
Front Travel 150mm
Grips Syncros Lock-on
Handlebar Syncros Hixon 2.0, 31.8mm, with 12mm rise, 9° sweep
Headset Acros ZS56 eMTBN with block lock and internal cable routing
Pedals No
Rear Derailleur Microshift XCD 11sp with Clutch
Rear Hub Formula Boost Sealed Bearing 110x15 32H, Rr: Formula Boost Sealed Bearing 148x12 32H
Rear Shock Rockshox Delux Select+ RT, Debon Air, rebound adjust
Rear Travel 140mm
Rims Alex DP30 Double-wall Alloy, 32H
Saddle Syncros ER 2.5
Seatpost Syncros Duncan Dropper 31.6mm with internal cable routing
Shifters Microshift XCD 11sp Trail trigger w/Sealed Bearing
Spokes Stainless Steel with Brass Nipples
Stem Satori Viper 3D Forged Alloy, 31.8mm, Zero deg, with Acros AICR (internal cable routing)
Tyres Kenda Regolith 27.5/29 x 2.6", 120tpi, folding, SCT (Tubeless Ready)
Note Specifications subject to change
Part Number 295692

Avanti Hammer-E LT1

$4,99900 $7,49900

Colour

Size

  • M
  • L
  • XL

Motor

Bosch Gen 4 SmartSystem Performance Line CX, 85Nm, 250W, 32kph for NZ, 25kph for AU

Controller

N/A

Display

Bosch SmartSystem BRC3600 LED remote

Battery

Bosch SmartSystem Powertube 625Wh Internal

Charger

Bosch SmartSystem 4A

Sizes

N/A

Frame material

Aluminium

Frame

AL-6061 Ultralight tubing, 140mm travel, cartridge bearing pivots, 1.5" tapered headtube, PowerTube internal battery and internal cables

Fork

Rockshox ZEB Base, 150mm, air spring, 1.5" taper, rebound + compression adjust, Boost 110 15mm axle - S=27.5, M/L/XL=29er

Handlebar

Syncros Hixon 2.0, 31.8mm, with 12mm rise, 9° sweep

Grips

Syncros Lock-on

Bar Tape

N/A

Headset

Acros ZS56 eMTBN with block lock and internal cable routing

Stem

Satori Viper 3D Forged Alloy, 31.8mm, Zero deg, with Acros AICR (internal cable routing)

Seatpost

Syncros Duncan Dropper 31.6mm with internal cable routing

Saddle

Syncros ER 2.5

Pedals

N/A

Shifters

Microshift XCD 11sp Trail trigger w/Sealed Bearing

Front Derailleur

N/A

Rear Derailleur

Microshift XCD 11sp with Clutch

Brakes

SRAM DB8 4-Piston hydraulic // 200mm Centrelock rotors

Brake Levers

N/A

Cassette/Freewheel

Microshift E-cassette, 11-46T, 11sp

Chain

KMC E-bike chain // E13 E-spec chain guide

Crankset

E13 E-Spec+ Gen4 Bosch ISIS 34T Narrow/Wide

Bottom Bracket

N/A

Rims

Alex DP30 Double-wall Alloy, 32H

Hubs

[F] Formula Boost Sealed Bearing 110x15 32H, [R]: Formula Boost Sealed Bearing 148x12 32H

Spokes

Stainless Steel with Brass Nipples

Tyres

Kenda Regolith 27.5/29 x 2.6", 120tpi, folding, SCT (Tubeless Ready)

Wheel Size

N/A

Extras

N/A
