Azur XOSS Commuter GPS Computer

Azur XOSS Commuter GPS Computer

The Azur XOSS Commuter GPS Computer is ideal for riders wanting an affordable GPS Bike Computer with essential metrics, easy use and setup, and the ability to connect with Strava or TrainingPeaks to record and share your data from your ride. The slim design is matched with a wide and easy to read screen which can be mounted without the use of tools.

Track your speed and distance and location for a greater insight to your ride so that you can get the most out of every ride. With compatible sensors* you can also monitor heart rate and cadence for the ultimate insight into your training. *Note: sensors not included

The XOSS Commuter offers full GPS recording capabilities connecting to 4 satellites (GPS, Beidou, GLONASS, Galileo) and the option of connecting to Bluetooth compatible heart rate sensors and/or speed/cadence sensors. Plus its impressive 25-hour battery runtime means minimal charging and plenty of riding.

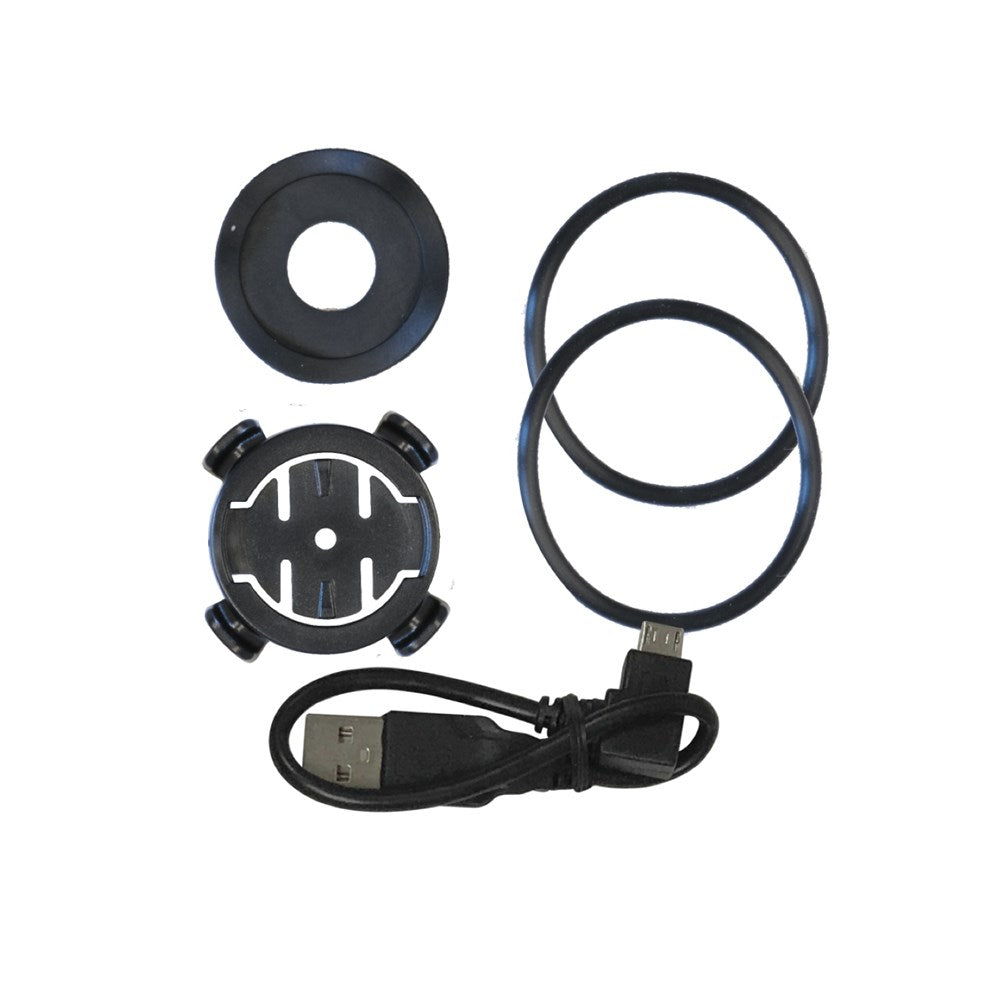

WHAT’S INCLUDED:

• 1 x Azur XOSS Commuter GPS
• 1 x Micro USB Cable
• 1 x Cycling Computer Mount
• 2 x Rubber O-Rings
• 1 x Protection Rubber Pad

FUNCTIONS:

• Speed
• Distance
• Time
• Gradient
• Barometer
• GNSS
• Sync data
• Share activities: TrainingPeaks, Strava
• Heart Rate*
• Cadence* *For heart rate and cadence monitoring, ANT+ compatible sensors need to be installed.

KEY FEATURES:

• Waterproof
• ANT+ sensor
• Bluetooth 5.0
• History: Up to 1500km
• Backlight
• Rechargeable battery
• Long lasting 25hrs Battery Life
• Auto pause
• Data analysis app: XOSS
• Size: 48 x 75 x 19mm
• Weight: 52g

EXPANDED FEATURES:

SIMPLE TO USE: Power On/Off: Press & hold right button Start Recording: Press left button Pause/Continue: Press left button End Recording: Press & hold left button Sync Data: Press right button

SENSOR CONNECTION & SETUP: Download XOSS app from either the Apple App Store or Google Play, phone requires Bluetooth 4.0 or later. Press and hold both buttons simultaneously, sensor icon will start to flash which indicates searching. XOSS will automatically connect active sensors nearby. After pairing the corresponding icon will stop flashing. Press left button again to enter setting mode.

P1: Tyre Circumference Setting (mm) P2: Metric/Imperial Unit Setting P3: Time Zone Setting

Press left button to set number or option and press right button to switch between them. After setup is complete, press and hold the right button to exit setting mode. XOSS uses GNSS technology (GPS, Beidou, GLONASS & Galileo satellite systems) to achieve a strong reliable signal and pin point accuracy.

When the device is turned on, the GPS icon in the upper left corner will flash, indicating that the computer is searching for a satellite signal. Please do this outside ensuring the sky above is unobstructed.

INCLUDES: Micro USB cable and bicycle mount with rubber O-rings.

MOUNT INSTALLATION?GUIDE: 1. Place rubber pad on the back of mount. 2. Use rubber O-rings to secure the mount to handlebar. Cross tie the mount with the rubber O-rings. 3. Align tabs on back of computer with the mount notches, press down slightly and rotate computer 90 degrees to lock it in place.
