BuzzRack E-Hornet H3 E-Bike Car Rack (3 Bike)
E-Bike compatible. Hitch mounted platform rack for 3 bikes.
BuzzRack E-Hornet H3 E-Bike Car Rack (3 Bike) is backordered and will ship as soon as it is back in stock.
Shipping
Shipping
Heavy, Oversized Delivery
Heavy, oversized items incur additional fees and are shipped using a tracked Courier Service.
- $20.00 - 2 to 3kg
- $30.00 - 3 to 5kg
- $50.00 - 5 to 8kg
- $100.00 - 8 to 15kg
This includes items like home trainers, trailers, car racks, child seats and more.
These rates are limited to VIC, SA, NSW, QLD, and TAS. Contact us for a quote to NT or WA.
When will my order be shipped?
- 1-2 business days - All items in stock at one location
- 2-5 business days - Items stocked at multiple locations
Returns
Returns
Get in touch with our orders team at orders@ivanhoecycles.com.au within 30 days of receiving your goodies if you'd like to organise a return, exchange or credit.

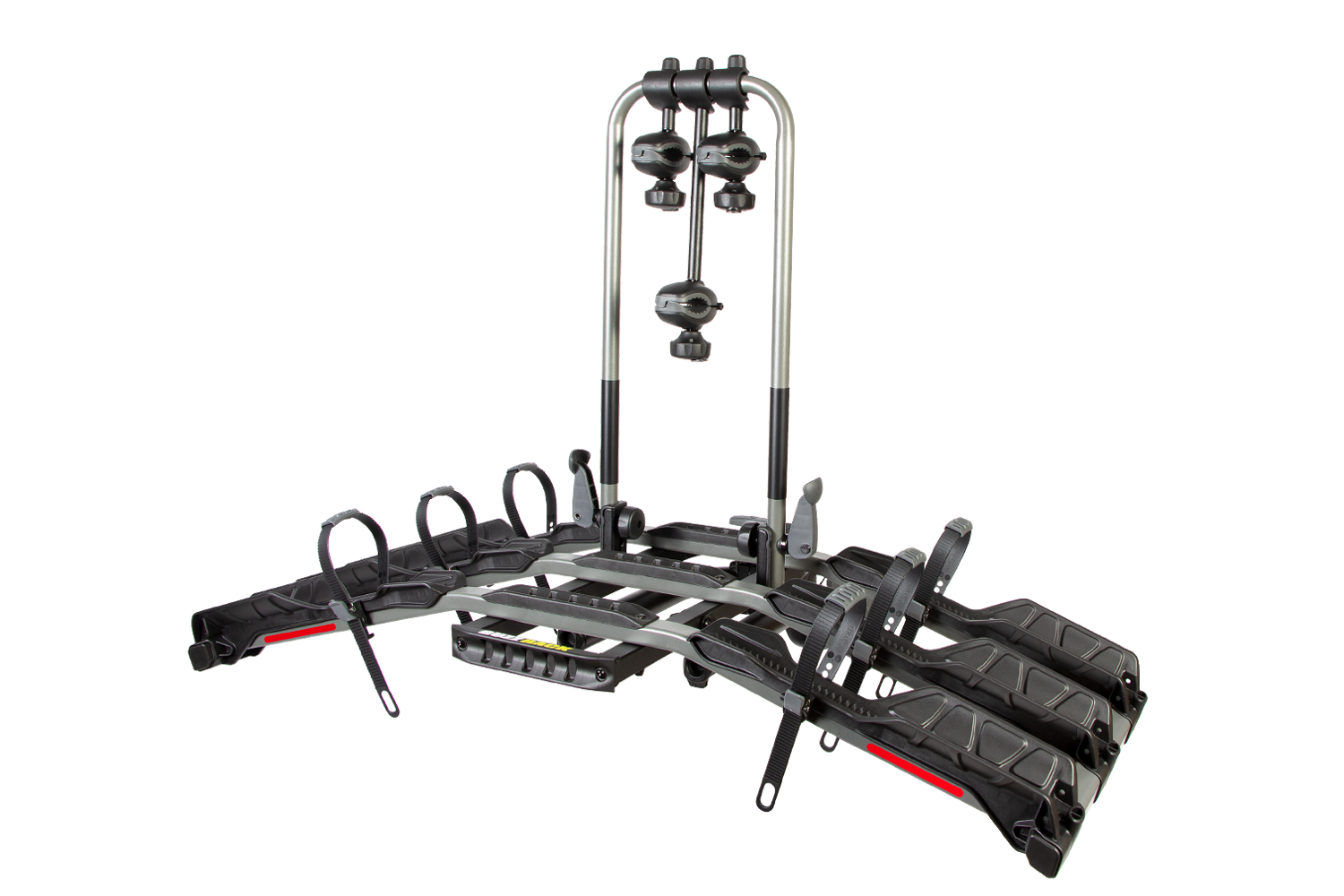

BuzzRack E-Hornet H3 E-Bike Car Rack (3 Bike)
E-HORNET HITCH series offer convenient mounting, user-friendly functions, heavy duty construction for carrying e-bikes.
The large wheel support allow stable mounting of tires up to 4″ size. The locking clamp is the perfect solution to attach the bike frame.
Simple design, strong and durable.
ASSEMBLY
Even though it is not assembled, E-HORNET H2 is very easy to put together: assemble the wheel support frame to the base using 4 screws, fit the rack into the 2″ receiver with the wrench provided and you are ready to go!
FITTING

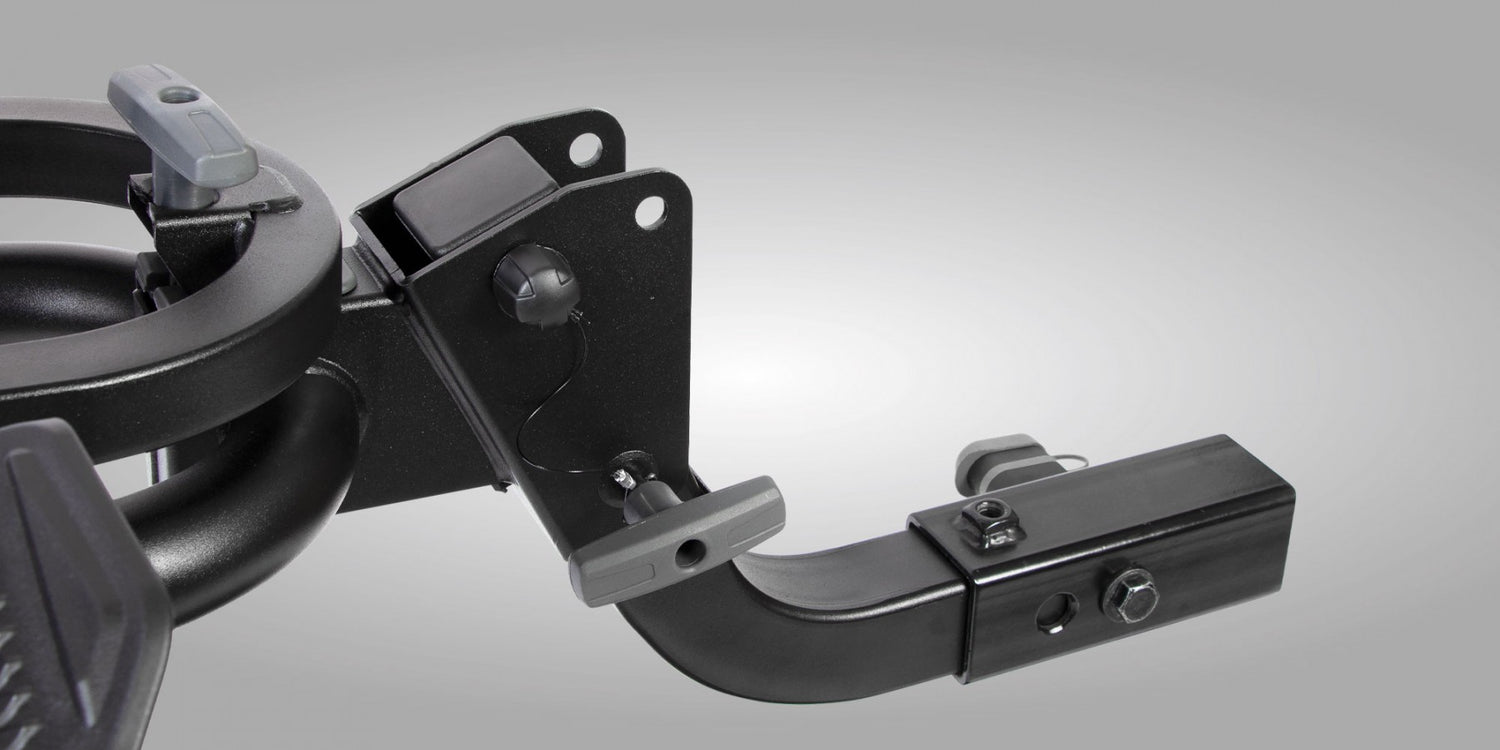

Made to fit 2″ receiver tubes, equipped with a locking hitch bolt and tool included.
SECURE

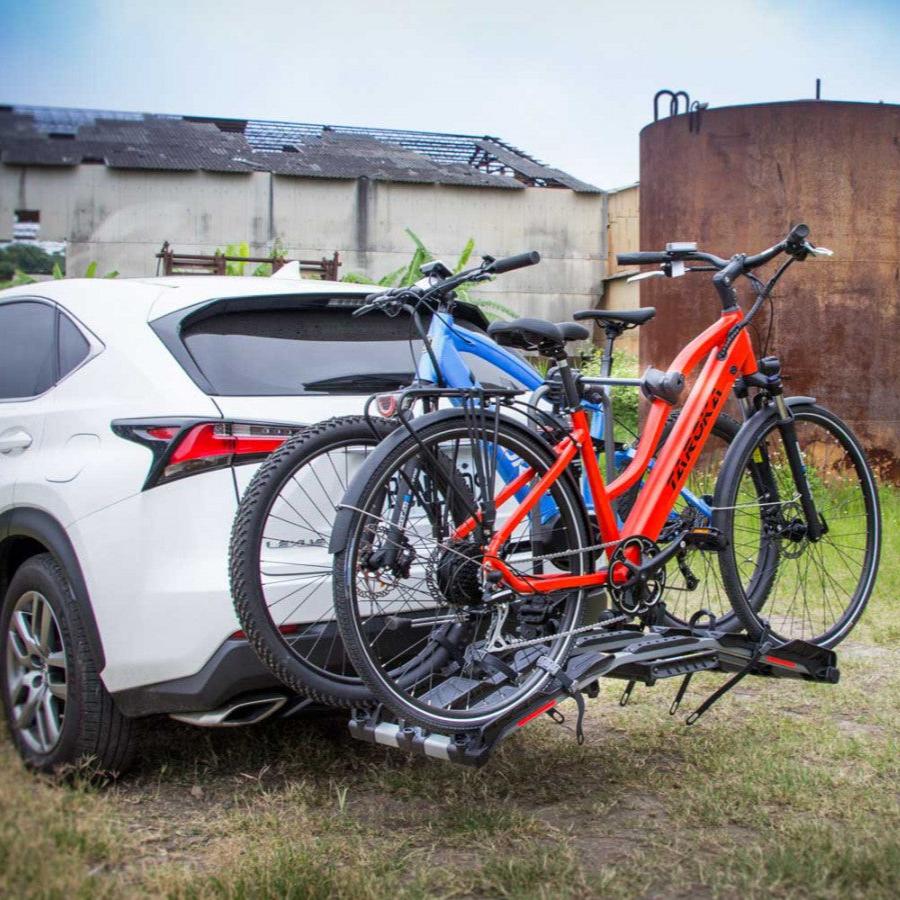

Simply position the bike on the wheel support. Adjust the clamp position by sliding it around the vertical tubular frame to find the perfect fit with the bike frame. Clamp the frame, attach the wheels using the ratchet straps, lock the clamps.
LIGHTS
The E-HORNET H3 was designed to receive our different lights and license plate supports (7 or 13 pin light kit available).
Note: the lightboard doesn't come with the hitch mount E-Hornets, but can be purchased and fitted.

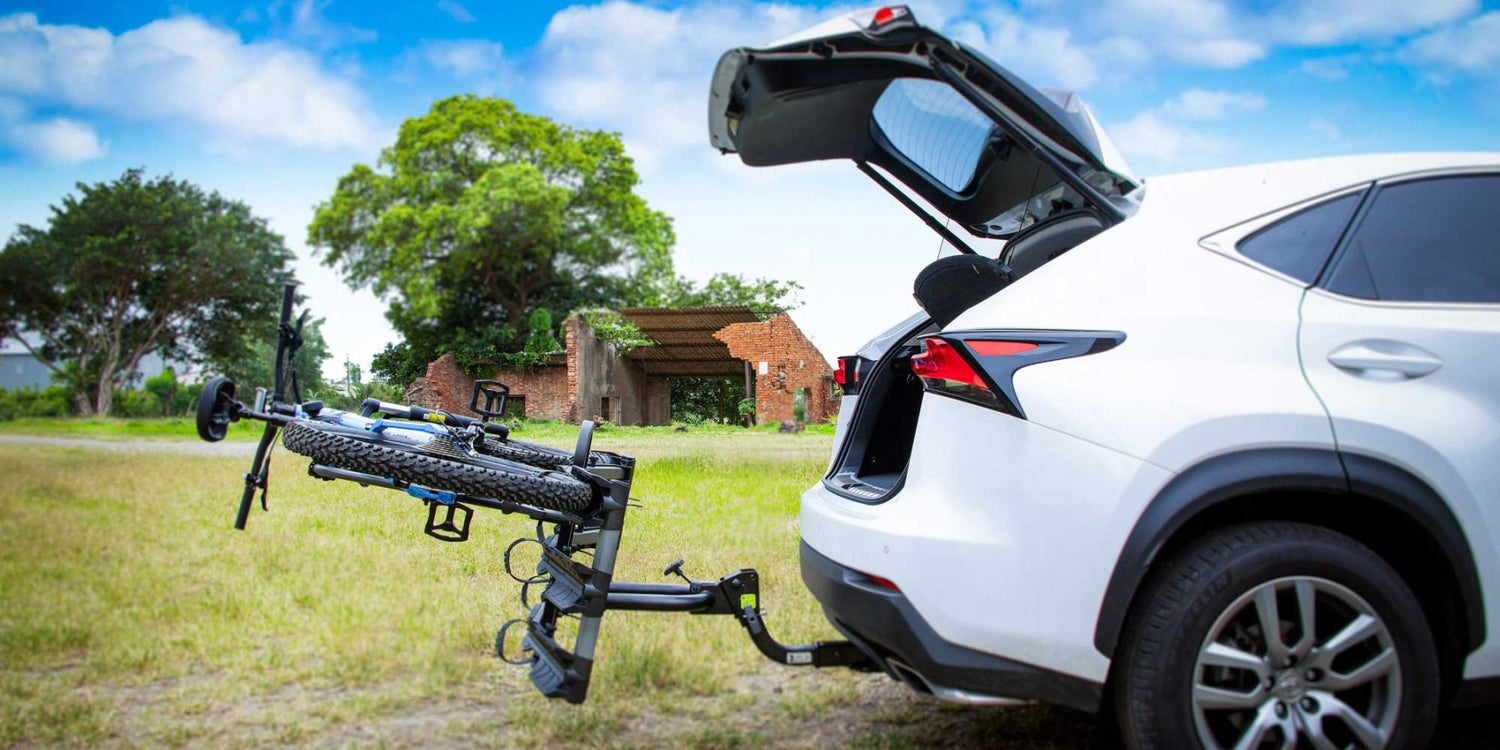

TILTING
Tilting is easy, and is very well balanced even with a full load. It gives you an easy access to the trunk.

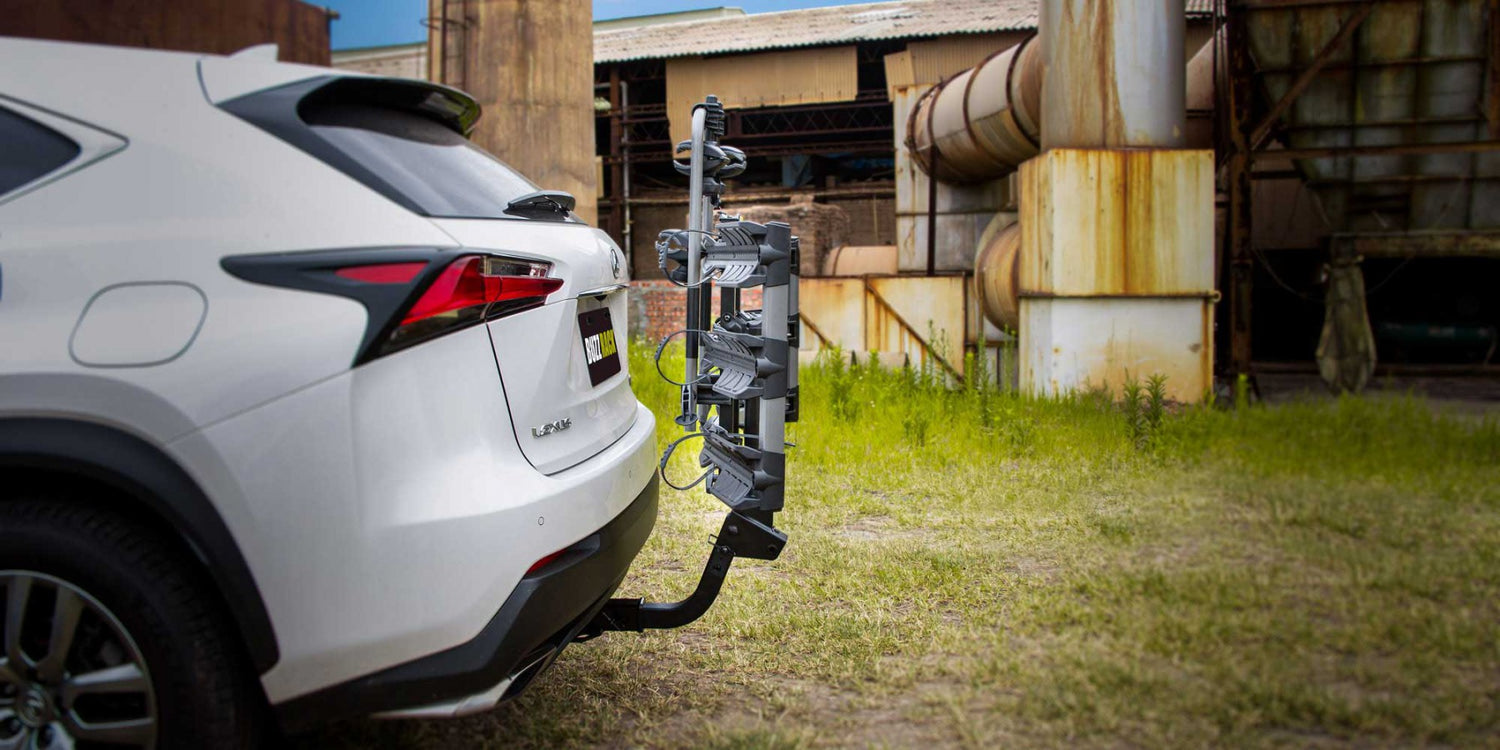

FOLDING
Folding is easy using a simple handle secured with a safety steel clip.
FEATURES
- The wheel holders will accommodate most wheelbases (not tandem!), even small children’s bikes. Check technical data below
- The long rubber-padded wheel straps hold tyres up to 4” wide; pull on them to tighten, and use the quick release to loosen
- The lockable frame arms hold your bikes securely and can be attached to any part of the frame, or the seat post. They can be locked using the same key as the tow ball attachment system.
- The maximum permitted load is 60kg (132lbs), with no bike weighing more than 30kg (66lbs)
- A reminder that it locks to the car.
- The E-HORNET H3 sits high on the hitch, well clear of speed bumps and other hazards such as steep ferry ramps.
- The build quality – tube bending, welding, rust proofing, painting, component quality, is exemplary. The whole carrier looks and feels like the class act it is. All tools you might need are provided.
- All parts are replaceable if e.g. someone forgets that a tow bar carrier is fitted and reverses into a wall – which happens!

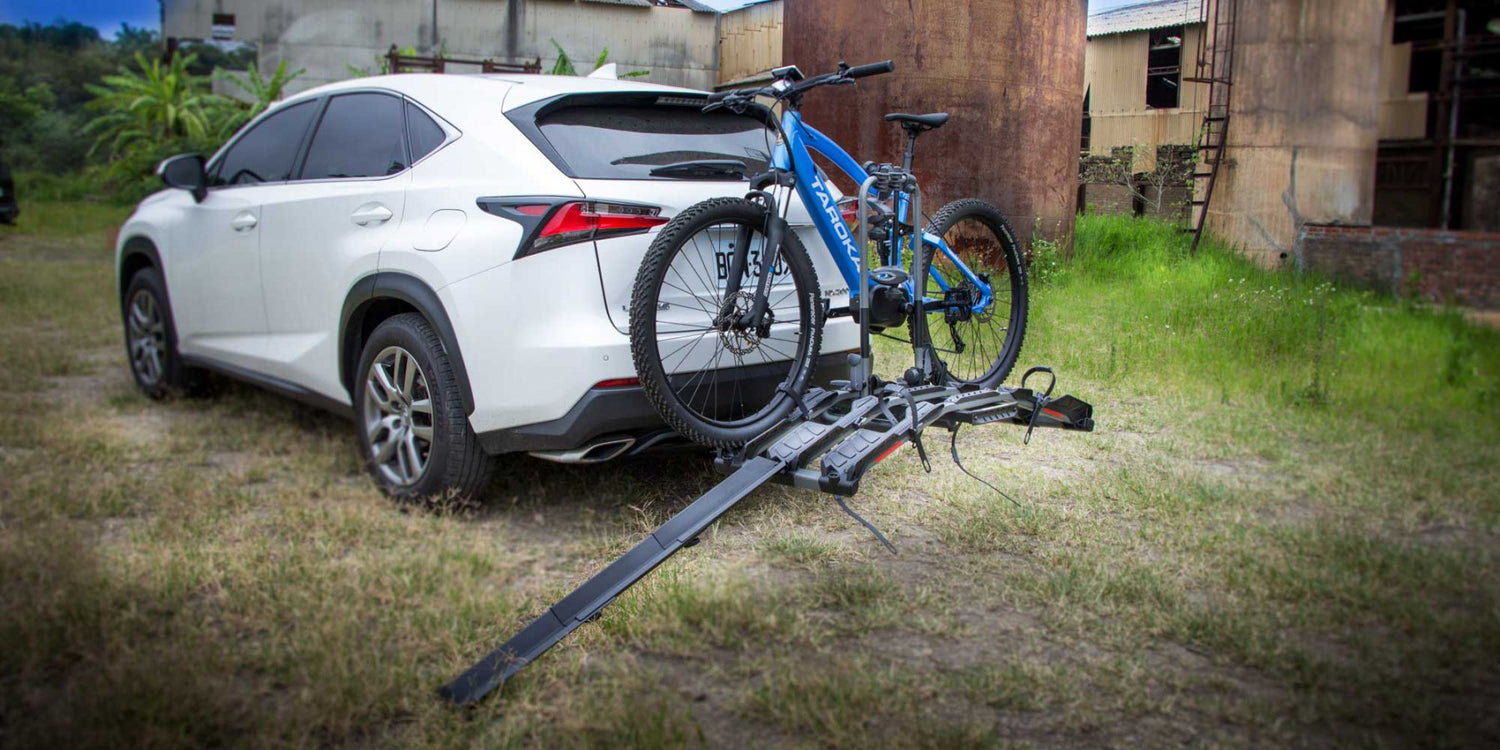

- A loading ramp is available separately.
- Not suitable for trailers, campers, or RVs
SPECIFICATIONS
| Max number of bikes | 3 |
| Max weight per bike | 30kg |
| Max load capacity | 60kg |
| Max tyre size | 4-inches |
| Fits 1.25” | No |
| Fits 2” | Yes |
| Dimensions (width x depth x height) | 127cm x 105cm x 89cm |
| Weight | 20.3kg |
| Tilting | Yes |
| Bike carrier to car | Yes |
| Bike carrier to bike lock | Yes |
