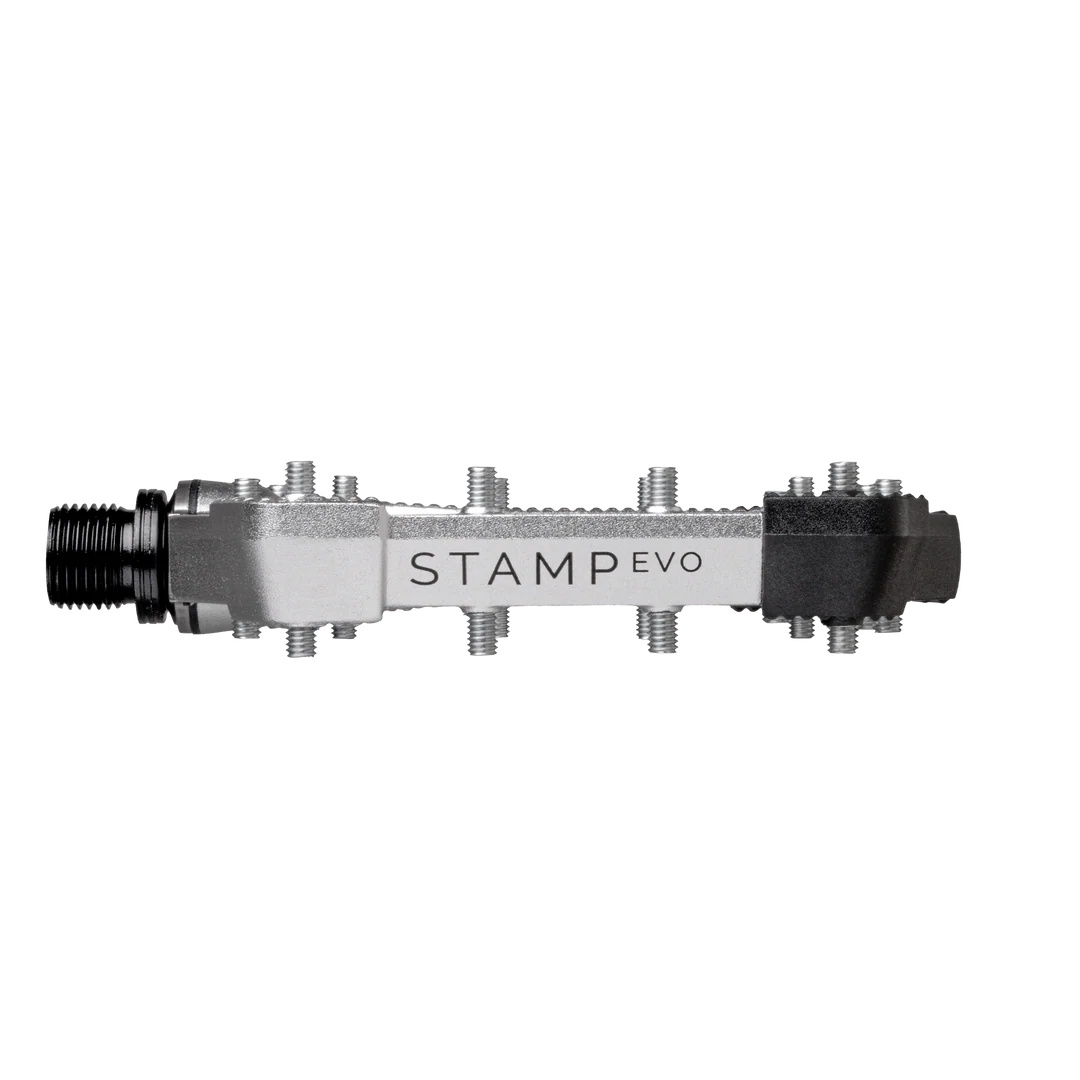

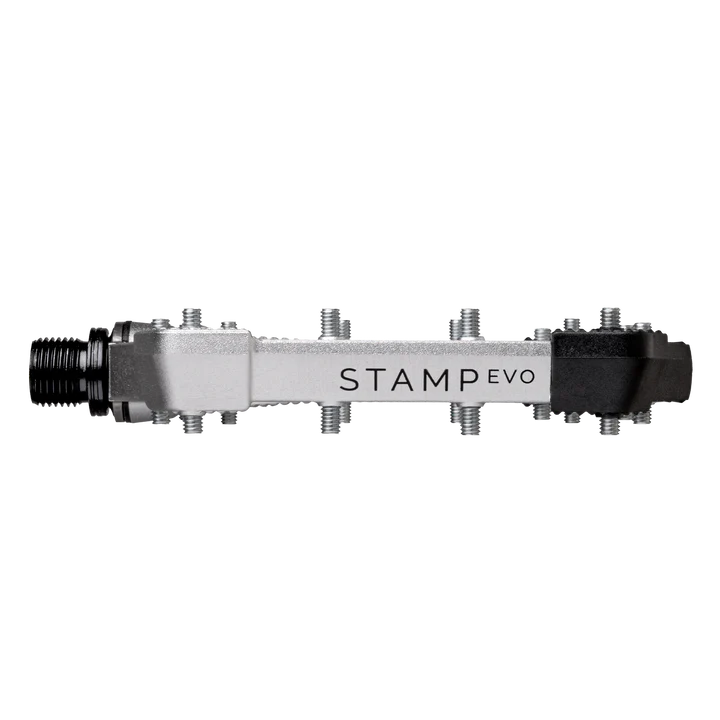

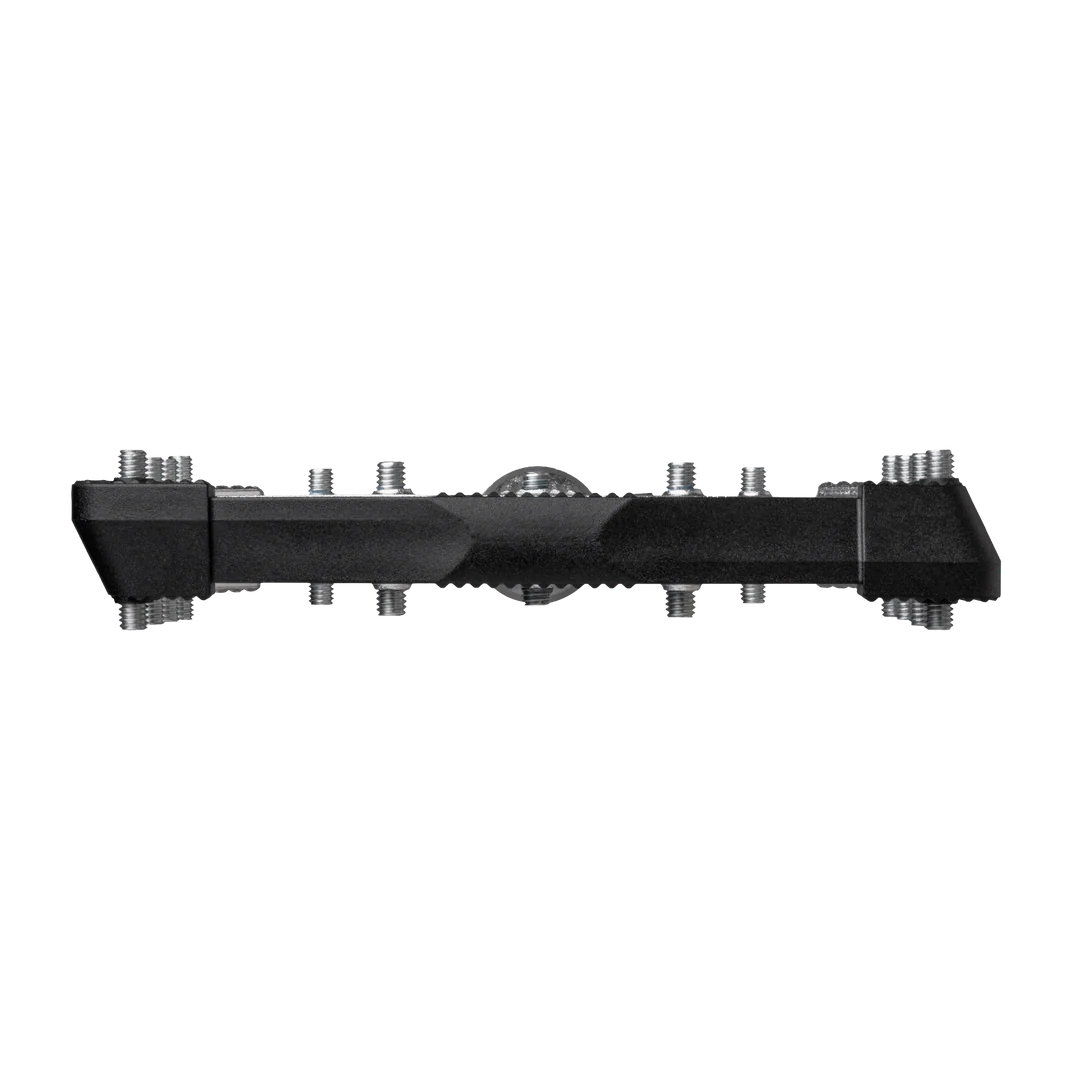

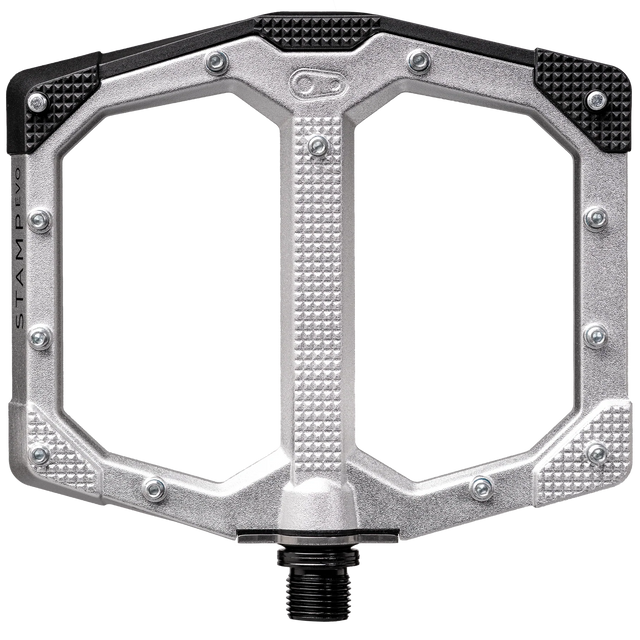

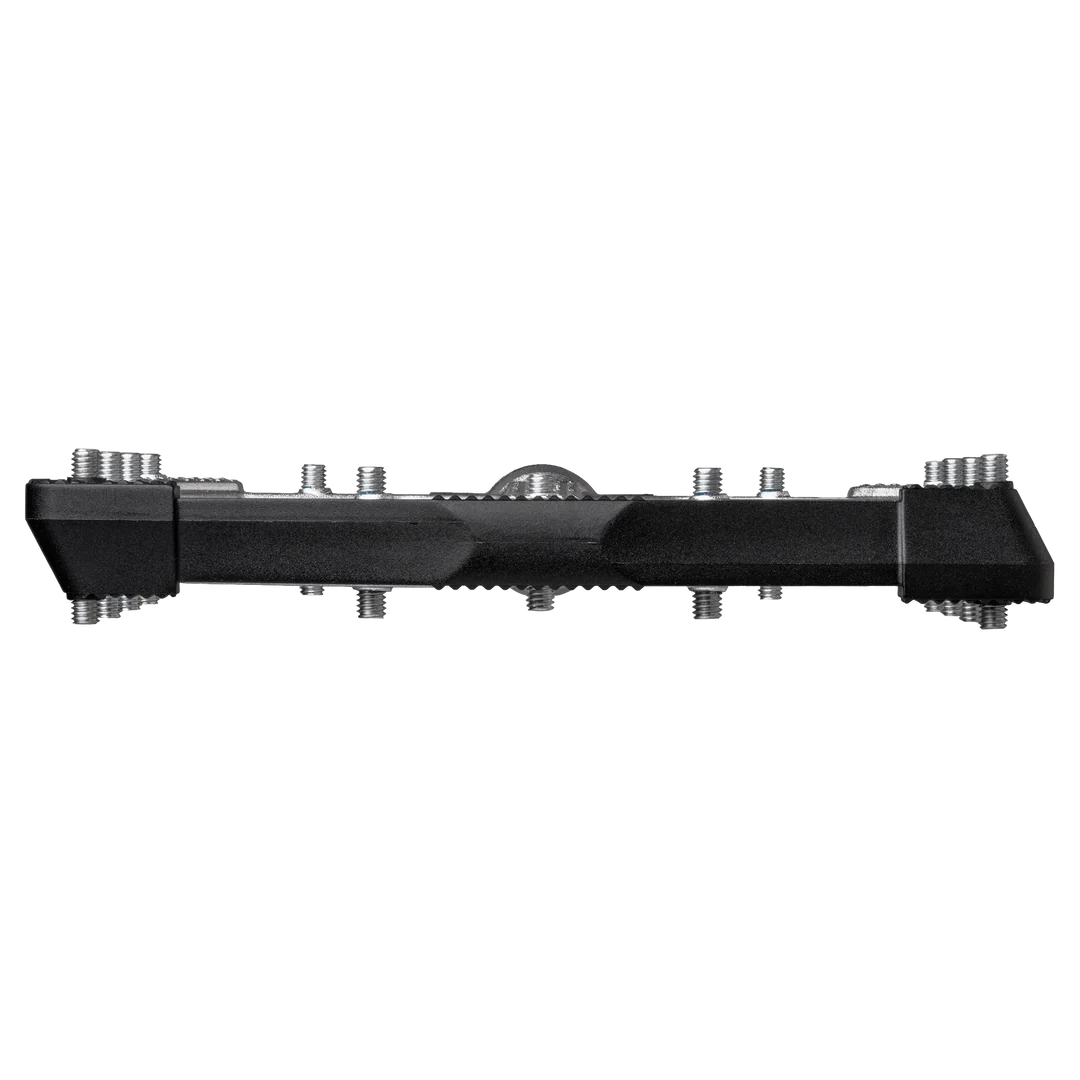

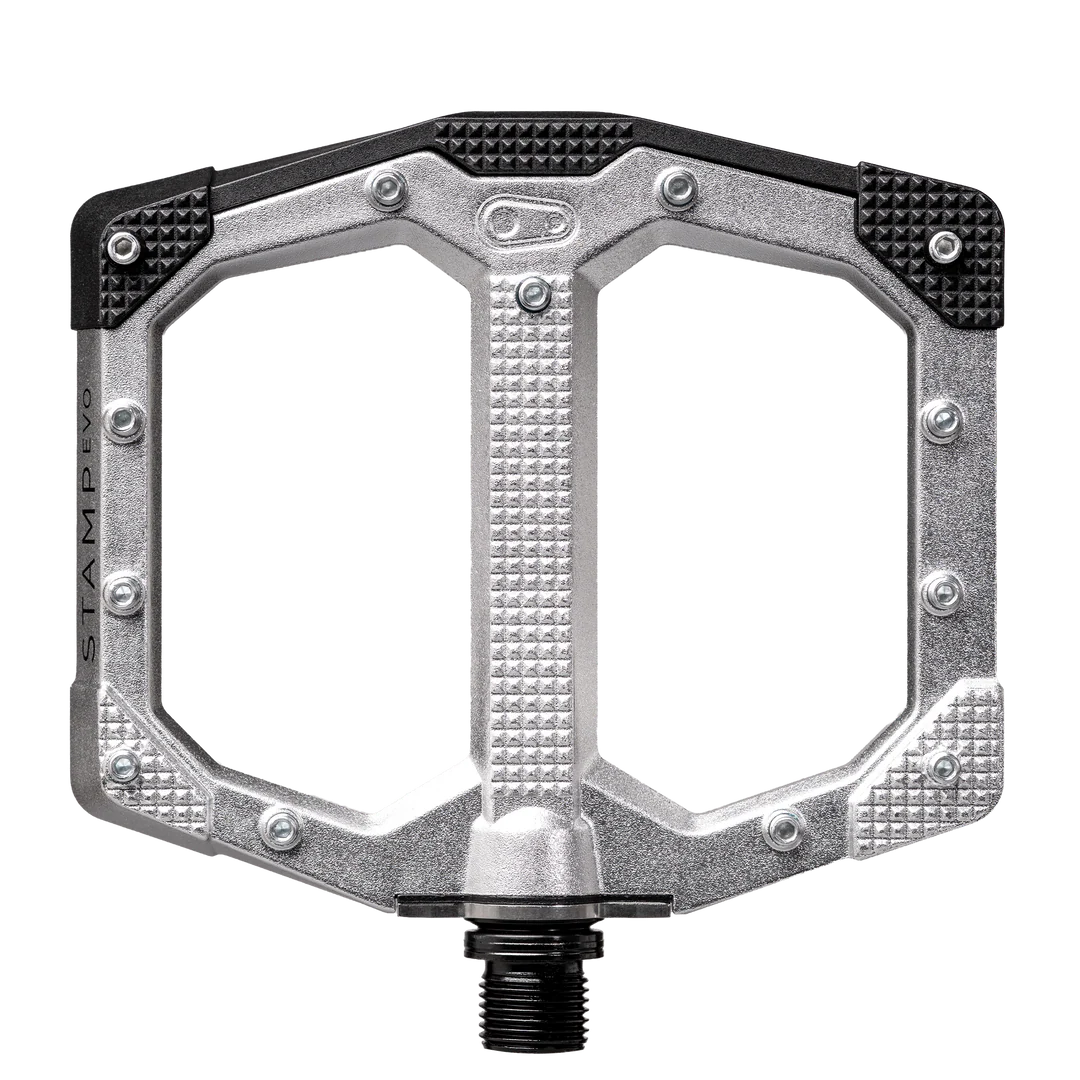

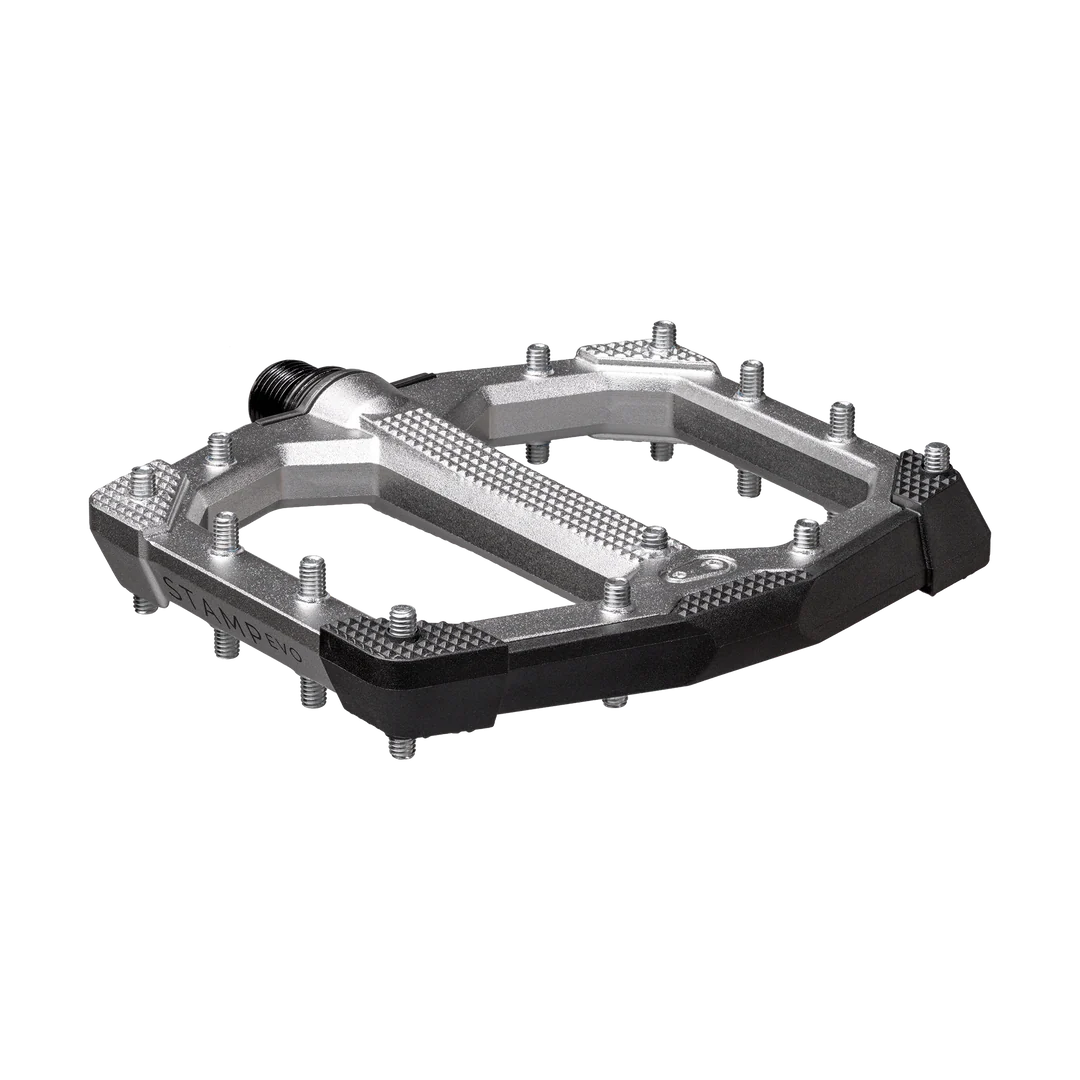

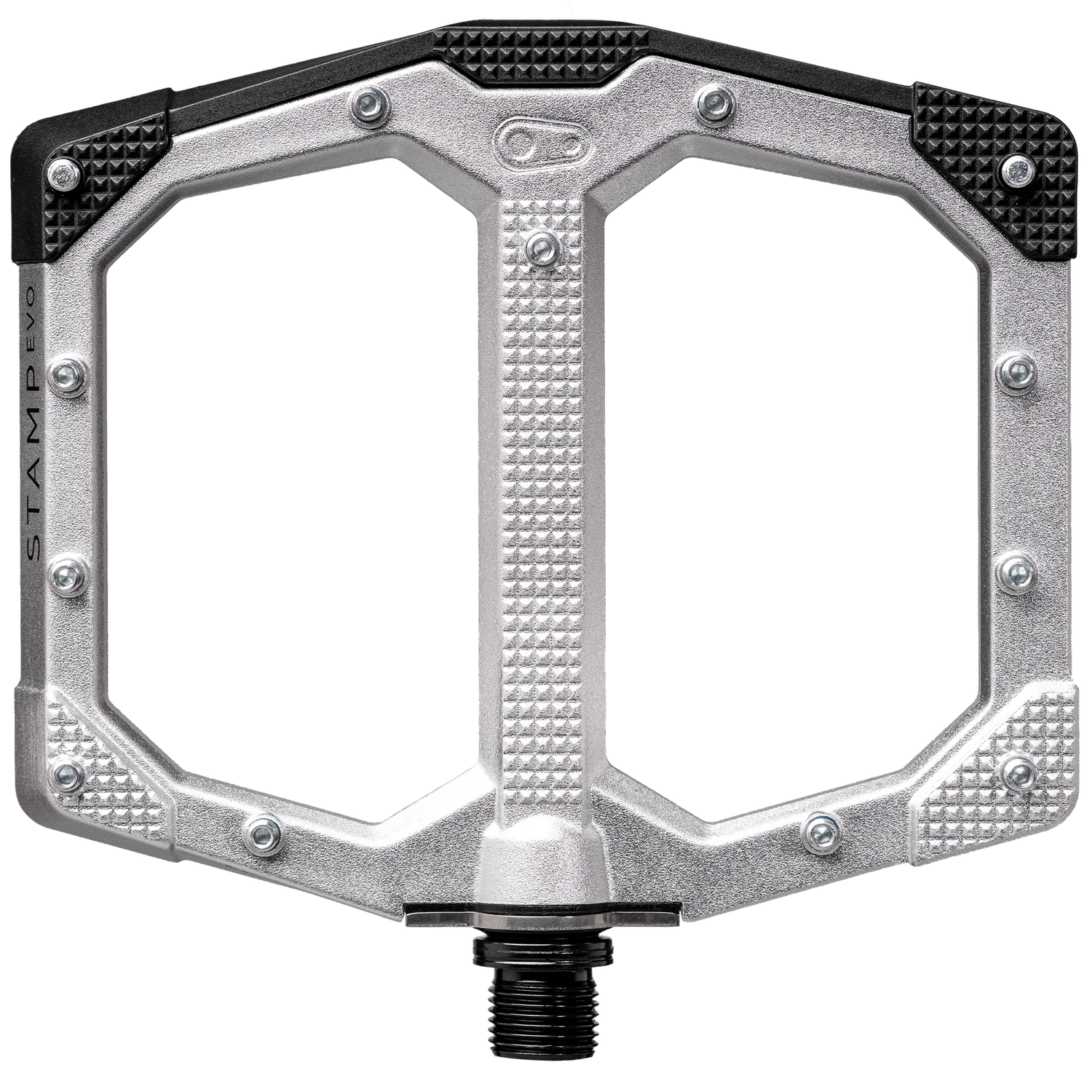

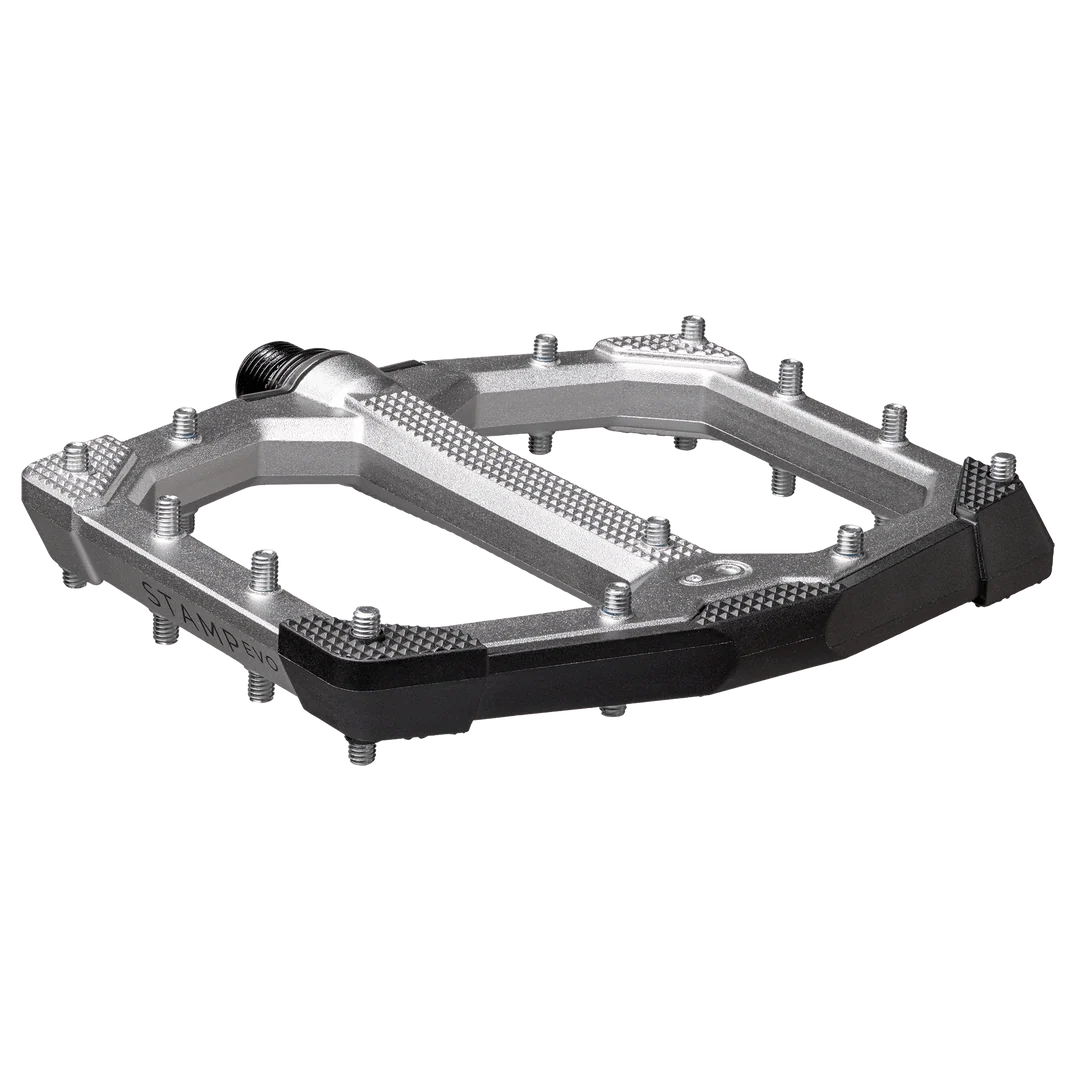

Crankbrothers Stamp EVO Flat Pedals
An extended platform for greater stability, less fatigue, and improved efficiency.
The Stamp EVO is 20% longer than the Stamp 7 pedal, enhancing support, stability, and comfort for all your flat pedal riding needs. Because climbing is part of every ride, the Stamp EVO is engineered to get more out of every pedal stroke, helping you ride longer and stronger. The size-specific platform improves foot placement, while a thin, concave profile and 13 adjustable pins per side ensure secure grip. A two-material construction design focuses on durability in the aluminum body, while the replaceable composite bashguards help deflect rock strikes and minimize pedal hang-ups. Built with a chromoly steel spindle and IGUS internals, available in two sizes to match your shoe size, the Stamp EVO is ready to rip.
Features
- Optimal surface area
- Minimal profile 11mm-15.5mm thin
- Concave platform (2.25mm per side) for secure foothold
- 13 adjustable pins per side for grip
- Premium bearings & seal system
- Stamp EVO Small recommended for shoe sizes: 5-10 (US) // 37-43.5 (EU)
- Stamp EVO Large recommended for shoe sizes: 10-15 (US) // 43.5-49 (EU)
- Extra pin kit & bashguards included
Specifications
| Size | Large | Small |
| Body Material |
Forged 6061-T6 Aluminum & |
Forged 6061-T6 Aluminum & |
| Footprint | 114mm Wide x 133mm Long | 103mm Wide x 117mm Long |
| Shoe Size | 10-15 (US M) // 43.5-49 (EU) | 3-10 (US M) // 35-43.5 (EU) |
| Traction Pins | 13 Adjustable per Side | 13 Adjustable per Side |
| Pin Length | 8mm, 10mm, 23mm | 8mm, 10mm, 23mm |
| Inner Bearing Type | Igus LL-glide Bearing | Igus LL-glide Bearing |
| Outer Bearing Type | Igus LL-glide Bearing | Igus LL-glide Bearing |
| Seal System | Premium V-Ring | Premium V-Ring |
| Spindle Material | Forged SCM 435 Chromoly Steel | Forged SCM 435 Chromoly Steel |
| Max Rider Weight | No Restriction | No Restriction |
| Weight | 464g per Pair | 418g per Pair |
| Warranty | 5 years | 5 years |
-
Compatible Bike Type
-
DisciplineMountain, Electric
-
SKUsSmall/Silver: 258565, Large/Silver: 641300172273
