Giant | SKU: 9024009126

Giant Contend AR 4 (2024)

Name: Giant Contend AR 4 (2024)
Brand: Giant
SKU: 9024009126
Price: 1399.0 AUD
Availability: OutOfStock

$1,399⁰⁰ ~~$1,599⁰⁰~~

Colour: Cold Night

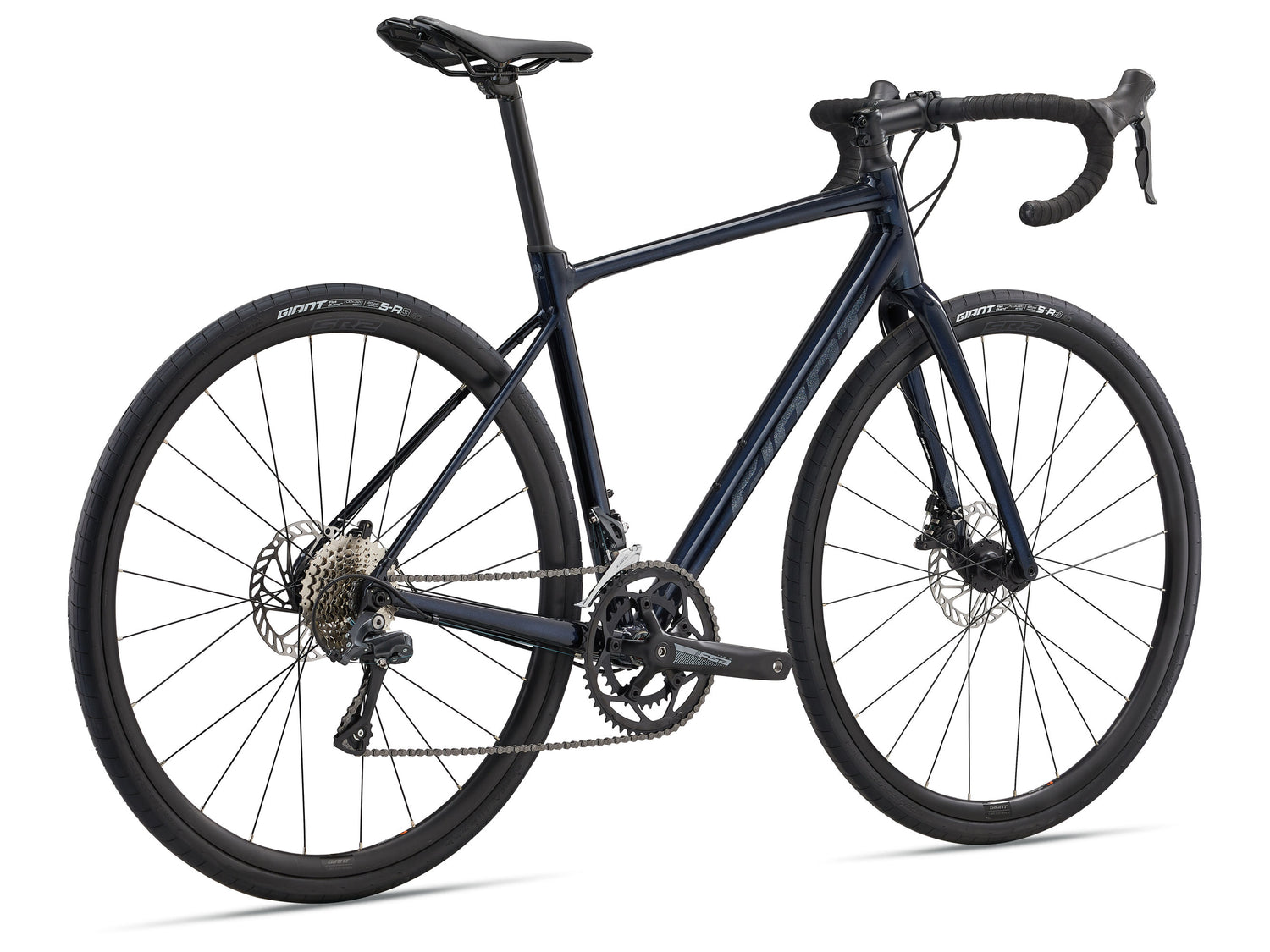

Giant Contend AR 4 (2024) mens road bike

Size

XS S M ML L XL

Product variants

Pickup in-store only. Shipping not available.

Sizing Chart

Sizing and Geometry

Giant Contend

Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.

Frame size	Rider Height	Rider Height (cm)
XS	5'2"-5'6"	157-169
S	5'5"-5'9"	165-175
M	5'7"-5'11"	171-181
ML	5'10"-6'2"	177-187
L	6'0"-6'4"	183-193
XL	6'2"-6'6"	189-199

Geometry

bike diagram with measurements referenced in table that follows

		XS	S	M	ML	L	XL
A	Seat Tube Length (mm)	430	465	500	535	555	585
B	Seat Tube Angle	75.0°	74.0°	73.5°	73.0°	73.0°	73.0°
C	Top Tube Length (mm)	515	535	550	565	580	595
D	Head Tube Length (mm)	115	135	150	170	190	215
E	Head Tube Angle	71.5°	71.8°	72.0°	72.5°	72.5°	72.5°
F	Fork Rake (mm)	53	53	53	53	53	53
G	Trail (mm)	62.9	61.3	59.6	56.4	56.4	56.4
H	Wheelbase (mm)	994	1003	1011	1015	1031	1046
I	Chain Stay Length (mm)	422	422	422	422	422	422
J	Bottom Bracket Drop (mm)	80	80	80	80	80	80
K	Stack (mm)	539	559	574	595	614	638
L	Reach (mm)	371	375	380	383	392	400
M	Stand Over Height (mm)	727	759	783	810	829	856
O	Stem Length (mm)	80	90	100	100	110	110
P	Crank Length (mm)	170	170	172.5	172.5	175	175
Q	Wheel Size	700C	700C	700C	700C	700C	700C

Shipping Information

This product: Pickup in-store only. Shipping not available.

Shipping available†

We offer shipping on select brands including: Rocky Mountain, Orbea, XDS, Icon, Jamis, Shogun, Schwinn, BYK, Kidvelo. These bikes are shipped unbuilt in their original box.

†Only bikes stocked at our Warehouse location are available for shipping.

Shipping upon request to your local bike shop

Some brands require the bike is delivered directly to a bicycle shop or mechanic for assembly, and shipping is not available to your residence. These include GT, Cannondale, .

Request a shipping quote to proceed.

Pickup in-store only

Certain bike brands cannot be shipped and are only available for Click and Collect or purchase in-store.

These include but are not limited to the following brands: Giant, Norco, Liv, Momentum, Malvern Star and Mongoose.

Pre-assembled bikes

†Any bikes in stock at our Heidelberg Heights, Hallam or Hoppers Crossing store locations are already fully assembled, and therefore only available for Click and Collect or purchase in-store.

Fully assembled when you Click & Collect in-store

Buy Now, Pay Later with ZIP

Free service adjustment within first 6 months
