Giant Cross City Disc 2 (2022)
Giant Cross City Disc 2 (2022) - Concrete / S is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Sizing Chart
Sizing Chart
Sizing and Geometry
Giant Cross City
Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.
| Frame size | Rider Height | Rider Height (cm) |
| S | 5'3"-5'7" | 160-170 |
| M | 5'7"-5'11" | 170-180 |
| L | 5'11"-6'3" | 180-190 |
| XL | 6'3"-6'7" | 190-200 |
Geometry
| S | M | L | XL | ||
|---|---|---|---|---|---|
| A | Seat Tube Length (inch) | 16.9 | 19.1 | 21.1 | 23 |
| B | Seat Tube Angle | 73.5° | 73.0° | 73.0° | 73.0° |
| C | Top Tube Length (inch) | 22.2 | 22.8 | 23.4 | 24 |
| D | Head Tube Length (inch) | 4.5 | 5.1 | 6.3 | 7.5 |
| E | Head Tube Angle | 70.0° | 71.0° | 71.0° | 71.0° |
| F | Fork Rake (inch) | 2 | 2 | 2 | 2 |
| G | Trail (inch) | 3 | 2.7 | 2.7 | 2.7 |
| H | Wheelbase (inch) | 42.3 | 42.3 | 43 | 43.6 |
| I | Chain Stay Length (inch) | 17.5 | 17.5 | 17.5 | 17.5 |
| J | Bottom Bracket Drop (inch) | 2.4 | 2.4 | 2.4 | 2.4 |
| K | Stack (inch) | 21.2 | 21.9 | 23 | 24.1 |
| L | Reach (inch) | 16 | 16.1 | 16.4 | 16.7 |
| M | Stand Over Height (inch) | 28.1 | 29.7 | 31.5 | 33.1 |
| O | Stem Length (inch) | 3.5 | 3.5 | 3.9 | 3.9 |
| P | Crank Length (inch) | 6.7 | 6.7 | 6.9 | 6.9 |
| Q | Wheel Size | 700C | 700C | 700C | 700C |
Shipping Information
Shipping Information
Certain bike brands cannot be shipped and are only available for Click and Collect.
These include but are not limited to the following brands: Giant, GT, Liv, Momentum and Mongoose.
For all other brands, we can provide a shipping quote to your postcode. Please contact us by email at staff@ivanhoecycles.com.au, or text us on 0417 122 950.
Sizing and Geometry
Giant Cross City
Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.
| Frame size | Rider Height | Rider Height (cm) |
| S | 5'3"-5'7" | 160-170 |
| M | 5'7"-5'11" | 170-180 |
| L | 5'11"-6'3" | 180-190 |
| XL | 6'3"-6'7" | 190-200 |
Geometry
| S | M | L | XL | ||
|---|---|---|---|---|---|
| A | Seat Tube Length (inch) | 16.9 | 19.1 | 21.1 | 23 |
| B | Seat Tube Angle | 73.5° | 73.0° | 73.0° | 73.0° |
| C | Top Tube Length (inch) | 22.2 | 22.8 | 23.4 | 24 |
| D | Head Tube Length (inch) | 4.5 | 5.1 | 6.3 | 7.5 |
| E | Head Tube Angle | 70.0° | 71.0° | 71.0° | 71.0° |
| F | Fork Rake (inch) | 2 | 2 | 2 | 2 |
| G | Trail (inch) | 3 | 2.7 | 2.7 | 2.7 |
| H | Wheelbase (inch) | 42.3 | 42.3 | 43 | 43.6 |
| I | Chain Stay Length (inch) | 17.5 | 17.5 | 17.5 | 17.5 |
| J | Bottom Bracket Drop (inch) | 2.4 | 2.4 | 2.4 | 2.4 |
| K | Stack (inch) | 21.2 | 21.9 | 23 | 24.1 |
| L | Reach (inch) | 16 | 16.1 | 16.4 | 16.7 |
| M | Stand Over Height (inch) | 28.1 | 29.7 | 31.5 | 33.1 |
| O | Stem Length (inch) | 3.5 | 3.5 | 3.9 | 3.9 |
| P | Crank Length (inch) | 6.7 | 6.7 | 6.9 | 6.9 |
| Q | Wheel Size | 700C | 700C | 700C | 700C |

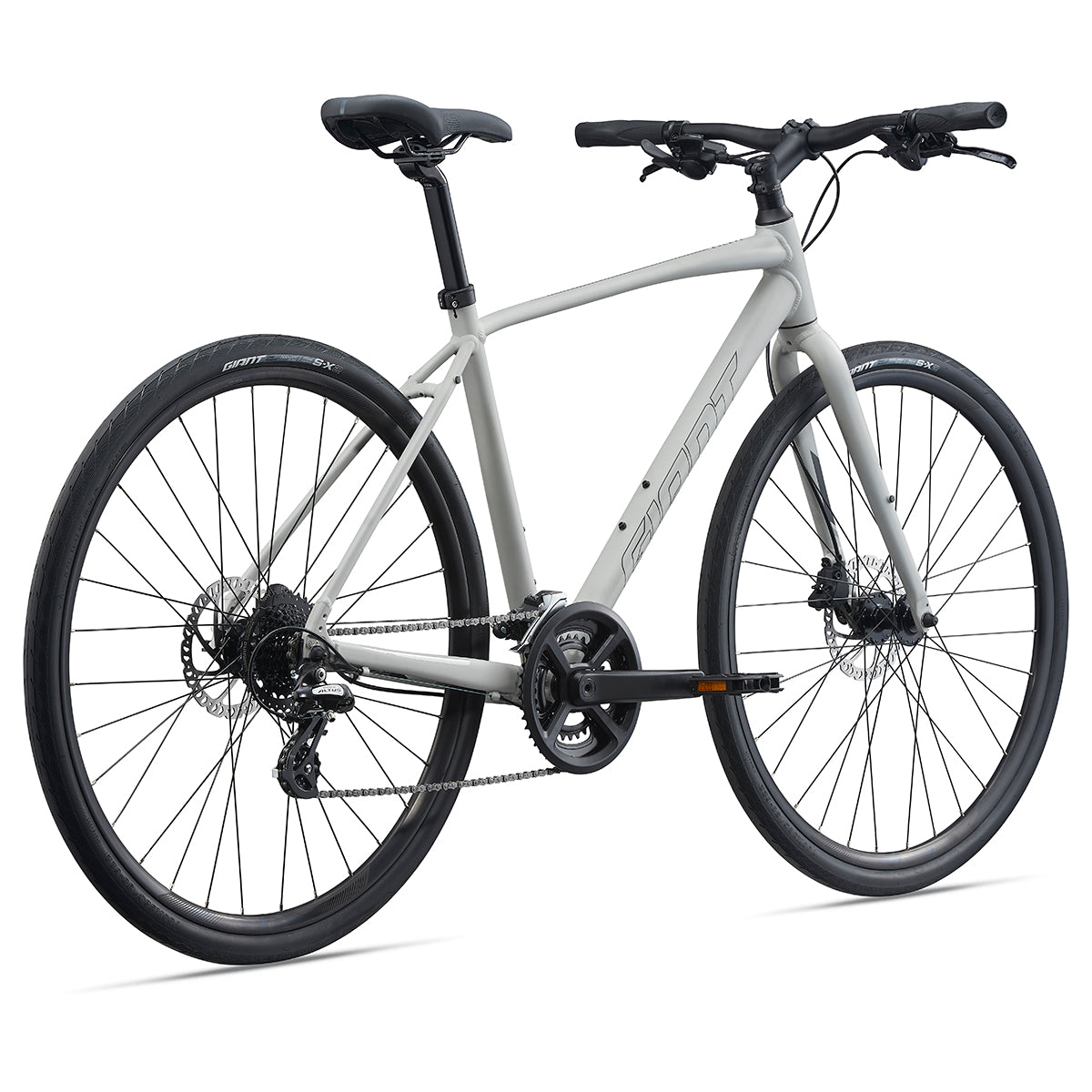

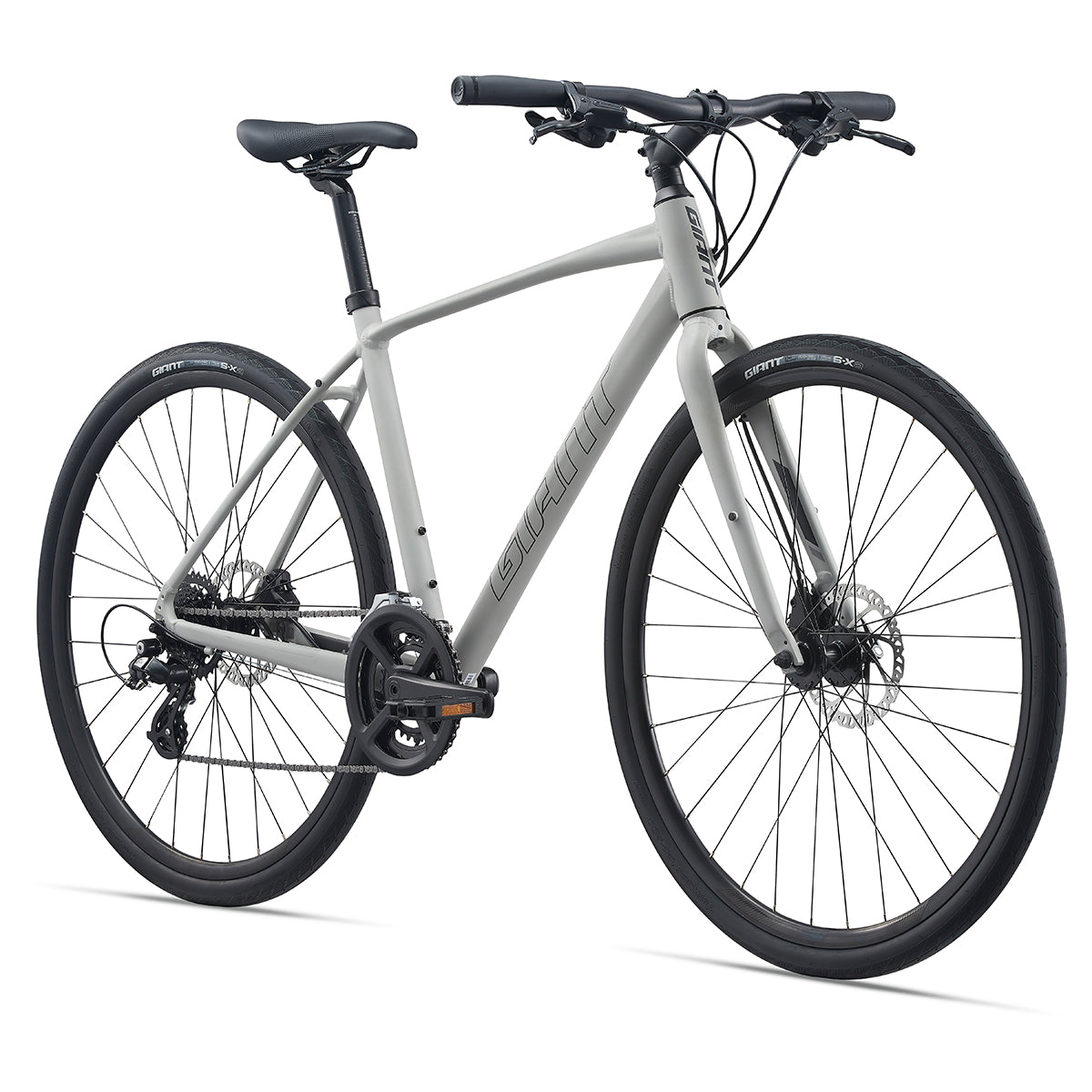

Giant Cross City 2 (2022)
With its lightweight ALUXX aluminium frame, upright positioning and high-quality parts that give it a smooth, comfortable ride, the Cross City Disc is very versatile and totally fun to ride.
The Cross City 2 features an aluminium fork and innovative D-Fuse seatpost. The aluminium fork keeps the handling light and responsive. And the D-Fuse post smooths out rough roads, absorbing shocks and vibrations, and giving you a more comfortable ride.
And the Cross City 2 comes hydraulic disc brakes that deliver powerful braking performance in dry or wet conditions, plus the large-diameter (700c) wheels keep you rolling with speed and efficiency.
As an added bonus, there’s clearance for larger tyres up to 45mm in width; making the Cross City 2 better suited to riders who spend time on rougher roads.
The frame has integrated mounts, so you option the Cross City 2 out with a rear pannier rack and mudguards.
FEATURES
- Lightweight ALUXX frame, fast-rolling 700c wheels, and confident upright positioning offer a balanced, efficient ride quality.
- Powerful disc brakes and a wide range of gears help you increase your speed and tackle hills with more control.
- Puncture-resistant tyres and integrated rack mounts make it easier to carry your daily essentials or load up for weekend adventures.
SPECIFICATIONS
| Sizes | S, M, L, XL |
| Colour | Concrete |
| Frame | ALUXX-Grade Aluminium, disc |
| Fork | Alloy, rack mount, disc |
| Handlebar | Giant Sport XC, 31.8mm |
| Grips | Giant Connect Ergo |
| Stem | Giant Sport, 15-degree, 31.8mm S:90mm, M:90mm, L:100mm, XL:100mm |
| Seatpost | Giant D-Fuse, alloy |
| Saddle | Giant Sport |
| Pedals | Giant platform |
| Shifters | Shimano Altus, 16 speed |
| Front Derailleur | Shimano FD-TY710 |
| Rear Derailleur | Shimano Altus |
| Brakes | Tektro HD-R280, Giant MPH rotors [F]160mm, [R]160mm |
| Brake Levers | Shimano |
| Cassette | Shimano CS-HG31, 11T-34T |
| Chain | KMC Z8.3 |
| Crankset | Forged alloy, 30T/46T // S:170mm, M:170mm, L:175mm, XL:175mm |
| Bottom Bracket | Cartridge |
| Rims | Giant double wall aluminium |
| Hubs | Alloy, 28H |
| Spokes | Stainless, 14g |
| Tyres | Giant S-X2, puncture protect, 700x38c |
| Extras | 45mm max tyre size |
| Notes | We reserve the right to make changes to the product and component information appearing on this site at any time without notice, including with respect to equipment, specifications, models, colors, and materials. |
-
