Giant Cross City Disc 3 (2022)
Giant Cross City Disc 3 (2022) - Charcoal / L : This product is available for backorder only. Will ship as soon as it is back in stock.
Couldn't load pickup availability
Sizing Chart
Sizing Chart
Sizing and Geometry
Giant Cross City
Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.
| Frame size | Rider Height | Rider Height (cm) |
| S | 5'3"-5'7" | 160-170 |
| M | 5'7"-5'11" | 170-180 |
| L | 5'11"-6'3" | 180-190 |
| XL | 6'3"-6'7" | 190-200 |
Geometry
| S | M | L | XL | ||
|---|---|---|---|---|---|
| A | Seat Tube Length (inch) | 16.9 | 19.1 | 21.1 | 23 |
| B | Seat Tube Angle | 73.5° | 73.0° | 73.0° | 73.0° |
| C | Top Tube Length (inch) | 22.2 | 22.8 | 23.4 | 24 |
| D | Head Tube Length (inch) | 4.5 | 5.1 | 6.3 | 7.5 |
| E | Head Tube Angle | 70.0° | 71.0° | 71.0° | 71.0° |
| F | Fork Rake (inch) | 2 | 2 | 2 | 2 |
| G | Trail (inch) | 3 | 2.7 | 2.7 | 2.7 |
| H | Wheelbase (inch) | 42.3 | 42.3 | 43 | 43.6 |
| I | Chain Stay Length (inch) | 17.5 | 17.5 | 17.5 | 17.5 |
| J | Bottom Bracket Drop (inch) | 2.4 | 2.4 | 2.4 | 2.4 |
| K | Stack (inch) | 21.2 | 21.9 | 23 | 24.1 |
| L | Reach (inch) | 16 | 16.1 | 16.4 | 16.7 |
| M | Stand Over Height (inch) | 28.1 | 29.7 | 31.5 | 33.1 |
| O | Stem Length (inch) | 3.5 | 3.5 | 3.9 | 3.9 |
| P | Crank Length (inch) | 6.7 | 6.7 | 6.9 | 6.9 |
| Q | Wheel Size | 700C | 700C | 700C | 700C |
Shipping Information
Shipping Information
This product: Pickup in-store only. Shipping not available.
Shipping available†
We offer shipping on select brands including: Rocky Mountain, Orbea, XDS, Icon, Jamis, Shogun, Schwinn, BYK, Kidvelo. These bikes are shipped unbuilt in their original box.
†Only bikes stocked at our Warehouse location are available for shipping.
Shipping upon request to your local bike shop
Some brands require the bike is delivered directly to a bicycle shop or mechanic for assembly, and shipping is not available to your residence. These include GT, Cannondale, .
Request a shipping quote to proceed.
Pickup in-store only
Certain bike brands cannot be shipped and are only available for Click and Collect or purchase in-store.
These include but are not limited to the following brands: Giant, Norco, Liv, Momentum, Malvern Star and Mongoose.
Pre-assembled bikes
†Any bikes in stock at our Heidelberg Heights, Hallam or Hoppers Crossing store locations are already fully assembled, and therefore only available for Click and Collect or purchase in-store.
Sizing and Geometry
Giant Cross City
Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.
| Frame size | Rider Height | Rider Height (cm) |
| S | 5'3"-5'7" | 160-170 |
| M | 5'7"-5'11" | 170-180 |
| L | 5'11"-6'3" | 180-190 |
| XL | 6'3"-6'7" | 190-200 |
Geometry
| S | M | L | XL | ||
|---|---|---|---|---|---|
| A | Seat Tube Length (inch) | 16.9 | 19.1 | 21.1 | 23 |
| B | Seat Tube Angle | 73.5° | 73.0° | 73.0° | 73.0° |
| C | Top Tube Length (inch) | 22.2 | 22.8 | 23.4 | 24 |
| D | Head Tube Length (inch) | 4.5 | 5.1 | 6.3 | 7.5 |
| E | Head Tube Angle | 70.0° | 71.0° | 71.0° | 71.0° |
| F | Fork Rake (inch) | 2 | 2 | 2 | 2 |
| G | Trail (inch) | 3 | 2.7 | 2.7 | 2.7 |
| H | Wheelbase (inch) | 42.3 | 42.3 | 43 | 43.6 |
| I | Chain Stay Length (inch) | 17.5 | 17.5 | 17.5 | 17.5 |
| J | Bottom Bracket Drop (inch) | 2.4 | 2.4 | 2.4 | 2.4 |
| K | Stack (inch) | 21.2 | 21.9 | 23 | 24.1 |
| L | Reach (inch) | 16 | 16.1 | 16.4 | 16.7 |
| M | Stand Over Height (inch) | 28.1 | 29.7 | 31.5 | 33.1 |
| O | Stem Length (inch) | 3.5 | 3.5 | 3.9 | 3.9 |
| P | Crank Length (inch) | 6.7 | 6.7 | 6.9 | 6.9 |
| Q | Wheel Size | 700C | 700C | 700C | 700C |

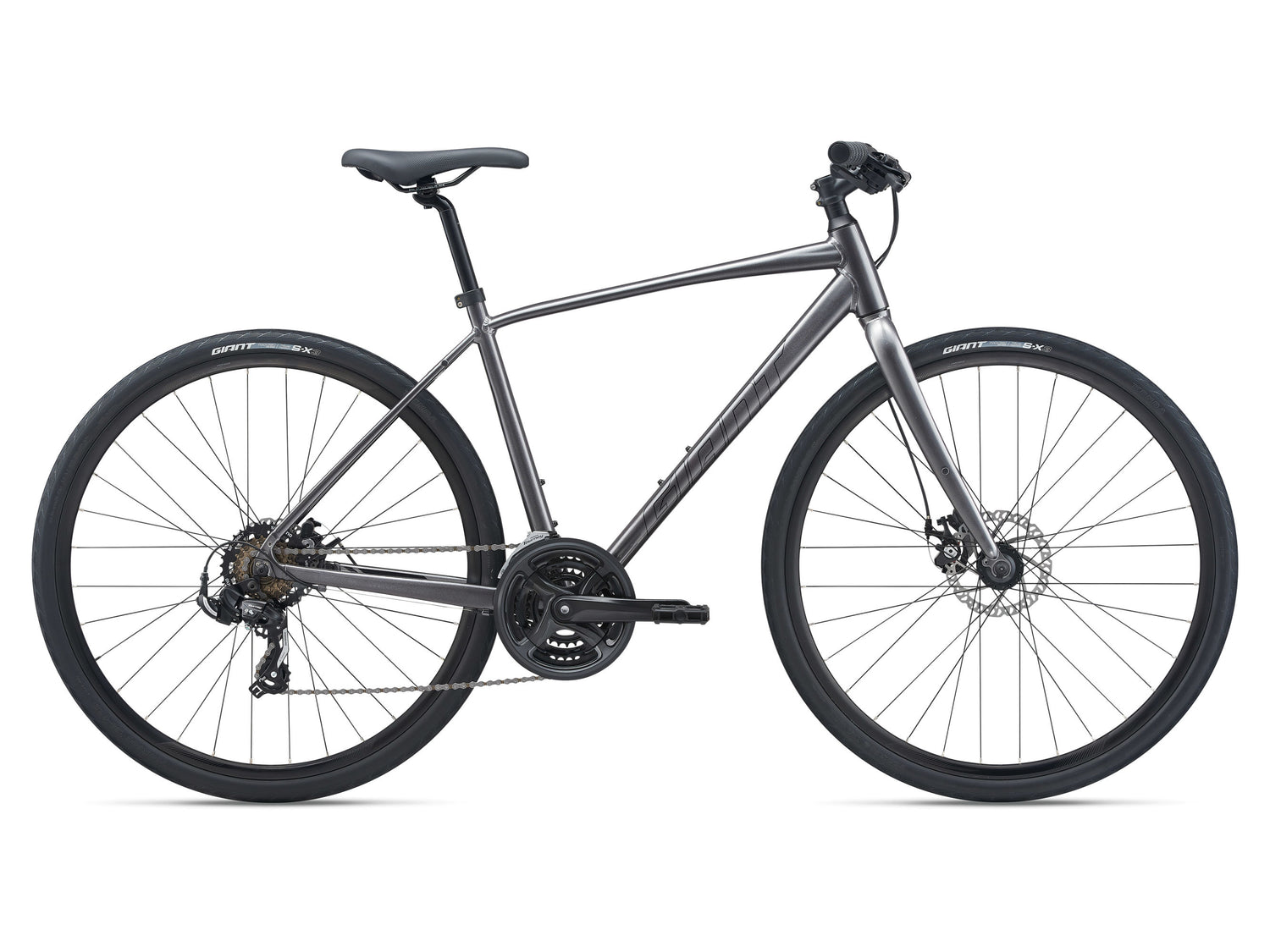

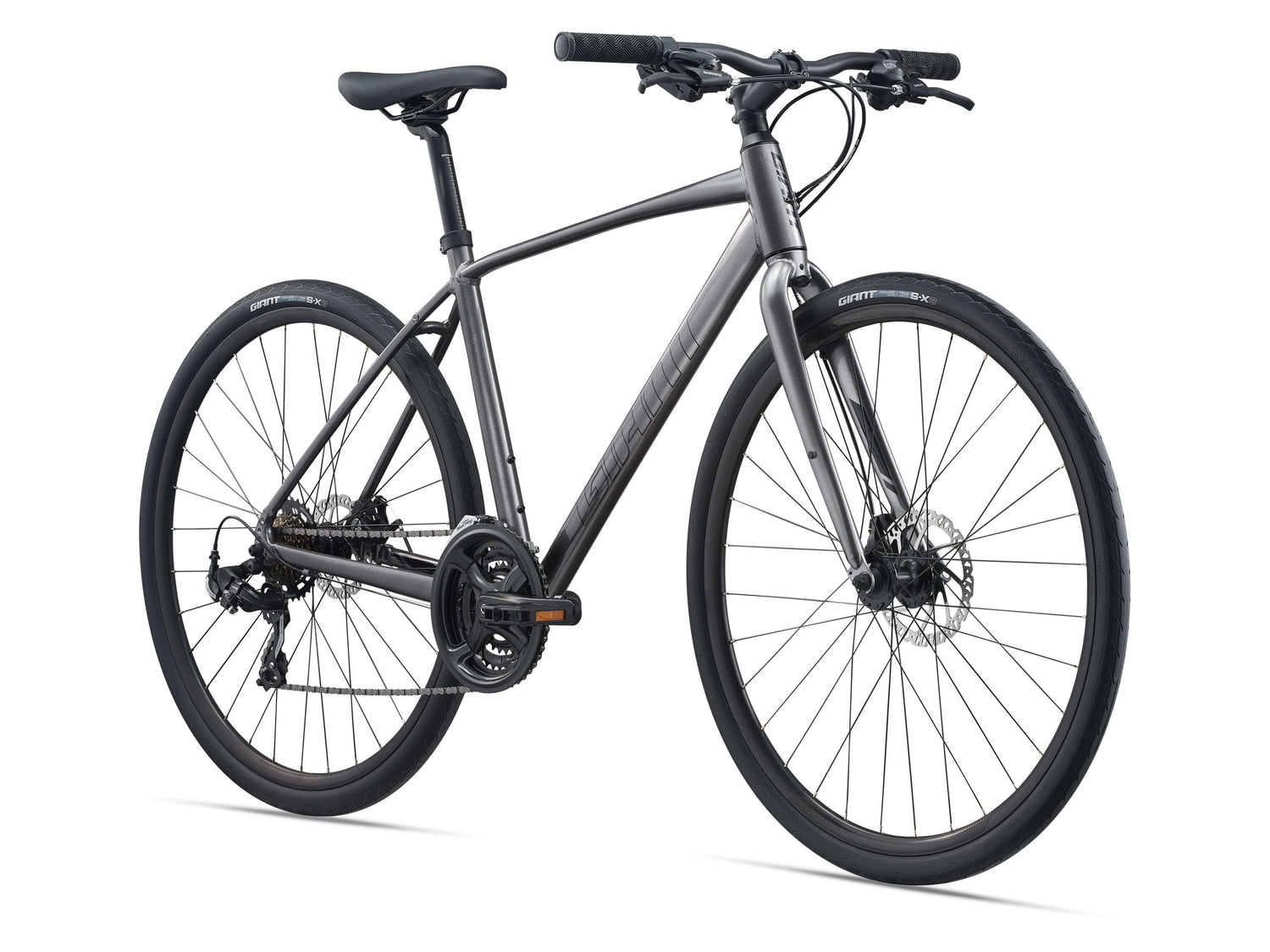

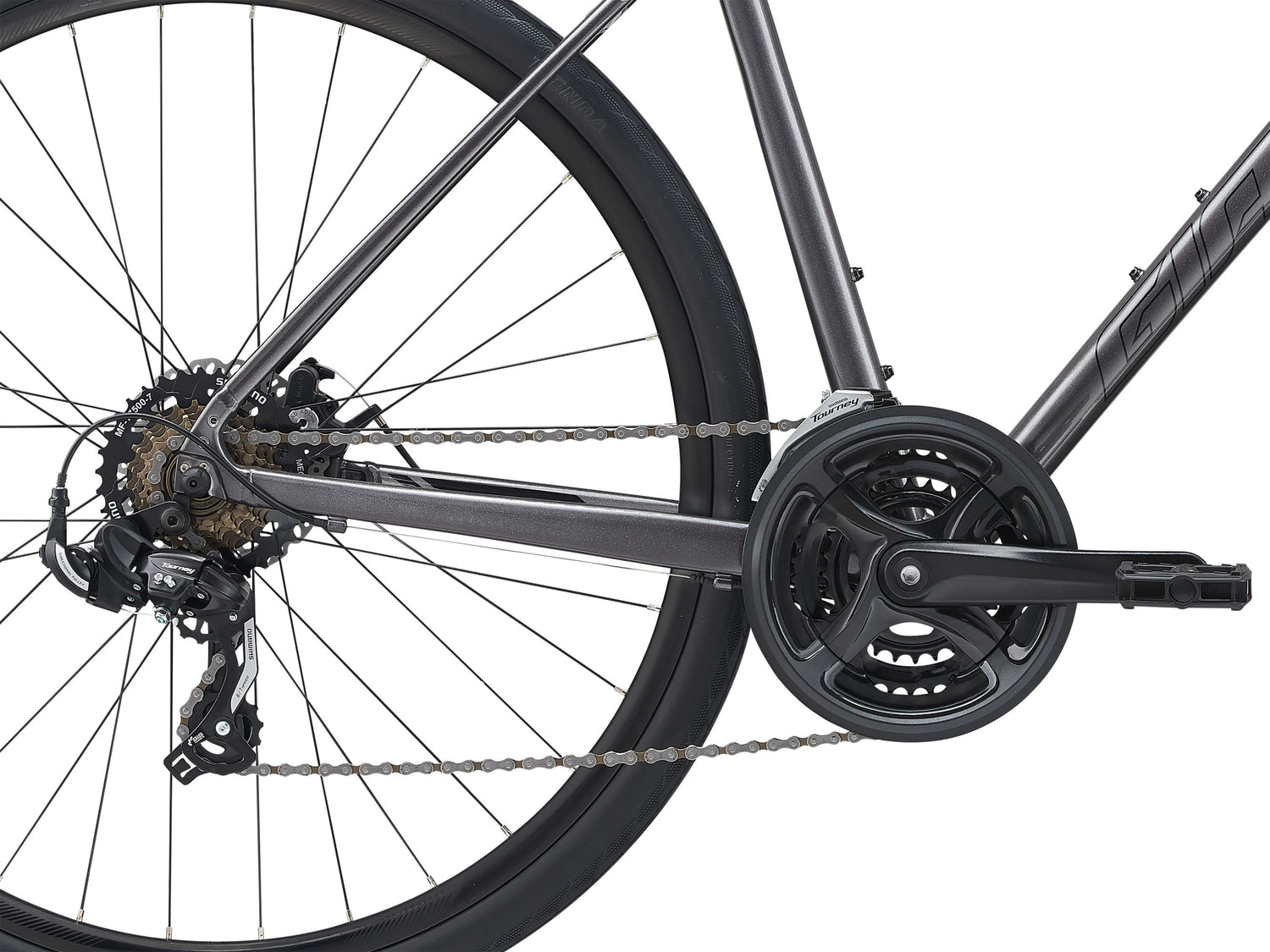

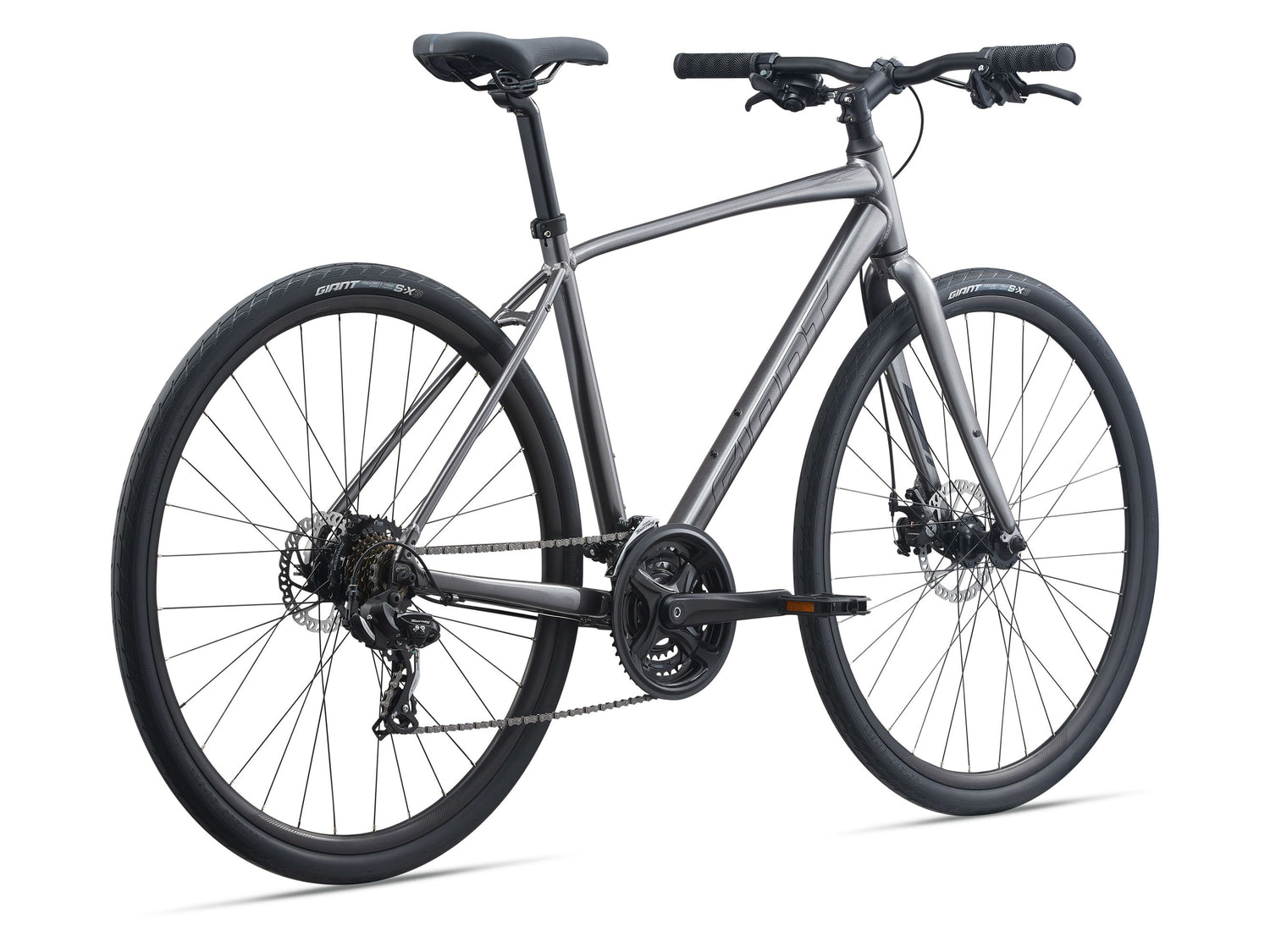

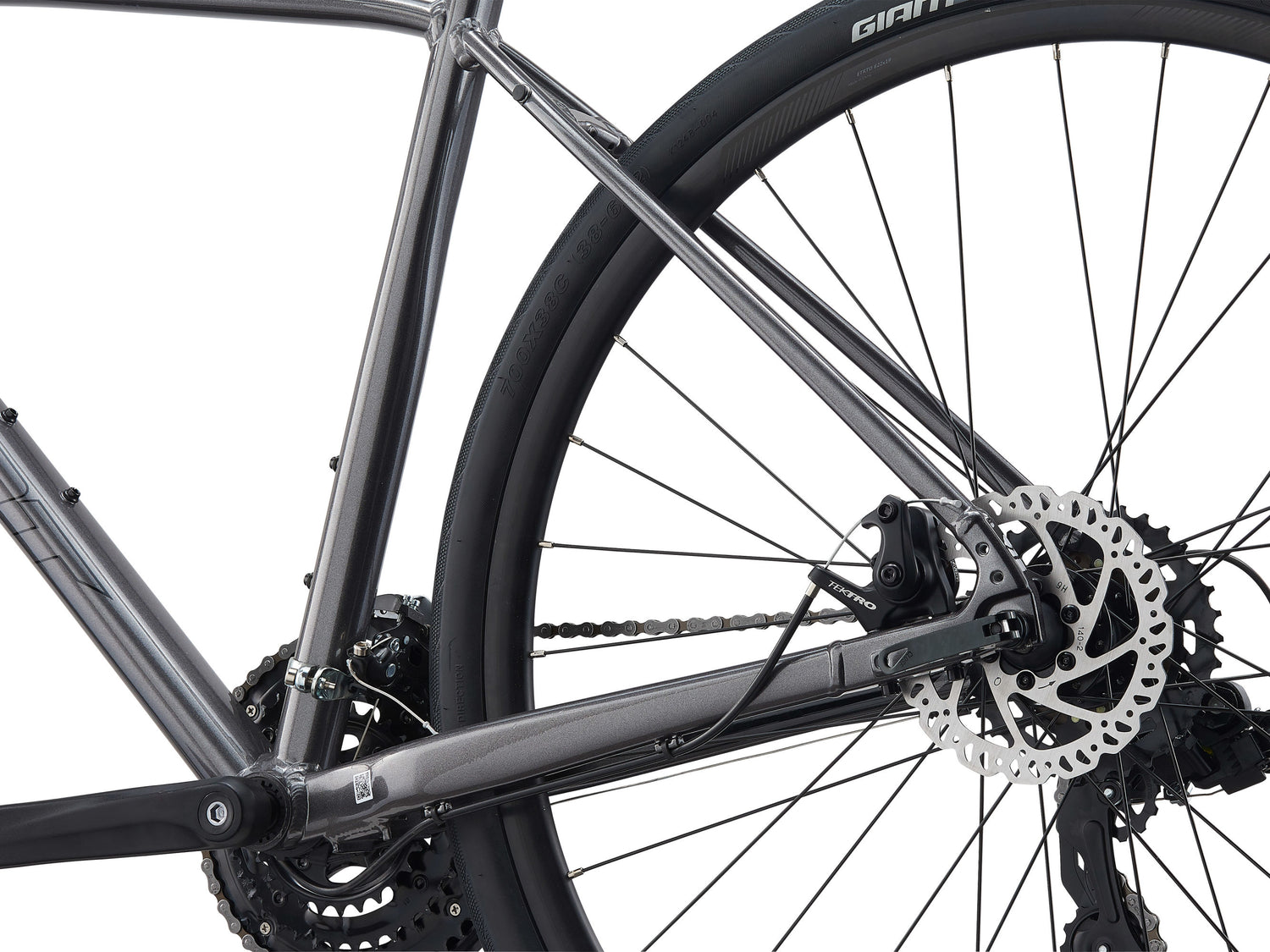

Giant Cross City Disc 3 (2022)
GIANT CROSS CITY 3 DISC 2022
This versatile flat-bar all-rounder can get your legs spinning and motivate you to be active every day. Commute to work, ride to class, find new adventures in your daily routine.
With its lightweight ALUXX aluminium frame, upright positioning and high-quality parts that give it a smooth, comfortable ride, the Cross City Disc is totally versatile and totally fun to ride. It now features a high-quality composite fork* and innovative D-Fuse seatpost.
Both are great for smoothing out rough roads, absorbing shocks and vibrations, and giving you a smoother, more comfortable ride. The disc brakes deliver powerful braking performance in dry or wet conditions, and the 700c wheels with Giant EasyRide Tubeless* tyres (on select models) keep you rolling with speed, efficiency and a reduced risk of flats.
As an added bonus, there’s clearance for larger tyres up to 45mm in width, which makes it easier to ride rougher roads.
It comes with integrated mounts, so you can customise your ride with racks or fenders. Whatever road or path you choose, Cross City Disc is ready to roll. *Composite fork and ERT on Cross City 1 Disc only
BALANCED AND EFFICIENT
Lightweight ALUXX frame, fast-rolling 700c wheels, and confident upright positioning offer a balanced, efficient ride quality.
VERSATILE
Powerful disc brakes and a wide range of gears help you increase your speed and tackle hills with more control.
RUGGED
Puncture-resistant tyres and integrated rack mounts make it easier to carry your daily essentials or load up for weekend adventures.
SPECIFICATIONS
| Sizes | S, M, L, XL |
| Colours | Charcoal |
| Frame | ALUXX grade aluminium |
| Fork | High-tensile steel, rack mount, disc |
| Handlebar | Giant Sport XC, 25.4mm |
| Grips | Giant Sole-O |
| Stem | Giant Sport, 15-degree, 31.8mm // S:90mm, M:90mm, L:100mm, XL:100mm |
| Seatpost | Giant D-Fuse, Alloy |
| Saddle | Giant Sport |
| Pedals | Platform |
| Shifters | Shimano ST-EF41, 21 speed |
| Front Derailleur | Shimano Tourney |
| Rear Derailleur | Shimano Tourney |
| Brakes | Tektro mechanical, Giant MPH rotors // S: [F]160mm, [R]140mm M/L/XL: [F]160mm, [R]160mm |
| Brake Levers | Shimano ST-EF41 |
| Cassette | MF-TZ500, 14T-34T, 7 speed |
| Chain | KMC Z7 |
| Crankset | Forged alloy, 28T/38T/48T // S:170mm, M:170mm, L:175mm, XL:175mm |
| Bottom Bracket | Cartridge |
| Rims | Giant double wall aluminium |
| Hubs | Alloy disc, 32H |
| Spokes | Stainless steel, 14g |
| Tyres | Giant S-X3, 700x38c |
| Extra | 45mm max tyre size |
| Notes |
-
Frame material
-
Speeds (rear)7 Speed
-
Age GroupAdults, Teenagers
-
GenderMens, Unisex
-
SKUsCharcoal/S: 2230158124, Charcoal/M: 2230158125, Charcoal/L: 2230158127, Charcoal/XL: 2230158128
