Giant  |  SKU: 9031012124

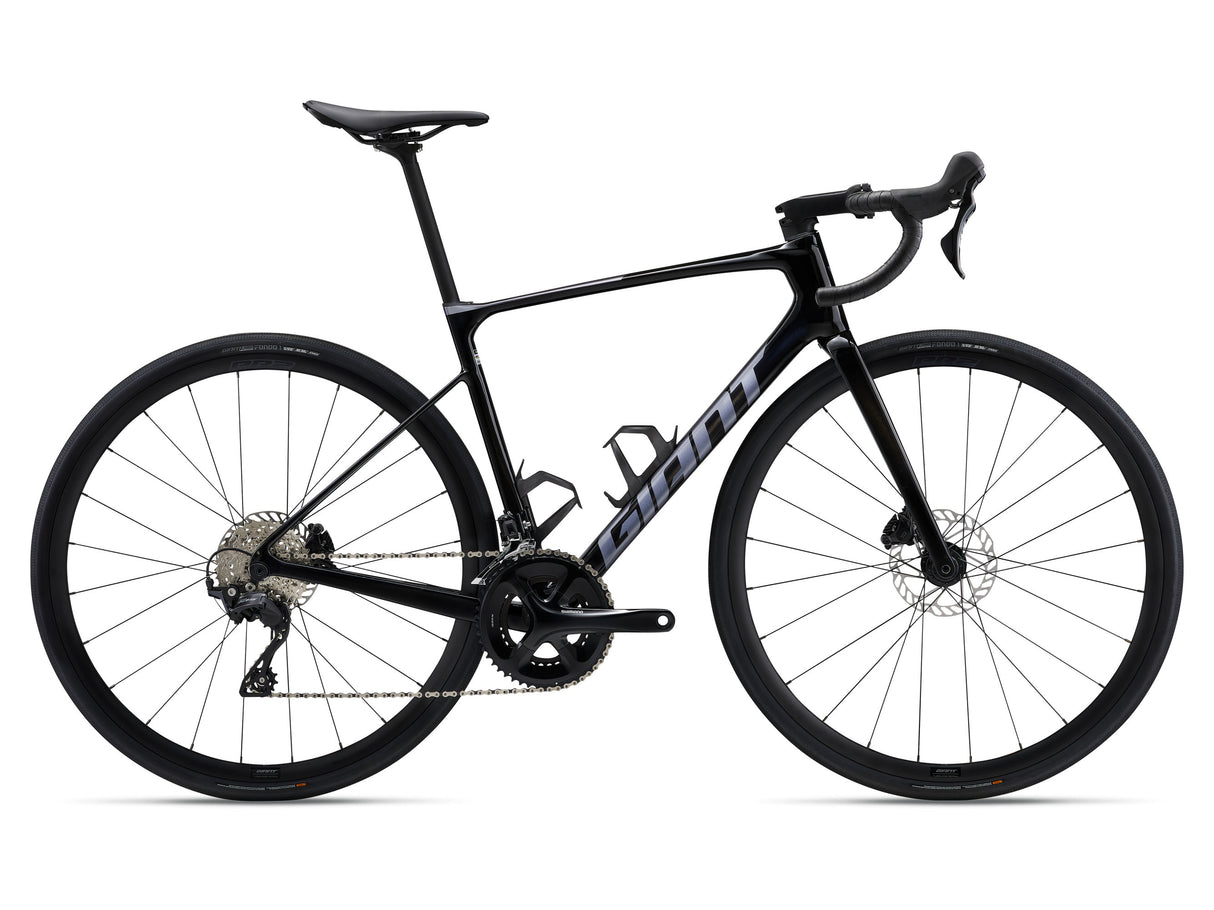

Giant Defy Advanced 2 (2025)

$3,29900 $3,79900
Colour: Carbon Black
Size

Pickup in-store only. Shipping not available.
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay

Sizing Chart

Sizing and Geometry

Giant Defy

Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.

Frame size Rider Height Rider Height (cm)
XS 5'2"-5'6" 157-169
S 5'5"-5'9" 165-175
M 5'7"-5'11" 171-181
ML 5'10"-6'2" 177-187
L 6'0"-6'4" 183-193
XL 6'2"-6'6" 189-199



Geometry

bike diagram with measurements referenced in table that follows

    XS S M ML L XL
A Seat Tube Length (inch) 16.1 17.5 18.9 20.3 21.1 22.2
B Seat Tube Angle 74.5° 74.0° 73.5° 73.0° 73.0° 73.0°
C Top Tube Length (inch) 20.3 20.9 21.5 22 22.6 23.4
D Head Tube Length (inch) 4.7 5.5 5.9 6.9 7.7 8.5
E Head Tube Angle 70.5° 71.8° 72.5° 72.5° 72.5° 72.5°
F Fork Rake (inch) 2 2 2 2 2 2
G Trail (inch) 2.8 2.5 2.3 2.3 2.3 2.3
H Wheelbase (inch) 39.2 39.1 39.3 39.8 40.4 40.9
I Chain Stay Length (inch) 16.5 16.5 16.5 16.5 16.5 16.5
J Bottom Bracket Drop (inch) 3 3 3 2.8 2.8 2.8
K Stack (inch) 20.7 21.3 22 22.7 23.5 24.2
L Reach (inch) 14.5 14.8 15 15.1 15.5 15.8
M Stand Over Height (inch) 27.8 28.9 30 31.3 32 33.1
O Stem Length (inch) 3.1 3.5 3.9 3.9 4.3 4.3
P Crank Length (inch) 6.7 6.7 6.8 6.8 6.9 6.9
Q Wheel Size 700C 700C 700C 700C 700C 700C

Shipping Information

This product: Pickup in-store only. Shipping not available.

Shipping available†

We offer shipping on select brands including: Rocky Mountain, Orbea, XDS, Icon, Jamis, Shogun, Schwinn, BYK, Kidvelo. These bikes are shipped unbuilt in their original box.

†Only bikes stocked at our Warehouse location are available for shipping.

Shipping upon request to your local bike shop

Some brands require the bike is delivered directly to a bicycle shop or mechanic for assembly, and shipping is not available to your residence. These include GT, Cannondale, .

Request a shipping quote to proceed.

Pickup in-store only

Certain bike brands cannot be shipped and are only available for Click and Collect or purchase in-store.

These include but are not limited to the following brands: Giant, Norco, Liv, Momentum, Malvern Star and Mongoose.

Pre-assembled bikes

†Any bikes in stock at our Heidelberg Heights, Hallam or Hoppers Crossing store locations are already fully assembled, and therefore only available for Click and Collect or purchase in-store.

Fully assembled when you Click & Collect
Buy Now, Pay Later with ZIP
Free service adjustment in first 6 months

SPECIFICATIONS

Colours Carbon
Sizes XS, S, M, M/L, L, XL
Frame Advanced-Grade Composite, disc
Fork Advanced-Grade Composite, full-composite OverDrive steerer, disc
Shock N/A
Handlebar Giant Contact SL D-Fuse XS:40cm, S:40cm, M:42cm, M/L:42cm, L:44cm, XL:44cm
Grips Stratus Lite 3.0
Stem Giant Contact AeroLight XS:80mm, S:90mm, M:100mm, M/L:100mm, L:110mm, XL:110mm
Seatpost Giant D-Fuse, composite, 14mm offset
Saddle Giant Approach
Pedals N/A
Shifters Shimano 105
Front Derailleur Shimano 105
Rear Derailleur Shimano 105
Brakes Shimano 105 hydraulic, Giant MPH rotors [F]160mm, [R]160mm
Brake Levers Shimano 105
Cassette Shimano 105, 12-speed, 11x36
Chain KMC X12L-1
Crankset Shimano FC-RS520, 34/50 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Bottom Bracket Shimano, press fit
Rims Giant P-R2 Disc wheelset, alloy
Hubs Giant alloy, 12mm thru-axle
Spokes Sapim
Tyres Giant Gavia Fondo 1, tubeless, 700x32c (33.5mm), folding
Extras Water bottle cages, tubeless prepared, 38mm max tyre size

Giant Defy Advanced 2 (2025)

$3,29900 $3,79900

Colour

Size

  • XS
  • S
  • M
  • ML
  • L
  • XL

Motor

N/A

Controller

N/A

Display

N/A

Battery

N/A

Charger

N/A

Sizes

N/A

Frame material

Carbon

Frame

Advanced-Grade Composite, 12x142mm thru-axle, disc

Fork

Advanced-Grade Composite, full-composite OverDrive steerer, 12x100mm thru-axle, disc

Handlebar

Giant Contact SL D-Fuse | XS:40/42cm, S:40/42cm, M:42/44cm, M/L:42/44cm, L:44/46cm, XL:44/46cm

Grips

N/A

Bar Tape

Giant Stratus Lite 3.0

Headset

N/A

Stem

Giant Contact AeroLight | XS:80mm, S:90mm, M:100mm, M/L:100mm, L:110mm, XL:110mm

Seatpost

Giant D-Fuse, composite, 14mm offset

Saddle

Giant Approach

Pedals

N/A

Shifters

Shimano 105

Front Derailleur

Shimano 105

Rear Derailleur

Shimano 105, 12 speed

Brakes

Shimano 105 hydraulic | Giant MPH rotors [F]160mm, [R]160mm

Brake Levers

Shimano 105

Cassette/Freewheel

Shimano 105, 12-speed, 11x36

Chain

KMC X12L-1

Crankset

Shimano FC-RS520, 34T/50T | XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm

Bottom Bracket

Shimano, press fit

Rims

Giant P-R2 Disc

Hubs

Giant alloy, 12mm thru-axle

Spokes

Sapim

Tyres

Giant Gavia Fondo 1, tubeless, 700x32c (33.5mm), folding

Wheel Size

N/A

Extras

Water bottle cages, tubeless prepared, 38mm max tyre size
