Giant Defy Advanced E+ Elite 0 Electric Road Bike (2026)
Giant Defy Advanced E+ EL 0 (2026) - Mariana Blue / S is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Sizing Chart
Sizing Chart
Sizing and Geometry
Giant Defy
Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.
| Frame size | Rider Height | Rider Height (cm) |
| XS | 5'2"-5'6" | 157-169 |
| S | 5'5"-5'9" | 165-175 |
| M | 5'7"-5'11" | 171-181 |
| ML | 5'10"-6'2" | 177-187 |
| L | 6'0"-6'4" | 183-193 |
| XL | 6'2"-6'6" | 189-199 |
Geometry
| XS | S | M | ML | L | XL | ||
|---|---|---|---|---|---|---|---|
| A | Seat Tube Length (inch) | 16.1 | 17.5 | 18.9 | 20.3 | 21.1 | 22.2 |
| B | Seat Tube Angle | 74.5° | 74.0° | 73.5° | 73.0° | 73.0° | 73.0° |
| C | Top Tube Length (inch) | 20.3 | 20.9 | 21.5 | 22 | 22.6 | 23.4 |
| D | Head Tube Length (inch) | 4.7 | 5.5 | 5.9 | 6.9 | 7.7 | 8.5 |
| E | Head Tube Angle | 70.5° | 71.8° | 72.5° | 72.5° | 72.5° | 72.5° |
| F | Fork Rake (inch) | 2 | 2 | 2 | 2 | 2 | 2 |
| G | Trail (inch) | 2.8 | 2.5 | 2.3 | 2.3 | 2.3 | 2.3 |
| H | Wheelbase (inch) | 39.2 | 39.1 | 39.3 | 39.8 | 40.4 | 40.9 |
| I | Chain Stay Length (inch) | 16.5 | 16.5 | 16.5 | 16.5 | 16.5 | 16.5 |
| J | Bottom Bracket Drop (inch) | 3 | 3 | 3 | 2.8 | 2.8 | 2.8 |
| K | Stack (inch) | 20.7 | 21.3 | 22 | 22.7 | 23.5 | 24.2 |
| L | Reach (inch) | 14.5 | 14.8 | 15 | 15.1 | 15.5 | 15.8 |
| M | Stand Over Height (inch) | 27.8 | 28.9 | 30 | 31.3 | 32 | 33.1 |
| O | Stem Length (inch) | 3.1 | 3.5 | 3.9 | 3.9 | 4.3 | 4.3 |
| P | Crank Length (inch) | 6.7 | 6.7 | 6.8 | 6.8 | 6.9 | 6.9 |
| Q | Wheel Size | 700C | 700C | 700C | 700C | 700C | 700C |
Shipping Information
Shipping Information
Certain bike brands cannot be shipped and are only available for Click and Collect.
These include but are not limited to the following brands: Giant, GT, Liv, Momentum and Mongoose.
For all other brands, we can provide a shipping quote to your postcode. Please contact us by email at staff@ivanhoecycles.com.au, or text us on 0417 122 950.
Sizing and Geometry
Giant Defy
Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.
| Frame size | Rider Height | Rider Height (cm) |
| XS | 5'2"-5'6" | 157-169 |
| S | 5'5"-5'9" | 165-175 |
| M | 5'7"-5'11" | 171-181 |
| ML | 5'10"-6'2" | 177-187 |
| L | 6'0"-6'4" | 183-193 |
| XL | 6'2"-6'6" | 189-199 |
Geometry
| XS | S | M | ML | L | XL | ||
|---|---|---|---|---|---|---|---|
| A | Seat Tube Length (inch) | 16.1 | 17.5 | 18.9 | 20.3 | 21.1 | 22.2 |
| B | Seat Tube Angle | 74.5° | 74.0° | 73.5° | 73.0° | 73.0° | 73.0° |
| C | Top Tube Length (inch) | 20.3 | 20.9 | 21.5 | 22 | 22.6 | 23.4 |
| D | Head Tube Length (inch) | 4.7 | 5.5 | 5.9 | 6.9 | 7.7 | 8.5 |
| E | Head Tube Angle | 70.5° | 71.8° | 72.5° | 72.5° | 72.5° | 72.5° |
| F | Fork Rake (inch) | 2 | 2 | 2 | 2 | 2 | 2 |
| G | Trail (inch) | 2.8 | 2.5 | 2.3 | 2.3 | 2.3 | 2.3 |
| H | Wheelbase (inch) | 39.2 | 39.1 | 39.3 | 39.8 | 40.4 | 40.9 |
| I | Chain Stay Length (inch) | 16.5 | 16.5 | 16.5 | 16.5 | 16.5 | 16.5 |
| J | Bottom Bracket Drop (inch) | 3 | 3 | 3 | 2.8 | 2.8 | 2.8 |
| K | Stack (inch) | 20.7 | 21.3 | 22 | 22.7 | 23.5 | 24.2 |
| L | Reach (inch) | 14.5 | 14.8 | 15 | 15.1 | 15.5 | 15.8 |
| M | Stand Over Height (inch) | 27.8 | 28.9 | 30 | 31.3 | 32 | 33.1 |
| O | Stem Length (inch) | 3.1 | 3.5 | 3.9 | 3.9 | 4.3 | 4.3 |
| P | Crank Length (inch) | 6.7 | 6.7 | 6.8 | 6.8 | 6.9 | 6.9 |
| Q | Wheel Size | 700C | 700C | 700C | 700C | 700C | 700C |

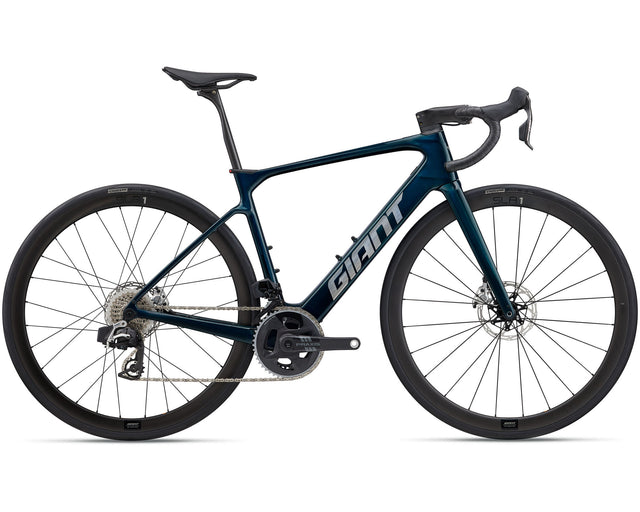

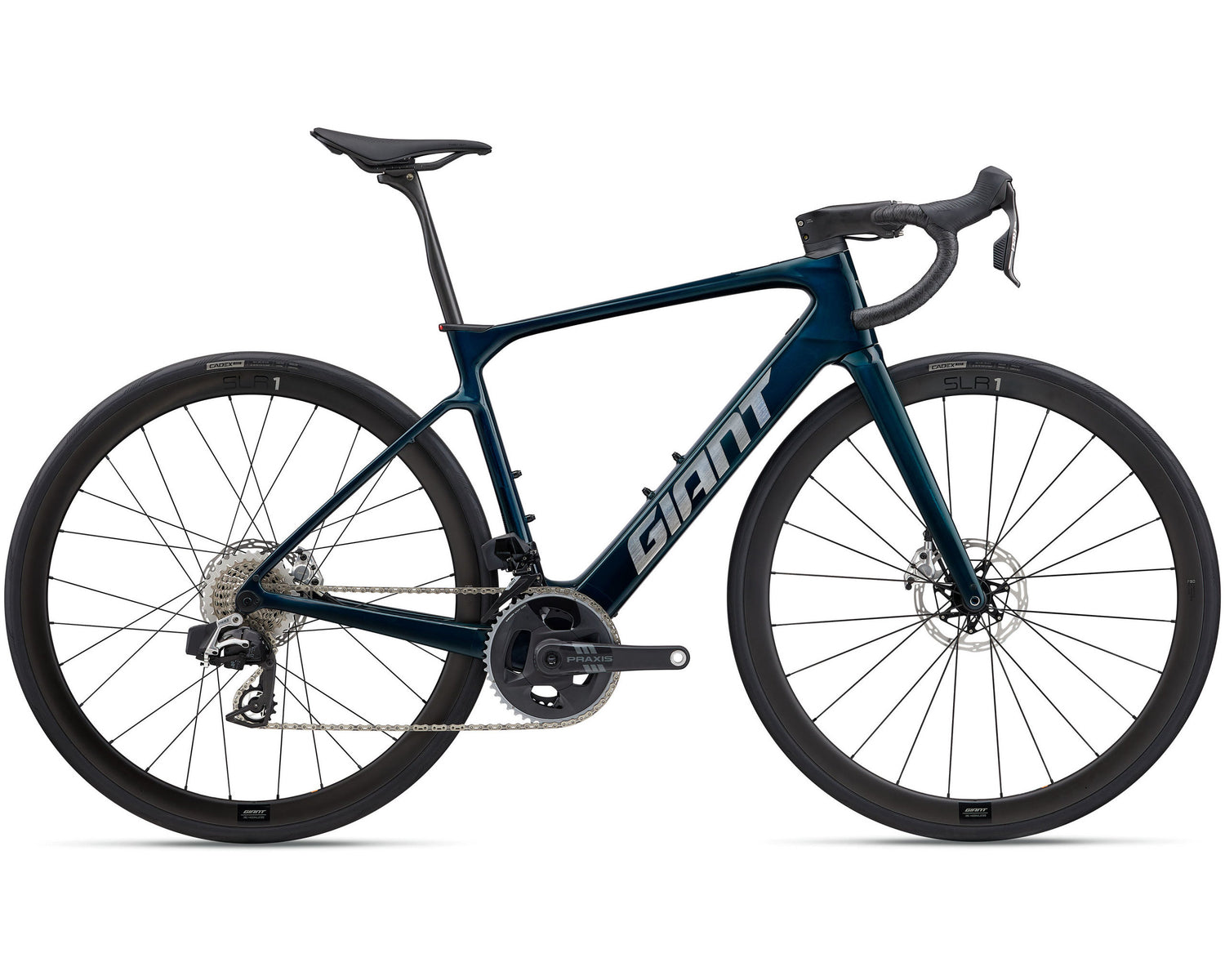

Giant Defy Advanced E+ Elite 0 Electric Road Bike (2026)
The Defy Advanced E+ road bike combines a smooth-riding composite frame with a lightweight battery and the new SyncDrive Move Plus integrated rear hub motor for an exceptional e-road experience. Designed for performance-focused riders, it helps you conquer steep climbs, maintain higher speeds, and enjoy longer rides with ease. With effortless power assistance and precise handling, it delivers a seamless, unrestricted road-riding experience, making every journey faster, smoother, and more exhilarating.
Key Performance Factors
SEAMLESS POWER
The SyncDrive Move Plus motor is integrated into the rear hub and delivers 30Nm of power (equivalent to 75Nm with a mid-drive motor) directly to the rear wheel. Weighing just 1.7kg, it’s specially tuned for the pedalling pattern of performance road riding, with minimal energy loss and more torque at higher speeds. The result is a natural feel when accelerating or maintaining steady power at speed, and no motor drag while freewheeling or coasting.
SYSTEM INTEGRATION
The down tube integrated EnergyPak 400 battery system weighs just 2.3kg and is purpose-built for the specific needs of E-bikes. A top tube mounted RideControl Go button makes it quick and easy to turn the E-bike on or off and change power modes. Smart Assist technology uses three sensors to precisely measure the power being applied to the pedals and produce just the right amount of support for a smooth, natural ride experience. All models feature SRAM wireless electronic shifters and an integrated taillight.
PURE ROAD PERFORMANCE
A lightweight composite frameset and high-performance components including a D-Fuse seatpost and handlebars for compliance, integrated WheelSystems with tubeless tyres, and a wireless electronic drivetrain all add up to a smooth, efficient ride quality that mirrors the award-winning performance of the Defy endurance road bike range.
-
Motor
-
Controller
-
Display
-
Battery
-
Charger
-
Frame material
-
Frame
-
Fork
-
Handlebar
-
Stem
-
Seatpost
-
Saddle
-
Pedals
-
Shifters
-
Front Derailleur
-
Rear Derailleur
-
Brakes
-
Brake Levers
-
Cassette/Freewheel
-
Chain
-
Crankset
-
Bottom Bracket
-
Rims
-
Hubs
-
Spokes
-
Tyres
-
Lights
-
Notes
-
Speeds (rear)12 Speed
-
Age GroupAdults, Teenagers
-
GenderMens
-
DisciplineRoad
-
SKUsMariana Blue/S: 6400000104, Mariana Blue/M: 6400000105, Mariana Blue/ML: 6400000106, Mariana Blue/L: 6400000107, Mariana Blue/XL: 6400000108
