Giant  |  SKU: 6400001105

Giant Defy Advanced E+ EL 1 (2026)

$13,49900
Colour: Meteor Storm
Size

Special Order: This product will be ordered from our supplier upon purchase and available for collection within 7-14 business days. Read T&Cs here.
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
Fully assembled when you Click & Collect in-store
Buy Now, Pay Later with ZIP
Free service adjustment within first 6 months

Sizing Chart

SIZE CHART

Sizing to be used as a reference only. Please check with a local authorised dealer to determine the correct size.

Size Rider Height (cm) Rider Height (ft/in)
S 166 - 174 cm 5’5” - 5’9”
M 172 - 180 cm 5’8” - 5’11”
ML 178 - 186 cm 5’10” - 6’1”
L 184 - 192 cm 6’0” - 6’4”
XL 190 - 198 cm 6’3” - 6’6”



GEOMETRY

bike diagram with measurements referenced in table that follows


 S M ML L XL
Seat Tube Length (mm) 445 480 515 535 565
Seat Tube Angle 74.0° 73.5° 73.0° 73.0° 73.0°
Top Tube Length (mm) 530 545 560 575 590
Head Tube Length (mm) 130 145 167 187 205
Head Tube Angle 71.5° 72.5° 72.5° 72.5° 72.5°
Fork Rake (mm) 50 50 50 50 50
Trail (mm) 56.1 58.6 58.6 58.6 58.6
Wheelbase (mm) 994 995 1008 1023 1037.9
Chain Stay Length (mm) 420 420 420 420 420
Bottom Bracket Drop (mm) 80 80 75 75 75
Stack (mm) 542 560 576 595 612.4
Reach (mm) 374 379 384 393 402.6
Stand Over Height (mm) 716 746 779 799 824
Stem Length (mm) 90 100 110 110 120
Crank Length (mm) 170 172.5 172.5 175 175
Wheel Size 700C 700C 700C 700C 700C

Bike Shipping

Delivery is available upon specific request for our special order bikes.

Bikes may only be shipped directly to a qualified bike mechanic or bike shop of your choosing, who must complete the assembly of the bike. We strictly cannot ship an unbuilt bike direct to consumer.

The buyer is responsible for all shipping and assembly costs, and is responsible for arranging assembly with their nominated bike store or mechanic.

To request a shipping quote, please submit a request and include the delivery postcode, business name of your nominated bike shop or bike mechanic, and the exact model & frame size of the bike.

Please note: All bikes sold by Ivanhoe Cycles must be assembled by a qualified mechanic or bike shop. Any assembly undertaken without professional assistance is at the customer's risk and any injury as a result of the build without professional assistance will not be covered by the warranty.

Assembly

Every bike purchased or collected in-store at Ivanhoe Cycles is fully assembled by our qualified mechanics free of charge.

Bikes ordered online for shipping* will require partial assembly, including but not limited to: installing handlebar, seatpost, front wheel; adjusting gears and brakes; tuning suspension; installing accessories or bar tape.

Disclaimer: Ivanhoe Cycles strongly advises having your assembly completed by an experienced bicycle mechanic. Any assembly undertaken without professional assistance is at the customer's risk and any injury as a result of the build without professional assistance will not be covered by the warranty.

*Shipping is restricted to certain brands due to assembly requirements.

Returns / Cancellations

If your special ordered item arrives faulty, damaged, or is differently than described, you are entitled to a full refund or replacement.

Cancellations and returns are not accepted on special orders if the consumer:
- changed their mind
- found the item cheaper elsewhere
- decided they didn't like the purchase or had no use for it
- ordered the wrong item

Contact us with any product enquiries you have prior to purchasing.

For more information, please read our Special Order terms and conditions.

With its smooth-riding composite frame, lightweight battery, and new SyncDrive Move Plus integrated rear hub motor, the Defy Advanced E+ is the ideal choice for performance-minded road riders who want to tackle steep hills, maintain higher speeds, and experience road riding with no limitations.

SEAMLESS POWER

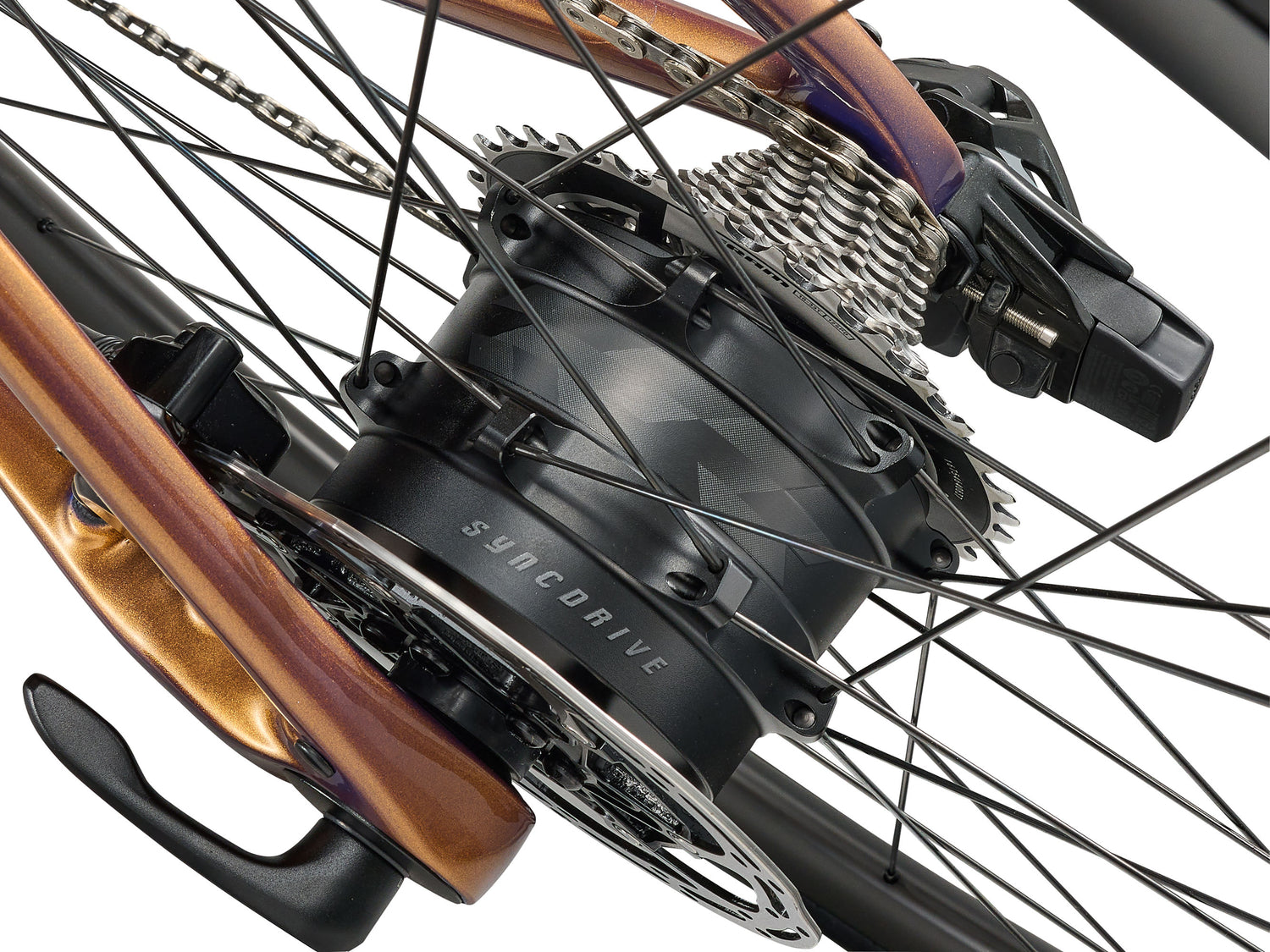

The SyncDrive Move Plus motor is integrated into the rear hub and delivers 30Nm of power (equivalent to 75Nm with a mid-drive motor) directly to the rear wheel. Weighing just 1.7kg, it’s specially tuned for the pedalling pattern of performance road riding, with minimal energy loss and more torque at higher speeds. The result is a natural feel when accelerating or maintaining steady power at speed, and no motor drag while freewheeling or coasting.

SYSTEM INTEGRATION

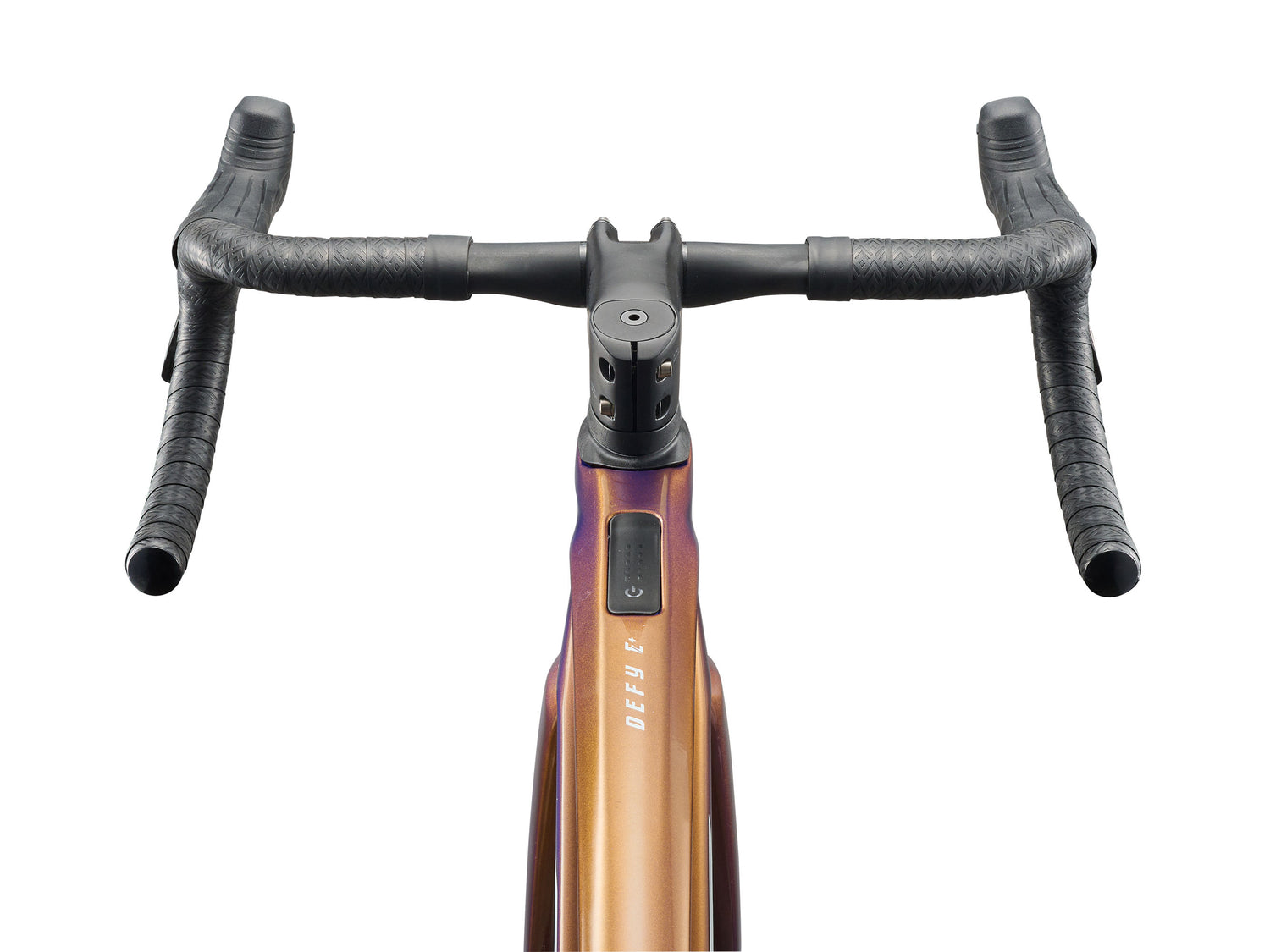

The down tube integrated EnergyPak 400 battery system weighs just 2.3kg and is purpose-built for the specific needs of E-bikes. A top tube mounted RideControl Go button makes it quick and easy to turn the E-bike on or off and change power modes. Smart Assist technology uses three sensors to precisely measure the power being applied to the pedals and produce just the right amount of support for a smooth, natural ride experience. All models feature SRAM wireless electronic shifters and an integrated taillight.

PURE ROAD PERFORMANCE

A lightweight composite frameset and high-performance components including a D-Fuse seatpost and handlebars for compliance, integrated WheelSystems with tubeless tyres, and a wireless electronic drivetrain all add up to a smooth, efficient ride quality that mirrors the award-winning performance of the Defy endurance road bike range.



SPECIFICATIONS

Motor Giant SyncDrive Move Plus, Rear Hub, 30Nm
Controller Mode support switch from SRAM bonus button
Display Giant RideControl GO, frame-integrated LED console Optional wireless ANT+ display
Battery Giant EnergyPak 400Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, Giant EnergyPak Plus 200 range extender compatible
Charger Giant EnergyPak smart charger 4A
Maximum assisted speed Pedal-assist limited to 25 km/h in accordance with Australian regulations (EN15194); no motor support above this speed
Connectivity Giant RideControl App enabled, ANT+ wireless display signal with e-bike profile
Sizes S, M, ML, L, XL
Colours Meteor Storm
Frame Advanced-grade composite,12x145 thru-axle
Fork Advanced SL-Grade Composite, Full-Composite OverDrive Aero Steerer, 12x100mm thru-axle, Disc
Handlebar Giant Contact SLR D-Fuse S:38/40cm, M:40/42cm, M/L:40/42cm, L:42/44cm, XL:42/44cm
Stem Giant Contact SLR AeroLight S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm
Seatpost Giant D-Fuse SL, Composite, 16mm offset
Saddle Giant Fleet SL
Pedals N/A
Shifters SRAM Force AXS HRD, ED-Force-E1
Front Derailleur SRAM Force AXS, FD-Force-E-E1
Rear Derailleur SRAM Force AXS, RD-Force-E-E1
Brakes SRAM Force AXS HRD, ED-Force-E1, SRAM PaceLine X rotors [F]160mm, [R]160mm
Brake Levers SRAM Force AXS HRD, ED-Force-E1
Cassette SRAM Force XG-1270 10x33T 12-speed
Chain SRAM Force-E1, 12-speed

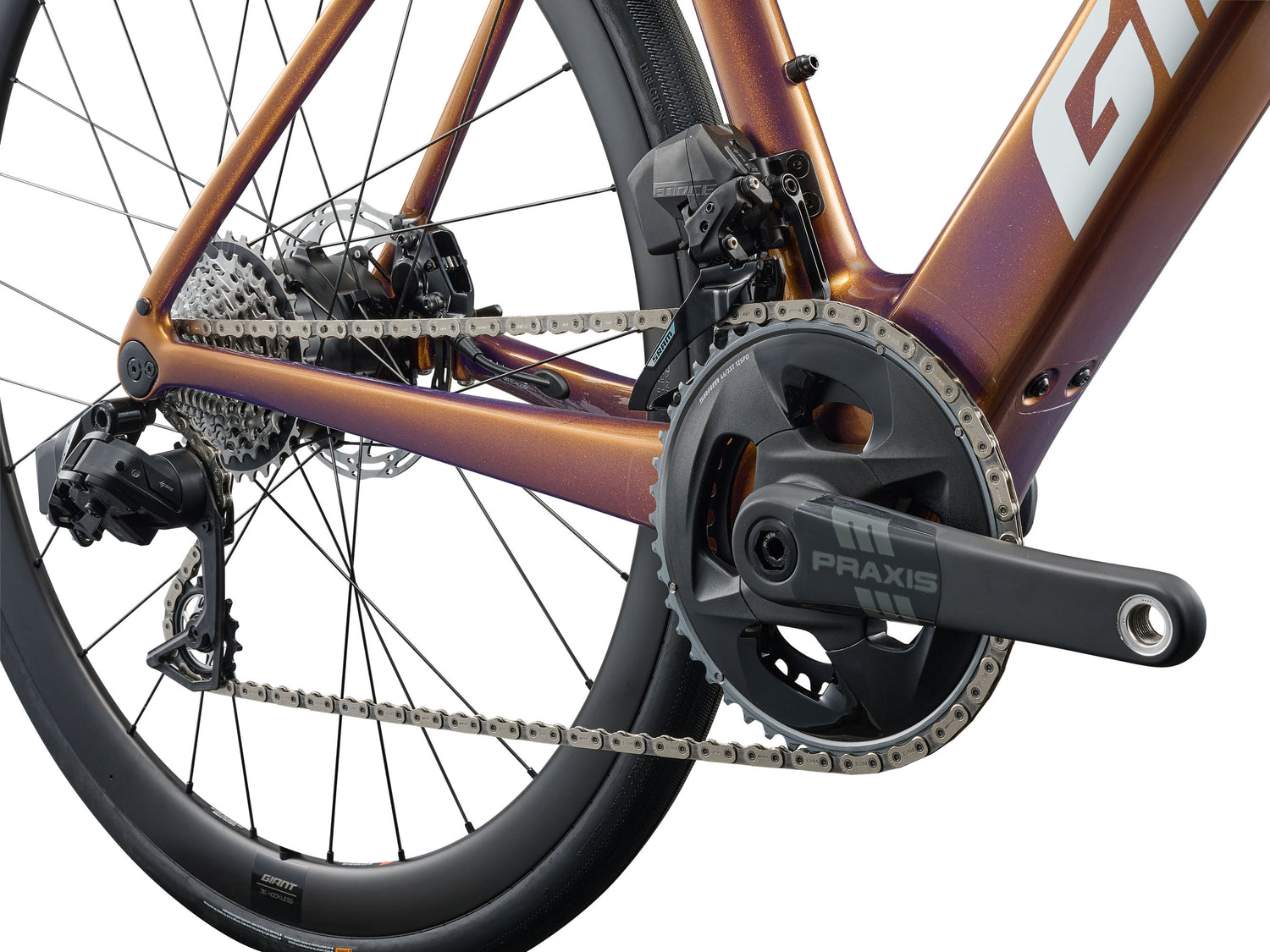

Crankset SRAM Force X-SYNC 33/46T BCD107 chain ring Praxis E Crank Carbon ISIS, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Bottom Bracket Giant E+ System BBSS
Rims Giant SLR 1 E+ 36 Carbon Disc Wheel System, Hookless, Tubeless Ready, 12mm thru-axle, w/ Sapim spoke E-Light [R] CX-Ray [F], e-bike optimized
Tyres Cadex Classic, tubeless, 700x32, folding
Extras N/A

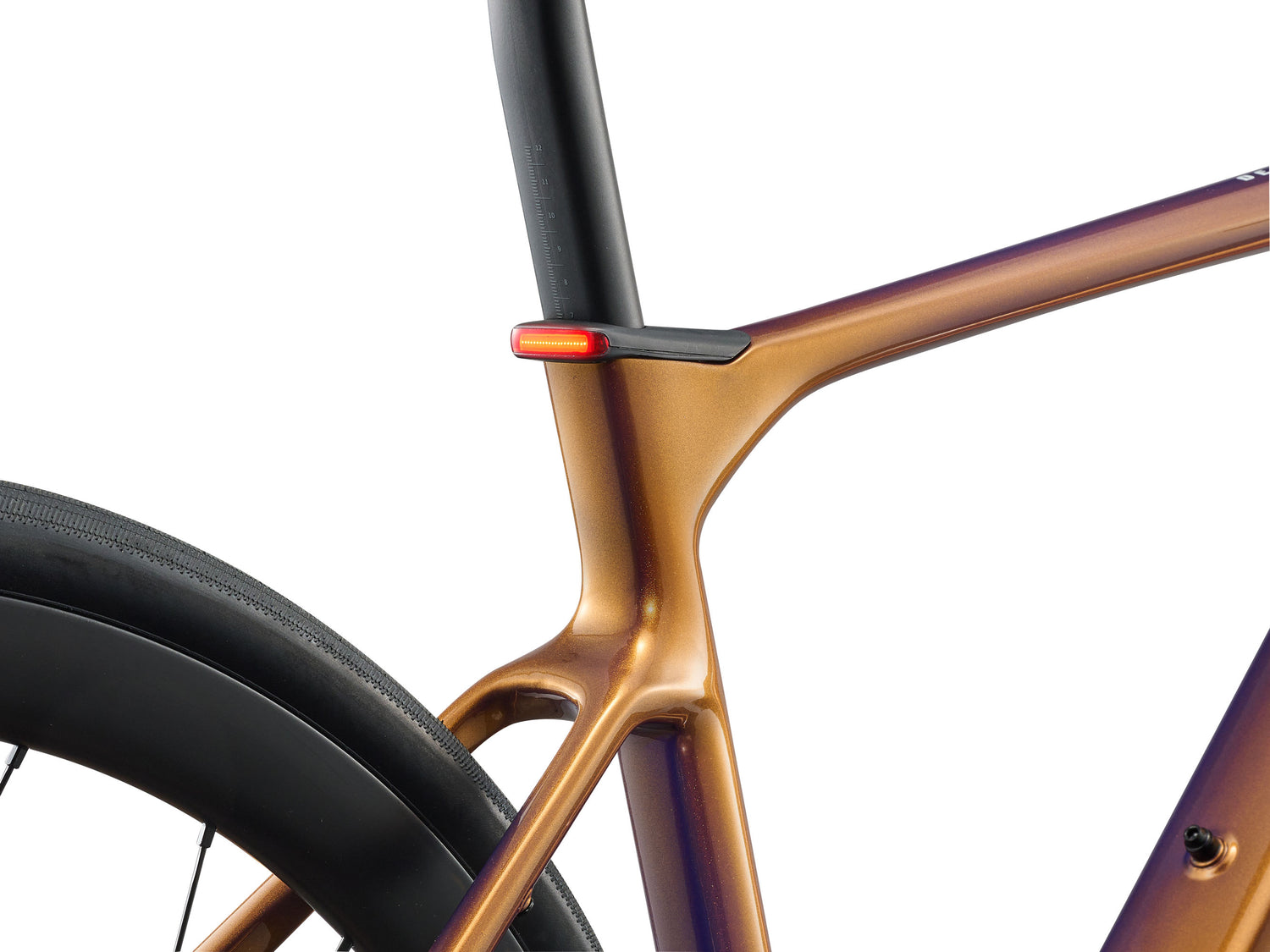

Lighting Seatpost clamp integrated tail light
Max Tyre Clearance 38mm
Weight The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Giant Defy Advanced E+ EL 1 (2026)

$13,49900

Colour

Size

  • S
  • M
  • ML
  • L
  • XL

Motor

Giant SyncDrive Move Plus, Rear Hub, 30Nm

Controller

Mode support switch from SRAM bonus button

Display

Giant RideControl GO, frame-integrated LED console Optional wireless ANT+ display

Battery

Giant EnergyPak 400Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, Giant EnergyPak Plus 200 range extender compatible

Charger

Giant EnergyPak smart charger 4A

Sizes

N/A

Frame material

Carbon

Frame

Advanced-grade composite,12x145 thru-axle

Fork

Advanced SL-Grade Composite, Full-Composite OverDrive Aero Steerer, 12x100mm thru-axle, Disc

Handlebar

Giant Contact SLR D-Fuse S:38/40cm, M:40/42cm, M/L:40/42cm, L:42/44cm, XL:42/44cm

Grips

N/A

Bar Tape

N/A

Headset

N/A

Stem

Giant Contact SLR AeroLight S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm

Seatpost

Giant D-Fuse SL, Composite, 16mm offset

Saddle

Giant Fleet SL

Pedals

N/A

Shifters

SRAM Force AXS HRD, ED-Force-E1

Front Derailleur

SRAM Force AXS, FD-Force-E-E1

Rear Derailleur

SRAM Force AXS, RD-Force-E-E1

Brakes

SRAM Force AXS HRD, ED-Force-E1, SRAM PaceLine X rotors [F]160mm, [R]160mm

Brake Levers

SRAM Force AXS HRD, ED-Force-E1

Cassette/Freewheel

SRAM Force XG-1270 10x33T 12-speed

Chain

SRAM Force-E1, 12-speed

Crankset

SRAM Force X-SYNC 33/46T BCD107 chain ring Praxis E Crank Carbon ISIS, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm

Bottom Bracket

Giant E+ System BBSS

Rims

Giant SLR 1 E+ 36 Carbon Disc Wheel System, Hookless, Tubeless Ready, 12mm thru-axle, w/ Sapim spoke E-Light [R] CX-Ray [F], e-bike optimized

Hubs

N/A

Spokes

N/A

Tyres

Cadex Classic, tubeless, 700x32, folding

Wheel Size

N/A

Extras

Giant RideControl App enabled, ANT+, integrated tail light
