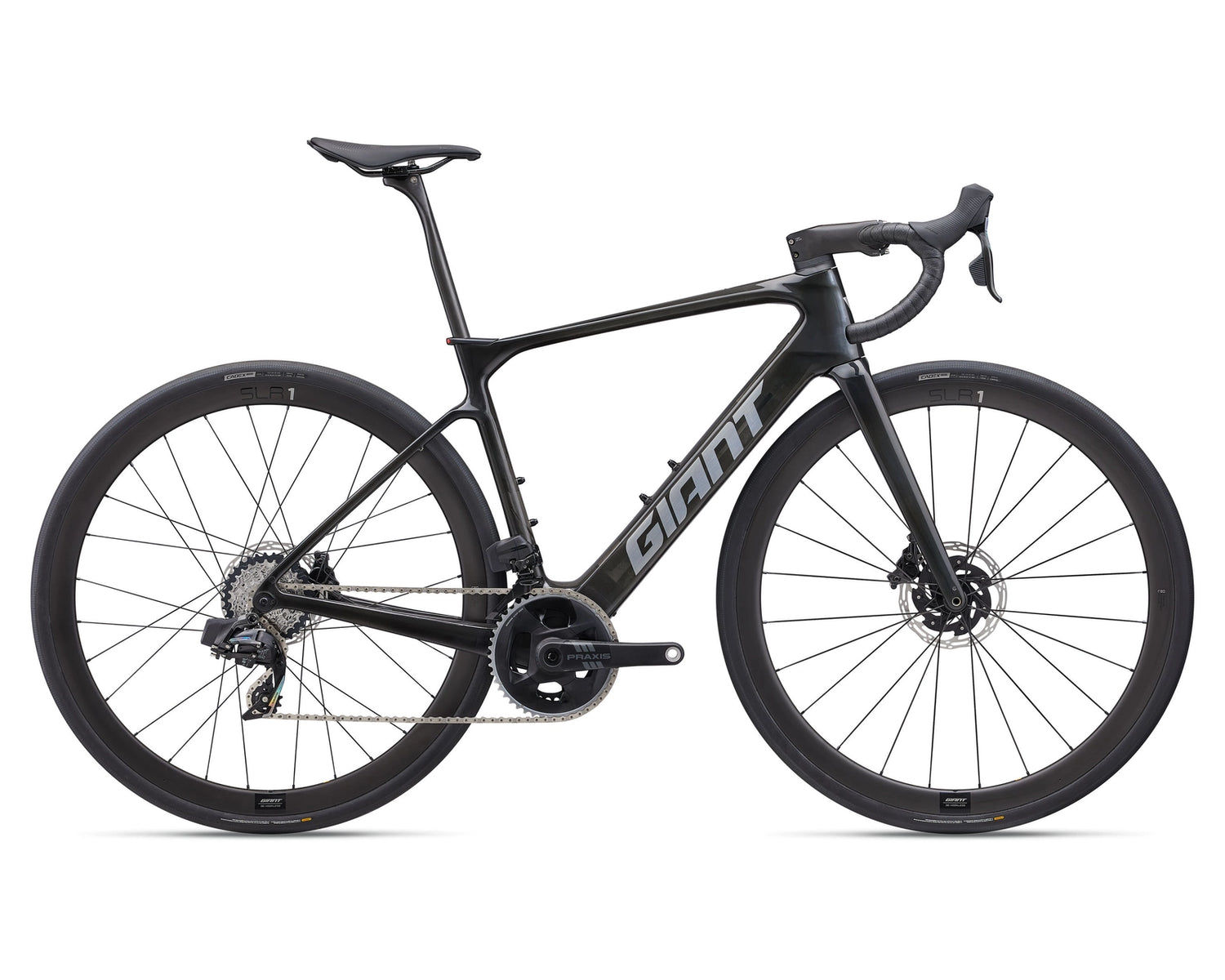

Giant Defy Advanced E+ Elite 1 Electric Road Bike (2025)
Giant Defy Advanced E+ Elite 1 (2025) - Raw Carbon / M is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Sizing Chart
Sizing Chart
Sizing and Geometry
Giant Defy
Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.
| Frame size | Rider Height | Rider Height (cm) |
| XS | 5'2"-5'6" | 157-169 |
| S | 5'5"-5'9" | 165-175 |
| M | 5'7"-5'11" | 171-181 |
| ML | 5'10"-6'2" | 177-187 |
| L | 6'0"-6'4" | 183-193 |
| XL | 6'2"-6'6" | 189-199 |
Geometry
| XS | S | M | ML | L | XL | ||
|---|---|---|---|---|---|---|---|
| A | Seat Tube Length (inch) | 16.1 | 17.5 | 18.9 | 20.3 | 21.1 | 22.2 |
| B | Seat Tube Angle | 74.5° | 74.0° | 73.5° | 73.0° | 73.0° | 73.0° |
| C | Top Tube Length (inch) | 20.3 | 20.9 | 21.5 | 22 | 22.6 | 23.4 |
| D | Head Tube Length (inch) | 4.7 | 5.5 | 5.9 | 6.9 | 7.7 | 8.5 |
| E | Head Tube Angle | 70.5° | 71.8° | 72.5° | 72.5° | 72.5° | 72.5° |
| F | Fork Rake (inch) | 2 | 2 | 2 | 2 | 2 | 2 |
| G | Trail (inch) | 2.8 | 2.5 | 2.3 | 2.3 | 2.3 | 2.3 |
| H | Wheelbase (inch) | 39.2 | 39.1 | 39.3 | 39.8 | 40.4 | 40.9 |
| I | Chain Stay Length (inch) | 16.5 | 16.5 | 16.5 | 16.5 | 16.5 | 16.5 |
| J | Bottom Bracket Drop (inch) | 3 | 3 | 3 | 2.8 | 2.8 | 2.8 |
| K | Stack (inch) | 20.7 | 21.3 | 22 | 22.7 | 23.5 | 24.2 |
| L | Reach (inch) | 14.5 | 14.8 | 15 | 15.1 | 15.5 | 15.8 |
| M | Stand Over Height (inch) | 27.8 | 28.9 | 30 | 31.3 | 32 | 33.1 |
| O | Stem Length (inch) | 3.1 | 3.5 | 3.9 | 3.9 | 4.3 | 4.3 |
| P | Crank Length (inch) | 6.7 | 6.7 | 6.8 | 6.8 | 6.9 | 6.9 |
| Q | Wheel Size | 700C | 700C | 700C | 700C | 700C | 700C |
Shipping Information
Shipping Information
Certain bike brands cannot be shipped and are only available for Click and Collect.
These include but are not limited to the following brands: Giant, GT, Liv, Momentum and Mongoose.
For all other brands, we can provide a shipping quote to your postcode. Please contact us by email at staff@ivanhoecycles.com.au, or text us on 0417 122 950.
Sizing and Geometry
Giant Defy
Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.
| Frame size | Rider Height | Rider Height (cm) |
| XS | 5'2"-5'6" | 157-169 |
| S | 5'5"-5'9" | 165-175 |
| M | 5'7"-5'11" | 171-181 |
| ML | 5'10"-6'2" | 177-187 |
| L | 6'0"-6'4" | 183-193 |
| XL | 6'2"-6'6" | 189-199 |
Geometry
| XS | S | M | ML | L | XL | ||
|---|---|---|---|---|---|---|---|
| A | Seat Tube Length (inch) | 16.1 | 17.5 | 18.9 | 20.3 | 21.1 | 22.2 |
| B | Seat Tube Angle | 74.5° | 74.0° | 73.5° | 73.0° | 73.0° | 73.0° |
| C | Top Tube Length (inch) | 20.3 | 20.9 | 21.5 | 22 | 22.6 | 23.4 |
| D | Head Tube Length (inch) | 4.7 | 5.5 | 5.9 | 6.9 | 7.7 | 8.5 |
| E | Head Tube Angle | 70.5° | 71.8° | 72.5° | 72.5° | 72.5° | 72.5° |
| F | Fork Rake (inch) | 2 | 2 | 2 | 2 | 2 | 2 |
| G | Trail (inch) | 2.8 | 2.5 | 2.3 | 2.3 | 2.3 | 2.3 |
| H | Wheelbase (inch) | 39.2 | 39.1 | 39.3 | 39.8 | 40.4 | 40.9 |
| I | Chain Stay Length (inch) | 16.5 | 16.5 | 16.5 | 16.5 | 16.5 | 16.5 |
| J | Bottom Bracket Drop (inch) | 3 | 3 | 3 | 2.8 | 2.8 | 2.8 |
| K | Stack (inch) | 20.7 | 21.3 | 22 | 22.7 | 23.5 | 24.2 |
| L | Reach (inch) | 14.5 | 14.8 | 15 | 15.1 | 15.5 | 15.8 |
| M | Stand Over Height (inch) | 27.8 | 28.9 | 30 | 31.3 | 32 | 33.1 |
| O | Stem Length (inch) | 3.1 | 3.5 | 3.9 | 3.9 | 4.3 | 4.3 |
| P | Crank Length (inch) | 6.7 | 6.7 | 6.8 | 6.8 | 6.9 | 6.9 |
| Q | Wheel Size | 700C | 700C | 700C | 700C | 700C | 700C |
Giant Defy Advanced E+ Elite 1 (2025)
With its smooth-riding composite frame, lightweight battery, and new SyncDrive Move Plus integrated rear hub motor, the Defy Advanced E+ is the perfect choice for performance-focused road cyclists seeking to conquer steep climbs, maintain higher speeds, and enjoy a limitless road riding experience.
Seamless Power
The SyncDrive Move Plus motor, integrated into the rear hub, delivers 30Nm of power (equivalent to 75Nm with a mid-drive motor) directly to the rear wheel.
Weighing just 1.7kg, it is finely tuned to match the pedaling rhythm of performance road riding, ensuring minimal energy loss and enhanced torque at higher speeds.
This results in a natural, smooth feel when accelerating, maintaining steady power at speed, and eliminates motor drag when freewheeling or coasting.
System Integration
The EnergyPak 400 battery system, integrated into the down tube, weighs just 2.3kg and is specifically designed for the demands of E-bikes.
A conveniently mounted RideControl Go button on the top tube makes it easy to power the E-bike on or off and switch between power modes.
Smart Assist technology uses three sensors to precisely gauge the power applied to the pedals, delivering the ideal amount of support for a smooth, natural ride.
All models feature SRAM wireless electronic shifters and an integrated tail light.
Pure Road Performance
The lightweight carbon frameset, combined with high-performance components like the D-Fuse seatpost and handlebars for added compliance, integrated WheelSystems with tubeless tyres, and a wireless electronic drivetrain, all contribute to a smooth and efficient ride quality that mirrors the award-winning performance of the Defy endurance road bike series.
-
Motor
-
Controller
-
Display
-
Battery
-
Charger
-
Frame material
-
Frame
-
Fork
-
Handlebar
-
Bar Tape
-
Stem
-
Seatpost
-
Saddle
-
Pedals
-
Shifters
-
Front Derailleur
-
Rear Derailleur
-
Brakes
-
Brake Levers
-
Cassette/Freewheel
-
Chain
-
Crankset
-
Bottom Bracket
-
Rims
-
Hubs
-
Spokes
-
Tyres
-
Extras
-
Notes
-
Speeds (rear)12 Speed
-
Age GroupAdults
-
GenderMens
-
DisciplineRoad, Electric
-
SKUsRaw Carbon/M: 6040001105, Raw Carbon/ML: 6040001106, Raw Carbon/L: 6040001107
