Giant Defy Advanced E+ Elite AR (2025)
Giant Defy Advanced E+ Elite AR (2025) - Kelp Forest / M is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Sizing Chart
Sizing Chart
Sizing and Geometry
Giant Defy
Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.
| Frame size | Rider Height | Rider Height (cm) |
| XS | 5'2"-5'6" | 157-169 |
| S | 5'5"-5'9" | 165-175 |
| M | 5'7"-5'11" | 171-181 |
| ML | 5'10"-6'2" | 177-187 |
| L | 6'0"-6'4" | 183-193 |
| XL | 6'2"-6'6" | 189-199 |
Â
Geometry
| Â | Â | XS | S | M | ML | L | XL |
|---|---|---|---|---|---|---|---|
| A | Seat Tube Length (inch) | 16.1 | 17.5 | 18.9 | 20.3 | 21.1 | 22.2 |
| B | Seat Tube Angle | 74.5° | 74.0° | 73.5° | 73.0° | 73.0° | 73.0° |
| C | Top Tube Length (inch) | 20.3 | 20.9 | 21.5 | 22 | 22.6 | 23.4 |
| D | Head Tube Length (inch) | 4.7 | 5.5 | 5.9 | 6.9 | 7.7 | 8.5 |
| E | Head Tube Angle | 70.5° | 71.8° | 72.5° | 72.5° | 72.5° | 72.5° |
| F | Fork Rake (inch) | 2 | 2 | 2 | 2 | 2 | 2 |
| G | Trail (inch) | 2.8 | 2.5 | 2.3 | 2.3 | 2.3 | 2.3 |
| H | Wheelbase (inch) | 39.2 | 39.1 | 39.3 | 39.8 | 40.4 | 40.9 |
| I | Chain Stay Length (inch) | 16.5 | 16.5 | 16.5 | 16.5 | 16.5 | 16.5 |
| J | Bottom Bracket Drop (inch) | 3 | 3 | 3 | 2.8 | 2.8 | 2.8 |
| K | Stack (inch) | 20.7 | 21.3 | 22 | 22.7 | 23.5 | 24.2 |
| L | Reach (inch) | 14.5 | 14.8 | 15 | 15.1 | 15.5 | 15.8 |
| M | Stand Over Height (inch) | 27.8 | 28.9 | 30 | 31.3 | 32 | 33.1 |
| O | Stem Length (inch) | 3.1 | 3.5 | 3.9 | 3.9 | 4.3 | 4.3 |
| P | Crank Length (inch) | 6.7 | 6.7 | 6.8 | 6.8 | 6.9 | 6.9 |
| Q | Wheel Size | 700C | 700C | 700C | 700C | 700C | 700C |
Bike Shipping
Bike Shipping
Delivery is available upon specific request for our special order bikes.
Bikes may only be shipped directly to a qualified bike mechanic or bike shop of your choosing, who must complete the assembly of the bike. We strictly cannot ship an unbuilt bike direct to consumer.
The buyer is responsible for all shipping and assembly costs, and is responsible for arranging assembly with their nominated bike store or mechanic.
To request a shipping quote, please submit a request and include the delivery postcode, business name of your nominated bike shop or bike mechanic, and the exact model & frame size of the bike.
Please note: All bikes sold by Ivanhoe Cycles must be assembled by a qualified mechanic or bike shop. Any assembly undertaken without professional assistance is at the customer's risk and any injury as a result of the build without professional assistance will not be covered by the warranty.
Assembly
Assembly
Every bike purchased or collected in-store at Ivanhoe Cycles is fully assembled by our qualified mechanics free of charge.
Bikes ordered online for shipping* will require partial assembly, including but not limited to: installing handlebar, seatpost, front wheel; adjusting gears and brakes; tuning suspension; installing accessories or bar tape.
Disclaimer: Ivanhoe Cycles strongly advises having your assembly completed by an experienced bicycle mechanic. Any assembly undertaken without professional assistance is at the customer's risk and any injury as a result of the build without professional assistance will not be covered by the warranty.
*Shipping is restricted to certain brands due to assembly requirements.
Returns / Cancellations
Returns / Cancellations
If your special ordered item arrives faulty, damaged, or is differently than described, you are entitled to a full refund or replacement.
Cancellations and returns are not accepted on special orders if the consumer:
- changed their mind
- found the item cheaper elsewhere
- decided they didn't like the purchase or had no use for it
- ordered the wrong item
Contact us with any product enquiries you have prior to purchasing.
For more information, please read our Special Order terms and conditions.
Sizing and Geometry
Giant Defy
Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.
| Frame size | Rider Height | Rider Height (cm) |
| XS | 5'2"-5'6" | 157-169 |
| S | 5'5"-5'9" | 165-175 |
| M | 5'7"-5'11" | 171-181 |
| ML | 5'10"-6'2" | 177-187 |
| L | 6'0"-6'4" | 183-193 |
| XL | 6'2"-6'6" | 189-199 |
Â
Geometry
| Â | Â | XS | S | M | ML | L | XL |
|---|---|---|---|---|---|---|---|
| A | Seat Tube Length (inch) | 16.1 | 17.5 | 18.9 | 20.3 | 21.1 | 22.2 |
| B | Seat Tube Angle | 74.5° | 74.0° | 73.5° | 73.0° | 73.0° | 73.0° |
| C | Top Tube Length (inch) | 20.3 | 20.9 | 21.5 | 22 | 22.6 | 23.4 |
| D | Head Tube Length (inch) | 4.7 | 5.5 | 5.9 | 6.9 | 7.7 | 8.5 |
| E | Head Tube Angle | 70.5° | 71.8° | 72.5° | 72.5° | 72.5° | 72.5° |
| F | Fork Rake (inch) | 2 | 2 | 2 | 2 | 2 | 2 |
| G | Trail (inch) | 2.8 | 2.5 | 2.3 | 2.3 | 2.3 | 2.3 |
| H | Wheelbase (inch) | 39.2 | 39.1 | 39.3 | 39.8 | 40.4 | 40.9 |
| I | Chain Stay Length (inch) | 16.5 | 16.5 | 16.5 | 16.5 | 16.5 | 16.5 |
| J | Bottom Bracket Drop (inch) | 3 | 3 | 3 | 2.8 | 2.8 | 2.8 |
| K | Stack (inch) | 20.7 | 21.3 | 22 | 22.7 | 23.5 | 24.2 |
| L | Reach (inch) | 14.5 | 14.8 | 15 | 15.1 | 15.5 | 15.8 |
| M | Stand Over Height (inch) | 27.8 | 28.9 | 30 | 31.3 | 32 | 33.1 |
| O | Stem Length (inch) | 3.1 | 3.5 | 3.9 | 3.9 | 4.3 | 4.3 |
| P | Crank Length (inch) | 6.7 | 6.7 | 6.8 | 6.8 | 6.9 | 6.9 |
| Q | Wheel Size | 700C | 700C | 700C | 700C | 700C | 700C |

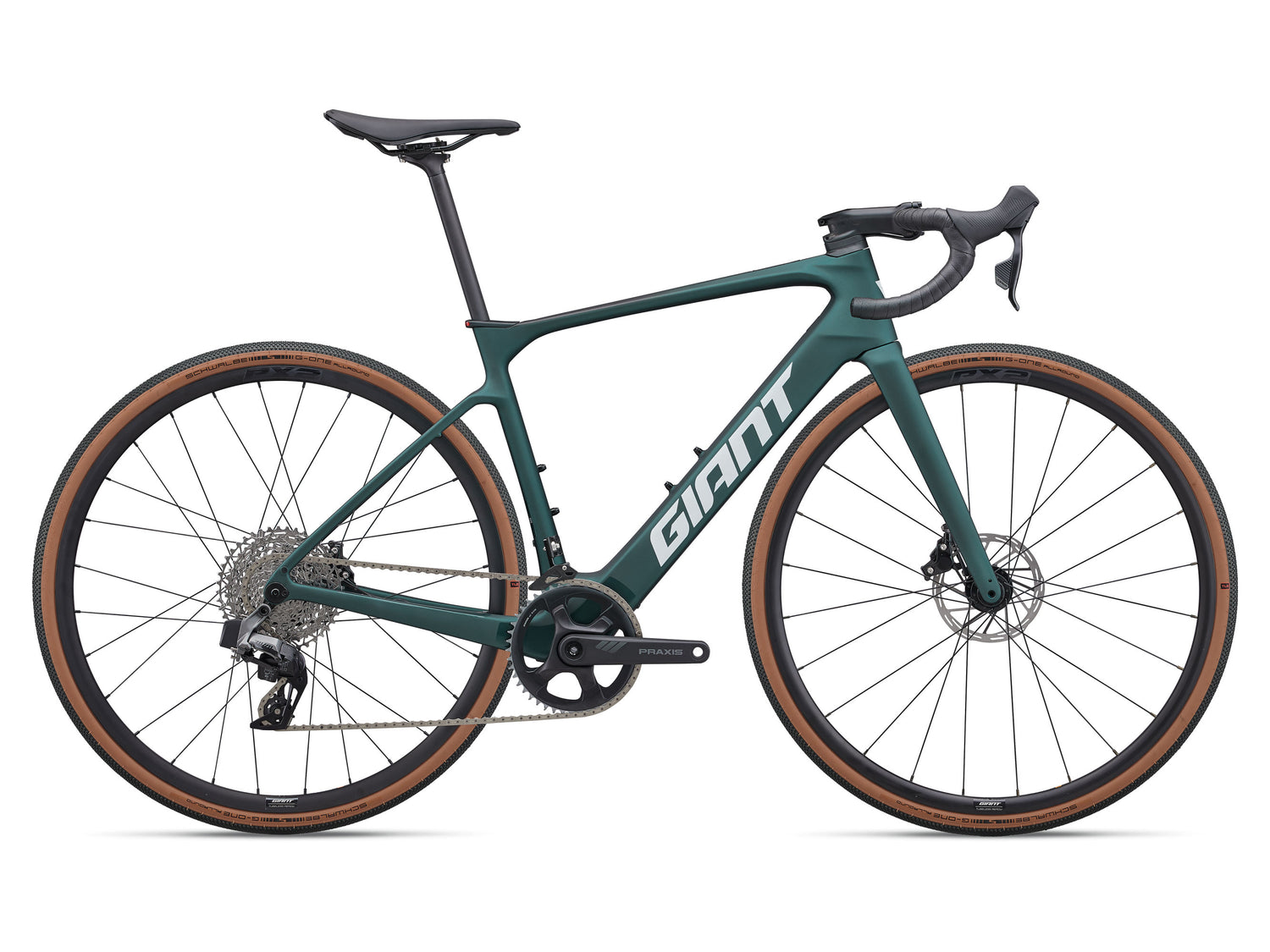

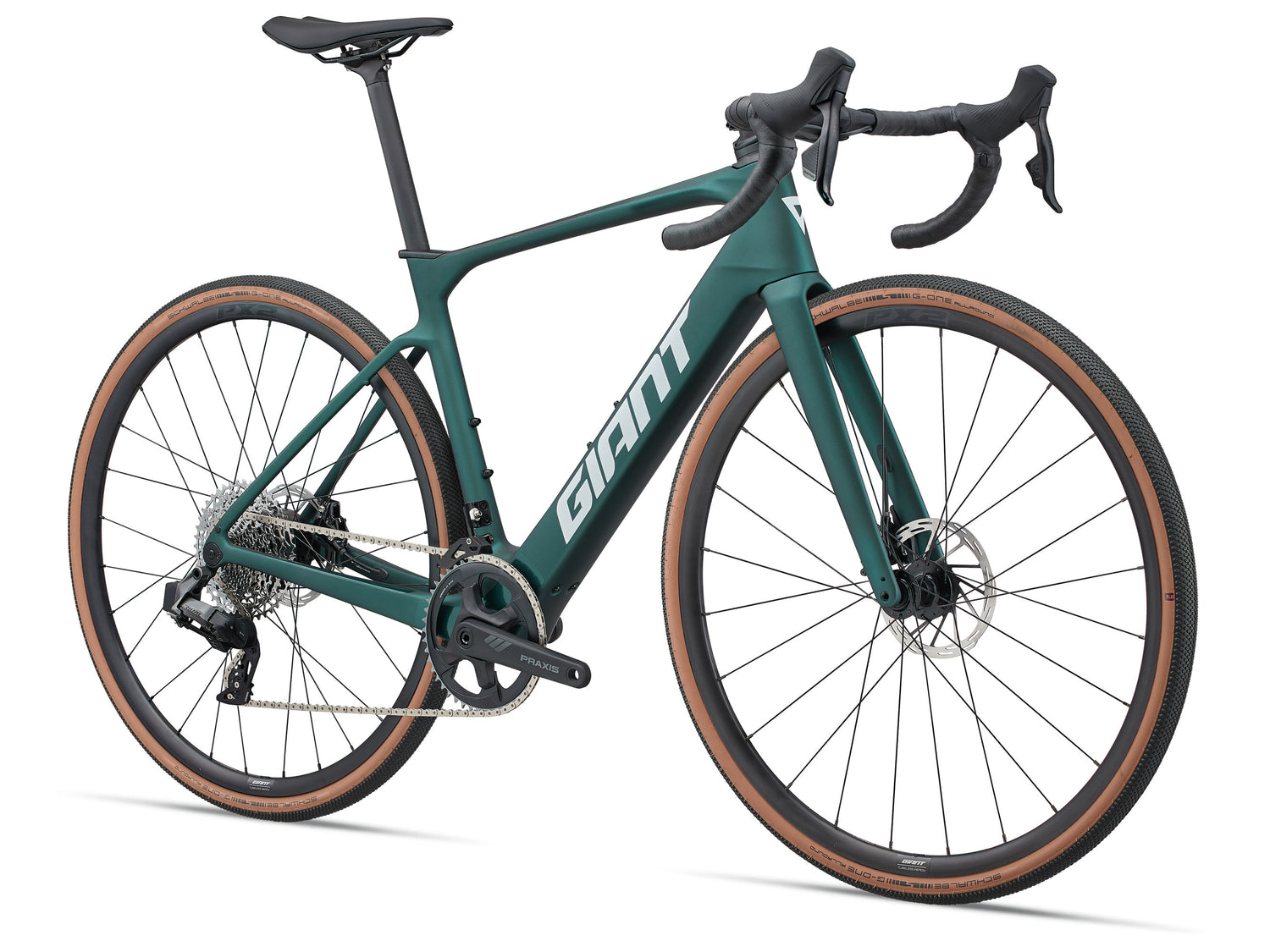

Giant Defy Advanced E+ Elite AR (2025)
Giant Defy Advanced E+ Elite AR (2025)
With its composite frameset, integrated pedal assistance, and high-quality components including wireless electronic shifting, the Defy Advanced E+ Elite AR is designed for performance-minded road riders seeking added capabilities to ride further and faster.
- Torque: 30Nm
- Battery Size: 400Wh
- Motor: Giant SyncDrive Move Plus (designed by Yamaha)

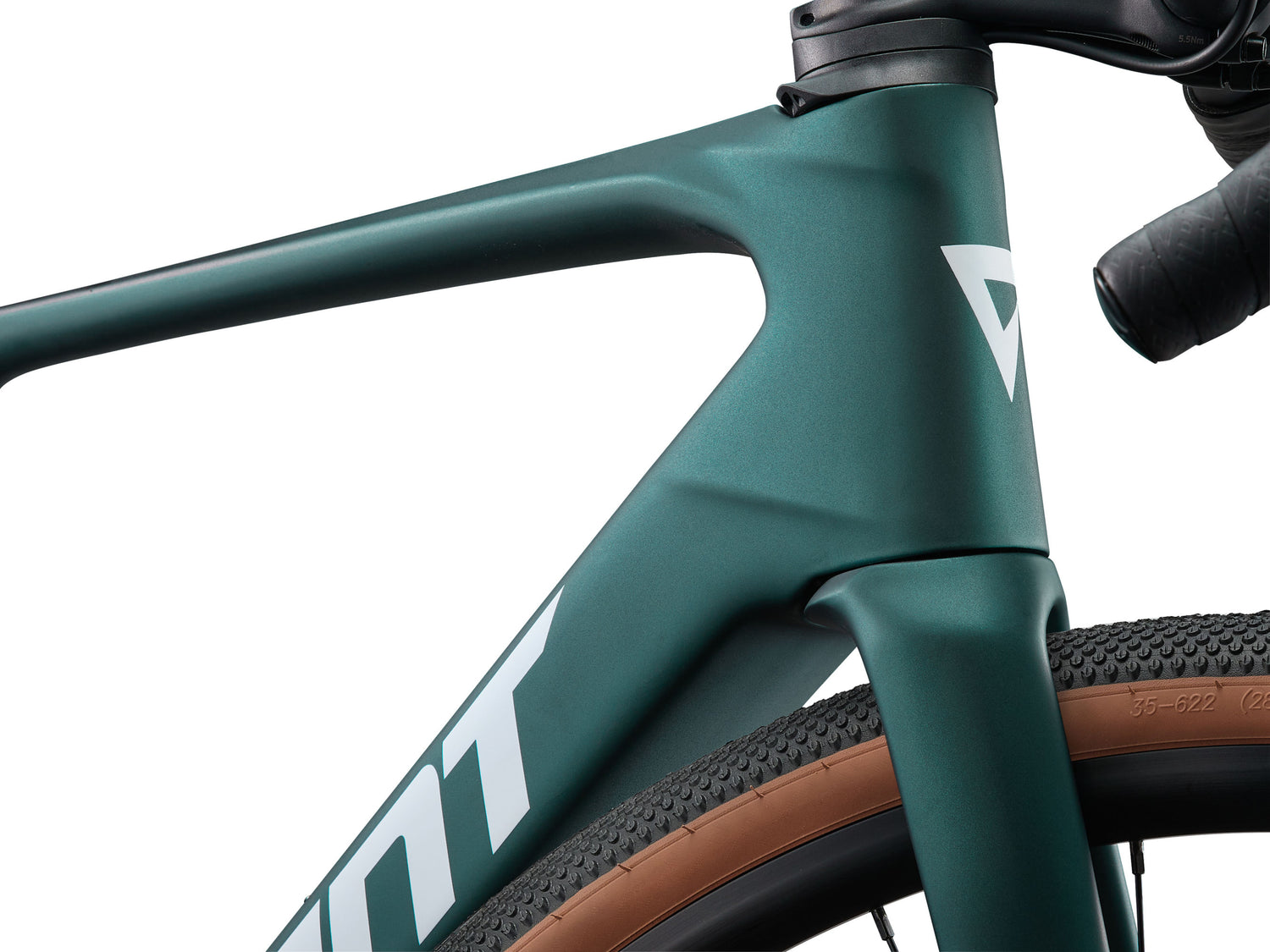

- Frame: Carbon

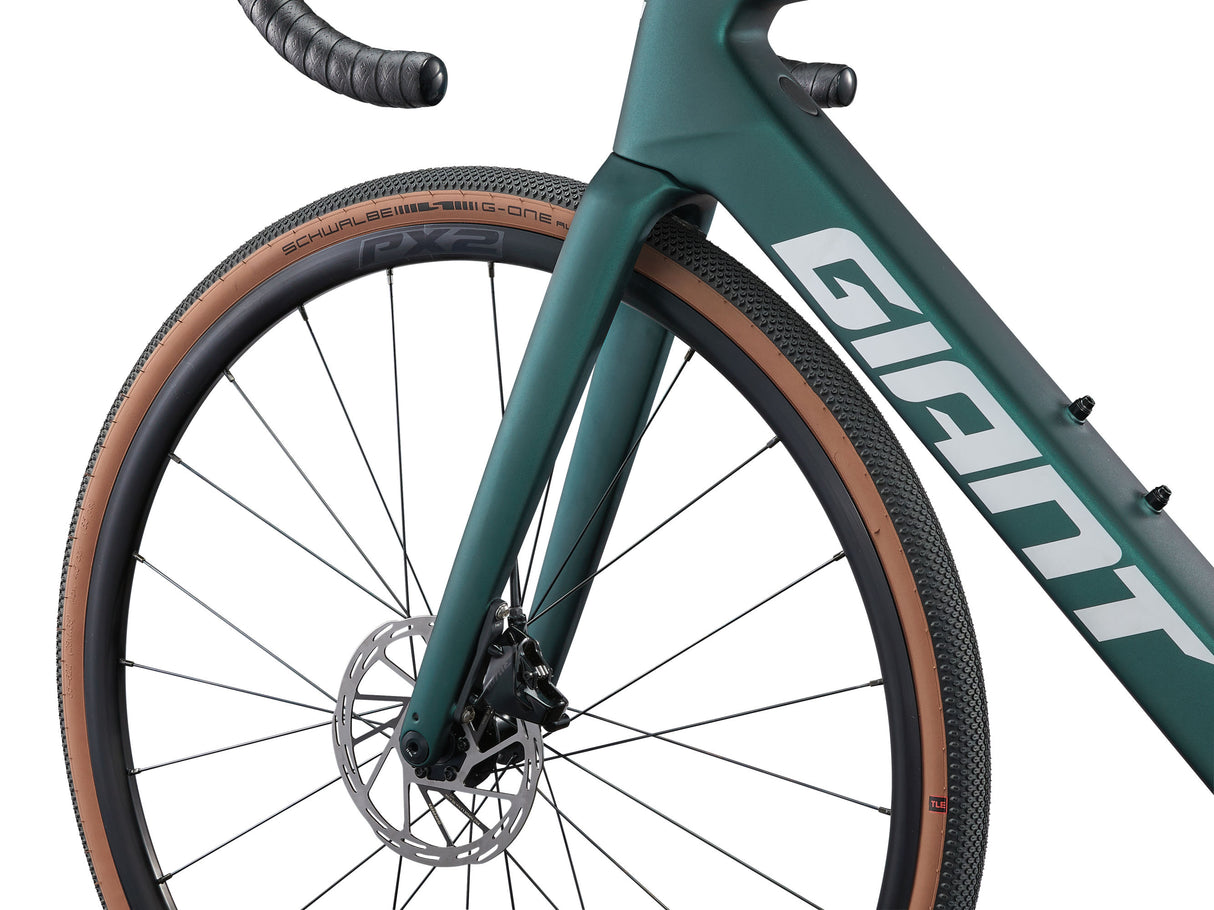

The Elite AR comes with 35mm wide all-terrain tyres for added versatility on rough roads and gravel.

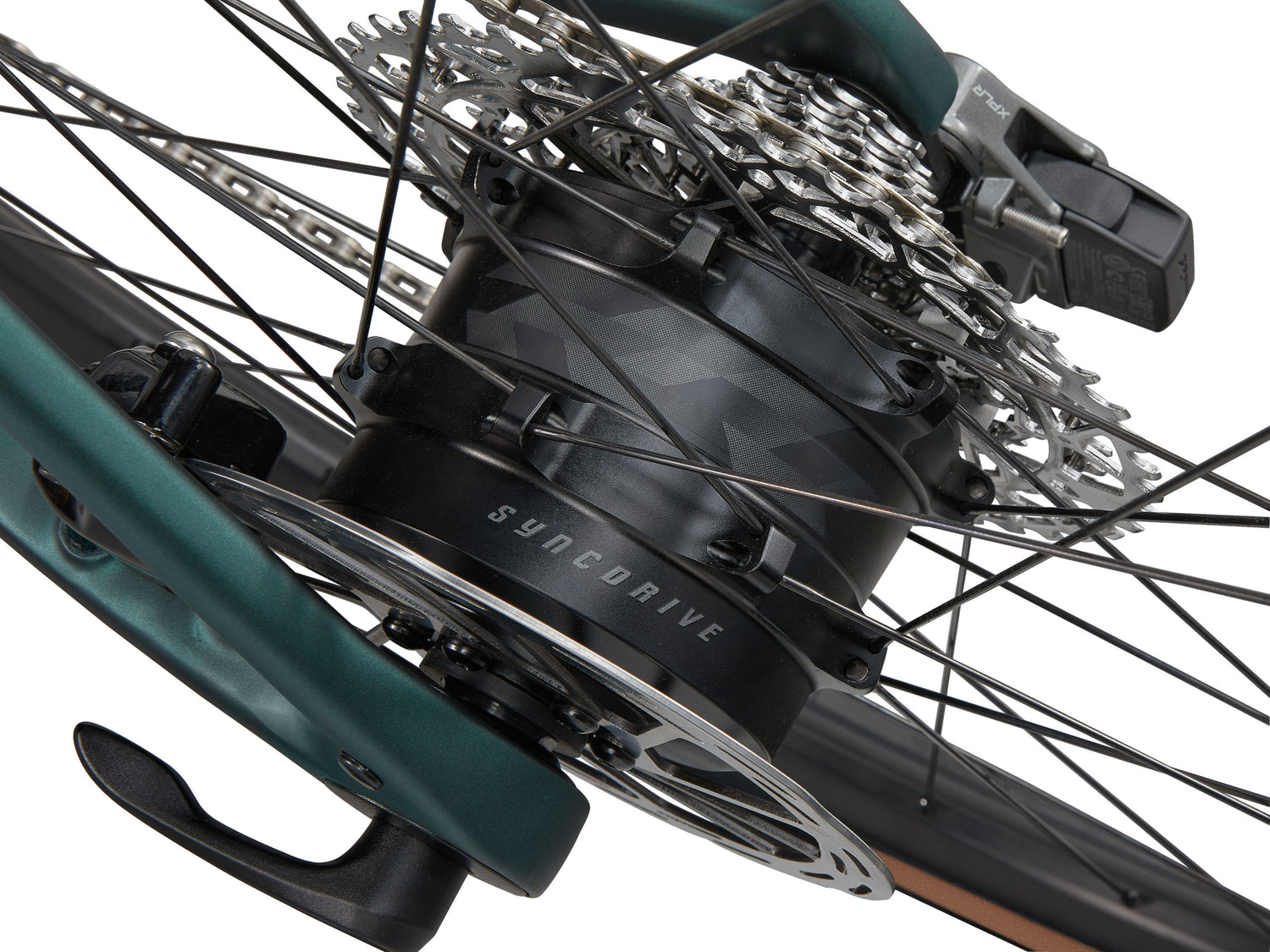

The new SyncDrive Move Plus motor, which delivers up to 30Nm of support (equivalent to 75Nm with a mid-drive motor) in a lightweight, quiet system, is cleanly integrated into the rear hub and features 5 support levels and Smart Assist technology to determine optimal pedaling support for a smooth, natural riding experience.
The system is powered by the EnergyPak 400 battery, which provides powerful support in an integrated, lightweight package.
Â
-
Motor
-
Controller
-
Display
-
Battery
-
Charger
-
Frame material
-
Frame
-
Fork
-
Handlebar
-
Bar Tape
-
Stem
-
Seatpost
-
Saddle
-
Pedals
-
Shifters
-
Front Derailleur
-
Rear Derailleur
-
Brakes
-
Brake Levers
-
Cassette/Freewheel
-
Chain
-
Crankset
-
Bottom Bracket
-
Rims
-
Hubs
-
Spokes
-
Tyres
-
Extras
-
Notes
-
Speeds (rear)12 Speed
-
Age GroupAdults
-
GenderMens
-
SKUsKelp Forest/M: 6040003105, Kelp Forest/ML: 6040003106
