Giant  |  SKU: 9031025103

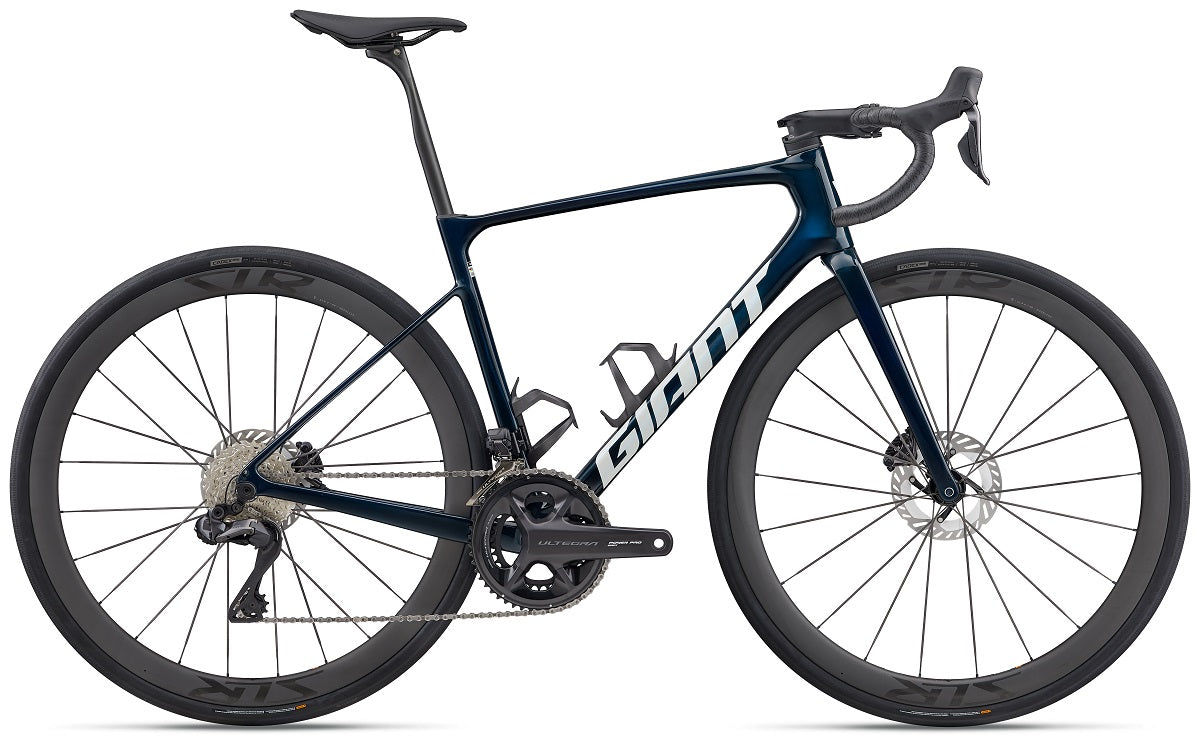

Giant Defy Advanced Pro 0 (2026)

$7,19900 $7,99900
Colour: Mariana Blue
Size

Pickup in-store only. Shipping not available.
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay

Sizing Chart

Sizing and Geometry

Giant Defy

Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.

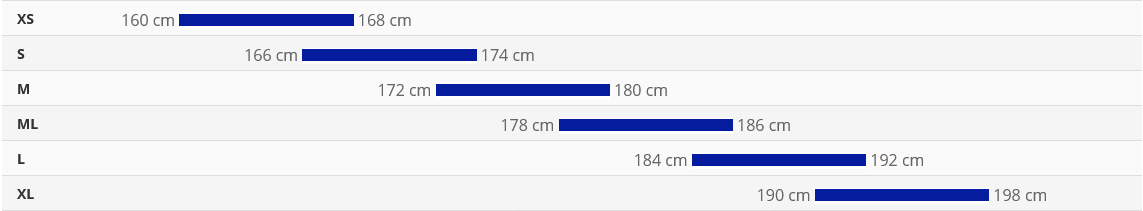

Frame size Rider Height Rider Height (cm)
XS 5'2"-5'6" 157-169
S 5'5"-5'9" 165-175
M 5'7"-5'11" 171-181
ML 5'10"-6'2" 177-187
L 6'0"-6'4" 183-193
XL 6'2"-6'6" 189-199



Geometry

bike diagram with measurements referenced in table that follows

    XS S M ML L XL
A Seat Tube Length (inch) 16.1 17.5 18.9 20.3 21.1 22.2
B Seat Tube Angle 74.5° 74.0° 73.5° 73.0° 73.0° 73.0°
C Top Tube Length (inch) 20.3 20.9 21.5 22 22.6 23.4
D Head Tube Length (inch) 4.7 5.5 5.9 6.9 7.7 8.5
E Head Tube Angle 70.5° 71.8° 72.5° 72.5° 72.5° 72.5°
F Fork Rake (inch) 2 2 2 2 2 2
G Trail (inch) 2.8 2.5 2.3 2.3 2.3 2.3
H Wheelbase (inch) 39.2 39.1 39.3 39.8 40.4 40.9
I Chain Stay Length (inch) 16.5 16.5 16.5 16.5 16.5 16.5
J Bottom Bracket Drop (inch) 3 3 3 2.8 2.8 2.8
K Stack (inch) 20.7 21.3 22 22.7 23.5 24.2
L Reach (inch) 14.5 14.8 15 15.1 15.5 15.8
M Stand Over Height (inch) 27.8 28.9 30 31.3 32 33.1
O Stem Length (inch) 3.1 3.5 3.9 3.9 4.3 4.3
P Crank Length (inch) 6.7 6.7 6.8 6.8 6.9 6.9
Q Wheel Size 700C 700C 700C 700C 700C 700C

Shipping Information

Certain bike brands cannot be shipped and are only available for Click and Collect.

These include but are not limited to the following brands: Giant, GT, Liv, Momentum and Mongoose.

For all other brands, we can provide a shipping quote to your postcode. Please contact us by email at staff@ivanhoecycles.com.au, or text us on 0417 122 950.

Fully assembled when you Click & Collect in-store
Buy Now, Pay Later with ZIP
Free service adjustment within first 6 months

Here’s to long rides. Climb higher mountains, skip the shortcuts. This buttery smooth endurance road bike helps you do more of what you love.

Functional simplicity

Free of cumbersome gimmickry, the frameset is one of the lightest in its category. With a perfect balance of high-performance reactivity and all-day comfort, it offers a “less is more” experience for modern endurance road riding.

Engineered compliance

Advanced-grade composite frame and fork are specifically engineered for endurance road riding, delivering a smooth and efficient ride quality that minimises fatigue on long rides. The new D-Fuse components work together to further absorb road shocks and vibrations.

Total control

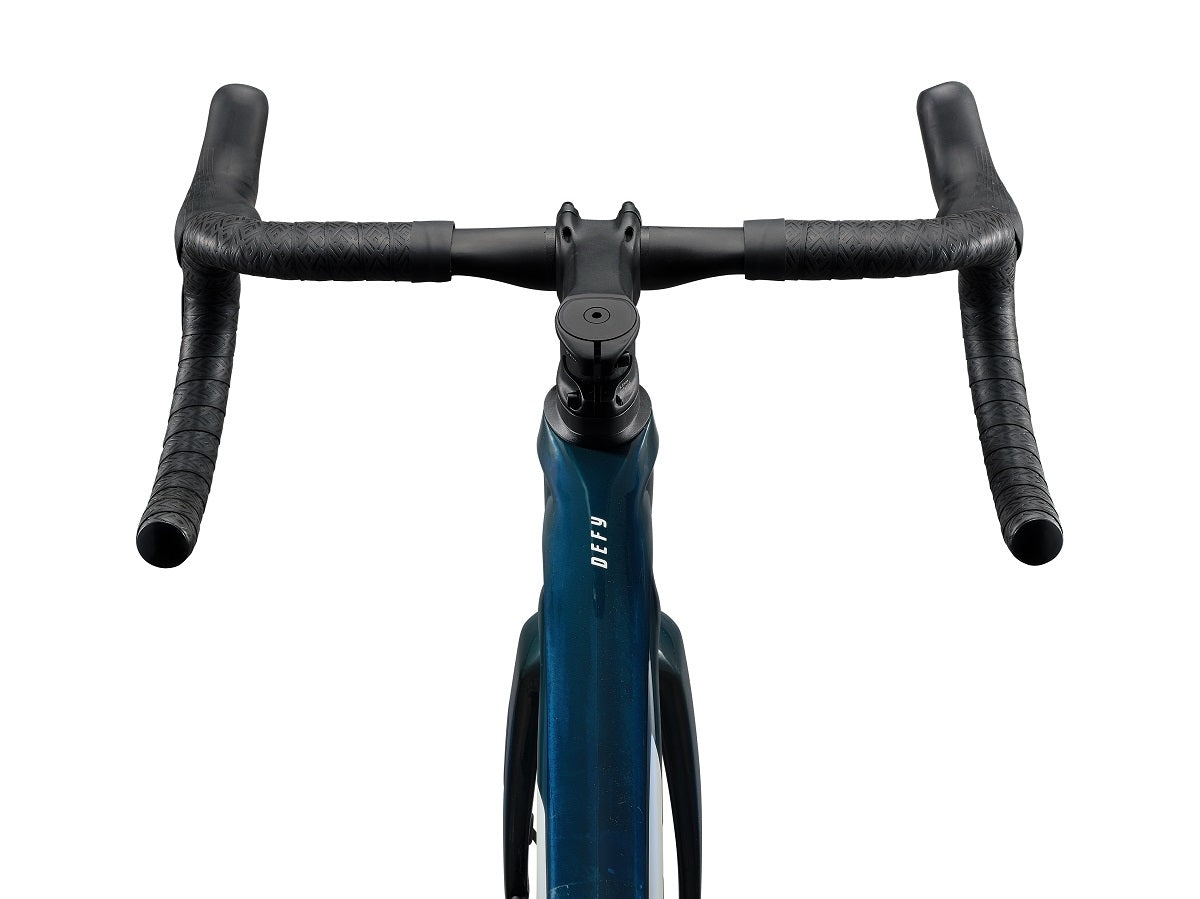

New Contact D-Fuse handlebar features ergonomic shaping and an 8-degree flare for comfort and control on all-day rides. Wide, hookless carbon rims (22.4mm inner width) are optimised for high-volume tubeless tyres (up to 38mm), and a 40mm rim depth offers stable, predictable handling in crosswinds.

SPECIFICATIONS

Sizes XS, S, M, M/L, L, XL
Colours Mariana Blue
Frame Advanced-grade Composite, 12x142mm thru-axle, disc
Fork Advanced SL-grade Composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc
Handlebar Giant Contact SLR D-Fuse XS:38/40cm, S:38/40cm, M:40/42cm, M/L:40/42cm, L:42/44cm, XL:42/44cm
Grips Stratus Lite 3.0
Stem Giant Contact SL AeroLight XS:80mm, S:90mm, M:100mm, M/L:100mm, L:110mm, XL:110mm
Seatpost Giant D-Fuse SLR, composite, -5/+15mm offset
Saddle Giant Fleet SL
Shifters Shimano Ultegra Di2 ST-R8170
Front Derailleur Shimano Ultegra Di2 FD-R8150
Rear Derailleur Shimano Ultegra Di2 RD-R8150
Brakes Shimano Ultegra Di2 hydraulic, Shimano RT-CL800 rotors [F]160mm, [R]160mm
Brake Levers Shimano Ultegra Di2
Cassette Shimano Ultegra, 12-speed, 11x34
Chain Shimano Ultegra
Crankset Shimano Ultegra, 34/50 with Giant Power Pro power meter XS:165mm, S:165mm, M:170mm, M/L:170mm, L:172.5mm, XL:172.5mm
Bottom Bracket Shimano, press fit
Rims Giant SLR 0 40 Carbon Disc WheelSystem
Hubs [F] Giant Low Friction Hub, CenterLock, 12mm thru-axle [R] Giant Low Friction Hub, 40t ratchet driver, CenterLock, 12mm thru-axle
Spokes Giant Aero Carbon Spoke
Tires CADEX Classics, tubeless, 700x32c (33.5mm), folding
Extras Computer mount, fender mount, water bottle cages, tubeless prepared, 38mm max tyre size
Max Tyre Clearance 38mm
Weight The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Giant Defy Advanced Pro 0 (2026)

$7,19900 $7,99900

Colour

Size

  • XS
  • S
  • M
  • ML
  • L
  • XL

Motor

N/A

Controller

N/A

Display

N/A

Battery

N/A

Charger

N/A

Sizes

N/A

Frame material

Carbon

Frame

Advanced-grade Composite, 12x142mm thru-axle, disc

Fork

Advanced SL-grade Composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc

Handlebar

Giant Contact SLR D-Fuse XS:38/40cm, S:38/40cm, M:40/42cm, M/L:40/42cm, L:42/44cm, XL:42/44cm

Grips

N/A

Bar Tape

Giant Stratus Lite 3.0

Headset

N/A

Stem

Giant Contact SL AeroLight XS:80mm, S:90mm, M:100mm, M/L:100mm, L:110mm, XL:110mm

Seatpost

Giant D-Fuse SLR, composite, -5/+15mm offset

Saddle

Giant Fleet SL

Pedals

N/A

Shifters

Shimano Ultegra Di2 ST-R8170

Front Derailleur

Shimano Ultegra Di2 FD-R8150

Rear Derailleur

Shimano Ultegra Di2 RD-R8150

Brakes

Shimano Ultegra Di2 hydraulic, Shimano RT-CL800 rotors [F]160mm, [R]160mm

Brake Levers

Shimano Ultegra Di2

Cassette/Freewheel

Shimano Ultegra, 12-speed, 11x34

Chain

Shimano Ultegra

Crankset

Shimano Ultegra, 34/50 with Giant Power Pro power meter XS:165mm, S:165mm, M:170mm, M/L:170mm, L:172.5mm, XL:172.5mm

Bottom Bracket

Shimano, press fit

Rims

Giant SLR 0 40 Carbon Disc WheelSystem

Hubs

[F] Giant Low Friction Hub, CenterLock, 12mm thru-axle [R] Giant Low Friction Hub, 40t ratchet driver, CenterLock, 12mm thru-axle

Spokes

Giant Aero Carbon Spoke

Tyres

CADEX Classics, tubeless, 700x32c (33.5mm), folding

Wheel Size

N/A

Extras

Computer mount, fender mount, water bottle cages, tubeless prepared, 38mm max tyre size
