Giant  |  SKU: 9031027103

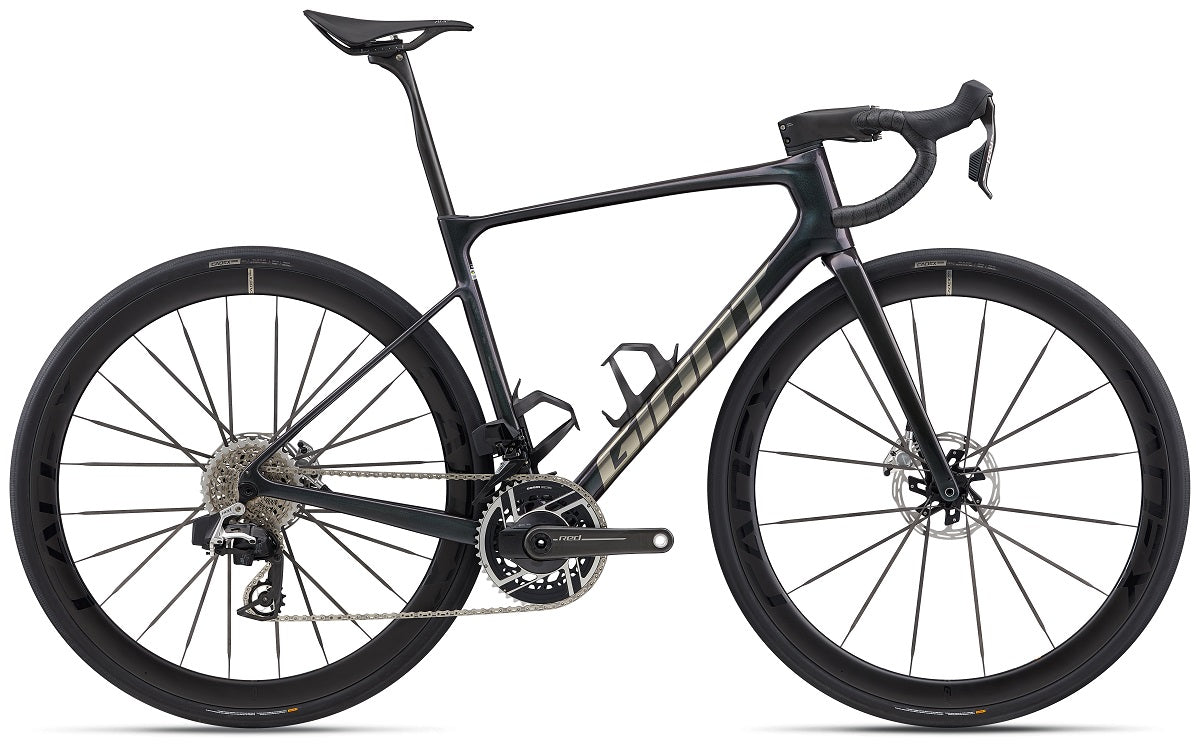

Giant Defy Advanced SL 0 (2026)

$13,99900
Colour: Arctic Light
Size

Pickup in-store only. Shipping not available.
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay

Sizing Chart

Sizing and Geometry

Giant Defy

Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.

Frame size Rider Height Rider Height (cm)
XS 5'2"-5'6" 157-169
S 5'5"-5'9" 165-175
M 5'7"-5'11" 171-181
ML 5'10"-6'2" 177-187
L 6'0"-6'4" 183-193
XL 6'2"-6'6" 189-199



Geometry

bike diagram with measurements referenced in table that follows

    XS S M ML L XL
A Seat Tube Length (inch) 16.1 17.5 18.9 20.3 21.1 22.2
B Seat Tube Angle 74.5° 74.0° 73.5° 73.0° 73.0° 73.0°
C Top Tube Length (inch) 20.3 20.9 21.5 22 22.6 23.4
D Head Tube Length (inch) 4.7 5.5 5.9 6.9 7.7 8.5
E Head Tube Angle 70.5° 71.8° 72.5° 72.5° 72.5° 72.5°
F Fork Rake (inch) 2 2 2 2 2 2
G Trail (inch) 2.8 2.5 2.3 2.3 2.3 2.3
H Wheelbase (inch) 39.2 39.1 39.3 39.8 40.4 40.9
I Chain Stay Length (inch) 16.5 16.5 16.5 16.5 16.5 16.5
J Bottom Bracket Drop (inch) 3 3 3 2.8 2.8 2.8
K Stack (inch) 20.7 21.3 22 22.7 23.5 24.2
L Reach (inch) 14.5 14.8 15 15.1 15.5 15.8
M Stand Over Height (inch) 27.8 28.9 30 31.3 32 33.1
O Stem Length (inch) 3.1 3.5 3.9 3.9 4.3 4.3
P Crank Length (inch) 6.7 6.7 6.8 6.8 6.9 6.9
Q Wheel Size 700C 700C 700C 700C 700C 700C

Shipping Information

Certain bike brands cannot be shipped and are only available for Click and Collect.

These include but are not limited to the following brands: Giant, GT, Liv, Momentum and Mongoose.

For all other brands, we can provide a shipping quote to your postcode. Please contact us by email at staff@ivanhoecycles.com.au, or text us on 0417 122 950.

Fully assembled when you Click & Collect in-store
Buy Now, Pay Later with ZIP
Free service adjustment within first 6 months

Go long. Go fast. Superlight and silky smooth, the flagship series of the new Defy range is back to reclaim its title as the pinnacle of endurance road. It’s the perfect choice for the sportive or gran fondo that’s circled on your calendar.

Functional simplicity

Free of cumbersome gimmickry, the frameset is one of the lightest in its category. With a perfect balance of high-performance reactivity and all-day comfort, it offers a “less is more” experience for modern endurance road riding.

Engineered compliance

Advanced SL-grade composite frame and fork are specifically engineered for endurance road riding, delivering a smooth and efficient ride quality that minimises fatigue on long rides. The new D-Fuse components work together to further absorb road shocks and vibrations.

Total control

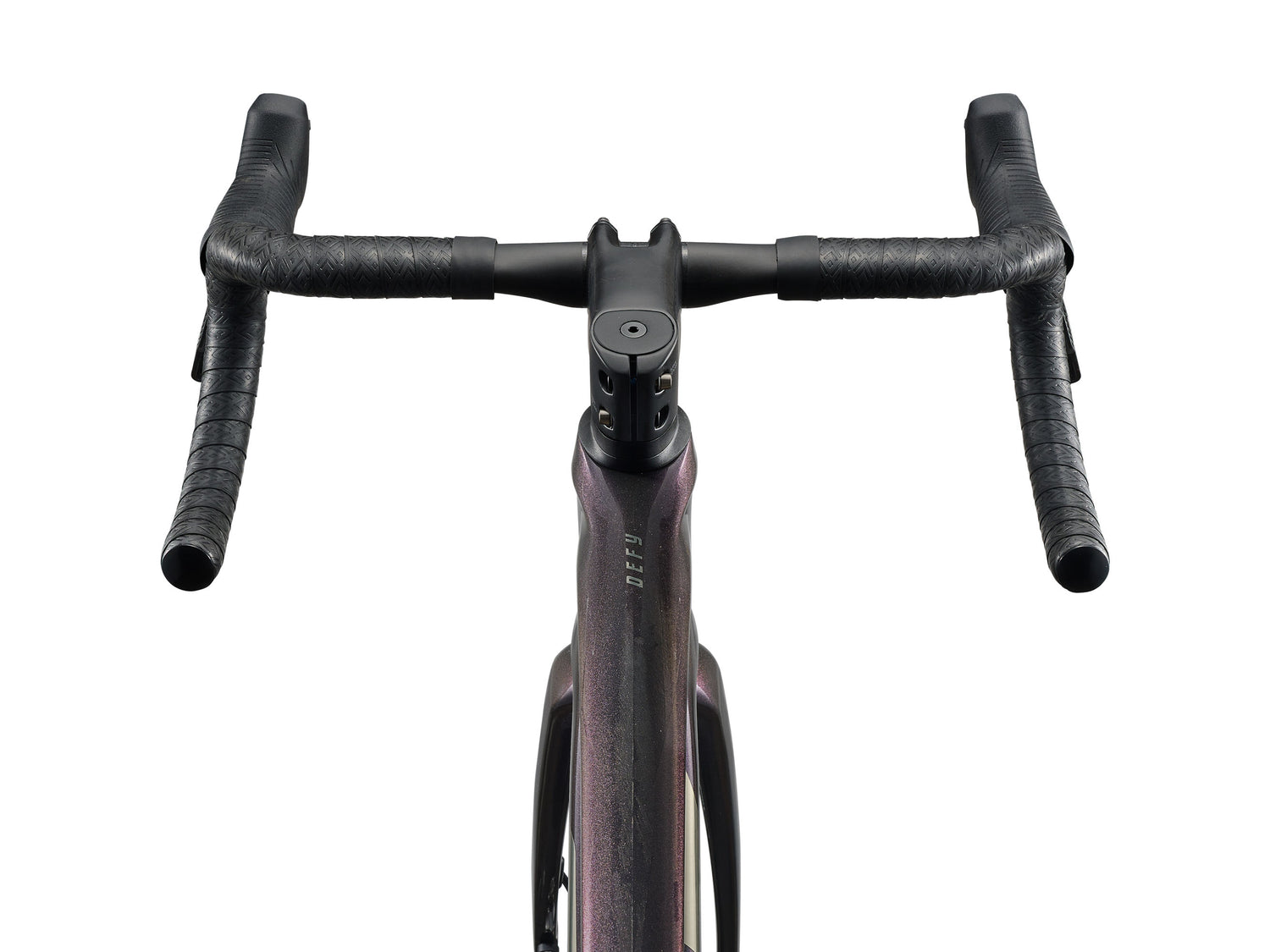

A new Contact D-Fuse handlebar features ergonomic shaping and an 8-degree flare for comfort and control on all-day rides. Wide, hookless carbon rims (22.4mm inner width) are optimised for high-volume tubeless tyres (up to 38mm), and a 40mm rim depth offers stable, predictable handling in crosswinds.

Giant Defy Advanced SL 0 (2026)

$13,99900

Colour

Size

  • XS
  • S
  • M
  • ML
  • L
  • XL

Motor

N/A

Controller

N/A

Display

N/A

Battery

N/A

Charger

N/A

Sizes

N/A

Frame material

Carbon

Frame

Advanced SL-grade Carbon, 12x142mm thru-axle, integrated seatpost, disc

Fork

Advanced SL-grade Carbon, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc

Handlebar

Giant Contact SLR D-Fuse | XS:38/40cm, S:38/40cm, M:40/42cm, M/L:40/42cm, L:42/44cm, XL:42/44cm

Grips

N/A

Bar Tape

Stratus Lite 3.0

Headset

N/A

Stem

Giant Contact SLR AeroLight | XS:80mm, S:90mm, M:100mm, M/L:100mm, L:110mm, XL:110mm

Seatpost

Giant D-Fuse SLR, carbon, -5/+15mm offset

Saddle

CADEX AMP

Pedals

N/A

Shifters

SRAM RED AXS E1, 2x12 speed

Front Derailleur

SRAM RED AXS E1

Rear Derailleur

SRAM RED AXS E1

Brakes

SRAM RED AXS E1 hydraulic, SRAM PaceLine X rotors [F]160mm, [R]160mm

Brake Levers

SRAM RED AXS hydraulic

Cassette/Freewheel

SRAM RED XG-1290, 12-speed, 10T-36T

Chain

SRAM RED E1

Crankset

SRAM RED E1 DUB, 33T/46T with power meter | XS:165mm, S:165mm, M:170mm, M/L:170mm, L:172.5mm, XL:172.5mm

Bottom Bracket

SRAM DUB ceramic, press fit

Rims

CADEX Ultra 40 WheelSystem, [F]40mm, [R]40mm

Hubs

[F] CADEX R3 Aero Hub, CenterLock, 12mm thru-axle, [R] CADEX R3-C48 Aero Hub, 48T ratchet driver, CenterLock, 12mm thru-axle

Spokes

CADEX Super Aero Carbon Spoke

Tyres

CADEX Classics, tubeless, 700x32c (33.5mm), folding

Wheel Size

N/A

Extras

Computer mount, fender mount, water bottle cages, tubeless prepared, 38mm max tyre size
