Giant  |  SKU: 9041015126

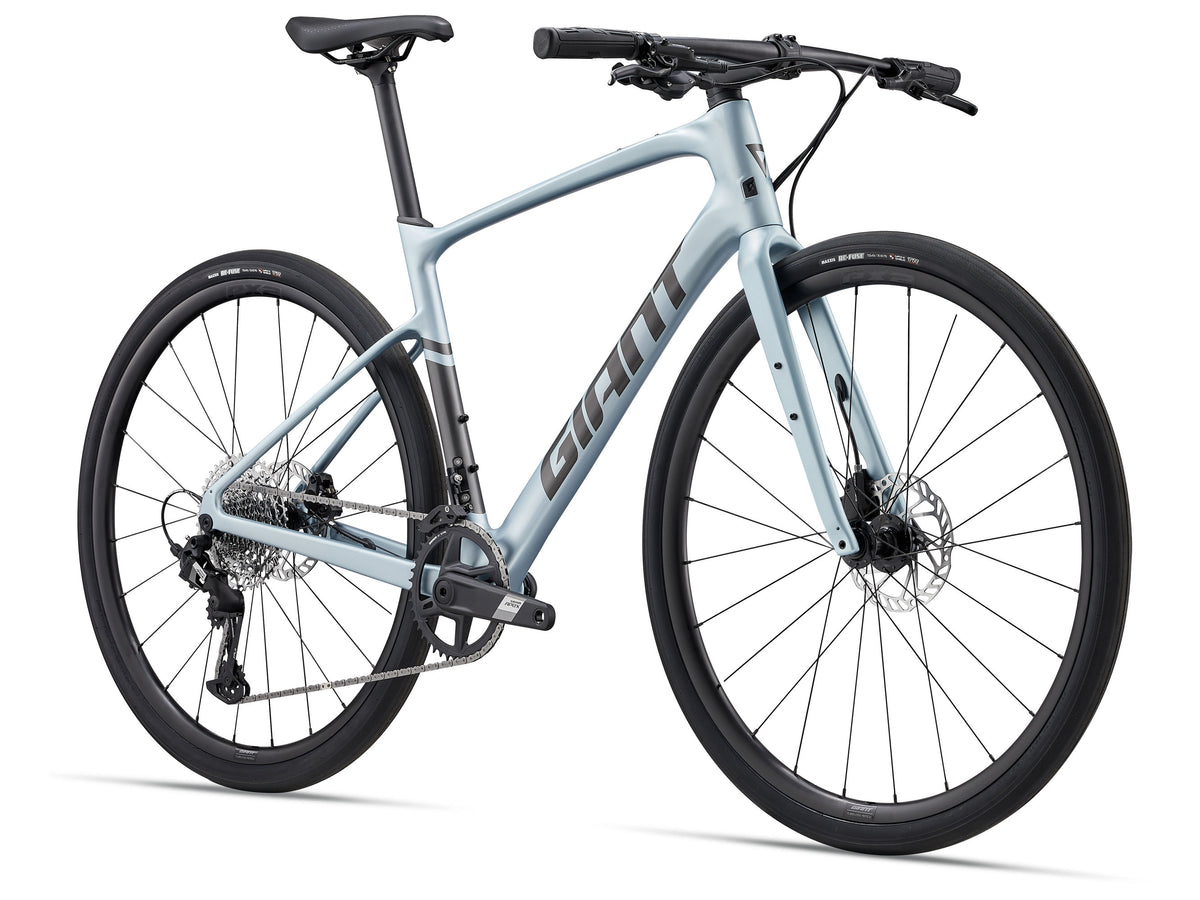

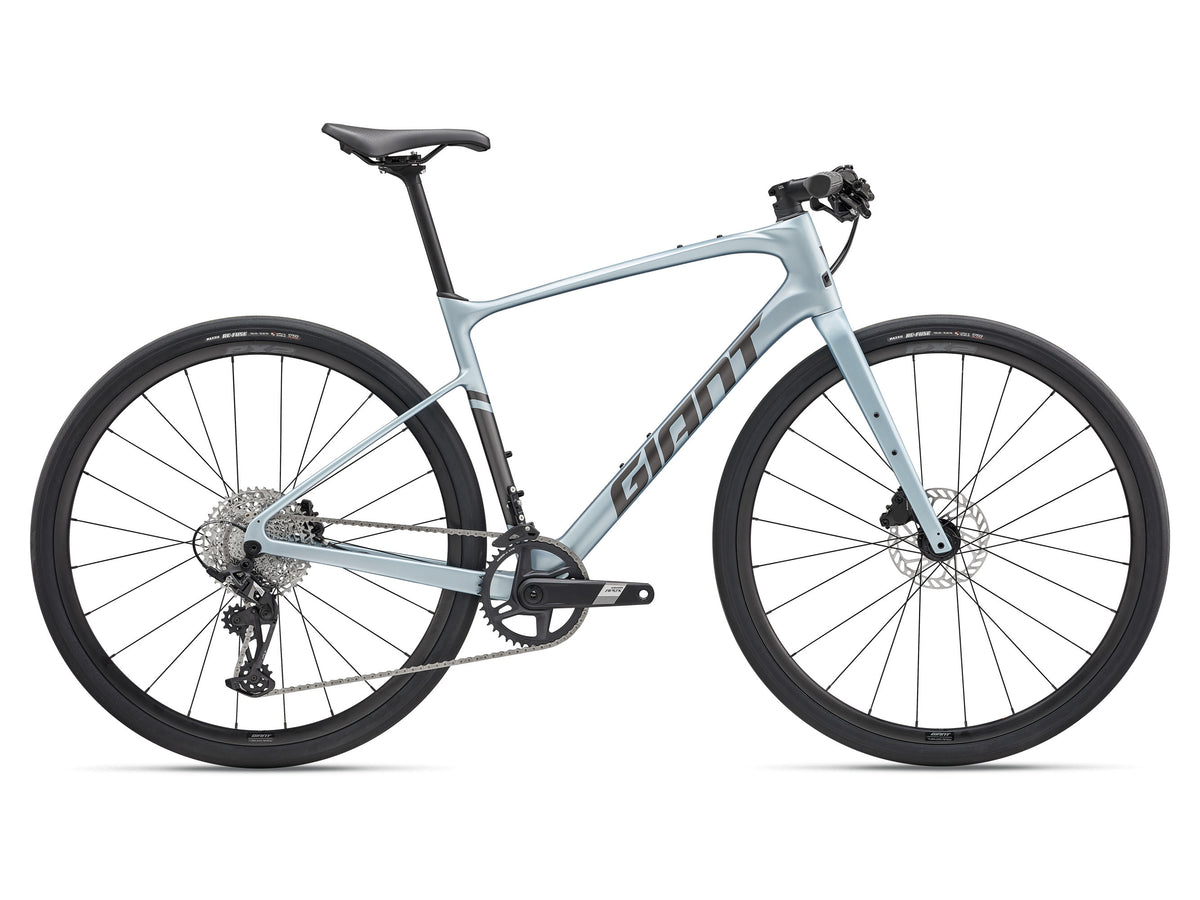

Giant Fastroad Advanced AR 1 (2027)

$2,79900
Colour: Cryo Silver
Size
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay

Sizing Chart

Sizing and Geometry

Giant Fastroad

Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.

Frame size Rider Height Rider Height (cm)
XS 5'1"-5'3" 155-165
S 5'3"-5'7" 160-170
M 5'7"-5'11" 170-180
L 5'11"-6'3" 180-190
XL 6'3"-6'7" 190-200



Geometry

bike diagram with measurements referenced in table that follows

    XS S M ML L XL
A Seat Tube Length (mm) 435 455 475 495 525 555
B Seat Tube Angle 73.5° 73.5° 73.5° 73.0° 73.0° 73.0°
C Top Tube Length (mm) 545 560 575 590 610 630
D Head Tube Length (mm) 110 130 155 175 200 225
E Head Tube Angle 70.5° 70.5° 71.0° 71.0° 71.5° 71.5°
F Fork Rake (mm) 50 50 50 50 50 50
G Trail (mm) 73.7 73.7 70.4 70.4 67.1 67.1
H Wheelbase (mm) 1031 1047 1058 1069 1084 1105
I Chain Stay Length (mm) 435 435 435 435 435 435
J Bottom Bracket Drop (mm) 75 75 75 75 75 75
K Stack (mm) 533 552 578 597 623 646
L Reach (mm) 387 396 404 407 419 432
M Stand Over Height (mm) 718 736 756 773 800 826
O Stem Length (mm) 70 80 90 90 100 110
P Crank Length (mm) 170 170 170 172.5 172.5 172.5
Q Wheel Size 700C 700C 700C 700C 700C 700C

Shipping Information

This product:

Shipping available†

We offer shipping on select brands including: Rocky Mountain, Orbea, XDS, Icon, Jamis, Shogun, Schwinn, BYK, Kidvelo. These bikes are shipped unbuilt in their original box.

†Only bikes stocked at our Warehouse location are available for shipping.

Shipping upon request to your local bike shop

Some brands require the bike is delivered directly to a bicycle shop or mechanic for assembly, and shipping is not available to your residence. These include GT, Cannondale, .

Request a shipping quote to proceed.

Pickup in-store only

Certain bike brands cannot be shipped and are only available for Click and Collect or purchase in-store.

These include but are not limited to the following brands: Giant, Norco, Liv, Momentum, Malvern Star and Mongoose.

Pre-assembled bikes

†Any bikes in stock at our Heidelberg Heights, Hallam or Hoppers Crossing store locations are already fully assembled, and therefore only available for Click and Collect or purchase in-store.

Fully assembled when you Click & Collect
Buy Now, Pay Later with ZIP
Free service adjustment in first 6 months

Make fitness riding more fun with a lightweight composite bike built for speed, comfort and control. Its flat handlebar and upright riding position inspire confidence, while the composite D-Fuse seatpost and ErgoContact saddle help smooth out rough surfaces. With SRAM 1x12 gearing, Shimano disc brakes and wide 40mm tubeless tyres, it’s ready for city streets, bike paths and gravel backroads.

Features

  • Advanced-grade composite frameset, approximately 350g lighter than the aluminium version.
  • Stiff bottom bracket area for efficient power transfer when accelerating and climbing.
  • Flat handlebar and upright geometry for comfortable, confident handling.
  • Composite D-Fuse seatpost and ErgoContact saddle help absorb road vibrations.
  • SRAM 1x12 drivetrain with a 42T chainring and wide-range 11–44T cassette.
  • Shimano hydraulic disc brakes with 160mm front and rear rotors.
  • Maxxis Re-Fuse 700x40c tubeless tyres for versatile all-road riding.
  • Maximum tyre clearance of 42mm.

Specifications

Sizes XS, S, M, M/L, L, XL
Colour Cryo Silver
Frame Advanced-grade composite, 12x142mm thru-axle, disc
Fork Advanced-grade composite, full carbon OverDrive steerer, 12x100mm thru-axle, disc
Shock N/A
Handlebar Giant Sport, flat, 31.8mm
Grips Giant ErgoContact D3
Stem Giant Contact, 8-degree; XS: 70mm, S: 80mm, M: 90mm, M/L: 90mm, L: 100mm, XL: 110mm
Seatpost Giant D-Fuse, composite
Saddle Giant ErgoContact
Pedals N/A
Shifters SRAM NX Eagle SL-NX-1-B1, 1x12
Front Derailleur N/A
Rear Derailleur SRAM Apex RD-APX-E1
Brakes Shimano BR-UR300, Giant MPH rotors, front: 160mm, rear: 160mm
Brake Levers Shimano BL-MT221
Cassette SRAM XPLR PG-1231-E1, 12-speed, 11–44T
Chain SRAM Rival-E1
Crankset SRAM Apex FC-APX-1W-E1, 42T; XS: 170mm, S: 170mm, M: 170mm, M/L: 172.5mm, L: 172.5mm, XL: 175mm
Bottom Bracket SRAM DUB, press fit
Rims Giant P-X2 Disc wheelset
Hubs Front and rear: Giant alloy, 6-bolt, 24H
Spokes Sapim Race
Tyres Maxxis Re-Fuse, tubeless, 700x40c
Extras Tubeless prepared, chain guide
Maximum Tyre Clearance 42mm
Weight Not specified. Weight varies by size, finish, hardware and accessories. Contact your local dealer for an accurate measurement.
