Giant Fastroad AR Advanced 1 (2025)
Giant Fastroad AR Advanced 1 (2025) - Asphalt Green / S is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Sizing Chart
Sizing Chart
Sizing and Geometry
Giant Fastroad
Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.
| Frame size | Rider Height | Rider Height (cm) |
| XS | 5'1"-5'3" | 155-165 |
| S | 5'3"-5'7" | 160-170 |
| M | 5'7"-5'11" | 170-180 |
| L | 5'11"-6'3" | 180-190 |
| XL | 6'3"-6'7" | 190-200 |
Geometry
| XS | S | M | ML | L | XL | ||
|---|---|---|---|---|---|---|---|
| A | Seat Tube Length (mm) | 435 | 455 | 475 | 495 | 525 | 555 |
| B | Seat Tube Angle | 73.5° | 73.5° | 73.5° | 73.0° | 73.0° | 73.0° |
| C | Top Tube Length (mm) | 545 | 560 | 575 | 590 | 610 | 630 |
| D | Head Tube Length (mm) | 110 | 130 | 155 | 175 | 200 | 225 |
| E | Head Tube Angle | 70.5° | 70.5° | 71.0° | 71.0° | 71.5° | 71.5° |
| F | Fork Rake (mm) | 50 | 50 | 50 | 50 | 50 | 50 |
| G | Trail (mm) | 73.7 | 73.7 | 70.4 | 70.4 | 67.1 | 67.1 |
| H | Wheelbase (mm) | 1031 | 1047 | 1058 | 1069 | 1084 | 1105 |
| I | Chain Stay Length (mm) | 435 | 435 | 435 | 435 | 435 | 435 |
| J | Bottom Bracket Drop (mm) | 75 | 75 | 75 | 75 | 75 | 75 |
| K | Stack (mm) | 533 | 552 | 578 | 597 | 623 | 646 |
| L | Reach (mm) | 387 | 396 | 404 | 407 | 419 | 432 |
| M | Stand Over Height (mm) | 718 | 736 | 756 | 773 | 800 | 826 |
| O | Stem Length (mm) | 70 | 80 | 90 | 90 | 100 | 110 |
| P | Crank Length (mm) | 170 | 170 | 170 | 172.5 | 172.5 | 172.5 |
| Q | Wheel Size | 700C | 700C | 700C | 700C | 700C | 700C |
Shipping Information
Shipping Information
Certain bike brands cannot be shipped and are only available for Click and Collect.
These include but are not limited to the following brands: Giant, GT, Liv, Momentum and Mongoose.
For all other brands, we can provide a shipping quote to your postcode. Please contact us by email at staff@ivanhoecycles.com.au, or text us on 0417 122 950.
Sizing and Geometry
Giant Fastroad
Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.
| Frame size | Rider Height | Rider Height (cm) |
| XS | 5'1"-5'3" | 155-165 |
| S | 5'3"-5'7" | 160-170 |
| M | 5'7"-5'11" | 170-180 |
| L | 5'11"-6'3" | 180-190 |
| XL | 6'3"-6'7" | 190-200 |
Geometry
| XS | S | M | ML | L | XL | ||
|---|---|---|---|---|---|---|---|
| A | Seat Tube Length (mm) | 435 | 455 | 475 | 495 | 525 | 555 |
| B | Seat Tube Angle | 73.5° | 73.5° | 73.5° | 73.0° | 73.0° | 73.0° |
| C | Top Tube Length (mm) | 545 | 560 | 575 | 590 | 610 | 630 |
| D | Head Tube Length (mm) | 110 | 130 | 155 | 175 | 200 | 225 |
| E | Head Tube Angle | 70.5° | 70.5° | 71.0° | 71.0° | 71.5° | 71.5° |
| F | Fork Rake (mm) | 50 | 50 | 50 | 50 | 50 | 50 |
| G | Trail (mm) | 73.7 | 73.7 | 70.4 | 70.4 | 67.1 | 67.1 |
| H | Wheelbase (mm) | 1031 | 1047 | 1058 | 1069 | 1084 | 1105 |
| I | Chain Stay Length (mm) | 435 | 435 | 435 | 435 | 435 | 435 |
| J | Bottom Bracket Drop (mm) | 75 | 75 | 75 | 75 | 75 | 75 |
| K | Stack (mm) | 533 | 552 | 578 | 597 | 623 | 646 |
| L | Reach (mm) | 387 | 396 | 404 | 407 | 419 | 432 |
| M | Stand Over Height (mm) | 718 | 736 | 756 | 773 | 800 | 826 |
| O | Stem Length (mm) | 70 | 80 | 90 | 90 | 100 | 110 |
| P | Crank Length (mm) | 170 | 170 | 170 | 172.5 | 172.5 | 172.5 |
| Q | Wheel Size | 700C | 700C | 700C | 700C | 700C | 700C |

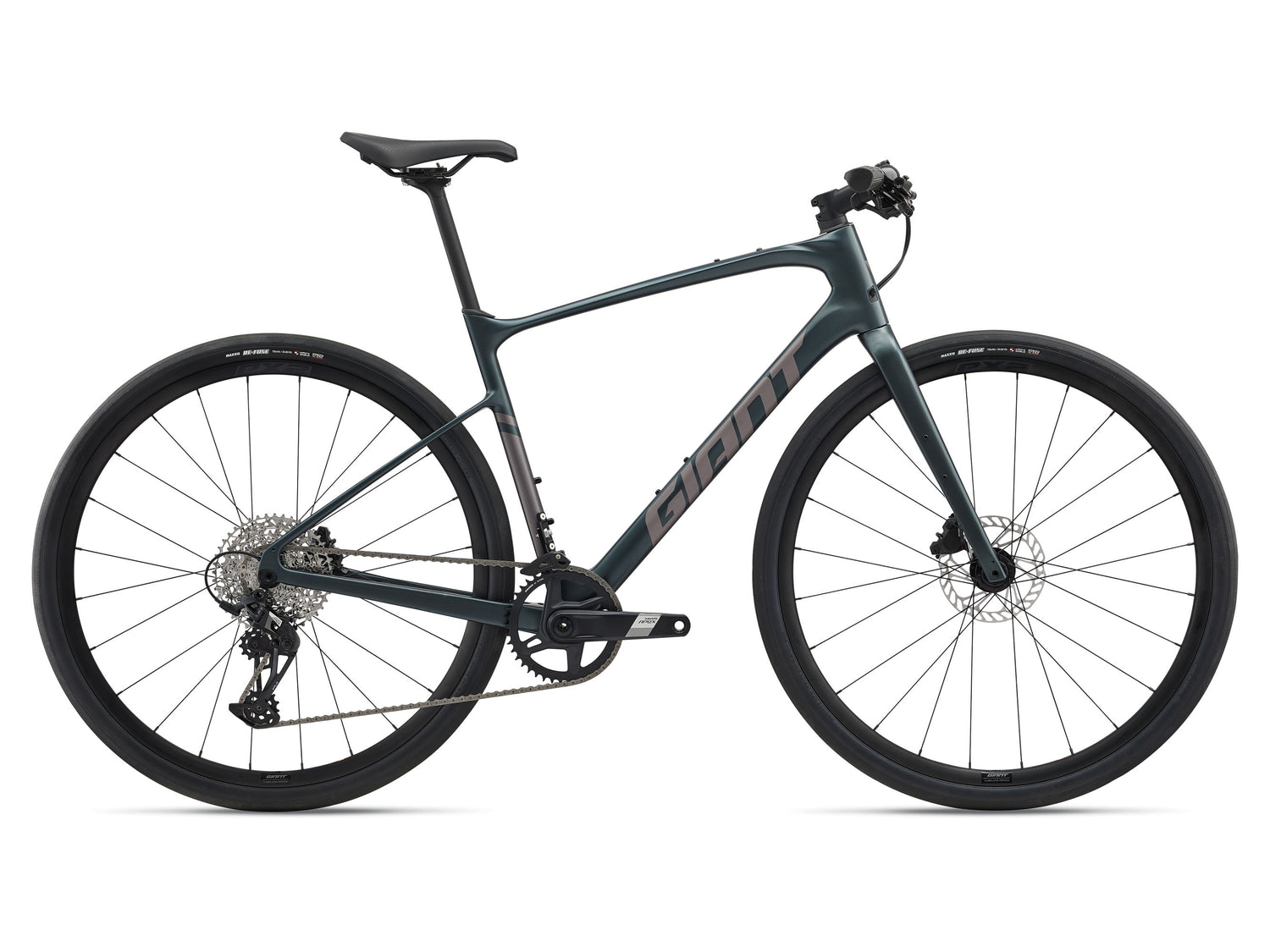

Giant Fastroad AR Advanced 1 (2025)
Giant FastRoad AR Advanced 1 (2025)
Fitness gains made fun. This lightweight flyer has a sleek composite frameset, flat handlebar positioning and all-road capabilities so you can go from city streets to bumpy backroads with speed, comfort and control.
LIGHT & EFFICIENT
Advanced Composite frameset and sleek shaping make this model 350g lighter than the aluminium version. A stiffer bottom bracket area improves power transfer so you can accelerate and climb faster with less effort.
SMOOTH & COMFORTABLE
Flat handlebar frame geometry creates a more upright riding position for confident handling. Powerful disc brakes offer added control in all conditions. And the combination of a D-Fuse composite seatpost and ErgoContact saddle helps smooth out rough roads
FOR ALL ROADS
High-volume 40mm tubeless tyres offer the freedom and versatility to ride smooth roads, bumpy bike paths or gravel. Single or double chainring setups are available on different models to suit individual riding style and terrain.
-
Frame material
-
Frame
-
Fork
-
Handlebar
-
Grips
-
Stem
-
Seatpost
-
Saddle
-
Pedals
-
Shifters
-
Front Derailleur
-
Rear Derailleur
-
Brakes
-
Brake Levers
-
Cassette/Freewheel
-
Chain
-
Crankset
-
Bottom Bracket
-
Rims
-
Hubs
-
Spokes
-
Tyres
-
Extras
-
Notes
-
Speeds (rear)12 Speed
-
Age GroupAdults, Teenagers
-
GenderMens, Unisex
