Giant  |  SKU: 2310166126

Giant Fastroad AR Advanced 2

$1,79900 $2,29900
Colour: Misty Forest
Size

Pickup in-store only. Shipping not available.
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay

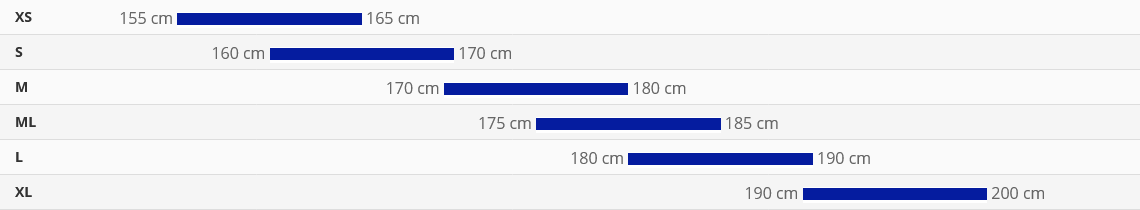

Sizing Chart

Sizing and Geometry

Giant Fastroad

Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.

Frame size Rider Height Rider Height (cm)
XS 5'1"-5'3" 155-165
S 5'3"-5'7" 160-170
M 5'7"-5'11" 170-180
L 5'11"-6'3" 180-190
XL 6'3"-6'7" 190-200

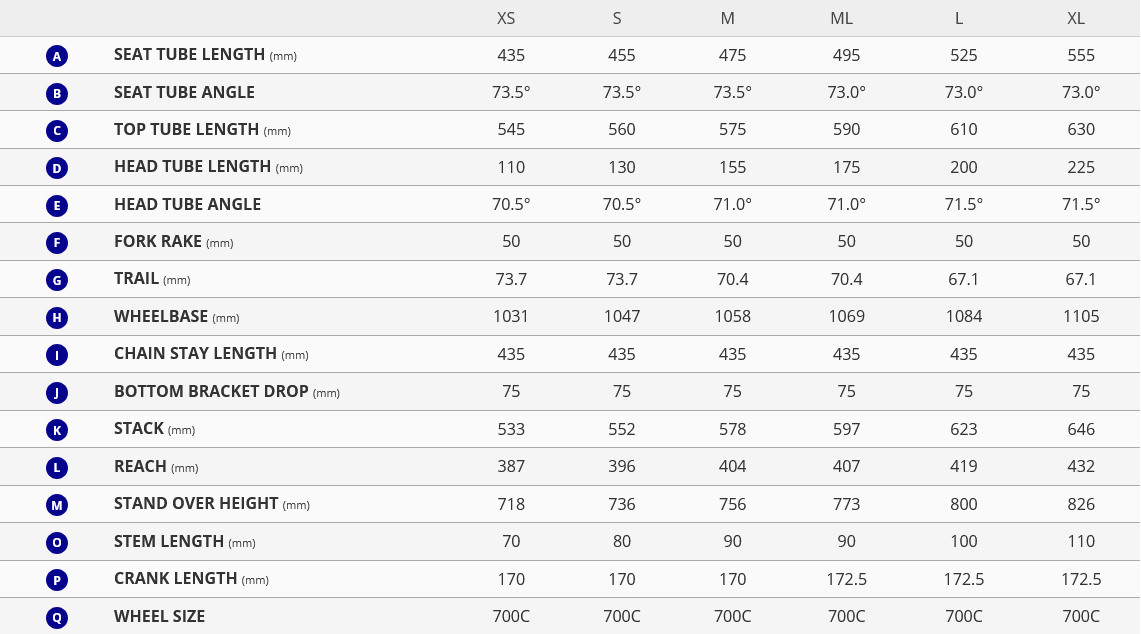

Geometry

bike diagram with measurements referenced in table that follows

    XS S M ML L XL
A Seat Tube Length (mm) 435 455 475 495 525 555
B Seat Tube Angle 73.5° 73.5° 73.5° 73.0° 73.0° 73.0°
C Top Tube Length (mm) 545 560 575 590 610 630
D Head Tube Length (mm) 110 130 155 175 200 225
E Head Tube Angle 70.5° 70.5° 71.0° 71.0° 71.5° 71.5°
F Fork Rake (mm) 50 50 50 50 50 50
G Trail (mm) 73.7 73.7 70.4 70.4 67.1 67.1
H Wheelbase (mm) 1031 1047 1058 1069 1084 1105
I Chain Stay Length (mm) 435 435 435 435 435 435
J Bottom Bracket Drop (mm) 75 75 75 75 75 75
K Stack (mm) 533 552 578 597 623 646
L Reach (mm) 387 396 404 407 419 432
M Stand Over Height (mm) 718 736 756 773 800 826
O Stem Length (mm) 70 80 90 90 100 110
P Crank Length (mm) 170 170 170 172.5 172.5 172.5
Q Wheel Size 700C 700C 700C 700C 700C 700C

Shipping Information

This product: Pickup in-store only. Shipping not available.

Shipping available†

We offer shipping on select brands including: Rocky Mountain, Orbea, XDS, Icon, Jamis, Shogun, Schwinn, BYK, Kidvelo. These bikes are shipped unbuilt in their original box.

†Only bikes stocked at our Warehouse location are available for shipping.

Shipping upon request to your local bike shop

Some brands require the bike is delivered directly to a bicycle shop or mechanic for assembly, and shipping is not available to your residence. These include GT, Cannondale, .

Request a shipping quote to proceed.

Pickup in-store only

Certain bike brands cannot be shipped and are only available for Click and Collect or purchase in-store.

These include but are not limited to the following brands: Giant, Norco, Liv, Momentum, Malvern Star and Mongoose.

Pre-assembled bikes

†Any bikes in stock at our Heidelberg Heights, Hallam or Hoppers Crossing store locations are already fully assembled, and therefore only available for Click and Collect or purchase in-store.

Fully assembled when you Click & Collect in-store
Buy Now, Pay Later with ZIP
Free service adjustment within first 6 months

Boosting your fitness has never been this fun. With a sleek composite frameset, flat handlebar positioning and all-road capabilities, this lightweight flyer goes from city streets to bumpy backroads with speed, comfort and control.

LIGHTWEIGHT

Advanced Composite frameset and sleek shaping make this model more than 200 grams lighter than the aluminum version. A stiffer bottom bracket area improves power transfer so you can accelerate and climb faster with less effort.

SMOOTH AND STABLE

Flat handlebar frame geometry creates a more upright riding position for confident handling. Powerful disc brakes offer added control in all conditions. And the combination of a D-Fuse composite seatpost and ErgoMax saddle helps smooth out rough roads.

ALL-ROAD CAPABLE

With clearance for high-volume tubeless tyres (up to 42mm), riders have the freedom and versatility to ride smooth roads, bumpy bike paths or gravel. Single or double chainring setups are available on different models to suit individual riding style and terrain.

Giant Fastroad AR Advanced 2 (2023)

$1,79900 $2,29900

Colour

Size

  • XS
  • S
  • M
  • ML
  • L
  • XL

Motor

N/A

Controller

N/A

Display

N/A

Battery

N/A

Charger

N/A

Sizes

N/A

Frame material

Carbon

Frame

Advanced grade composite, 12mm thru-axle

Fork

Advanced-Grade Composite, composite OverDrive steerer, disc

Handlebar

Giant Sport, mini-rise, 31.8mm

Grips

Giant ErgoContact

Bar Tape

N/A

Headset

N/A

Stem

Giant Contact, 8 degree

Seatpost

Giant D-Fuse, Composite

Saddle

Giant ErgoMax

Pedals

N/A

Shifters

Shimano Tiagra, 20 speed

Front Derailleur

Shimano Tiagra

Rear Derailleur

Shimano Tiagra

Brakes

Tektro HD-R210 hydraulic disc // Giant MPH 160mm rotors

Brake Levers

Tektro HD-R210

Cassette/Freewheel

Shimano CS-HG500, 11T-34T, 10 speed

Chain

KMC X10

Crankset

FSA Omega, 32T/48T

Bottom Bracket

FSA, press fit

Rims

Giant P-X2 Disc wheelset

Hubs

Giant alloy, 12mm thru-axle with quick release

Spokes

Sapim Stainless steel, 14g-15g

Tyres

Giant Gavia Fondo AR 2, tubeless, 700x40c

Wheel Size

N/A

Extras

Tubeless prepared // 42mm max tyre size
