Giant Fastroad AR Advanced 2 (2025)
Giant Fastroad AR Advanced 2 (2025) - Tiger Red / S is backordered and will ship as soon as it is back in stock.
Pickup available at HALLAM
Usually ready in 24 hours
Sizing Chart
Sizing Chart
Sizing and Geometry
Giant Fastroad
Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.
| Frame size | Rider Height | Rider Height (cm) |
| XS | 5'1"-5'3" | 155-165 |
| S | 5'3"-5'7" | 160-170 |
| M | 5'7"-5'11" | 170-180 |
| L | 5'11"-6'3" | 180-190 |
| XL | 6'3"-6'7" | 190-200 |
Geometry
| XS | S | M | ML | L | XL | ||
|---|---|---|---|---|---|---|---|
| A | Seat Tube Length (mm) | 435 | 455 | 475 | 495 | 525 | 555 |
| B | Seat Tube Angle | 73.5° | 73.5° | 73.5° | 73.0° | 73.0° | 73.0° |
| C | Top Tube Length (mm) | 545 | 560 | 575 | 590 | 610 | 630 |
| D | Head Tube Length (mm) | 110 | 130 | 155 | 175 | 200 | 225 |
| E | Head Tube Angle | 70.5° | 70.5° | 71.0° | 71.0° | 71.5° | 71.5° |
| F | Fork Rake (mm) | 50 | 50 | 50 | 50 | 50 | 50 |
| G | Trail (mm) | 73.7 | 73.7 | 70.4 | 70.4 | 67.1 | 67.1 |
| H | Wheelbase (mm) | 1031 | 1047 | 1058 | 1069 | 1084 | 1105 |
| I | Chain Stay Length (mm) | 435 | 435 | 435 | 435 | 435 | 435 |
| J | Bottom Bracket Drop (mm) | 75 | 75 | 75 | 75 | 75 | 75 |
| K | Stack (mm) | 533 | 552 | 578 | 597 | 623 | 646 |
| L | Reach (mm) | 387 | 396 | 404 | 407 | 419 | 432 |
| M | Stand Over Height (mm) | 718 | 736 | 756 | 773 | 800 | 826 |
| O | Stem Length (mm) | 70 | 80 | 90 | 90 | 100 | 110 |
| P | Crank Length (mm) | 170 | 170 | 170 | 172.5 | 172.5 | 172.5 |
| Q | Wheel Size | 700C | 700C | 700C | 700C | 700C | 700C |
Shipping Information
Shipping Information
Certain bike brands cannot be shipped and are only available for Click and Collect.
These include but are not limited to the following brands: Giant, GT, Liv, Momentum and Mongoose.
For all other brands, we can provide a shipping quote to your postcode. Please contact us by email at staff@ivanhoecycles.com.au, or text us on 0417 122 950.
Sizing and Geometry
Giant Fastroad
Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.
| Frame size | Rider Height | Rider Height (cm) |
| XS | 5'1"-5'3" | 155-165 |
| S | 5'3"-5'7" | 160-170 |
| M | 5'7"-5'11" | 170-180 |
| L | 5'11"-6'3" | 180-190 |
| XL | 6'3"-6'7" | 190-200 |
Geometry
| XS | S | M | ML | L | XL | ||
|---|---|---|---|---|---|---|---|
| A | Seat Tube Length (mm) | 435 | 455 | 475 | 495 | 525 | 555 |
| B | Seat Tube Angle | 73.5° | 73.5° | 73.5° | 73.0° | 73.0° | 73.0° |
| C | Top Tube Length (mm) | 545 | 560 | 575 | 590 | 610 | 630 |
| D | Head Tube Length (mm) | 110 | 130 | 155 | 175 | 200 | 225 |
| E | Head Tube Angle | 70.5° | 70.5° | 71.0° | 71.0° | 71.5° | 71.5° |
| F | Fork Rake (mm) | 50 | 50 | 50 | 50 | 50 | 50 |
| G | Trail (mm) | 73.7 | 73.7 | 70.4 | 70.4 | 67.1 | 67.1 |
| H | Wheelbase (mm) | 1031 | 1047 | 1058 | 1069 | 1084 | 1105 |
| I | Chain Stay Length (mm) | 435 | 435 | 435 | 435 | 435 | 435 |
| J | Bottom Bracket Drop (mm) | 75 | 75 | 75 | 75 | 75 | 75 |
| K | Stack (mm) | 533 | 552 | 578 | 597 | 623 | 646 |
| L | Reach (mm) | 387 | 396 | 404 | 407 | 419 | 432 |
| M | Stand Over Height (mm) | 718 | 736 | 756 | 773 | 800 | 826 |
| O | Stem Length (mm) | 70 | 80 | 90 | 90 | 100 | 110 |
| P | Crank Length (mm) | 170 | 170 | 170 | 172.5 | 172.5 | 172.5 |
| Q | Wheel Size | 700C | 700C | 700C | 700C | 700C | 700C |

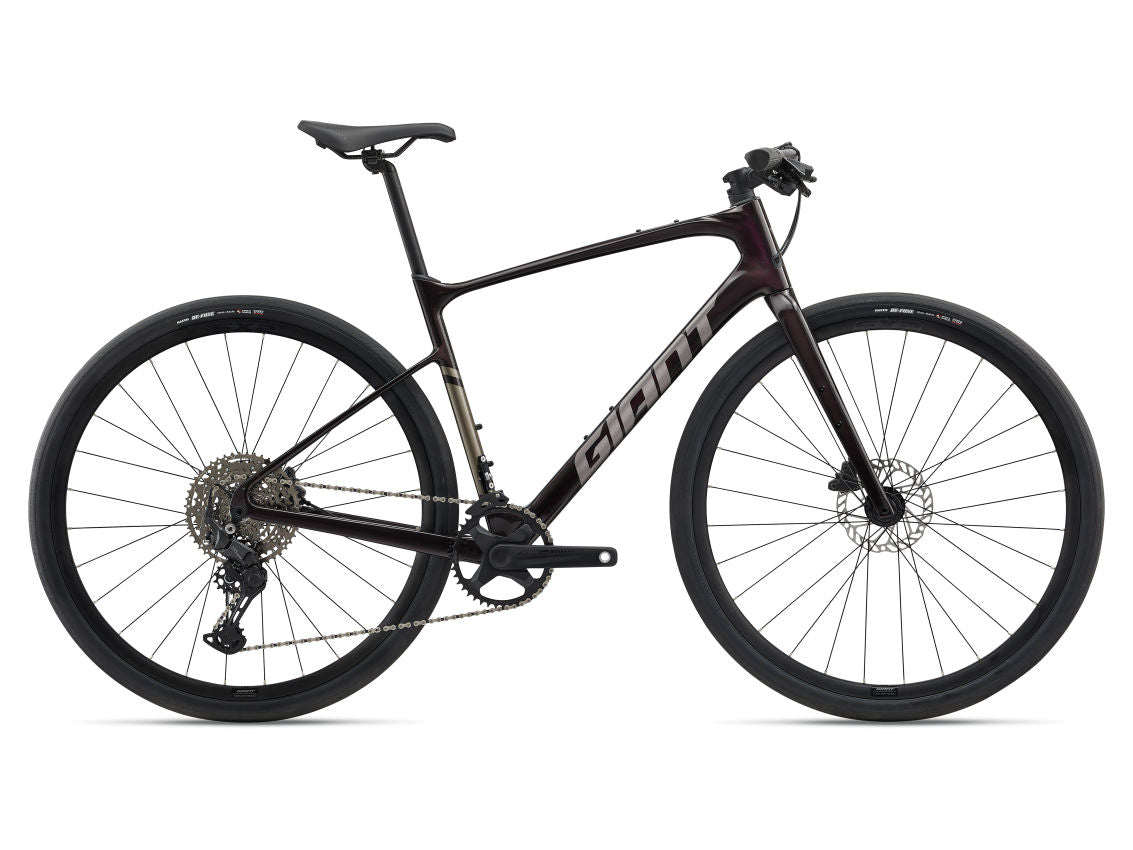

Giant Fastroad AR Advanced 2 (2025)
Giant Fastroad Advanced AR 2 (2025)
Boosting your fitness has never been this fun. With a sleek composite frameset, flat handlebar positioning and all-road capabilities, this lightweight flyer goes from city streets to bumpy back roads with speed, comfort and control.
Lightweight
Advanced Composite frameset and sleek shaping make this model more than 200 grams lighter than the aluminium version. A stiffer bottom bracket area improves power transfer so you can accelerate and climb faster with less effort.
Smooth and Stable
Flat handlebar frame geometry creates a more upright riding position for confident handling. Powerful disc brakes offer added control in all conditions. And the combination of a D-Fuse composite seatpost and ErgoMax saddle helps smooth out rough roads.
All-road capable
With clearance for high-volume tubeless tyres (up to 42mm), riders have the freedom and versatility to ride smooth roads, bumpy bike paths or gravel. Single or double chainring setups are available on different models to suit individual riding style and terrain.
SPECIFICATIONS
| Sizes | XS, S, M, ML, L, XL |
| Colour | Tiger Red |
| Frame | Advanced grade composite, 12mm thru-axle |
| Fork | Advanced-Grade Composite, composite OverDrive steerer, disc |
| Handlebars | Giant Sport, mini-rise, 31.8mm |
| Grips | Giant ErgoContact |
| Stem | Giant Contact, 8 degree |
| Seatpost | Giant D-Fuse, Composite |
| Saddle | Giant ErgoMax |
| Pedals | N/A |
| Shifters | Shimano Cues U6000 10 speed |
| Front Derailleur | N/A |
| Rear Derailleur | Shimano Cues |
| Brakes | Tektro HD-R210 hydraulic disc // Giant MPH 160mm rotors |
| Brake Levers | Tektro HD-R210 |
| Cassette | Shimano LG-40010, 11T-48T, 10 speed |
| Chain | Shimano LG500 |
| Crankset | FSA Omega, 32T/48T |
| Bottom Bracket | FSA, press fit |
| Rims | Giant P-X2 Disc wheelset |
| Hubs | Giant alloy, 12mm thru-axle with quick release |
| Spokes | Sapim Stainless steel, 14g-15g |
| Tyres | Maxxis Re-Fuse, tubeless, 700x40c |
| Extra Info | Tubeless prepared // 42mm max tyre size |
-
Speeds (rear)10 Speed
-
Age GroupAdults
-
GenderMens
-
DisciplineCommuting
