1 2
Giant  |  SKU: 1906007104

Giant Propel Advanced SL Frameset (2026)

$5,49900
  • Advanced SL-grade Composite
Colour: Kintsugi Blue
Size

Special Order: This product will be ordered from our supplier upon purchase and available for collection within 7-14 business days. Read T&Cs here.
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
Fully assembled when you Click & Collect in-store
Buy Now, Pay Later with ZIP
Free service adjustment within first 6 months

Sizing Chart

Sizing and Geometry

Giant Propel MY26+

Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.

Sizing Rider Height
XS 157 – 169cm
S 165 – 175cm
M 171 – 181cm
ML 177 – 187cm
L 183 – 193cm
XL 189 – 199cm


Geometry

bike diagram with measurements referenced in table that follows
XS S M ML L XL
A Seat Tube Length (mm) 465 500 520 545 575 595
B Seat Tube Angle 74.5° 74.0° 73.5° 73.0° 73.0° 72.5°
C Top Tube Length (mm) 520 535 550 565 580 600
D Head Tube Length (mm) 120 130 145 165 185 200
E Head Tube Angle 71.0° 72.3° 73.0° 73.0° 73.0° 73.0°
F Fork Rake (mm) 45 45 45 45 45 45
H Wheelbase (mm) 976 977 980 991 1006 1020
I Chain Stay Length (mm) 405 405 405 405 405 405
J Bottom Bracket Drop (mm) 72 70 70 67 67 67
K Stack (mm) 517 528 545 562 581 596
L Reach (mm) 376 383 388 393 402 412
M Stand Over Height (mm) 722 753 770 794 821 834
O Stem Length (mm) 80 90 100 110 110 120
P Crank Length (mm) 165 165 170 170 172.5 172.5
Q Wheel Size 700c 700c 700c 700c 700c 700c

Bike Shipping

Delivery is available upon specific request for our special order bikes.

Bikes may only be shipped directly to a qualified bike mechanic or bike shop of your choosing, who must complete the assembly of the bike. We strictly cannot ship an unbuilt bike direct to consumer.

The buyer is responsible for all shipping and assembly costs, and is responsible for arranging assembly with their nominated bike store or mechanic.

To request a shipping quote, please submit a request and include the delivery postcode, business name of your nominated bike shop or bike mechanic, and the exact model & frame size of the bike.

Please note: All bikes sold by Ivanhoe Cycles must be assembled by a qualified mechanic or bike shop. Any assembly undertaken without professional assistance is at the customer's risk and any injury as a result of the build without professional assistance will not be covered by the warranty.

Assembly

Every bike purchased or collected in-store at Ivanhoe Cycles is fully assembled by our qualified mechanics free of charge.

Bikes ordered online for shipping* will require partial assembly, including but not limited to: installing handlebar, seatpost, front wheel; adjusting gears and brakes; tuning suspension; installing accessories or bar tape.

Disclaimer: Ivanhoe Cycles strongly advises having your assembly completed by an experienced bicycle mechanic. Any assembly undertaken without professional assistance is at the customer's risk and any injury as a result of the build without professional assistance will not be covered by the warranty.

*Shipping is restricted to certain brands due to assembly requirements.

Returns / Cancellations

If your special ordered item arrives faulty, damaged, or is differently than described, you are entitled to a full refund or replacement.

Cancellations and returns are not accepted on special orders if the consumer:
- changed their mind
- found the item cheaper elsewhere
- decided they didn't like the purchase or had no use for it
- ordered the wrong item

Contact us with any product enquiries you have prior to purchasing.

For more information, please read our Special Order terms and conditions.

Unleash your sprint with 200 metres to go. Close a gap, chase back, launch a solo attack. This new aero road machine is made for the moments that count. More aero, more adjustable, more ways to win.

Integrated aerodynamics

AeroSystem Shaping, a result of CFD analysis and dynamic wind-tunnel testing, optimises aerodynamic performance at every yaw angle. The truncated ellipse airfoil tube shapes produces outstanding overall aero performance.

Easier adjustability

All-new cable routing through the handlebar and frame makes it quicker and easier to adjust or change cockpit components and fine-tune performance and riding position.

Race-winning efficiency

Advanced SL-grade composite frameset features Giant’s pro-level composite materials and manufacturing processes. The result is 225 grams of weight savings compared to the previous generation and an even greater stiffness-to-weight advantage.

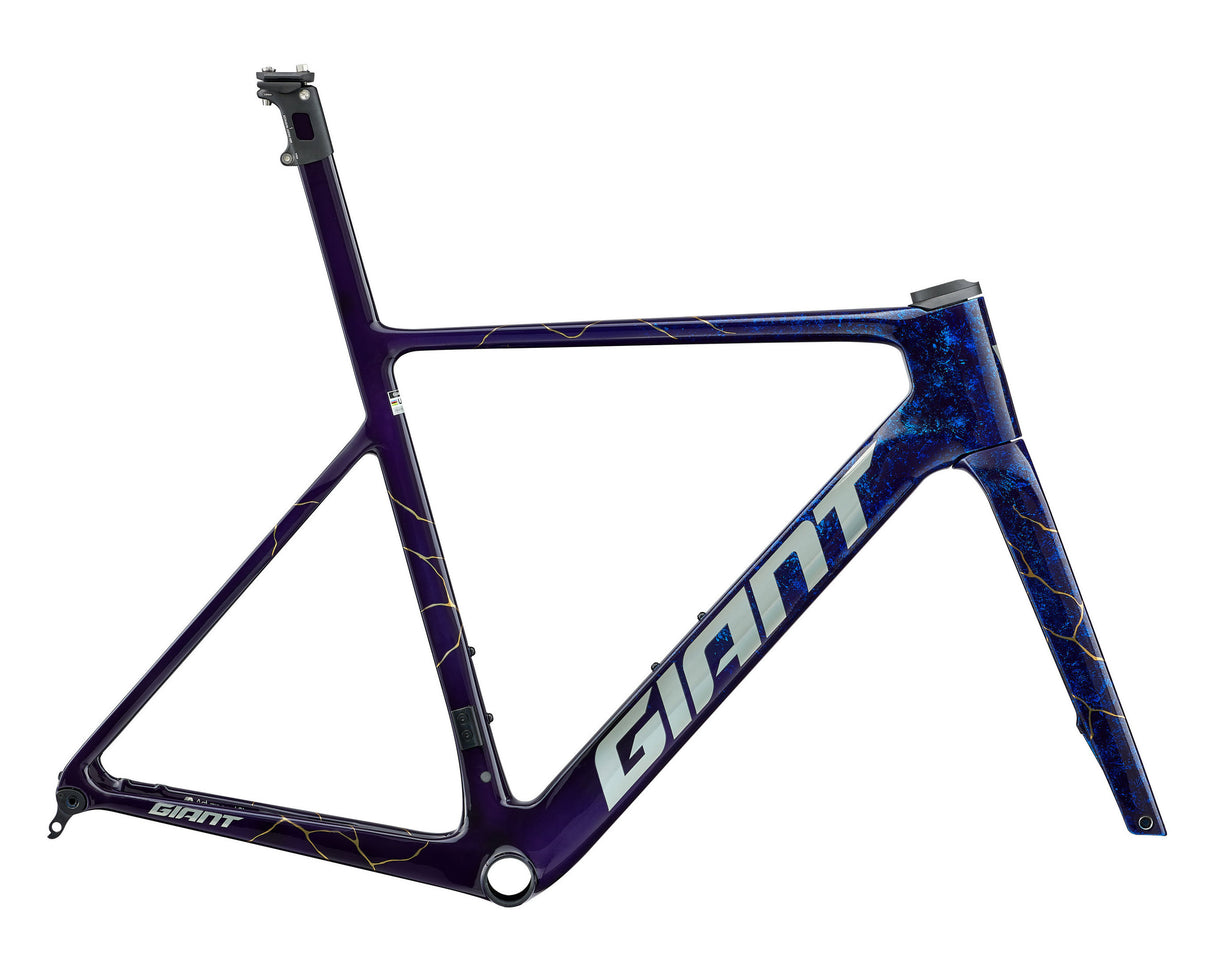

Giant Propel Advanced SL Frameset (2026) Kintsugi Blue

Giant Propel Advanced SL Frameset (2026)

$5,49900

Colour

Size

  • S
  • M
  • ML
  • L
  • XL

Motor

N/A

Controller

N/A

Display

N/A

Battery

N/A

Charger

N/A

Sizes

N/A

Frame material

Carbon

Frame

Advanced SL-grade Composite, 12x142mm thru-axle, integrated seatpost, disc

Fork

Advanced SL-grade composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc

Handlebar

N/A

Grips

N/A

Bar Tape

N/A

Headset

N/A

Stem

N/A

Seatpost

Advanced SL-grade composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc

Saddle

N/A

Pedals

N/A

Shifters

N/A

Front Derailleur

N/A

Rear Derailleur

N/A

Brakes

N/A

Brake Levers

N/A

Cassette/Freewheel

N/A

Chain

N/A

Crankset

N/A

Bottom Bracket

BB86 accepts press fit style BB only, bearing set not included

Rims

N/A

Hubs

N/A

Spokes

N/A

Tyres

N/A

Wheel Size

N/A

Extras

Front & rear 12mm thru-axles, 20mm & 45mm ISP clamps, Computer Mount, Bottle Cages, 30mm max tyre size
