Giant  |  SKU: 2311099105

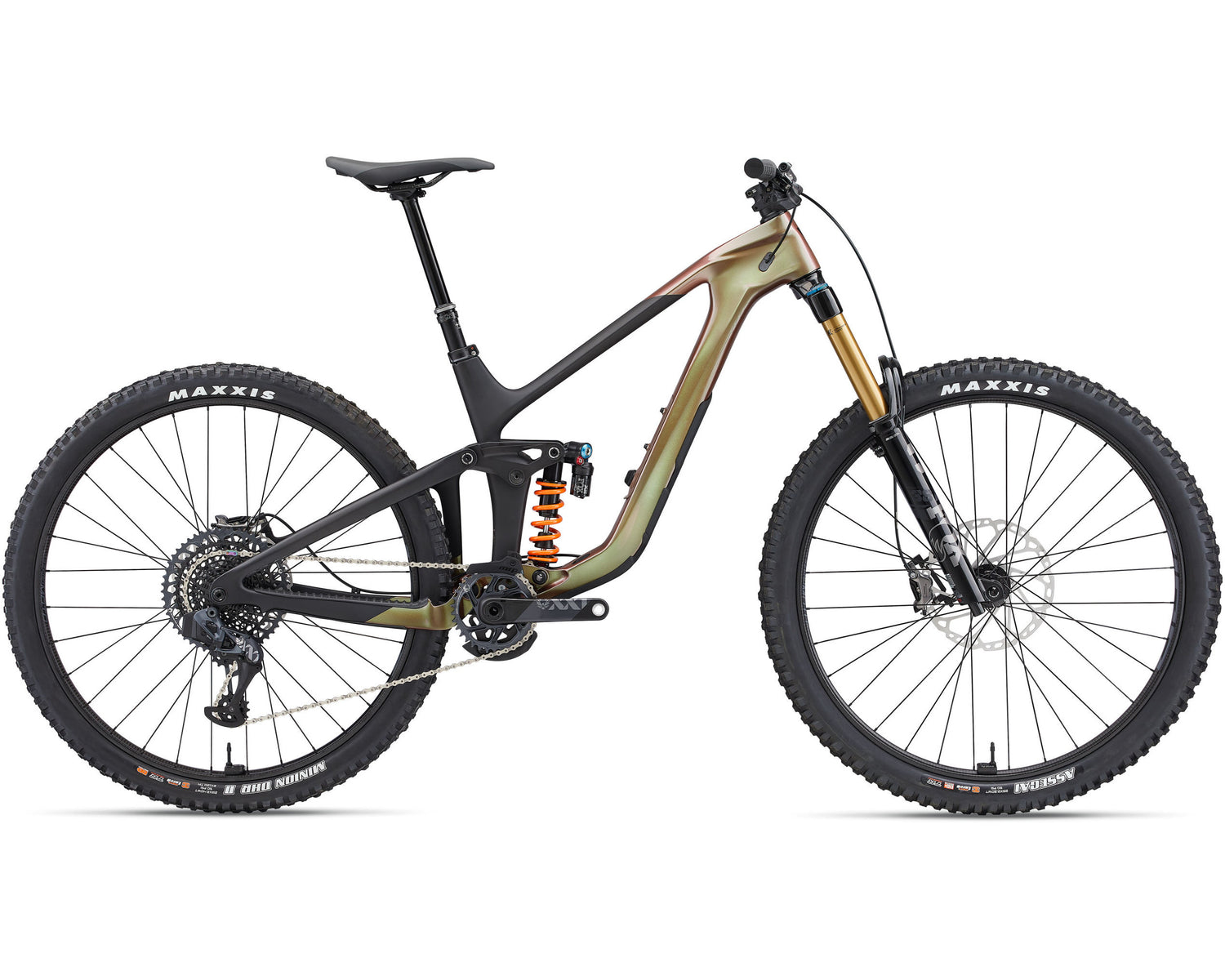

Giant Reign Advanced Pro 0 Dual Suspension Mountain Bike (2023)

$12,99900 $14,99900
  • Advanced-Grade Composite front and rear triangles | 160mm travel
  • Fox 38 Factory fork | 170mm travel
  • Fox DHX2 Factory coil shock
  • SRAM XX1 Eagle AXS 12-speed drivetrain
Colour: Gloss Messier/Matte Carbon
Size

Special Order: This product will be ordered from our supplier upon purchase and available for collection within 7-14 business days. Read T&Cs here.
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
Fully assembled when you Click & Collect in-store
Buy Now, Pay Later with ZIP
Free service adjustment within first 6 months

Sizing Chart

Sizing and Geometry

Giant Reign

Sizing to be used as a reference only. The best way to determine your size is to visit us in-store and take the bike for a test-ride.

Frame size Rider height
S 163-172cm
M 171-180cm
L 179-188cm
XL 187-198cm


Geometry

bike diagram with measurements referenced in table that follows

    S M L XL
    LOW | MID | HIGH LOW | MID | HIGH LOW | MID | HIGH LOW | MID | HIGH
A Seat Tube Length (mm) 400 425 450 475
A1 Seat Post Insertion Depth (mm) 257 383 308 333
B Seat Tube Angle 78.3° | 78.7° | 79.0° 78.3° | 78.7° | 79.0° 77.3° | 77.7° | 78.0° 77.3° | 77.7° | 78.0°
C Top Tube Length (mm) 556 | 555 | 555 587 | 586 | 585 620 | 620 | 619 652 | 652 | 651
D Head Tube Length (mm) 100 105 115 120
E Head Tube Angle 63.5° | 63.9° | 64.2° 63.5° | 63.9° | 64.2° 63.5° | 63.9° | 64.2° 63.5° | 63.9° | 64.2°
F Fork Rake (mm) 44 44 44 44
G Trail (mm) 140 | 138 | 135 140 | 138 | 135 140 | 138 | 135 140 | 138 | 135
H Wheelbase (mm) 1214 | 1213 | 1212 1246 | 1245 | 1244 1271 | 1270 | 1269 1304 | 1303 | 1302
I Chain Stay Length (mm) 445 | 443 | 442 445 | 443 | 442 445 | 443 | 442 445 | 443 | 442
J Bottom Bracket Drop (mm) 35 | 30 | 25 35 | 30 | 25 35 | 30 | 25 35 | 30 | 25
K Stack (mm) 627 | 624 | 622 632 | 629 | 626 641 | 638 | 635 645 | 642 | 639
L Reach (mm) 426 | 430 | 434 456 | 460 | 464 476 | 480 | 484 506 | 510 | 514
M Stand Over Height (mm) 723 | 727 | 732 743 | 747 | 752 756 | 760 | 765 771 | 777 | 782
O Stem Length (mm) 40 40 40 40
P Crank Length (mm) 165 170 170 170
Q Wheel Size 29" 29" 29" 29"

Bike Shipping

Delivery is available upon specific request for our special order bikes.

Bikes may only be shipped directly to a qualified bike mechanic or bike shop of your choosing, who must complete the assembly of the bike. We strictly cannot ship an unbuilt bike direct to consumer.

The buyer is responsible for all shipping and assembly costs, and is responsible for arranging assembly with their nominated bike store or mechanic.

To request a shipping quote, please submit a request and include the delivery postcode, business name of your nominated bike shop or bike mechanic, and the exact model & frame size of the bike.

Please note: All bikes sold by Ivanhoe Cycles must be assembled by a qualified mechanic or bike shop. Any assembly undertaken without professional assistance is at the customer's risk and any injury as a result of the build without professional assistance will not be covered by the warranty.

Assembly

Every bike purchased or collected in-store at Ivanhoe Cycles is fully assembled by our qualified mechanics free of charge.

Bikes ordered online for shipping* will require partial assembly, including but not limited to: installing handlebar, seatpost, front wheel; adjusting gears and brakes; tuning suspension; installing accessories or bar tape.

Disclaimer: Ivanhoe Cycles strongly advises having your assembly completed by an experienced bicycle mechanic. Any assembly undertaken without professional assistance is at the customer's risk and any injury as a result of the build without professional assistance will not be covered by the warranty.

*Shipping is restricted to certain brands due to assembly requirements.

Returns / Cancellations

If your special ordered item arrives faulty, damaged, or is differently than described, you are entitled to a full refund or replacement.

Cancellations and returns are not accepted on special orders if the consumer:
- changed their mind
- found the item cheaper elsewhere
- decided they didn't like the purchase or had no use for it
- ordered the wrong item

Contact us with any product enquiries you have prior to purchasing.

For more information, please read our Special Order terms and conditions.

Giant Reign Advanced Pro 0 Dual Suspension Mountain Bike (2023)

This all-new composite chassis is engineered to be strong, light, and fast — the ultimate choice for Giant’s enduro pros. Featuring a newly developed suspension system that’s been tested and raced at the highest levels, it delivers unmatched performance and control on demanding terrain. With increased adjustability, you can fine-tune your setup to handle technical trails exactly the way you like, from steep descents to rough climbs. Built for speed, precision, and confidence on every ride.

Race-bred suspension

A new Maestro rear suspension system with longer travel (160mm) was developed and tested under the extreme conditions of Enduro World Series races. The trunnion mount shock has a longer stroke (62.5mm compared to 60mm on the previous generation). And the Advanced Forged Composite upper rocker arm adds stiffness and lowers overall weight.

Adjustable enduro geometry

New flip chip technology lets you switch between three settings depending on the terrain. You can select a 63.5, 63.9 or 64.2-degree head angle and corresponding 78.3, 78.7 or 79-degree seat tube angle, resulting in a 35, 30 or 25mm bottom bracket drop (size medium) to fine-tune handling for trail conditions, riding style and rear-wheel size.

Rear wheel options

Riders can choose either a 29- or 27.5-inch rear wheel, paired with a 29-inch front wheel. The larger 29-inch option improves stability and roll-over capabilities, while the 27.5 option delivers a more agile, snappier feel. It’s a quick and easy change to adjust the bike’s handling and feel.
Giant Reign Advanced Pro 0 Dual Suspension Mountain Bike (2023)

Giant Reign Advanced Pro 0 (2023)

$12,99900 $14,99900

Colour

Size

  • S
  • M
  • L
  • XL

Motor

N/A

Controller

N/A

Display

N/A

Battery

N/A

Charger

N/A

Sizes

N/A

Frame material

Carbon

Frame

Advanced-Grade Composite front and rear triangles, 160mm Maestro suspension, flip chip, 12x148mm thru-axle, 27.5 or 29-inch rear wheel compatible, flip chip - Maestro 3, integrated downtube storage, 55mm Chainline

Fork

Fox 38 Factory, 170mm, GRIP 2 damper, 15x110 Kabolt X, 44mm offset, custom tuned for Giant

Handlebar

Giant Contact SLR TR35, composite, 20mm rise

Grips

Giant Tactal Pro Single

Bar Tape

N/A

Headset

N/A

Stem

Giant Contact SL 35 S:40mm, M:40mm, L:40mm, XL:40mm

Seatpost

TranzX travel-adjustable dropper, remote

Saddle

Giant Romero SL

Pedals

N/A

Shifters

SRAM Eagle AXS Rocker Paddle, 1x12

Front Derailleur

N/A

Rear Derailleur

SRAM XX1 Eagle AXS

Brakes

Shimano XTR M-9120, hydraulic, Shimano RT-66 rotors [F]220mm, [R]200mm

Brake Levers

Shimano XTR BL-M9120

Cassette/Freewheel

SRAM X01 Eagle, 10x52

Chain

SRAM X01 Eagle

Crankset

SRAM XX1 Eagle, 34t, 55mm chainline S:165mm, M:170mm, L:170mm, XL:170mm

Bottom Bracket

SRAM DUB, press fit

Rims

Zipp 3ZERO MOTO 29 Carbon (*Quarq TyreWiz not included)

Hubs

Zipp 3ZERO MOTO ZM2

Spokes

ZIPP 3ZERO MOTO

Tyres

[F] Maxxis Assegai 29x2.5 WT, 3C MaxxTerra, EXO+, TR [R] Maxxis Minion DHR II 29x2.4 WT, 3C MaxxTerra, DD, TR tubeless

Wheel Size

N/A

Extras

Tubeless prepared, 2.5" max tyre size, 36t max chainring size, MRP AMG chain guide, 3M tailgate protector
