Giant  |  SKU: 2311301104

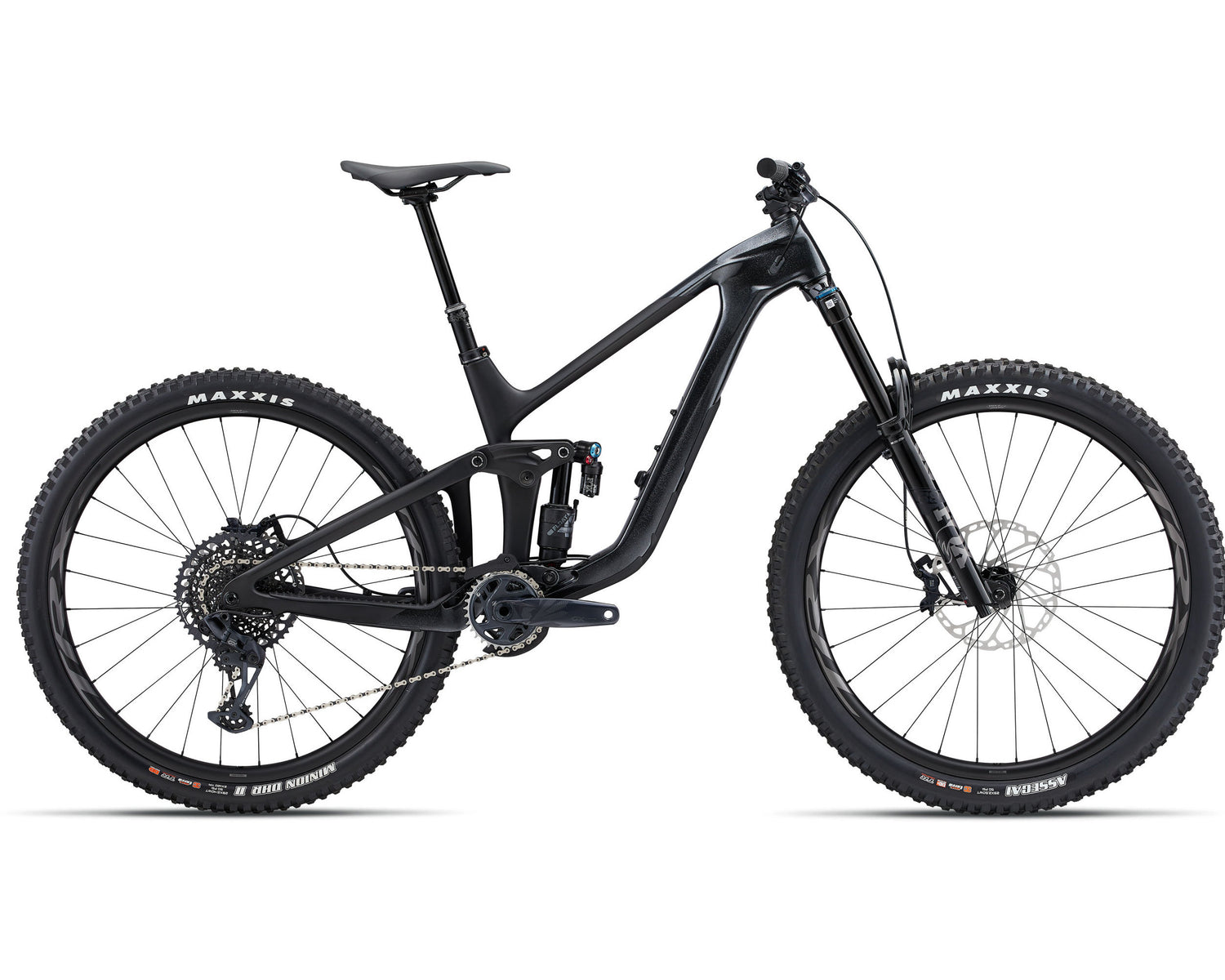

Giant Reign Advanced Pro 1 Mountain Bike (2023)

$5,99900 $8,99900
  • Advanced-Grade Composite front and rear triangles | 160mm travel
  • Fox 38 Performance Elite fork | 170mm travel
  • Fox Float X2 Performance Elite shock
  • SRAM GX Eagle 12-speed drivetrain
Colour: Black Diamond/Matte Carbon
Size

Pickup in-store only. Shipping not available.
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay

Sizing Chart

Sizing and Geometry

Giant Reign

Sizing to be used as a reference only. The best way to determine your size is to visit us in-store and take the bike for a test-ride.

Frame size Rider height
S 163-172cm
M 171-180cm
L 179-188cm
XL 187-198cm


Geometry

bike diagram with measurements referenced in table that follows

    S M L XL
    LOW | MID | HIGH LOW | MID | HIGH LOW | MID | HIGH LOW | MID | HIGH
A Seat Tube Length (mm) 400 425 450 475
A1 Seat Post Insertion Depth (mm) 257 383 308 333
B Seat Tube Angle 78.3° | 78.7° | 79.0° 78.3° | 78.7° | 79.0° 77.3° | 77.7° | 78.0° 77.3° | 77.7° | 78.0°
C Top Tube Length (mm) 556 | 555 | 555 587 | 586 | 585 620 | 620 | 619 652 | 652 | 651
D Head Tube Length (mm) 100 105 115 120
E Head Tube Angle 63.5° | 63.9° | 64.2° 63.5° | 63.9° | 64.2° 63.5° | 63.9° | 64.2° 63.5° | 63.9° | 64.2°
F Fork Rake (mm) 44 44 44 44
G Trail (mm) 140 | 138 | 135 140 | 138 | 135 140 | 138 | 135 140 | 138 | 135
H Wheelbase (mm) 1214 | 1213 | 1212 1246 | 1245 | 1244 1271 | 1270 | 1269 1304 | 1303 | 1302
I Chain Stay Length (mm) 445 | 443 | 442 445 | 443 | 442 445 | 443 | 442 445 | 443 | 442
J Bottom Bracket Drop (mm) 35 | 30 | 25 35 | 30 | 25 35 | 30 | 25 35 | 30 | 25
K Stack (mm) 627 | 624 | 622 632 | 629 | 626 641 | 638 | 635 645 | 642 | 639
L Reach (mm) 426 | 430 | 434 456 | 460 | 464 476 | 480 | 484 506 | 510 | 514
M Stand Over Height (mm) 723 | 727 | 732 743 | 747 | 752 756 | 760 | 765 771 | 777 | 782
O Stem Length (mm) 40 40 40 40
P Crank Length (mm) 165 170 170 170
Q Wheel Size 29" 29" 29" 29"

Shipping Information

Certain bike brands cannot be shipped and are only available for Click and Collect.

These include but are not limited to the following brands: Giant, GT, Liv, Momentum and Mongoose.

For all other brands, we can provide a shipping quote to your postcode. Please contact us by email at staff@ivanhoecycles.com.au, or text us on 0417 122 950.

Fully assembled when you Click & Collect in-store
Buy Now, Pay Later with ZIP
Free service adjustment within first 6 months

Giant Reign Advanced Pro 1 Mountain Bike (2023)

This all-new composite chassis is built strong, light, and fast, designed for Giant enduro pros. Its advanced suspension system has been developed, tested, and raced at the highest levels for smooth, controlled performance on the toughest trails. With enhanced adjustability, riders can fine-tune geometry and setup to tackle technical terrain exactly the way they like, delivering confidence, precision, and speed on every descent and climb.

Key Performance Factors

Race-bred suspension

A new Maestro rear suspension system with longer travel (160mm) was developed and tested under the extreme conditions of Enduro World Series races. The trunnion mount shock has a longer stroke (62.5mm compared to 60mm on the previous generation). And the Advanced Forged Composite upper rocker arm adds stiffness and lowers overall weight.

Adjustable enduro geometry

New flip chip technology lets you switch between three settings depending on the terrain. You can select a 63.5, 63.9 or 64.2-degree head angle and corresponding 78.3, 78.7 or 79-degree seat tube angle, resulting in a 35, 30 or 25mm bottom bracket drop (size medium) to fine-tune handling for trail conditions, riding style and rear-wheel size.

Rear wheel options

Riders can choose either a 29- or 27.5-inch rear wheel, paired with a 29-inch front wheel. The larger 29-inch option improves stability and roll-over capabilities, while the 27.5 option delivers a more agile, snappier feel. It’s a quick and easy change to adjust the bike’s handling and feel.
Giant Reign Advanced Pro 1 Mountain Bike (2023)

Giant Reign Advanced Pro 1 (2023)

$5,99900 $8,99900

Colour

Size

  • S
  • M
  • L
  • XL

Motor

N/A

Controller

N/A

Display

N/A

Battery

N/A

Charger

N/A

Sizes

N/A

Frame material

Carbon

Frame

Advanced-Grade Composite front and rear triangles, 160mm Maestro suspension, 12x148mm thru-axle, 27.5 or 29-inch rear wheel compatible, flip chip - Maestro 3, integrated downtube storage

Fork

Fox 38 Performance Elite, 170mm, GRIP 2 damper, 15x110 Kabolt X, 44mm offset, custom tuned for Giant

Handlebar

Giant Contact SLR TR35

Grips

Giant Tactal Pro Single

Bar Tape

N/A

Headset

N/A

Stem

Giant Contact SL 35

Seatpost

TranzX travel-adjustable dropper, remote

Saddle

Giant Romero SL

Pedals

N/A

Shifters

SRAM GX Eagle, 1x12

Front Derailleur

N/A

Rear Derailleur

SRAM GX Eagle

Brakes

Shimano SLX M7120, hydraulic, Shimano RT-66 rotors [F]220mm, [R]200mm

Brake Levers

Shimano SLX BL-M7100

Cassette/Freewheel

SRAM GX XG-1275 Eagle, 10x52

Chain

SRAM GX Eagle

Crankset

SRAM GX, DUB, 32t, 55mm chainline

Bottom Bracket

SRAM DUB, press fit

Rims

Giant TRX 2 29 Carbon WheelSystem

Hubs

[F] Giant MTB alloy, 6-bolt, [R] Giant MTB alloy, 3-pawl driver, 6-bolt

Spokes

Sapim

Tyres

[F] Maxxis Assegai 29x2.5 WT, 3C MaxxTerra, EXO+, TR [R] Maxxis Minion DHR II 29x2.4 WT, 3C MaxxTerra, DD, TR tubeless

Wheel Size

N/A

Extras

Tubeless prepared, 2.5" max tyre size, 36t max chainring size, MRP AMG CS chain guide, 3M tailgate protector
