Giant | SKU: 6046001104

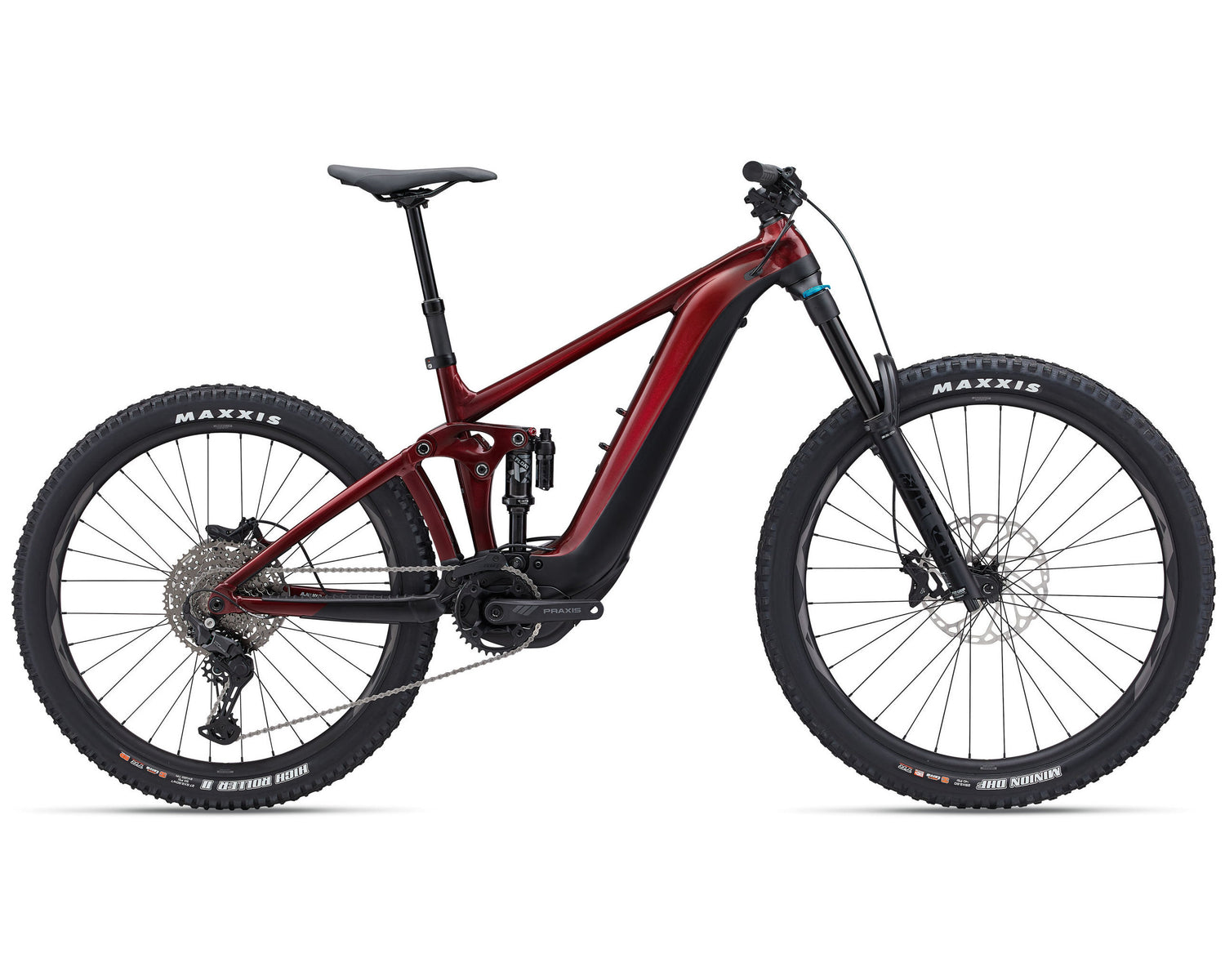

Giant Reign E+ 2 Electric Mountain Bike (2024)

$8,999⁰⁰ ~~$9,799⁰⁰~~

SyncDrive Pro 2 85Nm motor | EnergyPak Smart 800Wh battery
ALUXX SL-grade Aluminium frame | 160mm travel
Fox 38 Rhythm E-Tuned fork | 170mm travel
Fox Float X Performance shock
Shimano CUES Shadow+ U6000 11-speed drivetrain

Colour: Sangria

Giant Reign E+ 2 Electric Mountain Bike (2024)

S M L XL

Product variants

Pickup in-store only. Shipping not available.

Sizing Chart

Sizing and Geometry

Giant Reign

Sizing to be used as a reference only. The best way to determine your size is to visit us in-store and take the bike for a test-ride.

Frame size	Rider height
S	163-172cm
M	171-180cm
L	179-188cm
XL	187-198cm

Geometry

bike diagram with measurements referenced in table that follows

		S	M	L	XL
		LOW \| MID \| HIGH	LOW \| MID \| HIGH	LOW \| MID \| HIGH	LOW \| MID \| HIGH
A	Seat Tube Length (mm)	400	425	450	475
A1	Seat Post Insertion Depth (mm)	257	383	308	333
B	Seat Tube Angle	78.3° \| 78.7° \| 79.0°	78.3° \| 78.7° \| 79.0°	77.3° \| 77.7° \| 78.0°	77.3° \| 77.7° \| 78.0°
C	Top Tube Length (mm)	556 \| 555 \| 555	587 \| 586 \| 585	620 \| 620 \| 619	652 \| 652 \| 651
D	Head Tube Length (mm)	100	105	115	120
E	Head Tube Angle	63.5° \| 63.9° \| 64.2°	63.5° \| 63.9° \| 64.2°	63.5° \| 63.9° \| 64.2°	63.5° \| 63.9° \| 64.2°
F	Fork Rake (mm)	44	44	44	44
G	Trail (mm)	140 \| 138 \| 135	140 \| 138 \| 135	140 \| 138 \| 135	140 \| 138 \| 135
H	Wheelbase (mm)	1214 \| 1213 \| 1212	1246 \| 1245 \| 1244	1271 \| 1270 \| 1269	1304 \| 1303 \| 1302
I	Chain Stay Length (mm)	445 \| 443 \| 442	445 \| 443 \| 442	445 \| 443 \| 442	445 \| 443 \| 442
J	Bottom Bracket Drop (mm)	35 \| 30 \| 25	35 \| 30 \| 25	35 \| 30 \| 25	35 \| 30 \| 25
K	Stack (mm)	627 \| 624 \| 622	632 \| 629 \| 626	641 \| 638 \| 635	645 \| 642 \| 639
L	Reach (mm)	426 \| 430 \| 434	456 \| 460 \| 464	476 \| 480 \| 484	506 \| 510 \| 514
M	Stand Over Height (mm)	723 \| 727 \| 732	743 \| 747 \| 752	756 \| 760 \| 765	771 \| 777 \| 782
O	Stem Length (mm)	40	40	40	40
P	Crank Length (mm)	165	170	170	170
Q	Wheel Size	29"	29"	29"	29"

Shipping Information

Certain bike brands cannot be shipped and are only available for Click and Collect.

These include but are not limited to the following brands: Giant, GT, Liv, Momentum and Mongoose.

For all other brands, we can provide a shipping quote to your postcode. Please contact us by email at staff@ivanhoecycles.com.au, or text us on 0417 122 950.

Fully assembled when you Click & Collect in-store

Buy Now, Pay Later with ZIP

Free service adjustment within first 6 months

Sizing and Geometry

Giant Reign

Sizing to be used as a reference only. The best way to determine your size is to visit us in-store and take the bike for a test-ride.

Frame size	Rider height
S	163-172cm
M	171-180cm
L	179-188cm
XL	187-198cm

Geometry

bike diagram with measurements referenced in table that follows

		S	M	L	XL
		LOW \| MID \| HIGH	LOW \| MID \| HIGH	LOW \| MID \| HIGH	LOW \| MID \| HIGH
A	Seat Tube Length (mm)	400	425	450	475
A1	Seat Post Insertion Depth (mm)	257	383	308	333
B	Seat Tube Angle	78.3° \| 78.7° \| 79.0°	78.3° \| 78.7° \| 79.0°	77.3° \| 77.7° \| 78.0°	77.3° \| 77.7° \| 78.0°
C	Top Tube Length (mm)	556 \| 555 \| 555	587 \| 586 \| 585	620 \| 620 \| 619	652 \| 652 \| 651
D	Head Tube Length (mm)	100	105	115	120
E	Head Tube Angle	63.5° \| 63.9° \| 64.2°	63.5° \| 63.9° \| 64.2°	63.5° \| 63.9° \| 64.2°	63.5° \| 63.9° \| 64.2°
F	Fork Rake (mm)	44	44	44	44
G	Trail (mm)	140 \| 138 \| 135	140 \| 138 \| 135	140 \| 138 \| 135	140 \| 138 \| 135
H	Wheelbase (mm)	1214 \| 1213 \| 1212	1246 \| 1245 \| 1244	1271 \| 1270 \| 1269	1304 \| 1303 \| 1302
I	Chain Stay Length (mm)	445 \| 443 \| 442	445 \| 443 \| 442	445 \| 443 \| 442	445 \| 443 \| 442
J	Bottom Bracket Drop (mm)	35 \| 30 \| 25	35 \| 30 \| 25	35 \| 30 \| 25	35 \| 30 \| 25
K	Stack (mm)	627 \| 624 \| 622	632 \| 629 \| 626	641 \| 638 \| 635	645 \| 642 \| 639
L	Reach (mm)	426 \| 430 \| 434	456 \| 460 \| 464	476 \| 480 \| 484	506 \| 510 \| 514
M	Stand Over Height (mm)	723 \| 727 \| 732	743 \| 747 \| 752	756 \| 760 \| 765	771 \| 777 \| 782
O	Stem Length (mm)	40	40	40	40
P	Crank Length (mm)	165	170	170	170
Q	Wheel Size	29"	29"	29"	29"

Giant Reign E+ 2 Electric Mountain Bike (2024)

Built to push your limits and redefine what's possible on a mountain bike, the Giant Reign E+ 1 combines proven enduro capability with trail-ready electric power. Climb higher, descend harder, and repeat it all with confidence, power, and precision.

H3: Enduro-Ready Power

With 160mm of Maestro rear suspension and a 170mm fork, the Reign E+ devours technical terrain. Its SyncDrive Pro motor delivers smooth, high-torque assistance so you can power up steep climbs and stay fast and composed on descents.

Confident Handling

The progressive enduro geometry features a shorter rear triangle and longer reach, offering playful yet stable handling. Whether you’re threading through tight switchbacks or blasting through rock gardens, this bike keeps you in control.

Smart Control & Customisation

The RideControl Ergo 3 system puts intuitive controls at your fingertips, while the Giant E-bike App unlocks performance tuning and ride tracking tailored to electric mountain bike riders.

Ride Further

Equipped with a massive 800Wh EnergyPak battery discreetly integrated into the downtube, the Reign E+ ensures you can keep the stoke high and the laps going—without worrying about range.

Frame material

Aluminium
Frame

ALUXX SL-grade Aluminium, Advanced Forged Composite Upper Rocker, 160mm Maestro suspension system, flip chip, UDH hanger 12x148mm thru-axle
Fork

Fox 38 Rhythm E-Tuned, 170mm travel, 44mm offset, GRIP damper, Boost Kabolt-X 110x15mm
Shock

Fox Float X Performance, EVOL Large Volume sleeve, custom tuned
Handlebar

Giant Contact Trail, 35mm
Grips

Giant Tactal Pro-E, single lock-on
Stem

Giant Contact SL 35mm S:40mm, M:40mm, L:40mm, XL:50mm
Seatpost

Giant Contact Switch, dropper, 30,9mm (S:125/M:150/L:170/XL:200)
Saddle

Velo VL3594
Pedals

Platform
Shifters

Shimano CUES, SL-6000, 1x11
Front Derailleur

MRP 1X HD2 custom co-molded chain guide
Rear Derailleur

Shimano CUES, U6000, Shadow+
Brakes

Shimano Deore, BR-M6120, 4-piston, hydraulic disc, 220mm[F], 203mm [R]
Brake Levers

Shimano Deore BL-M6100 , I-spec EV
Cassette/Freewheel

Shimano Cues LinkGlide, CS-LG400-11, 11-50T, 11-speed
Chain

Shimano LinkGlide, CN-LG500
Crankset

Praxis Wave™ 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set S:160mm, M: 160mm, L:165mm, XL:165mm
Rims

Giant AM 29" [F] 27.5" [R], Tubeless ready
Hubs

Shimano MT410 Boost, Center-Lock
Spokes

Sapim E-Lite [R] Race [F], e-bike optimised
Tyres

Maxxis Minion DHF 29x2.6" foldable, Tubeless, EXO+, 3C MaxxTerra [F] Maxxis High Roller II 27.5x2.5" foldable, Tubeless, DoubleDown, 3C MaxxTerra Compound [R]
Extras

Tubeless kit (liquid, valves, levers, manual, tool)
Notes

Please note that, based on component availability and other factors, specifications are subject to change without notice.
Speeds (rear)

11 Speed
Age Group

Adults, Teenagers
Gender

Mens
Discipline

Mountain, Electric
SKUs

Sangria/S: 6046001104, Sangria/M: 6046001105, Sangria/L: 6046001107, Sangria/XL: 6046001108
