Giant | SKU: 6046002104

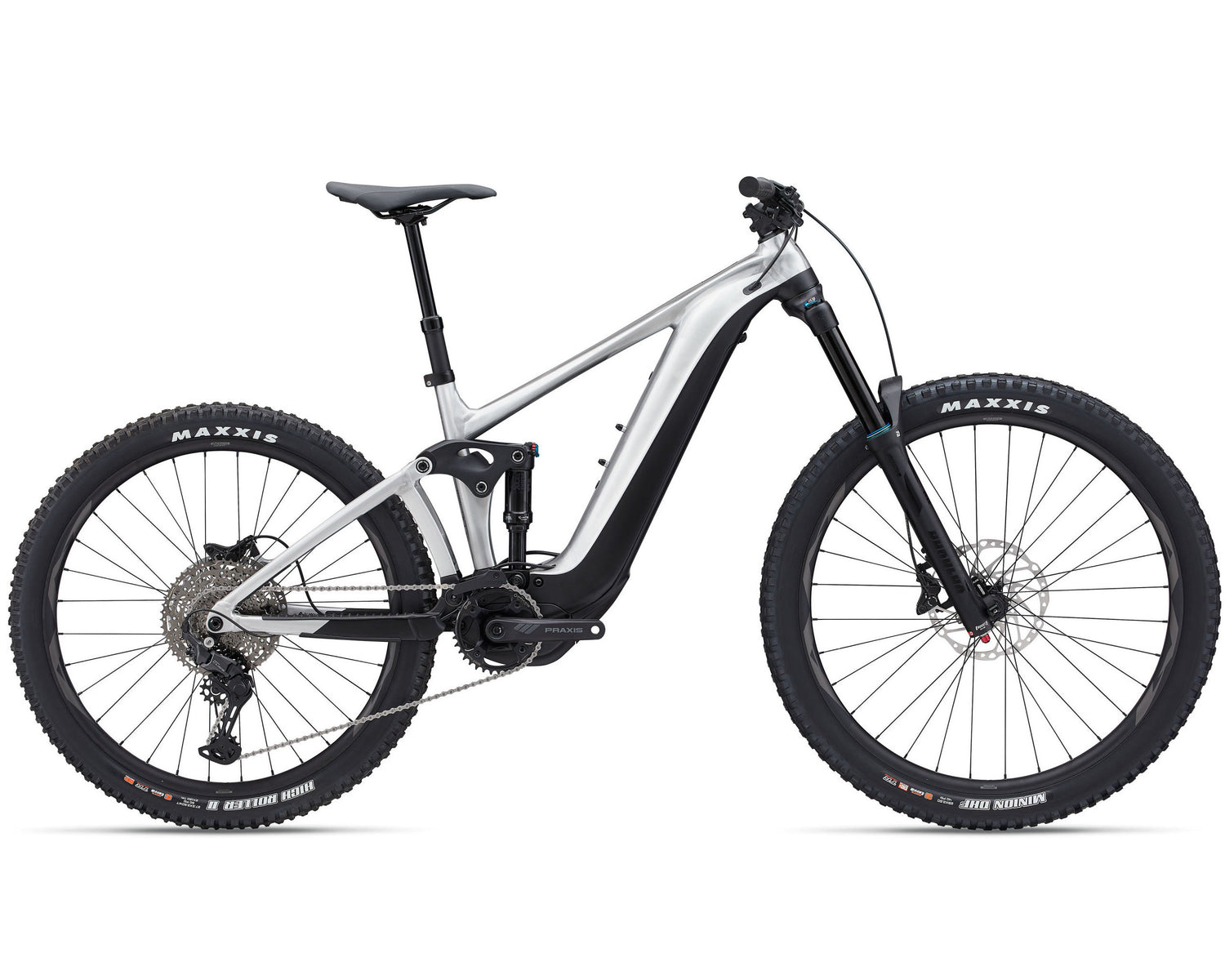

Giant Reign E+3 Electric Mountain Bike (2024)

$8,299⁰⁰ ~~$8,799⁰⁰~~

ALUXX SL-grade Aluminium front and rear triangles | 160mm travel
SR Suntour Durolux 38 Bootst fork | 170mm travel
Fox Float DPS Performance shock
SyncDrive Pro 2 motor | 85Nm | 800Wh battery

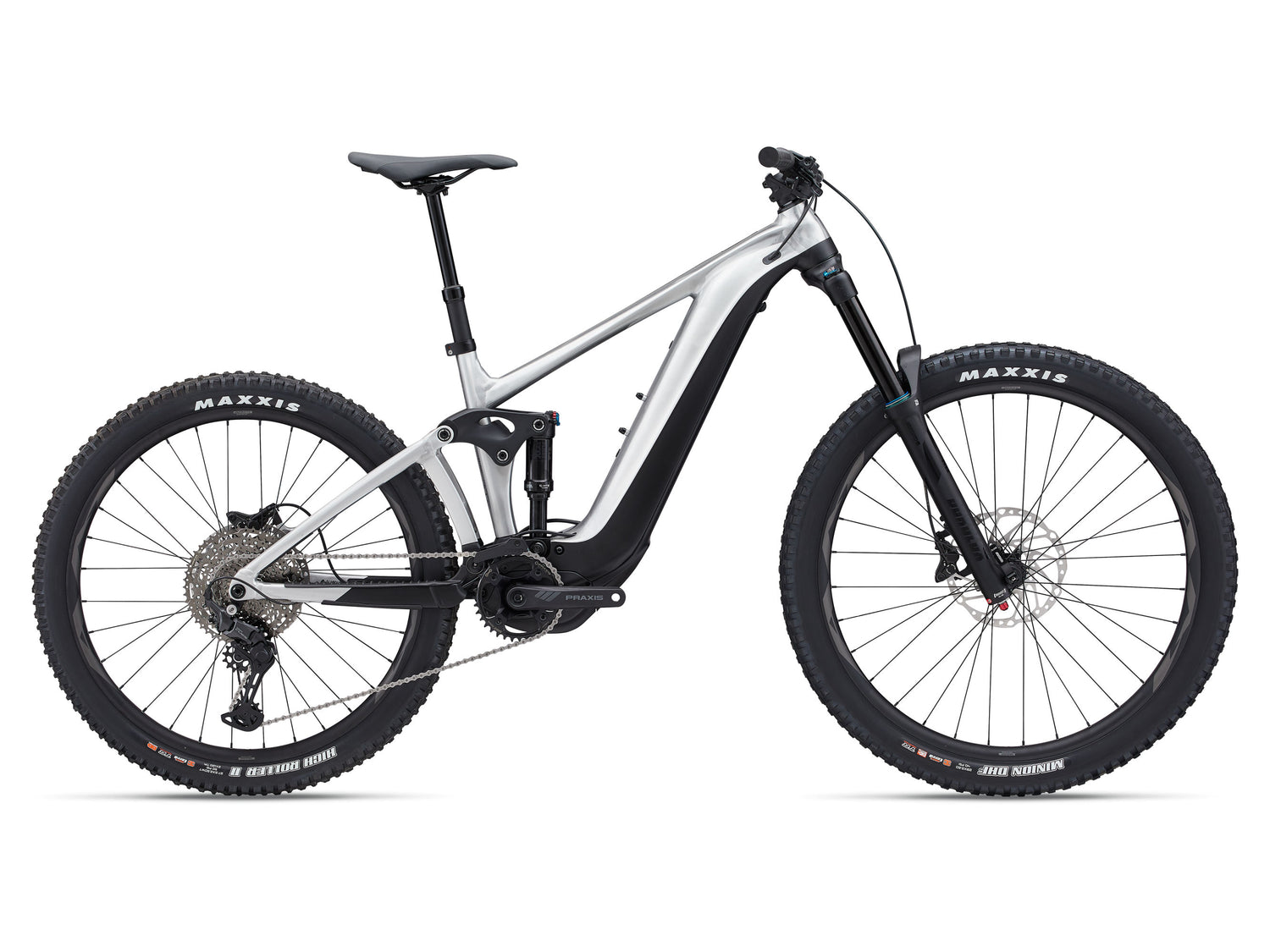

Colour: Raw Aluminum

Giant Reign E+3 Electric Mountain Bike (2024)

S M L XL

Product variants

Special Order: This product will be ordered from our supplier upon purchase and available for collection within 7-14 business days. Read T&Cs here.

Fully assembled when you Click & Collect in-store

Buy Now, Pay Later with ZIP

Free service adjustment within first 6 months

Sizing Chart

Sizing and Geometry

Giant Reign

Sizing to be used as a reference only. The best way to determine your size is to visit us in-store and take the bike for a test-ride.

Frame size	Rider height
S	163-172cm
M	171-180cm
L	179-188cm
XL	187-198cm

Geometry

bike diagram with measurements referenced in table that follows

		S	M	L	XL
		LOW \| MID \| HIGH	LOW \| MID \| HIGH	LOW \| MID \| HIGH	LOW \| MID \| HIGH
A	Seat Tube Length (mm)	400	425	450	475
A1	Seat Post Insertion Depth (mm)	257	383	308	333
B	Seat Tube Angle	78.3° \| 78.7° \| 79.0°	78.3° \| 78.7° \| 79.0°	77.3° \| 77.7° \| 78.0°	77.3° \| 77.7° \| 78.0°
C	Top Tube Length (mm)	556 \| 555 \| 555	587 \| 586 \| 585	620 \| 620 \| 619	652 \| 652 \| 651
D	Head Tube Length (mm)	100	105	115	120
E	Head Tube Angle	63.5° \| 63.9° \| 64.2°	63.5° \| 63.9° \| 64.2°	63.5° \| 63.9° \| 64.2°	63.5° \| 63.9° \| 64.2°
F	Fork Rake (mm)	44	44	44	44
G	Trail (mm)	140 \| 138 \| 135	140 \| 138 \| 135	140 \| 138 \| 135	140 \| 138 \| 135
H	Wheelbase (mm)	1214 \| 1213 \| 1212	1246 \| 1245 \| 1244	1271 \| 1270 \| 1269	1304 \| 1303 \| 1302
I	Chain Stay Length (mm)	445 \| 443 \| 442	445 \| 443 \| 442	445 \| 443 \| 442	445 \| 443 \| 442
J	Bottom Bracket Drop (mm)	35 \| 30 \| 25	35 \| 30 \| 25	35 \| 30 \| 25	35 \| 30 \| 25
K	Stack (mm)	627 \| 624 \| 622	632 \| 629 \| 626	641 \| 638 \| 635	645 \| 642 \| 639
L	Reach (mm)	426 \| 430 \| 434	456 \| 460 \| 464	476 \| 480 \| 484	506 \| 510 \| 514
M	Stand Over Height (mm)	723 \| 727 \| 732	743 \| 747 \| 752	756 \| 760 \| 765	771 \| 777 \| 782
O	Stem Length (mm)	40	40	40	40
P	Crank Length (mm)	165	170	170	170
Q	Wheel Size	29"	29"	29"	29"

Bike Shipping

Delivery is available upon specific request for our special order bikes.

Bikes may only be shipped directly to a qualified bike mechanic or bike shop of your choosing, who must complete the assembly of the bike. We strictly cannot ship an unbuilt bike direct to consumer.

The buyer is responsible for all shipping and assembly costs, and is responsible for arranging assembly with their nominated bike store or mechanic.

To request a shipping quote, please submit a request and include the delivery postcode, business name of your nominated bike shop or bike mechanic, and the exact model & frame size of the bike.

Please note: All bikes sold by Ivanhoe Cycles must be assembled by a qualified mechanic or bike shop. Any assembly undertaken without professional assistance is at the customer's risk and any injury as a result of the build without professional assistance will not be covered by the warranty.

Assembly

Every bike purchased or collected in-store at Ivanhoe Cycles is fully assembled by our qualified mechanics free of charge.

Bikes ordered online for shipping* will require partial assembly, including but not limited to: installing handlebar, seatpost, front wheel; adjusting gears and brakes; tuning suspension; installing accessories or bar tape.

Disclaimer: Ivanhoe Cycles strongly advises having your assembly completed by an experienced bicycle mechanic. Any assembly undertaken without professional assistance is at the customer's risk and any injury as a result of the build without professional assistance will not be covered by the warranty.

*Shipping is restricted to certain brands due to assembly requirements.

Returns / Cancellations

If your special ordered item arrives faulty, damaged, or is differently than described, you are entitled to a full refund or replacement.

Cancellations and returns are not accepted on special orders if the consumer:
- changed their mind
- found the item cheaper elsewhere
- decided they didn't like the purchase or had no use for it
- ordered the wrong item

For more information, please read our Special Order terms and conditions.

Sizing and Geometry

Giant Reign

Sizing to be used as a reference only. The best way to determine your size is to visit us in-store and take the bike for a test-ride.

Frame size	Rider height
S	163-172cm
M	171-180cm
L	179-188cm
XL	187-198cm

Geometry

bike diagram with measurements referenced in table that follows

		S	M	L	XL
		LOW \| MID \| HIGH	LOW \| MID \| HIGH	LOW \| MID \| HIGH	LOW \| MID \| HIGH
A	Seat Tube Length (mm)	400	425	450	475
A1	Seat Post Insertion Depth (mm)	257	383	308	333
B	Seat Tube Angle	78.3° \| 78.7° \| 79.0°	78.3° \| 78.7° \| 79.0°	77.3° \| 77.7° \| 78.0°	77.3° \| 77.7° \| 78.0°
C	Top Tube Length (mm)	556 \| 555 \| 555	587 \| 586 \| 585	620 \| 620 \| 619	652 \| 652 \| 651
D	Head Tube Length (mm)	100	105	115	120
E	Head Tube Angle	63.5° \| 63.9° \| 64.2°	63.5° \| 63.9° \| 64.2°	63.5° \| 63.9° \| 64.2°	63.5° \| 63.9° \| 64.2°
F	Fork Rake (mm)	44	44	44	44
G	Trail (mm)	140 \| 138 \| 135	140 \| 138 \| 135	140 \| 138 \| 135	140 \| 138 \| 135
H	Wheelbase (mm)	1214 \| 1213 \| 1212	1246 \| 1245 \| 1244	1271 \| 1270 \| 1269	1304 \| 1303 \| 1302
I	Chain Stay Length (mm)	445 \| 443 \| 442	445 \| 443 \| 442	445 \| 443 \| 442	445 \| 443 \| 442
J	Bottom Bracket Drop (mm)	35 \| 30 \| 25	35 \| 30 \| 25	35 \| 30 \| 25	35 \| 30 \| 25
K	Stack (mm)	627 \| 624 \| 622	632 \| 629 \| 626	641 \| 638 \| 635	645 \| 642 \| 639
L	Reach (mm)	426 \| 430 \| 434	456 \| 460 \| 464	476 \| 480 \| 484	506 \| 510 \| 514
M	Stand Over Height (mm)	723 \| 727 \| 732	743 \| 747 \| 752	756 \| 760 \| 765	771 \| 777 \| 782
O	Stem Length (mm)	40	40	40	40
P	Crank Length (mm)	165	170	170	170
Q	Wheel Size	29"	29"	29"	29"

Giant Reign E+3 Electric Mountain Bike (2024)

The Giant Reign E+ 1 MTB (2024) is built for riders who want to tackle every climb, descent, and trail with confidence. This proven electric trail bike pairs 160mm of Maestro rear suspension with the compact yet powerful SyncDrive Pro motor, giving you a smooth, controlled ride on the most challenging terrain. Its progressive geometry—with a longer reach and shorter rear end—delivers agile handling on technical trails.

Integrated Control & Customisation

With the RideControl Ergo 3 system, integrated button controls are right at your fingertips. Paired with the Giant E-bike App, you get full access to custom tuning and E-bike-specific fitness tracking.

Extended Battery Range

Power through long days in the saddle with the downtube-integrated 800Wh EnergyPak battery. Designed for steep climbs and high-speed descents, it ensures lasting power for every ride.

Motor

SyncDrive Pro 2, 85Nm, powered by Yamaha
Controller

RideControl Ergo 3, grip integrated
Display

RideControl GO, frame integrated LED display ANT+ Wireless display compatible
Battery

EnergyPak Smart 800Wh EnergyPak Plus range extender compatible
Charger

EnergyPak 6A smart charger
Frame material

Aluminium
Frame

ALUXX SL-grade Aluminium, Advanced Forged Composite Upper Rocker, 160mm Maestro suspension system, flip chip, UDH hanger 12x148mm thru-axle
Fork

SR Suntour Durolux 38 Boost EQ, 170mm travel, 44mm offset, RC2, 15LH-110
Shock

Fox Float DPS Performance, EVOL Large Volume sleeve, custom tuned
Handlebar

Giant Contact Trail, 35mm
Grips

Giant Tactal Pro-E, single lock-on
Stem

Giant Contact SL 35mm S:40mm, M:40mm, L:40mm, XL:50mm
Seatpost

Giant Contact Switch travel-adjustable dropper, remote S: 110-140mm travel / 30.9 x 395mm M: 140-170mm travel / 30.9 x 470mm L: 170-200mm travel / 30.9 x 530mm XL: 170-200mm travel / 30.9 x 530mm
Saddle

Giant Romero Trail
Pedals

Platform
Shifters

Shimano CUES, SL-6000, 1x11
Front Derailleur

MRP 1X HD2 custom co-molded chain guide
Rear Derailleur

Shimano CUES, U6000, Shadow+
Brakes

Shimano BR-MT420, 4-piston, hydraulic disc, 203mm
Brake Levers

Shimano Deore, I-spec EV
Cassette/Freewheel

Shimano Cues LinkGlide, CS-LG400-11, 11-50T, 11-speed
Chain

Shimano Cues CN-LG500
Crankset

Praxis Wave™ 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set S:160mm, M: 160mm, L:165mm, XL:165mm
Rims

Giant AM 29" [F] 27.5" [R], Tubeless ready
Hubs

Shimano MT410, Boost, Center-Lock, [F] 110x15 [R] 148x12mm HG Drive Body Thru-axle
Spokes

Sapim E-Lite [R] Race [F], e-bike optimised
Tyres

Maxxis Minion DHF 29x2.6" foldable, Tubeless, EXO+, 3C MaxxTerra [F] Maxxis High Roller II 27.5x2.5" foldable, Tubeless, DoubleDown, 3C MaxxTerra Compound [R]
Extras

Tubeless kit (liquid, valves, levers, manual, tool)
Notes

Please note that, based on component availability and other factors, specifications are subject to change without notice.
Speeds (rear)

12 Speed
Age Group

Adults, Teenagers
Gender

Mens
Discipline

Mountain, Electric
SKUs

Raw Aluminum/S: 6046002104, Raw Aluminum/M: 6046002105, Raw Aluminum/L: 6046002107, Raw Aluminum/XL: 6046002108
