Giant  |  SKU: 9125008105

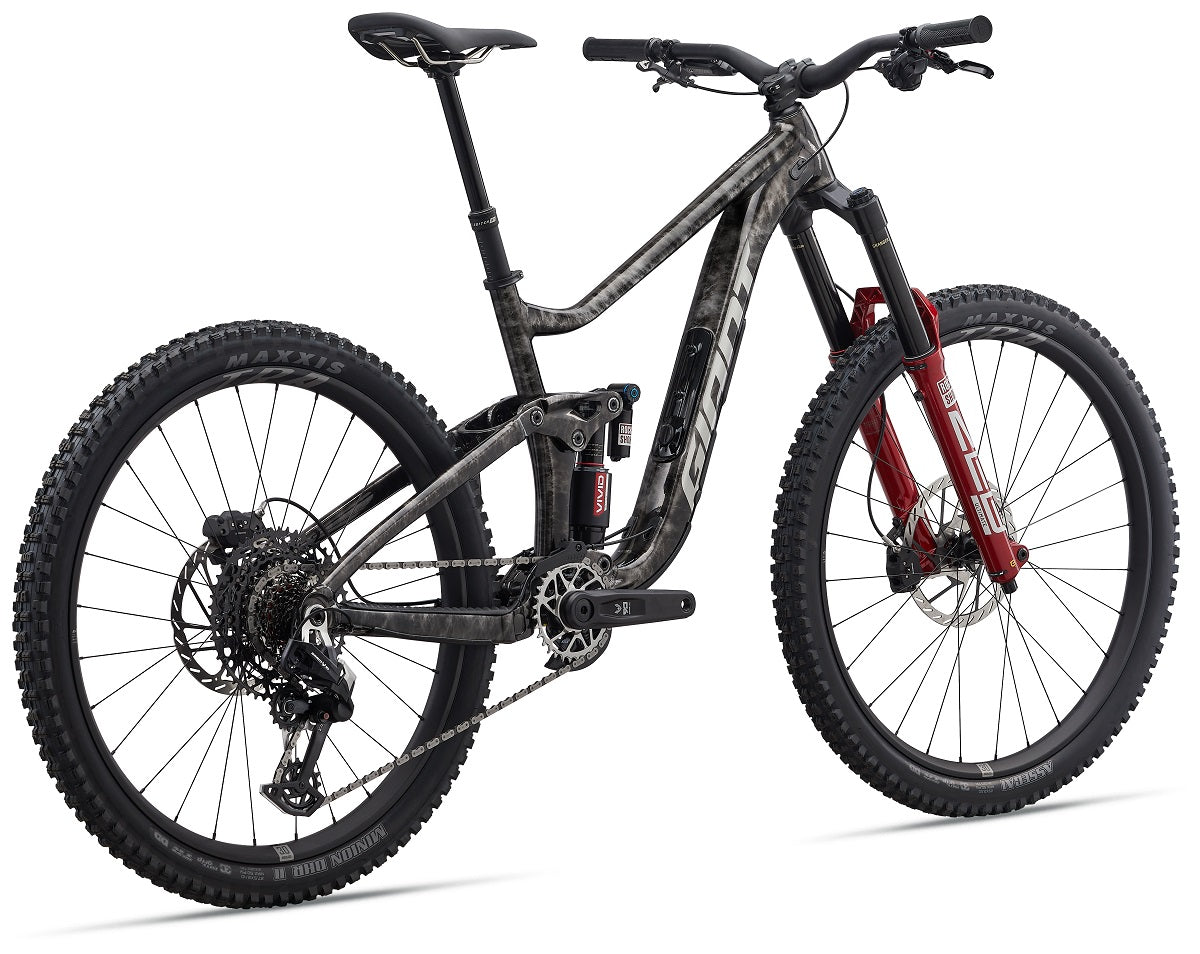

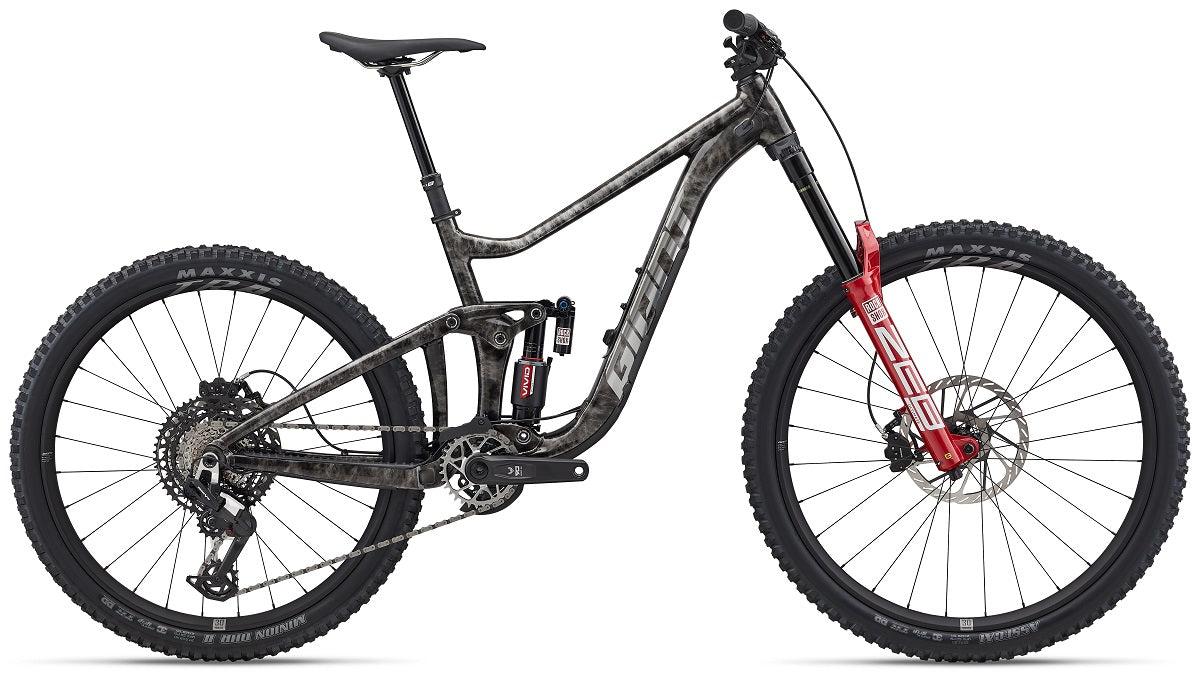

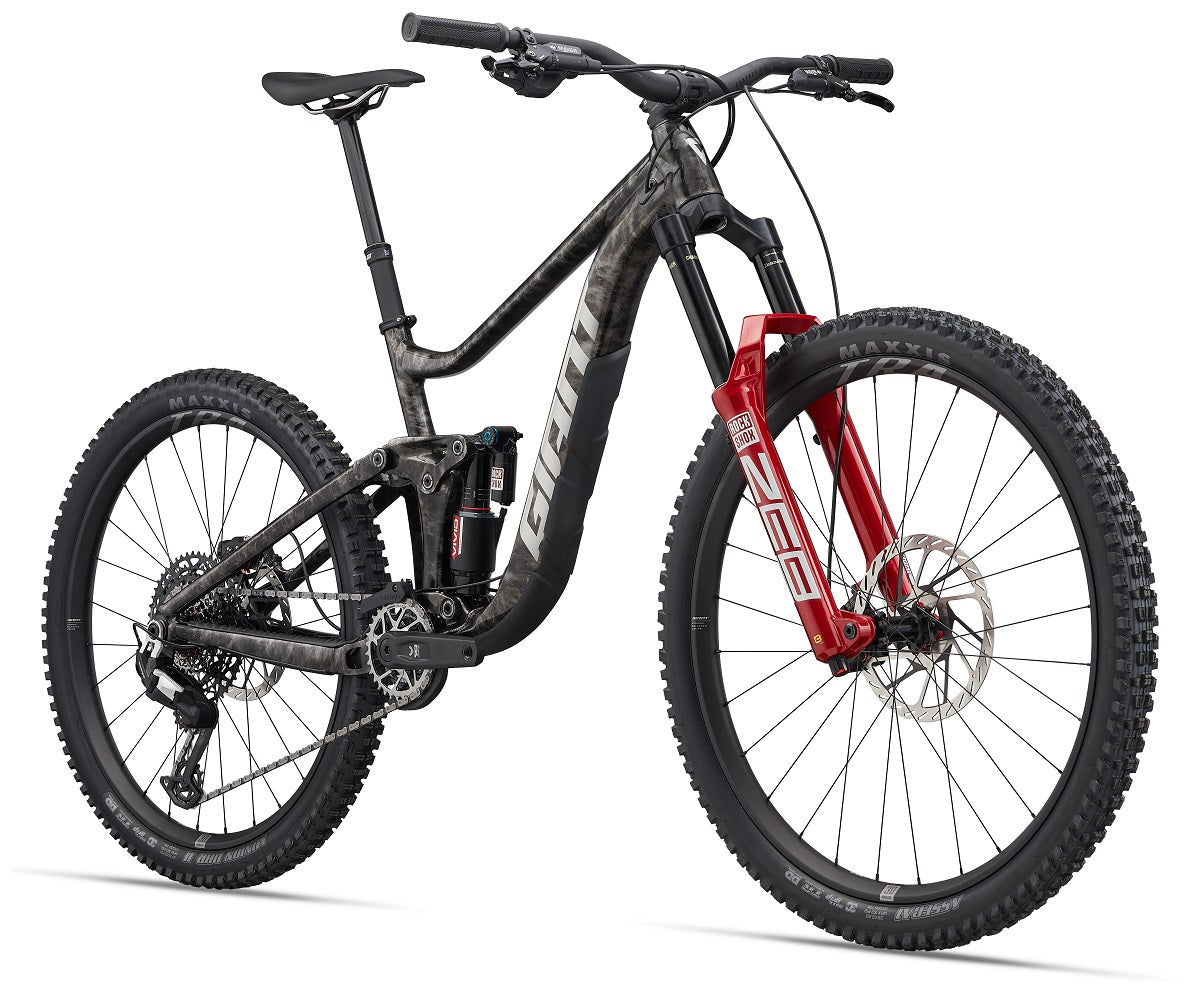

Giant Reign SE (2026)

$7,99900
  • SRAM Eagle 90 1x12 Mechanical Transmission

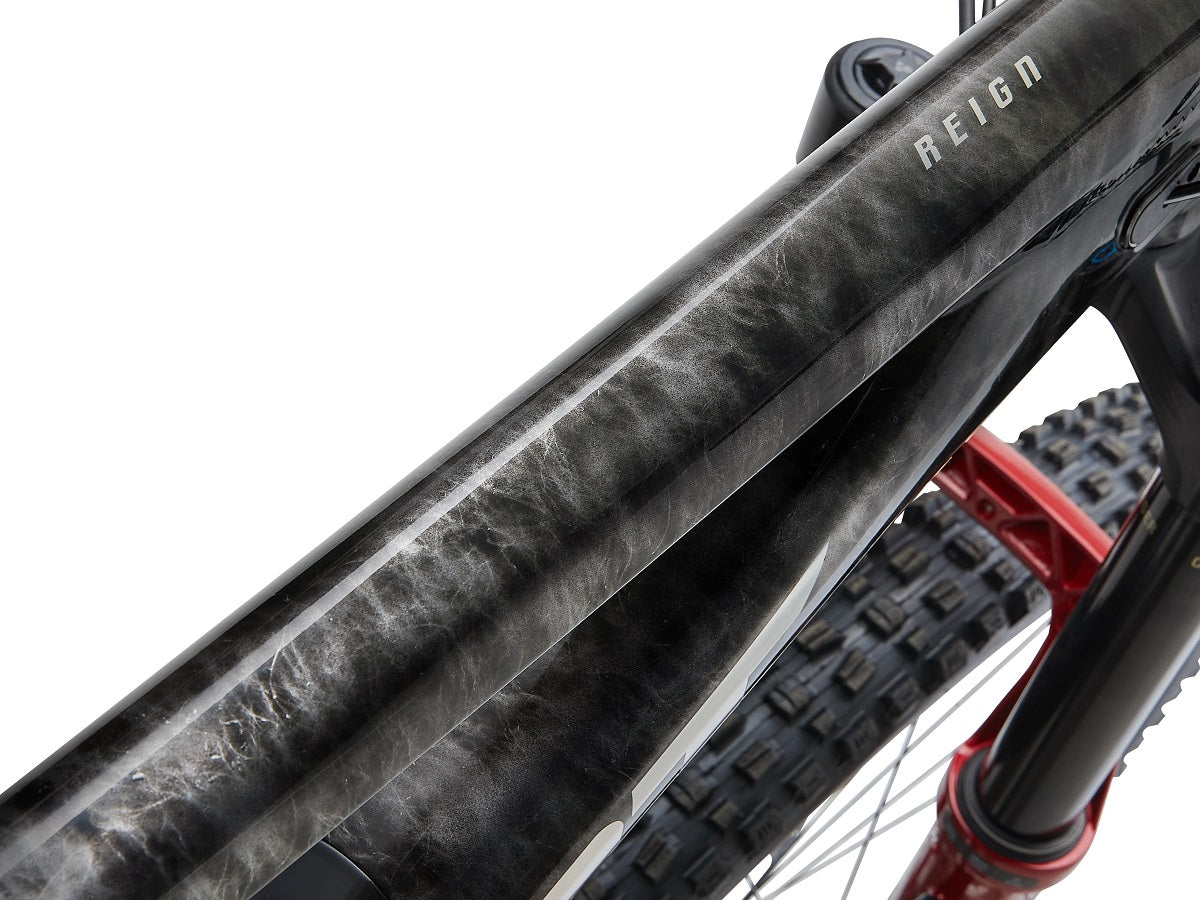

  • ALUXX SL-Grade Aluminium Frame
  • 180/165mm [F/R] Suspension Travel
  • Mullet 29/27.5" wheelset
  • SRAM Maven Hydraulic disc brakes
Colour: Black Lightning
Size

Pickup in-store only. Shipping not available.
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay

Sizing Chart

Sizing and Geometry

Giant Reign

Sizing to be used as a reference only. The best way to determine your size is to visit us in-store and take the bike for a test-ride.

Frame size Rider height
S 163-172cm
M 171-180cm
L 179-188cm
XL 187-198cm


Geometry

bike diagram with measurements referenced in table that follows

    S M L XL
    LOW | MID | HIGH LOW | MID | HIGH LOW | MID | HIGH LOW | MID | HIGH
A Seat Tube Length (mm) 400 425 450 475
A1 Seat Post Insertion Depth (mm) 257 383 308 333
B Seat Tube Angle 78.3° | 78.7° | 79.0° 78.3° | 78.7° | 79.0° 77.3° | 77.7° | 78.0° 77.3° | 77.7° | 78.0°
C Top Tube Length (mm) 556 | 555 | 555 587 | 586 | 585 620 | 620 | 619 652 | 652 | 651
D Head Tube Length (mm) 100 105 115 120
E Head Tube Angle 63.5° | 63.9° | 64.2° 63.5° | 63.9° | 64.2° 63.5° | 63.9° | 64.2° 63.5° | 63.9° | 64.2°
F Fork Rake (mm) 44 44 44 44
G Trail (mm) 140 | 138 | 135 140 | 138 | 135 140 | 138 | 135 140 | 138 | 135
H Wheelbase (mm) 1214 | 1213 | 1212 1246 | 1245 | 1244 1271 | 1270 | 1269 1304 | 1303 | 1302
I Chain Stay Length (mm) 445 | 443 | 442 445 | 443 | 442 445 | 443 | 442 445 | 443 | 442
J Bottom Bracket Drop (mm) 35 | 30 | 25 35 | 30 | 25 35 | 30 | 25 35 | 30 | 25
K Stack (mm) 627 | 624 | 622 632 | 629 | 626 641 | 638 | 635 645 | 642 | 639
L Reach (mm) 426 | 430 | 434 456 | 460 | 464 476 | 480 | 484 506 | 510 | 514
M Stand Over Height (mm) 723 | 727 | 732 743 | 747 | 752 756 | 760 | 765 771 | 777 | 782
O Stem Length (mm) 40 40 40 40
P Crank Length (mm) 165 170 170 170
Q Wheel Size 29" 29" 29" 29"

Shipping Information

Certain bike brands cannot be shipped and are only available for Click and Collect.

These include but are not limited to the following brands: Giant, GT, Liv, Momentum and Mongoose.

For all other brands, we can provide a shipping quote to your postcode. Please contact us by email at staff@ivanhoecycles.com.au, or text us on 0417 122 950.

Fully assembled when you Click & Collect in-store
Buy Now, Pay Later with ZIP
Free service adjustment within first 6 months

Big hits and all-out descents. This trail-crushing enduro machine features a unique paint treatment that makes each bike one of a kind. Its mixed wheel size, with a 29-inch front and 27.5-inch rear, blends stability and speed with agility that pops. The geometry is designed for a longer-travel 165mm rear suspension setup and a 180mm fork, giving you the upper hand on the on the rowdiest trails and bike park terrain.

RACE-BRED SUSPENSION

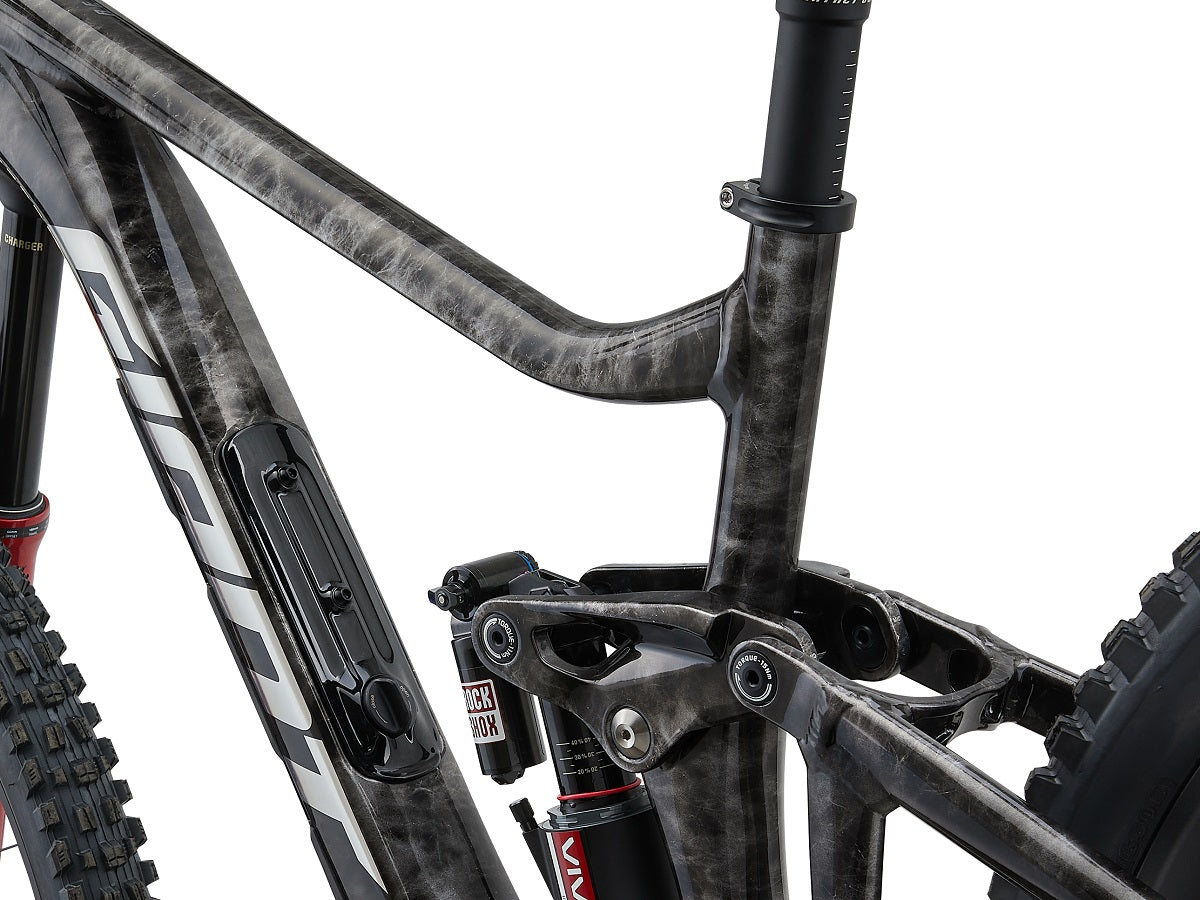

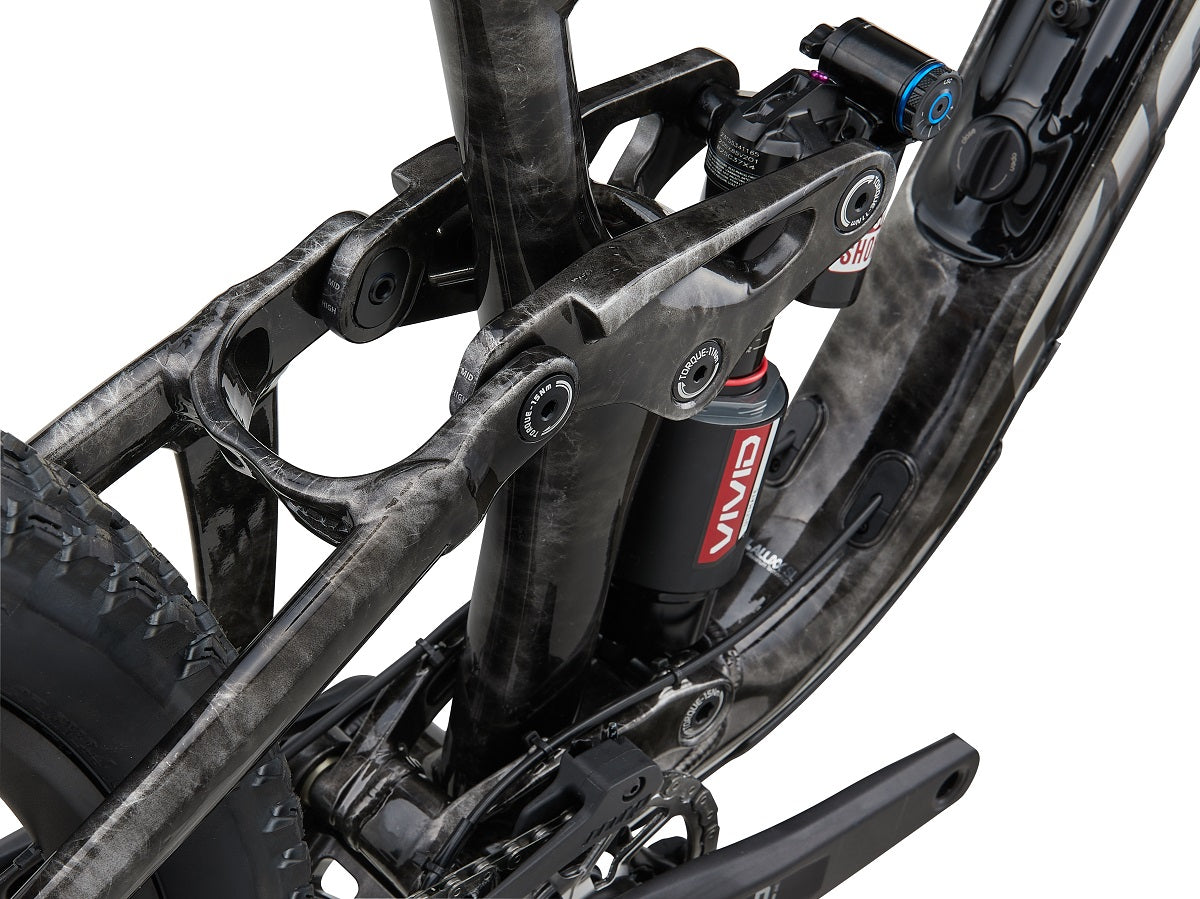

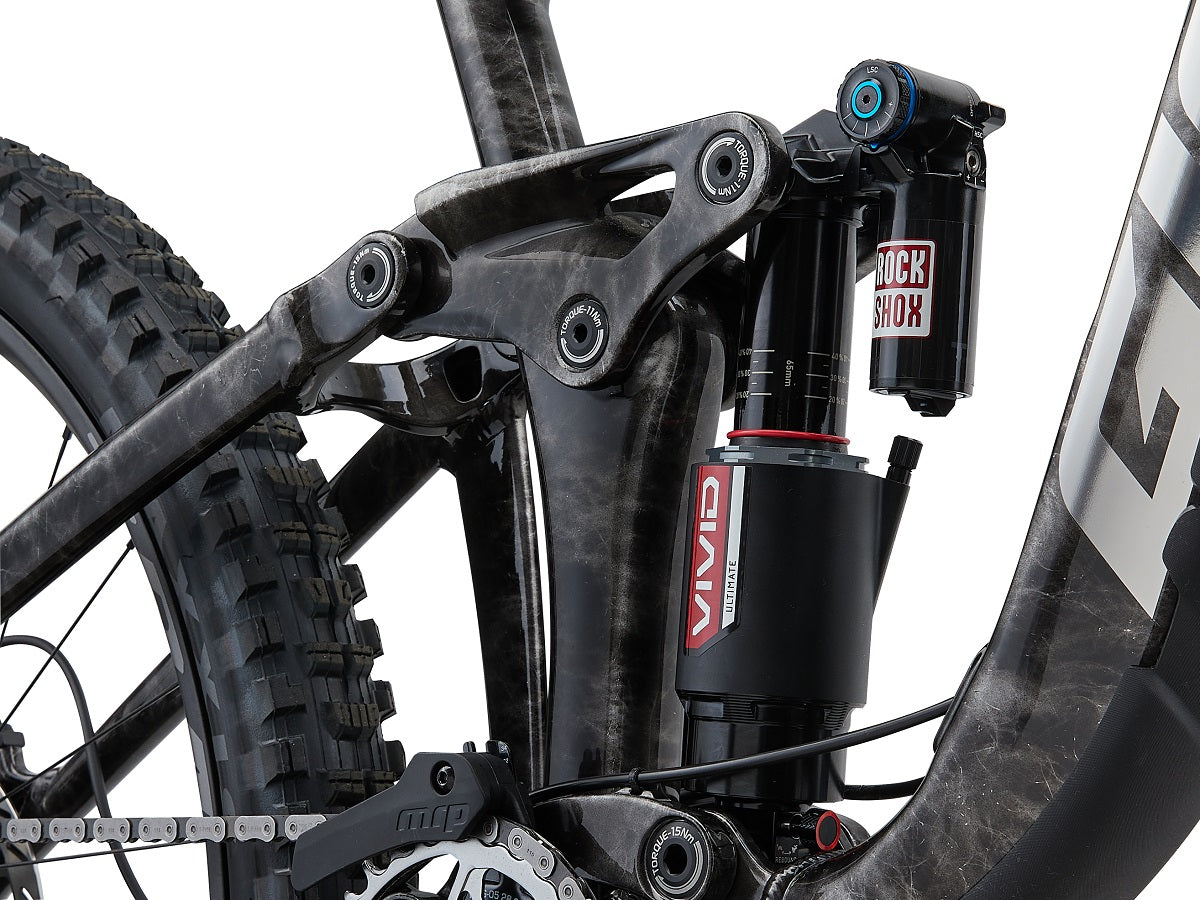

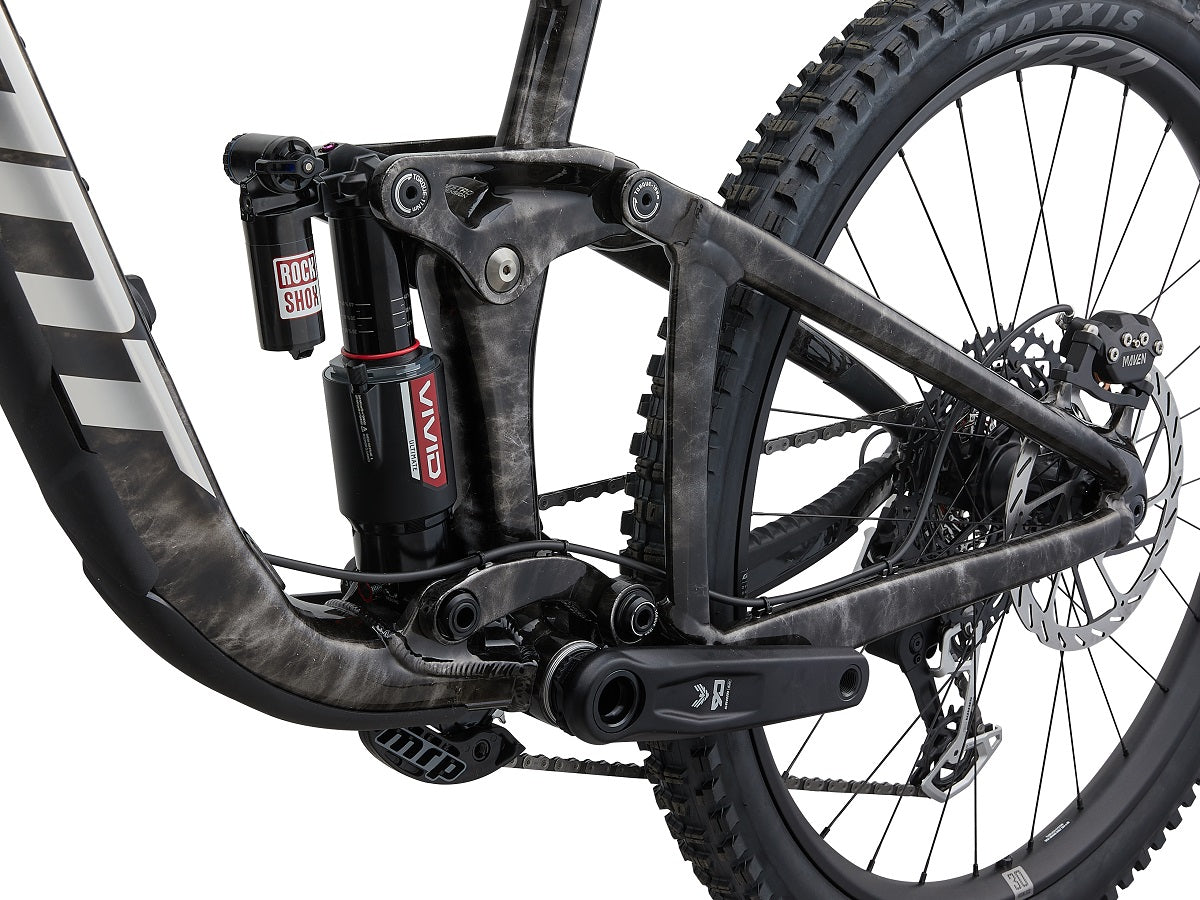

The Maestro rear suspension eats up enduro terrain with 165mm of smooth, active rear travel matched with a 180mm travel fork. The trunnion mount rear shock has a longer stroke while the Advanced Forged Composite upper rocker arm adds stiffness and lowers overall frame weight.

ADJUSTABLE ENDURO GEOMETRY

A flip chip feature lets you adjust frame geometry depending on the terrain. You can select a 62.6 or 63-degree head angle and corresponding 77.4 or 77.8-degree seat tube angle, resulting in a 20 or 15mm bottom bracket drop (size medium) to fine-tune handling for varying trail conditions and riding style.

MIXED WHEEL SIZE

A 29-inch front wheel provides speed, stability and front-end control on rough, technical trails. A 27.5-inch rear wheel adds agility and maneuverability to help riders rail corners, pop over features and show off their style.

SPECIFICATIONS

Sizes M, L, XL
Colours Black Lightning/Chrome
Frame ALUXX SL-grade aluminium front and rear triangles, 165mm Maestro suspension, flip chip, 12x148mm thru-axle, 27.5 or 29-inch rear wheel compatible, flip chip - Maestro 3, integrated down tube storage

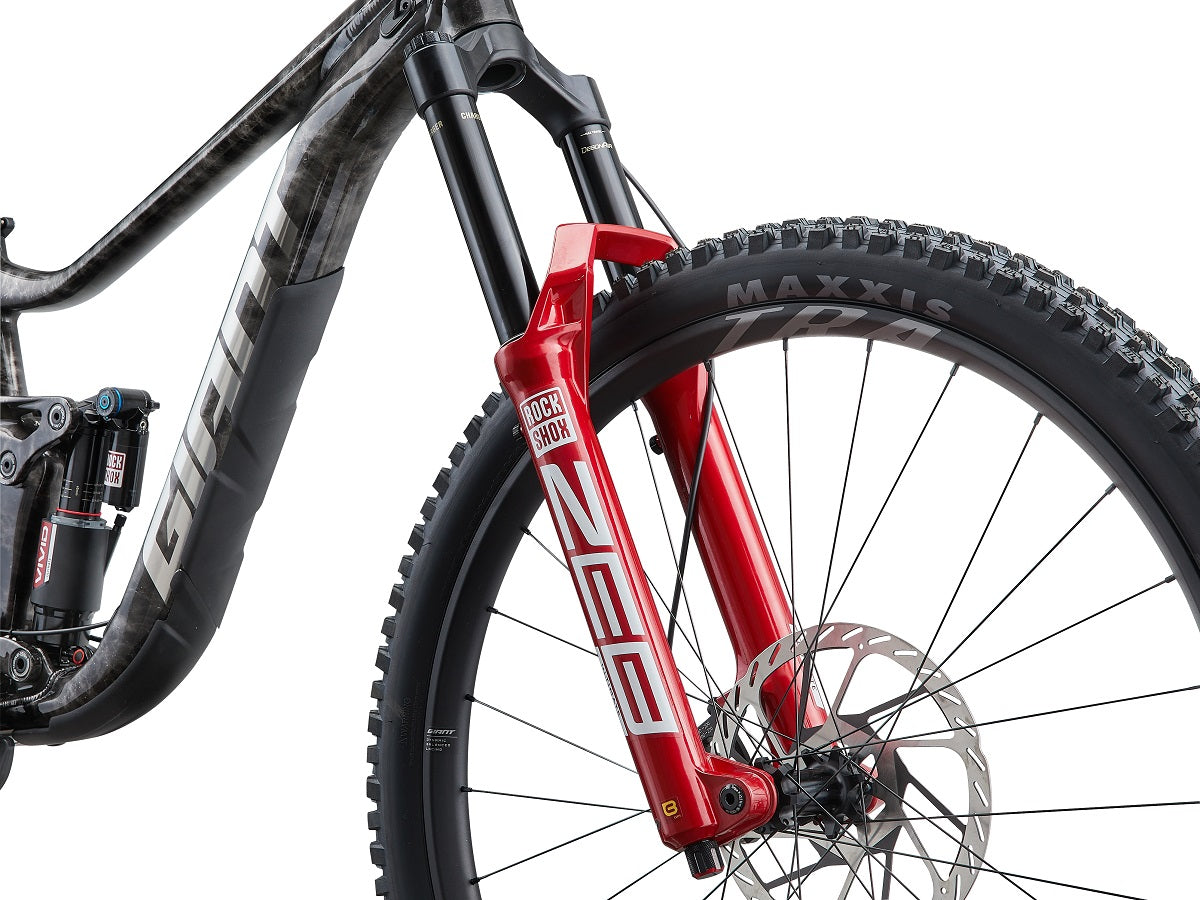

Fork RockShox Zeb Ultimate, Charger 3.1 RC2 damper, 180mm, 15x110, Maxle Stealth, Debonair
Shock RockShox Vivid Ultimate, RCT2, adjustable hydraulic bottom out, trunnion mount, 205/65 S:425#, M:425#, L:450#, XL:475#

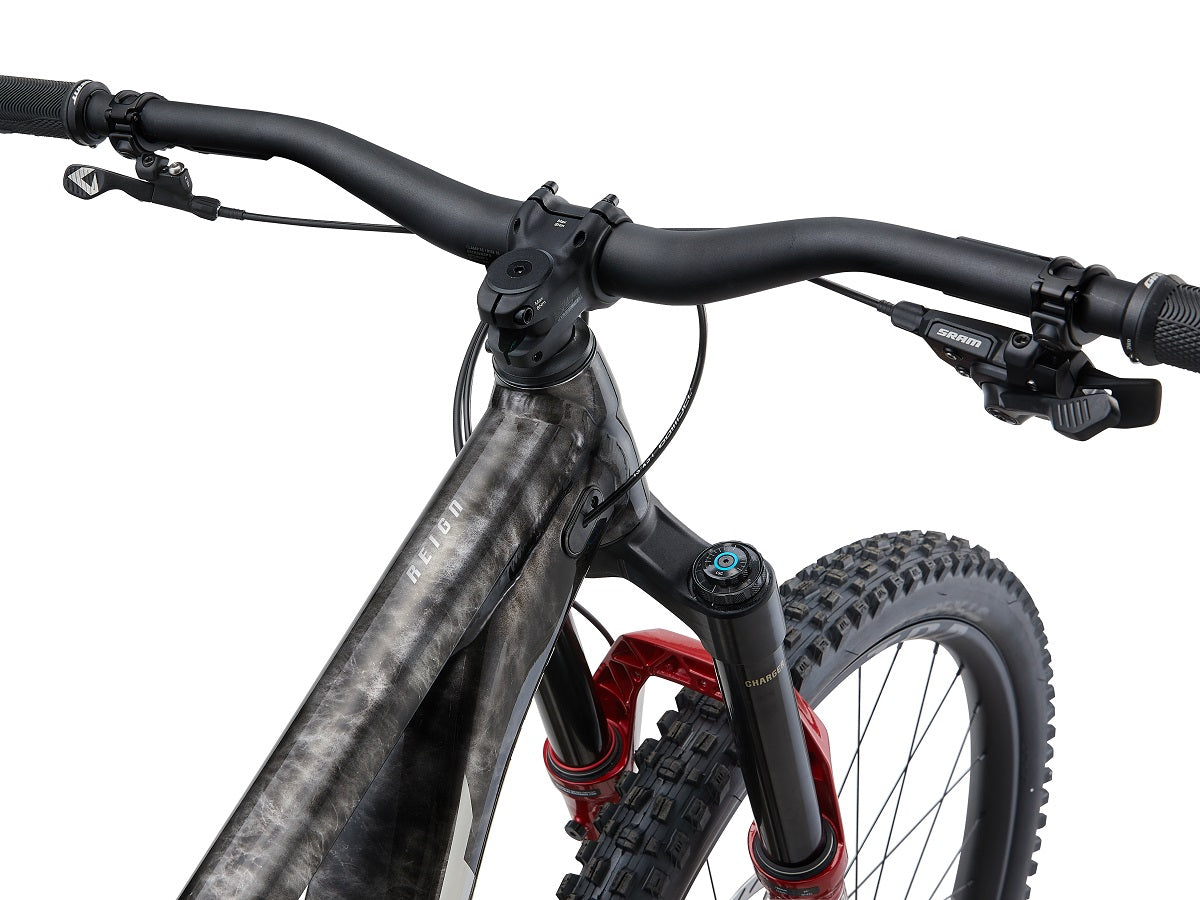

Handlebar Giant Contact TR35, 35mm rise
Grips Giant Tactal Pro Single
Stem Giant Contact SL 35 S:40mm, M:40mm, L:40mm, XL:40mm
Seatpost Contact Switch AT dropper, remote S:110–140mm travel / 30.9 x 395mm
Saddle Giant Romero
Pedals N/A
Shifters SRAM Eagle 90, mechanical, 1x12
Front Derailleur N/A

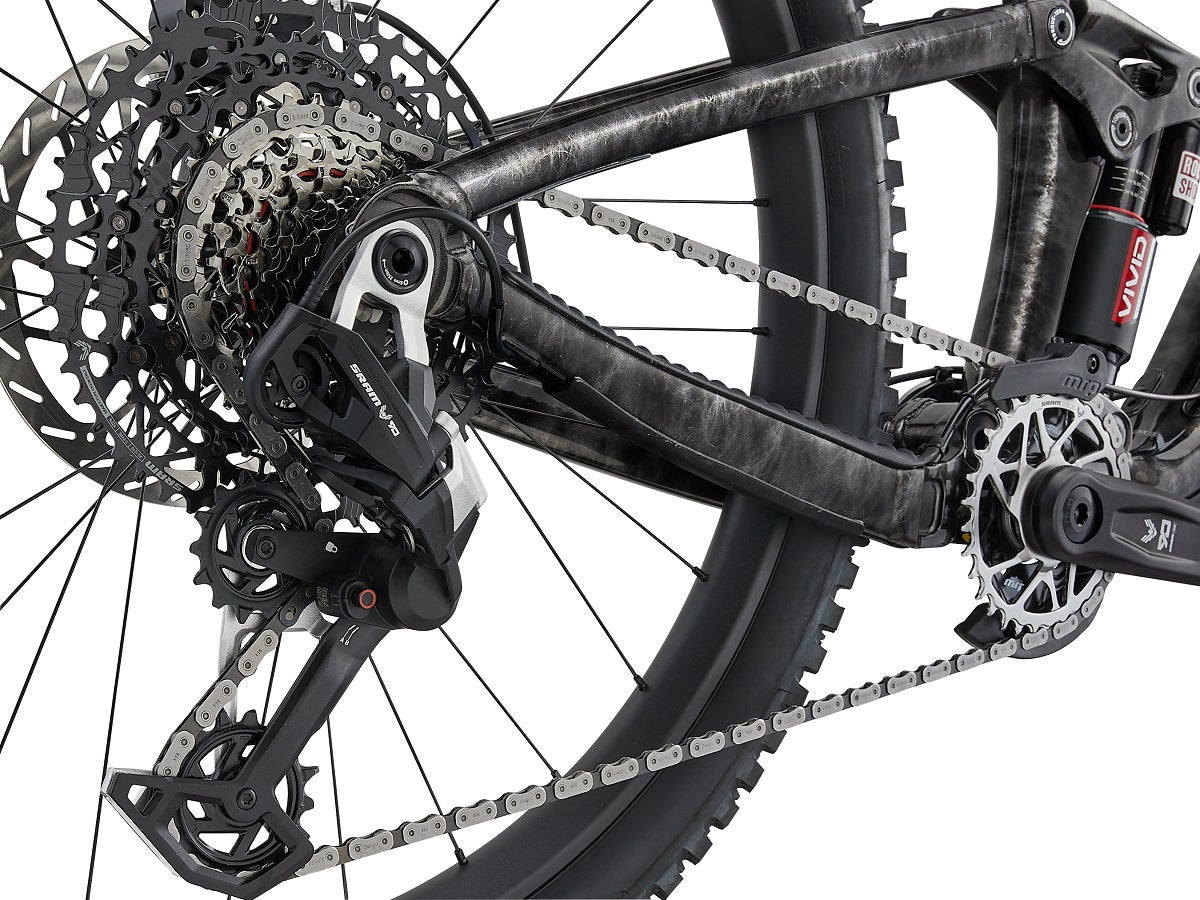

Rear Derailleur SRAM Eagle 90 mechanical transmission

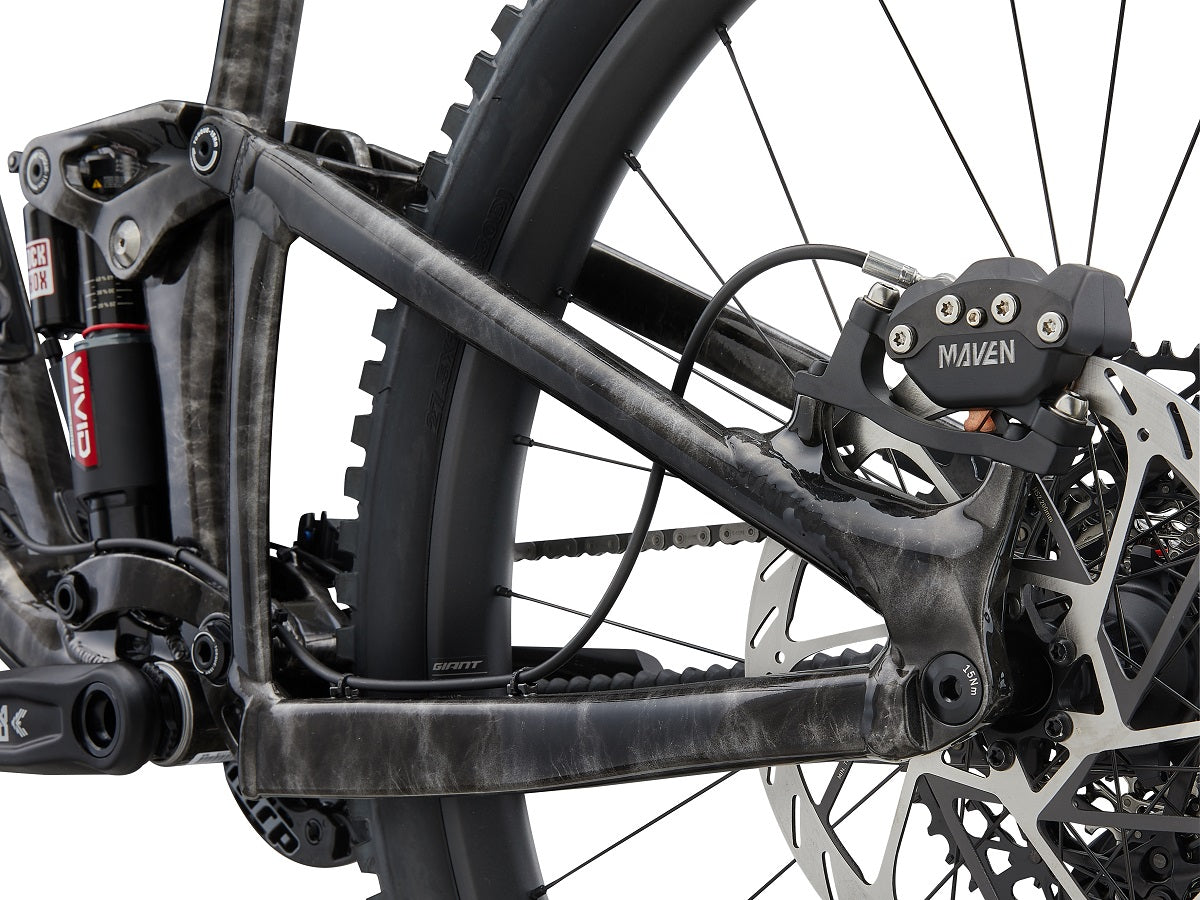

Brakes SRAM Maven, hydraulic, SRAM HS2 rotors [F]220mm, [R]200mm
Brake Levers SRAM Maven
Cassette SRAM XS 1270, 10x52
Chain SRAM 70
Crankset SRAM 90, 32t, 55mm chainline S:165mm, M:165mm, L:165mm, XL:165mm
Bottom Bracket SRAM DUB, press fit
Rims Giant TRA WheelSystem, 6069 alloy, hookless, 30mm inner width, 40mm outer width, 21mm height, Wide Guard Technology
Hubs [F] Giant MTB alloy, 6-bolt, [R] Giant MTB alloy, 72 POE, 6-bolt, MicroSpline driver body
Spokes Sapim, 28, straight pull, DBL Technology
Tyres [F] Maxxis Assegai 29x2.5 WT, 3C MaxxGrip, EXO+, TR; [R] Maxxis Minion DHR II 27.5x2.4 WT, 3C MaxxGrip, DD, TR tubeless
Extras Tubeless prepared, 2.5" max tire size, 36t max chainring size, MRP AMG CS chain guide
Weight The most accurate way to determine any bike’s weight is to have your local dealer weigh it. Weight may vary by size, finish, hardware, and accessories.

Giant Reign SE (2026)

$7,99900

Colour

Size

  • M
  • L
  • XL

Motor

N/A

Controller

N/A

Display

N/A

Battery

N/A

Charger

N/A

Sizes

N/A

Frame material

Aluminium

Frame

ALUXX SL-grade aluminium front and rear triangles, 165mm Maestro suspension, flip chip, 12x148mm thru-axle, 27.5 or 29-inch rear wheel compatible, flip chip - Maestro 3, integrated down tube storage

Fork

RockShox Zeb Ultimate, Charger 3.1 RC2 damper, 180mm, 15x110, Maxle Stealth, Debonair

Handlebar

Giant Contact TR35, 35mm rise

Grips

Giant Tactal Pro Single

Bar Tape

N/A

Headset

N/A

Stem

Giant Contact SL 35 S:40mm, M:40mm, L:40mm, XL:40mm

Seatpost

Contact Switch AT dropper, remote S: 110-140mm travel / 30.9 x 395mm

Saddle

Giant Romero

Pedals

N/A

Shifters

SRAM Eagle 90, mechanical, 1x12

Front Derailleur

N/A

Rear Derailleur

SRAM Eagle 90 mechanical transmission

Brakes

SRAM Maven, hydraulic, SRAM HS2 rotors [F]220mm, [R]200mm

Brake Levers

SRAM Maven

Cassette/Freewheel

SRAM XS 1270, 10x52

Chain

SRAM 70

Crankset

SRAM 90, 32t, 55mm chainline S:165mm, M:165mm, L:165mm, XL:165mm // 36T Max Chainring size

Bottom Bracket

SRAM DUB, press fit

Rims

Giant TRA WheelSystem, 6069 alloy, hookless, 30mm inner width, 40mm outer width, 21mm height, Wide Guard Technology

Hubs

[F] Giant MTB alloy, 6-bolt, [R] Giant MTB alloy, 72 POE (Points of Engagement), 6-bolt, MicroSpline driver body

Spokes

Sapim, 28, straight pull, DBL Technology

Tyres

[F] Maxxis Assegai 29x2.5 WT, 3C MaxxGrip, EXO+, TR [R] Maxxis Minion DHR II 27.5x2.4 WT, 3C MaxxGrip, DD, TR tubeless // Tubeless Prepared // 2.5" Max Tyre size

Wheel Size

N/A

Extras

MRP AMG CS chain guide
