Giant Revolt 1 (2024)

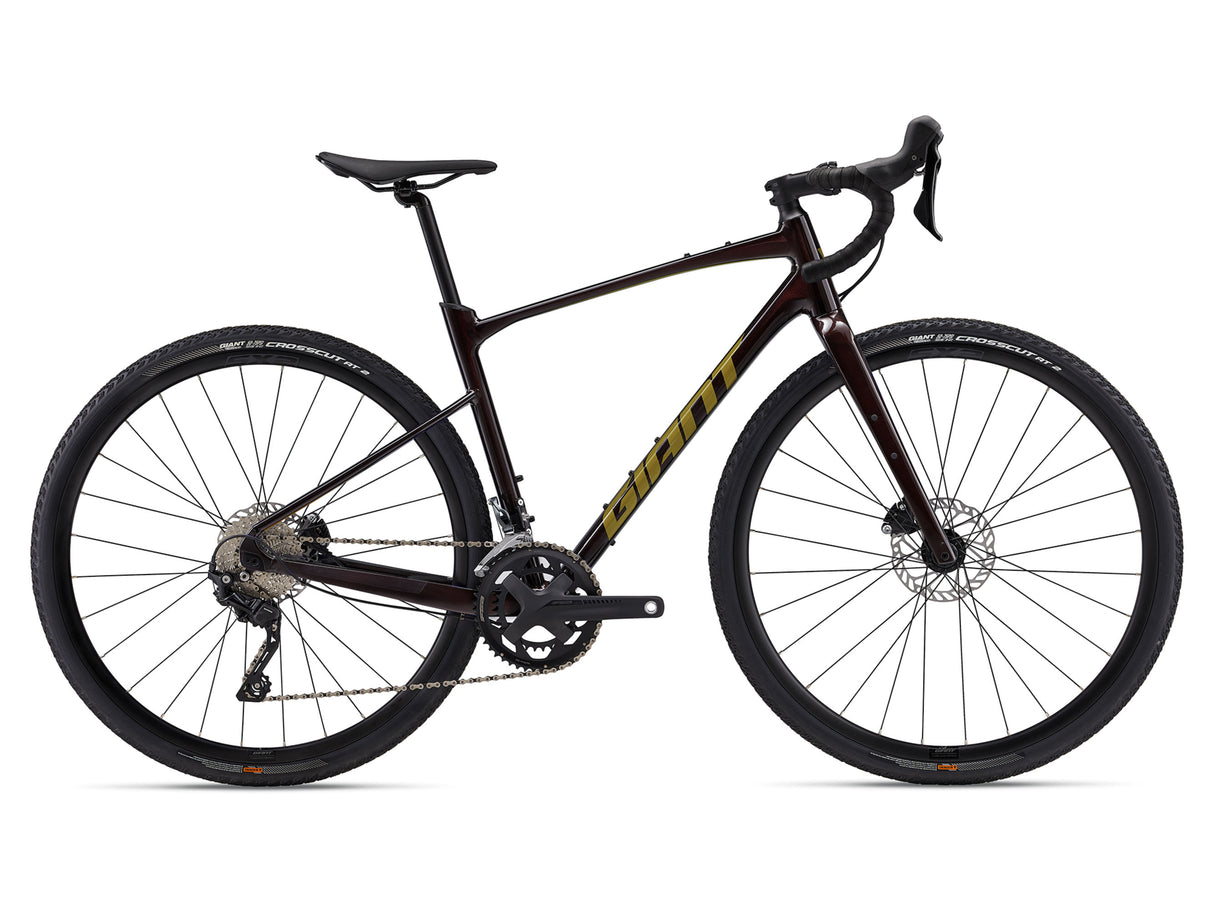

GIANT REVOLT 1 2024
Ride roads, gravel or dirt with this versatile aluminium all-rounder. A composite fork gives it a smooth ride, and a flip chip lets you adjust wheelbase and tire clearance.
CONFIDENT HANDLING
Frame is designed with endurance positioning and shorter chain stays for precise handling, agility and control. A longer reach, shorter stem and lower bottom bracket drop improves stability on rugged terrain.
COMFORT
Dropped seat stays with thin tubing absorb road shocks and vibrations. The D-Fuse handlebar and seat post work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.
VERSATILE
A flip chip on the rear dropout adjusts the wheelbase short for quicker handling and acceleration, or long for improved stability at speed. The long setting allows for larger diameter tyres up to 53mm.
SPECIFICATIONS
| Sizes | XS, S, M, ML, L, XL |
| Colours | Cordovan |
| Frame | ALUXX-grade aluminium // 12x142mm thru-axle // Flip chip dropout |
| Fork | Advanced-Grade Composite, full-composite OverDrive steerer, 12mm thru-axle, disc |
| Handlebar | Giant Contact XR D-Fuse, 31.8mm // XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm |
| Grips | Cork tape with gel |
| Stem | Giant Contact, 8-degree // XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm |
| Seatpost | Giant D-Fuse, alloy, 14mm offset |
| Saddle | Giant Approach |
| Pedals | N/A |
| Shifters | Shimano GRX RX-400, 2x10 speed |
| Front Derailleur | Shimano Tiagra |
| Rear Derailleur | Shimano GRX RX-400 |
| Brakes | Shimano GRX RX-400 hydraulic // Giant MPH rotors [F]160mm, [R]160mm |
| Brake Levers | Shimano GRX RX-400 hydraulic |
| Cassette | Shimano HG500, 11T-34T // 10 speed |
| Chain | KMC X10 |
| Crankset | FSA Omega Adventure, 32T/48T // XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm |
| Bottom Bracket | FSA Mega EXO |
| Rims | Giant S-X2 Disc wheelset, alloy |
| Hubs | Giant alloy, 12mm thru-axle |
| Spokes | Stainless |
| Tyres | Giant CrossCut AT 2, 700x38c, tubeless |
| Extras | Tubeless prepared // 53mm max tyre size in “long” flip chip position // 45mm max tyre size in “short” flip chip position |
| Notes | We reserve the right to make changes to the product and component information appearing on this site at any time without notice, including with respect to equipment, specifications, models, colors, and materials. |
Herein you will find the complete warranty offered on Giant bicycles.
This excerpt has been taken from the official Giant Bicycles Owner's Manual. Follow this link to download a digital copy of the Owner's Manual for Giant and Liv bikes.
Giant & Liv Bicycles Warranty
Giant warrants the frame of each new Giant and Liv brand bicycle and frameset to be free from defects in material and workmanship for as long as the original purchaser owns the bicycle.
10-Year Rigid Fork Warranty
Giant warrants the rigid fork of each new Giant and Liv brand bicycle and frameset to be free from defects in material and workmanship for a period of ten years from the date of purchase.
One-Year Limited Warranty on Paint and Decals
Giant warrants the paint and decals on each new Giant and Liv brand bicycle and frameset to be free from defects in material and workmanship for a period of one year from the date of purchase.
One-Year Limited Warranty on Parts and Components
Giant warrants all original parts, excluding suspension forks, rear shocks, and other suspension-related components, to be free from defects in material and workmanship for a period of one year from the date of purchase.
Conditions of Warranty
- This warranty is valid only for bicycles purchased new from an Authorised Giant Dealer and is extended only to the original purchaser.
- The bicycle must be assembled and adjusted by an Authorised Giant Dealer at the time of purchase.
- Proof of purchase is required.
- This warranty is void if the bicycle is used for commercial activities, including but not limited to, rental, competition, or promotional activities.
Exclusions
- Normal wear and tear.
- Damage or failure due to accident, misuse, abuse, neglect, or improper assembly.
- Modification of the frame, fork, or components voids the warranty.
- Labour charges for part replacement or changeover.
How to Make a Warranty Claim
- Bring the bicycle to an Authorised Giant Dealer with proof of purchase.
- The dealer will inspect the bicycle and process the claim with Giant.
Giant's Responsibility
- If Giant determines that the claim is valid, Giant will replace or repair the defective part at no charge.
Limitations
- This is the only warranty offered by Giant. Any implied warranties, including the implied warranties of merchantability and fitness for a particular purpose, are limited in duration to the duration of the express warranty.
- Giant shall not be responsible for incidental or consequential damages. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.
