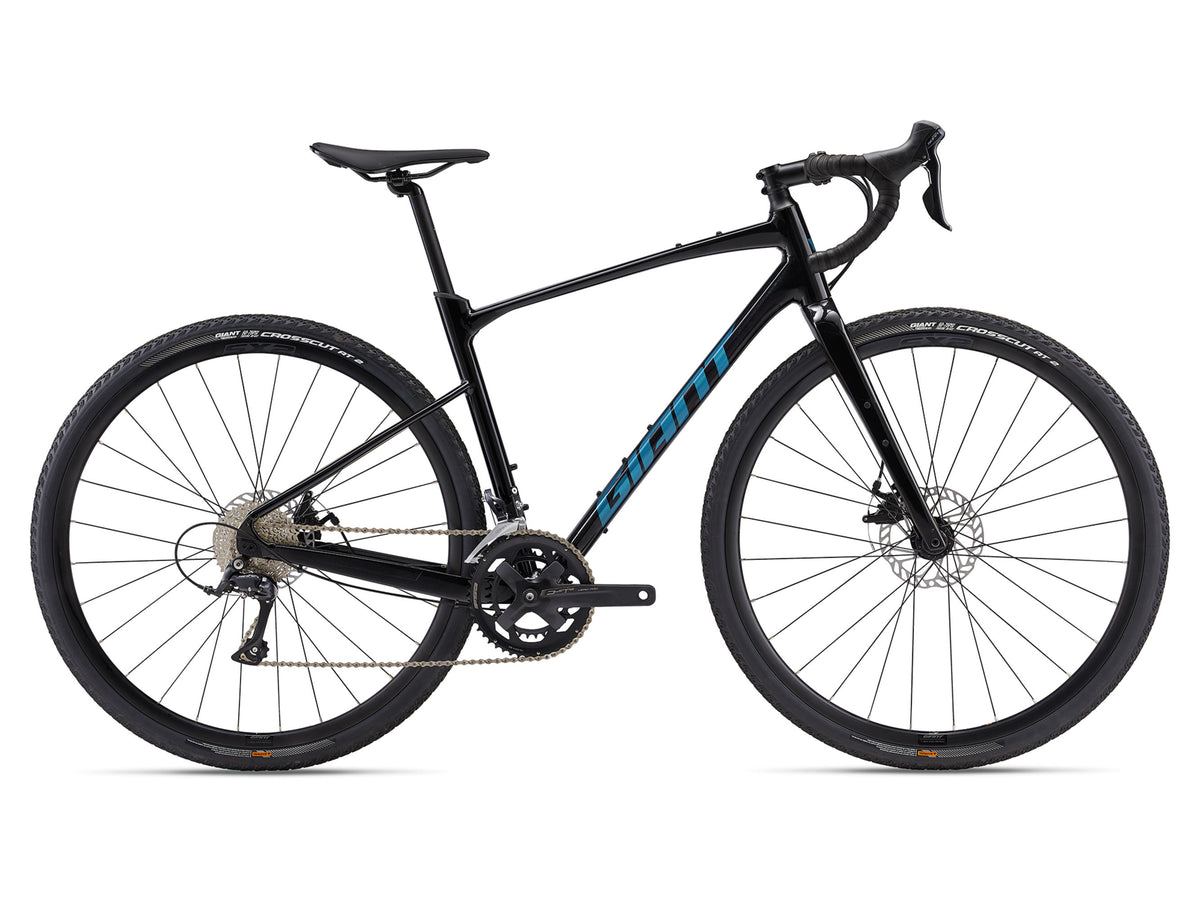

Giant Revolt 2 (2024)

Name: Giant Revolt 2 (2024) Metallic Black / XS
Brand: Giant
SKU: 9079003123
Price: 1699.00 AUD
Availability: OutOfStock

$1,699⁰⁰ ~~$1,899⁰⁰~~

Colour: Metallic Black

Size

XS S M ML L XL

Product variants

PICKUP IN-STORE ONLY. Shipping not available on bikes.

Fully assembled, ready to ride

Buy Now, Pay Later with ZIP

Free service adjustment within first 6 months

Warehouse - Out of stock

Heidelberg Heights - Out of stock

72 Bell Street Heidelberg Heights, Victoria 3081

+61394505200

Hoppers Crossing - Out of stock

319 Old Geelong Road Hoppers Crossing, Victoria 3029

+61387421975

Hallam - Out of stock

21/2-10 Hallam South Road Hallam, Victoria 3803

+61387951600

Sizing Chart

Sizing and Geometry

Giant Revolt

Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.

Sizing	Rider Height	Rider Height (cm)
S	5′ 3″ – 5′ 7″	159 – 171
M	5′ 7″ – 5′ 11″	169 – 181
ML	5′ 9″ – 6′ 1″	174 – 186
L	5′ 10″ – 6′ 3″	179 – 191
XL	6′ 2″ – 6′ 7″	189 – 200

Geometry

bike diagram with measurements referenced in table that follows

		XS	S	M	ML	L	XL
		SHORT \| LONG	SHORT \| LONG	SHORT \| LONG	SHORT \| LONG	SHORT \| LONG	SHORT \| LONG
A	Seat Tube Length (mm)	430	450	470	490	510	530
B	Seat Tube Angle	74.0°	73.5°	73.5°	73.0°	73.0°	73.0°
C	Top Tube Length (mm)	540	550	560	575	585	600
D	Head Tube Length (mm)	125	135	150	165	180	195
E	Head Tube Angle	70.0°	71.0°	71.5°	72.0°	72.0°	72.0°
F	Fork Rake (mm)	50	50	50	50	50	50
G	Trail (mm)	78 \| 82	72 \| 75	68 \| 72	65 \| 68	65 \| 68	65 \| 68
H	Wheelbase (mm)	1024 \| 1034	1020 \| 1030	1026 \| 1036	1031 \| 1041	1041 \| 1051	1056 \| 1066
I	Chain Stay Length (mm)	425 \| 435	425 \| 435	425 \| 435	425 \| 435	425 \| 435	425 \| 435
J	Bottom Bracket Drop (mm)	80 \| 81	80 \| 81	80 \| 81	80 \| 81	80 \| 81	80 \| 81
K	Stack (mm)	556	570	586	602	616	630
L	Reach (mm)	381	381	387	391	397	407
M	Stand Over Height (mm)	724 \| 731	740 \| 747	757 \| 764	774 \| 780	791 \| 797	807 \| 814
O	Stem Length (mm)	50	60	70	80	80	90
P	Crank Length (mm)	170	170	172.5	172.5	175	175
Q	Wheel Size	700c	700c	700c	700c	700c	700c

Shipping Information

Certain bike brands cannot be shipped and are only available for Click and Collect.

These include but are not limited to the following brands: Giant, GT, Liv, Momentum and Mongoose.

For all other brands, we can provide a shipping quote to your postcode. Please contact us by email at staff@ivanhoecycles.com.au, or text us on 0417 122 950.

Sizing and Geometry

Giant Revolt

Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.

Sizing	Rider Height	Rider Height (cm)
S	5′ 3″ – 5′ 7″	159 – 171
M	5′ 7″ – 5′ 11″	169 – 181
ML	5′ 9″ – 6′ 1″	174 – 186
L	5′ 10″ – 6′ 3″	179 – 191
XL	6′ 2″ – 6′ 7″	189 – 200

Geometry

bike diagram with measurements referenced in table that follows

		XS	S	M	ML	L	XL
		SHORT \| LONG	SHORT \| LONG	SHORT \| LONG	SHORT \| LONG	SHORT \| LONG	SHORT \| LONG
A	Seat Tube Length (mm)	430	450	470	490	510	530
B	Seat Tube Angle	74.0°	73.5°	73.5°	73.0°	73.0°	73.0°
C	Top Tube Length (mm)	540	550	560	575	585	600
D	Head Tube Length (mm)	125	135	150	165	180	195
E	Head Tube Angle	70.0°	71.0°	71.5°	72.0°	72.0°	72.0°
F	Fork Rake (mm)	50	50	50	50	50	50
G	Trail (mm)	78 \| 82	72 \| 75	68 \| 72	65 \| 68	65 \| 68	65 \| 68
H	Wheelbase (mm)	1024 \| 1034	1020 \| 1030	1026 \| 1036	1031 \| 1041	1041 \| 1051	1056 \| 1066
I	Chain Stay Length (mm)	425 \| 435	425 \| 435	425 \| 435	425 \| 435	425 \| 435	425 \| 435
J	Bottom Bracket Drop (mm)	80 \| 81	80 \| 81	80 \| 81	80 \| 81	80 \| 81	80 \| 81
K	Stack (mm)	556	570	586	602	616	630
L	Reach (mm)	381	381	387	391	397	407
M	Stand Over Height (mm)	724 \| 731	740 \| 747	757 \| 764	774 \| 780	791 \| 797	807 \| 814
O	Stem Length (mm)	50	60	70	80	80	90
P	Crank Length (mm)	170	170	172.5	172.5	175	175
Q	Wheel Size	700c	700c	700c	700c	700c	700c

Giant Revolt 2 (2024)

Ride roads, gravel or dirt with this versatile aluminium all-rounder. A composite fork gives it a smooth ride, and a flip chip lets you adjust wheelbase and tire clearance.

Confident Handling

Frame is designed with endurance positioning and shorter chain stays for precise handling, agility and control.

A longer reach, shorter stem and lower bottom bracket drop improves stability on rugged terrain.

Comfort

Dropped seat stays with thin tubing absorb road shocks and vibrations. The D-Fuse seat post adds compliance without sacrificing stiffness while cornering, sprinting or climbing.

All-Terrain

A flip chip on the rear dropout adjusts the wheelbase short for quicker handling and acceleration, or long for improved stability at speed.

The long setting allows for larger diameter tyres up to 53mm.

You can choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.

Frame material

Aluminium
Frame

ALUXX-grade aluminium, 12x142mm thru-axle, disc, flip chip dropout
Fork

Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
Handlebar

Giant Contact XR Ergo-Control, 31.8mm | XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
Grips

Cork tape with gel
Stem

Giant Sport, 8-degree | XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
Seatpost

Giant D-Fuse, alloy, 14mm offset
Saddle

Giant Approach
Pedals

N/A
Shifters

Shimano Sora, 2x9 speed
Front Derailleur

Shimano Sora
Rear Derailleur

Shimano Sora, long cage
Brakes

Tektro MD-C550 mechanical, Giant MPH rotors [F]160mm, [R]160mm
Brake Levers

Shimano Sora
Cassette/Freewheel

Shimano HG400, 11T-34T
Chain

KMC X9 with Missing Link
Crankset

FSA Vero Pro, 32T/48T | XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Bottom Bracket

Cartridge
Rims

Giant S-X2, alloy
Hubs

Giant alloy, 12mm thru-axle
Spokes

Stainless
Tyres

Giant CrossCut AT 2, 700x38c, tubeless
Extras

Tubeless prepared, 53mm max tyre size in “long” flip chip position, 45mm max tyre size in “short” flip chip position
Notes

Please note that, based on component availability and other factors, specifications are subject to change without notice.

Giant Revolt 2 (2024)

$1,699⁰⁰ ~~$1,899⁰⁰~~

Colour

Size

Motor

N/A

Controller

N/A

Display

N/A

Battery

N/A

Charger

N/A

Sizes

N/A

Frame material

Aluminium

Frame

ALUXX-grade aluminium, 12x142mm thru-axle, disc, flip chip dropout

Fork

Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc

Handlebar

Giant Contact XR Ergo-Control, 31.8mm | XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm

Grips

Cork tape with gel

Bar Tape

N/A

Headset

N/A

Stem

Giant Sport, 8-degree | XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm

Seatpost

Giant D-Fuse, alloy, 14mm offset

Saddle

Giant Approach

Pedals

N/A

Shifters

Shimano Sora, 2x9 speed

Front Derailleur

Shimano Sora

Rear Derailleur

Shimano Sora, long cage

Brakes

Tektro MD-C550 mechanical, Giant MPH rotors [F]160mm, [R]160mm

Brake Levers

Shimano Sora

Cassette/Freewheel

Shimano HG400, 11T-34T

Chain

KMC X9 with Missing Link

Crankset

FSA Vero Pro, 32T/48T | XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm

Bottom Bracket

Cartridge

Rims

Giant S-X2, alloy

Hubs

Giant alloy, 12mm thru-axle

Spokes

Stainless

Tyres

Giant CrossCut AT 2, 700x38c, tubeless

Wheel Size

N/A

Extras

Tubeless prepared, 53mm max tyre size in “long” flip chip position, 45mm max tyre size in “short” flip chip position
