Giant  |  SKU: 2312009126

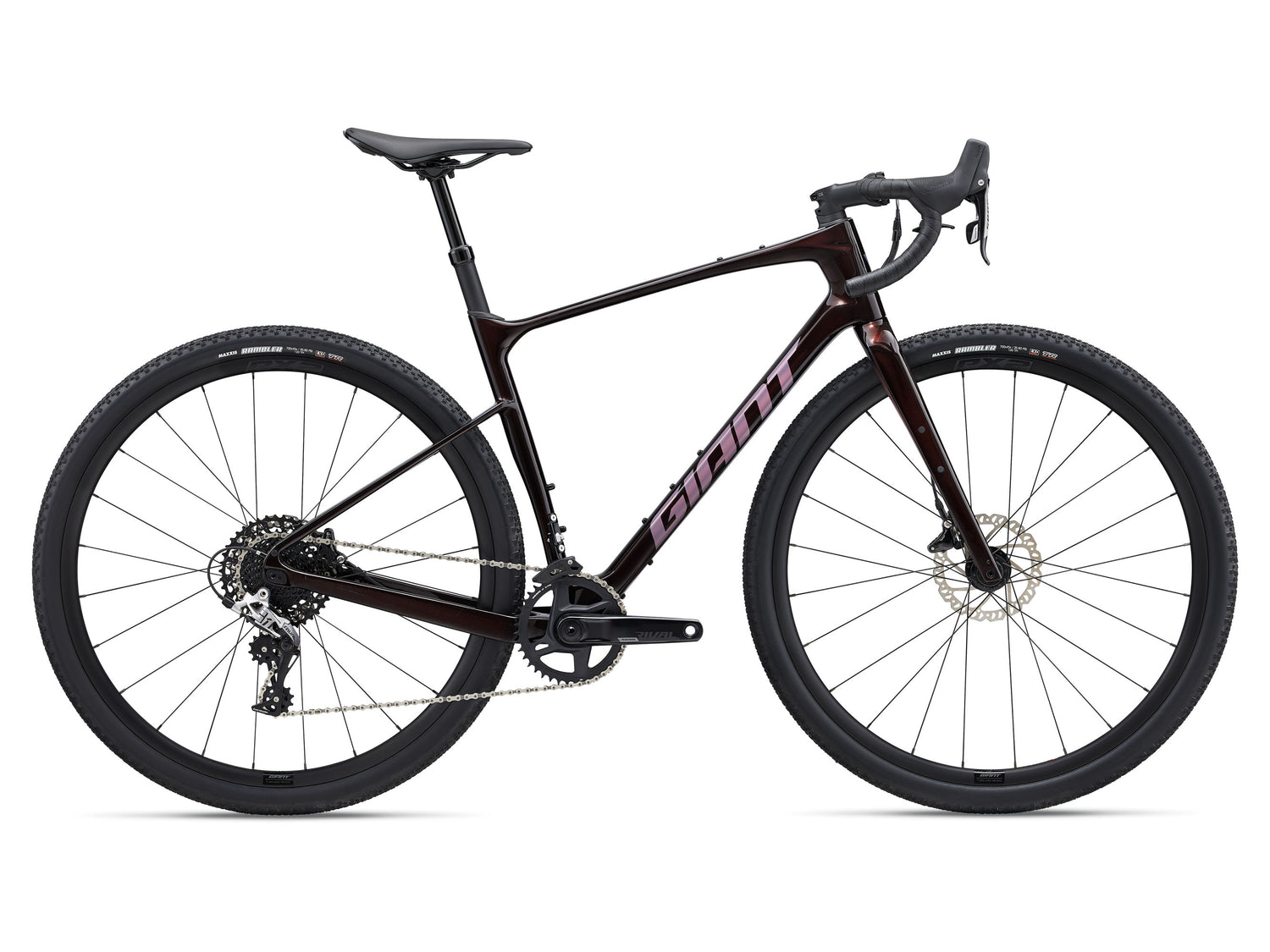

Giant Revolt Advanced 1 (2023)

$3,99900 $4,49900
Colour: Cordovan
Size

PICKUP IN-STORE ONLY. Shipping not available on bikes.

 More payment options

Pickup available at HALLAM

Usually ready in 24 hours
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
Fully assembled, ready to ride
Buy Now, Pay Later with ZIP
Free service adjustment within first 6 months
Warehouse - Out of stock
,
Heidelberg Heights - Out of stock
72 Bell Street Heidelberg Heights, Victoria 3081
+61394505200
Hoppers Crossing - Out of stock
319 Old Geelong Road Hoppers Crossing, Victoria 3029
+61387421975
Hallam - In stock
21/2-10 Hallam South Road Hallam, Victoria 3803
+61387951600

Sizing Chart

Sizing and Geometry

Giant Revolt

Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.

Sizing Rider Height Rider Height (cm)
S 5′ 3″ – 5′ 7″ 159 – 171
M 5′ 7″ – 5′ 11″ 169 – 181
ML 5′ 9″ – 6′ 1″ 174 – 186
L 5′ 10″ – 6′ 3″ 179 – 191
XL 6′ 2″ – 6′ 7″ 189 – 200


Geometry

bike diagram with measurements referenced in table that follows

    XS S M ML L XL
    SHORT | LONG SHORT | LONG SHORT | LONG SHORT | LONG SHORT | LONG SHORT | LONG
A Seat Tube Length (mm) 430 450 470 490 510 530
B Seat Tube Angle 74.0° 73.5° 73.5° 73.0° 73.0° 73.0°
C Top Tube Length (mm) 540 550 560 575 585 600
D Head Tube Length (mm) 125 135 150 165 180 195
E Head Tube Angle 70.0° 71.0° 71.5° 72.0° 72.0° 72.0°
F Fork Rake (mm) 50 50 50 50 50 50
G Trail (mm) 78 | 82 72 | 75 68 | 72 65 | 68 65 | 68 65 | 68
H Wheelbase (mm) 1024 | 1034 1020 | 1030 1026 | 1036 1031 | 1041 1041 | 1051 1056 | 1066
I Chain Stay Length (mm) 425 | 435 425 | 435 425 | 435 425 | 435 425 | 435 425 | 435
J Bottom Bracket Drop (mm) 80 | 81 80 | 81 80 | 81 80 | 81 80 | 81 80 | 81
K Stack (mm) 556 570 586 602 616 630
L Reach (mm) 381 381 387 391 397 407
M Stand Over Height (mm) 724 | 731 740 | 747 757 | 764 774 | 780 791 | 797 807 | 814
O Stem Length (mm) 50 60 70 80 80 90
P Crank Length (mm) 170 170 172.5 172.5 175 175
Q Wheel Size 700c 700c 700c 700c 700c 700c

Shipping Information

Certain bike brands cannot be shipped and are only available for Click and Collect.

These include but are not limited to the following brands: Giant, GT, Liv, Momentum and Mongoose.

For all other brands, we can provide a shipping quote to your postcode. Please contact us by email at staff@ivanhoecycles.com.au, or text us on 0417 122 950.

Giant Revolt Advanced 1 (2023)

ROUGH ROADS, GRAVEL OR DIRT. HOWEVER YOU CHOOSE TO ROLL, THIS BIKE DOES IT ALL.

THE LIGHTWEIGHT, SMOOTH-RIDING COMPOSITE FRAMESET AND ADJUSTABLE WHEELBASE MAKE IT MORE CAPABLE THAN EVER.

Fast and light

Advanced composite frame and fork save more than 160 grams compared to previous model. Updated geometry includes a lower bottom bracket, longer reach and steeper head tube angle for improved acceleration and climbing.

Tuned compliance

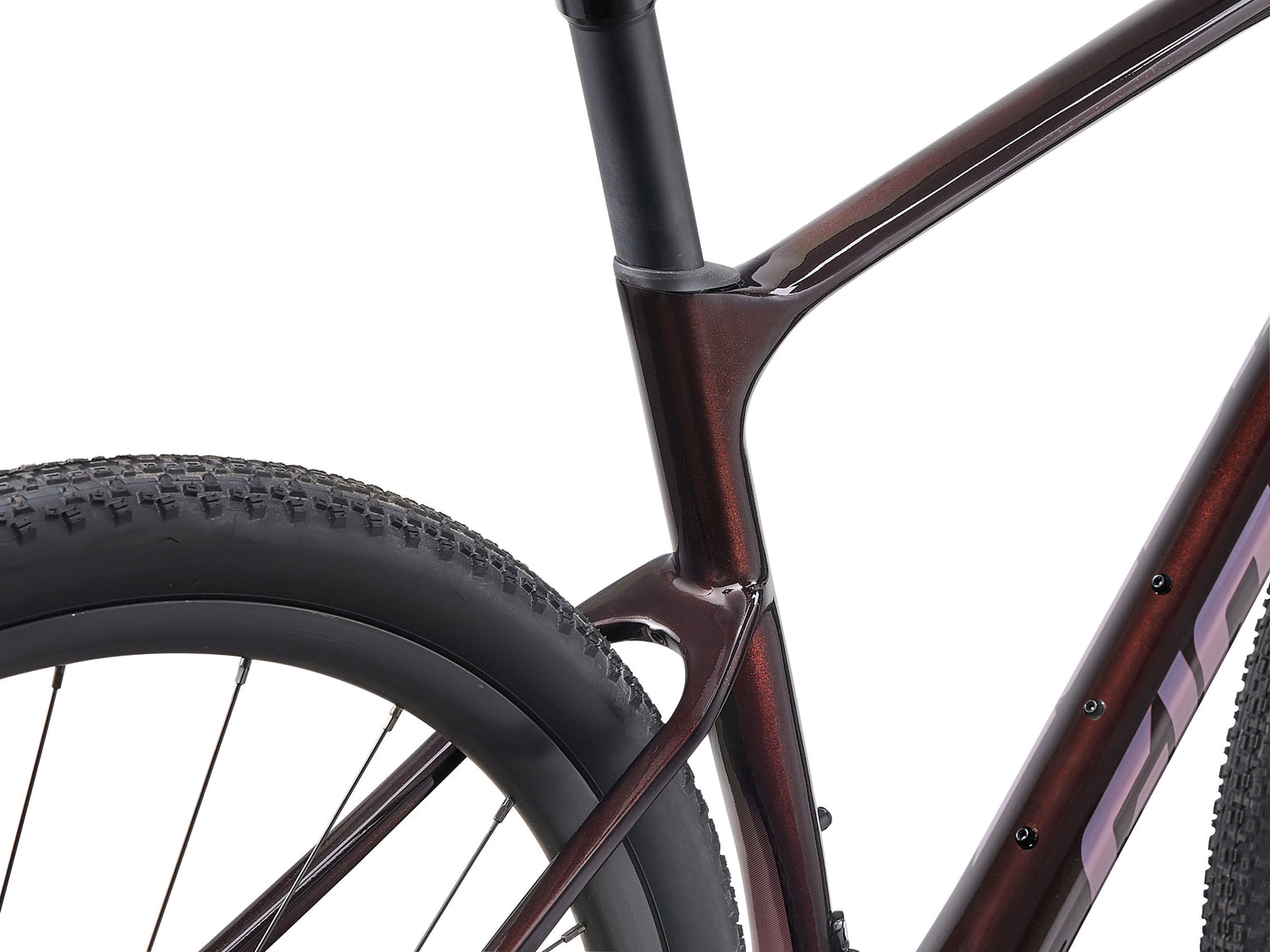

Dropped seatstays with thin tubing absorbs road shocks and vibrations. D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.

Adaptable to the terrain

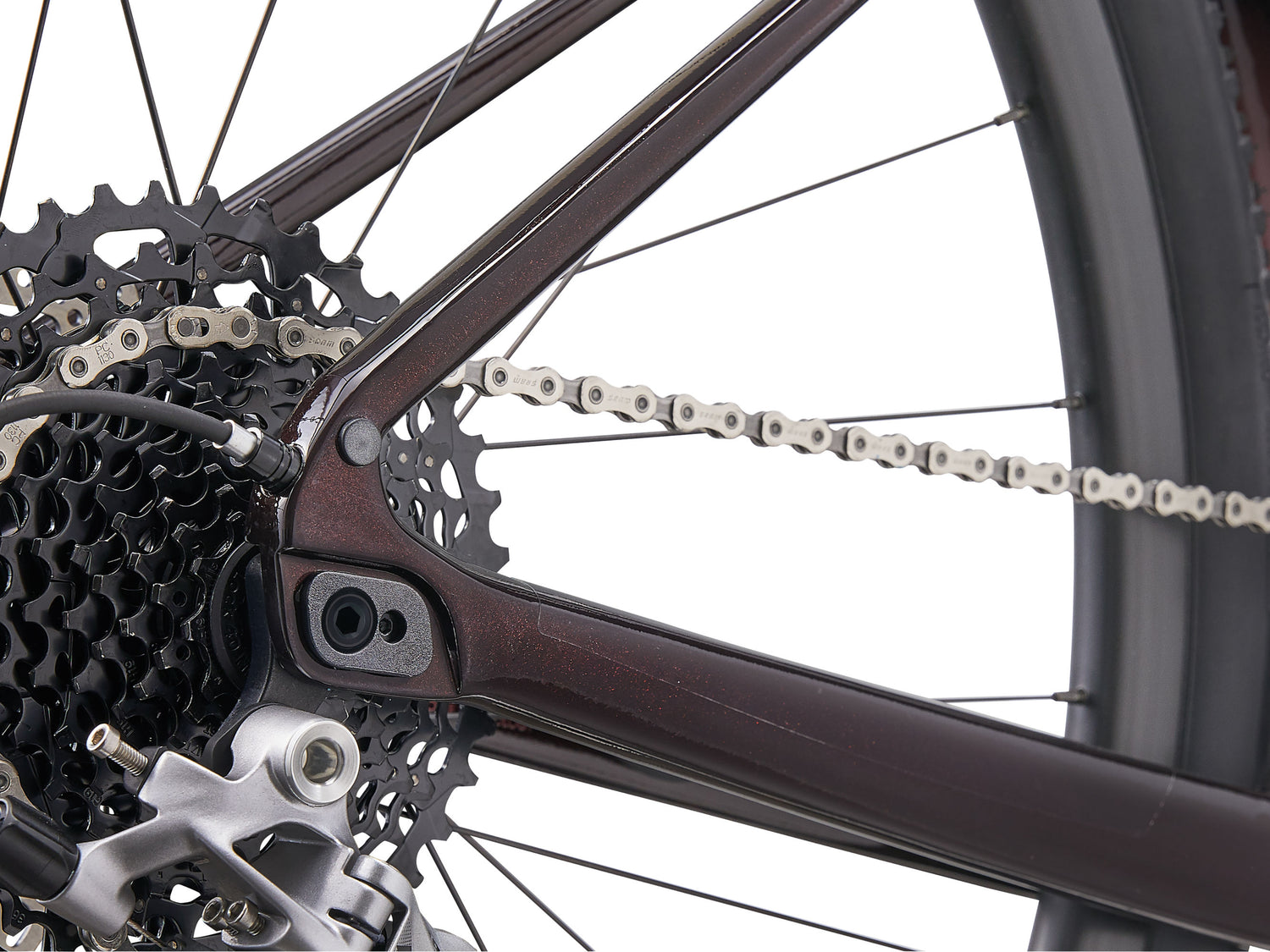

A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling, or long for improved stability at speed.

The long setting allows for larger diameter tyres up to 53mm.

You can also choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.

New content loaded

Giant Revolt Advanced 1 (2023)

From $3,99900 $4,49900

Colour

Size

  • M
  • ML
  • XS

Motor

N/A

Controller

N/A

Display

N/A

Battery

N/A

Charger

N/A

Sizes

N/A

Frame material

Carbon

Frame

Advanced-Grade Composite, 12x142mm thru-axle, disc, flip chip dropout

Fork

Advanced-Grade Composite, full-composite OverDrive steerer, 12mm thru-axle, disc

Handlebar

Giant Contact XR D-Fuse, 31.8mm | XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm

Grips

Stratus Lite 3.0

Bar Tape

N/A

Headset

N/A

Stem

N/A

Seatpost

Giant Contact Switch, dropper, 30.9mm | XS:295mm, S:345mm, M:345mm, M/L:345mm, L:395mm, XL:395mm

Saddle

Giant Approach

Pedals

N/A

Shifters

SRAM Rival 1, 1x11

Front Derailleur

N/A

Rear Derailleur

SRAM Rival 1, 11 speed

Brakes

SRAM Rival 1 hydraulic, Giant MPH rotors [F]160mm, [R]160mm

Brake Levers

SRAM Rival 1, left lever dropper switch

Cassette/Freewheel

SRAM Rival, 11-speed, 11x42T

Chain

SRAM Rival D1

Crankset

SRAM Rival D1 Wide DUB, 40t | XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm

Bottom Bracket

SRAM DUB, press fit

Rims

Giant P-X2 Disc, alloy

Hubs

Giant alloy, 12mm thru-axle

Spokes

Sapim

Tyres

Maxxis Rambler, 700x45c, tubeless

Wheel Size

N/A

Extras

Giant 1x chain guide, tubeless prepared, 53mm max tyre size in "long" flip chip position, 45mm max tyre size in "short" flip chip position
