Giant  |  SKU: 9079014123

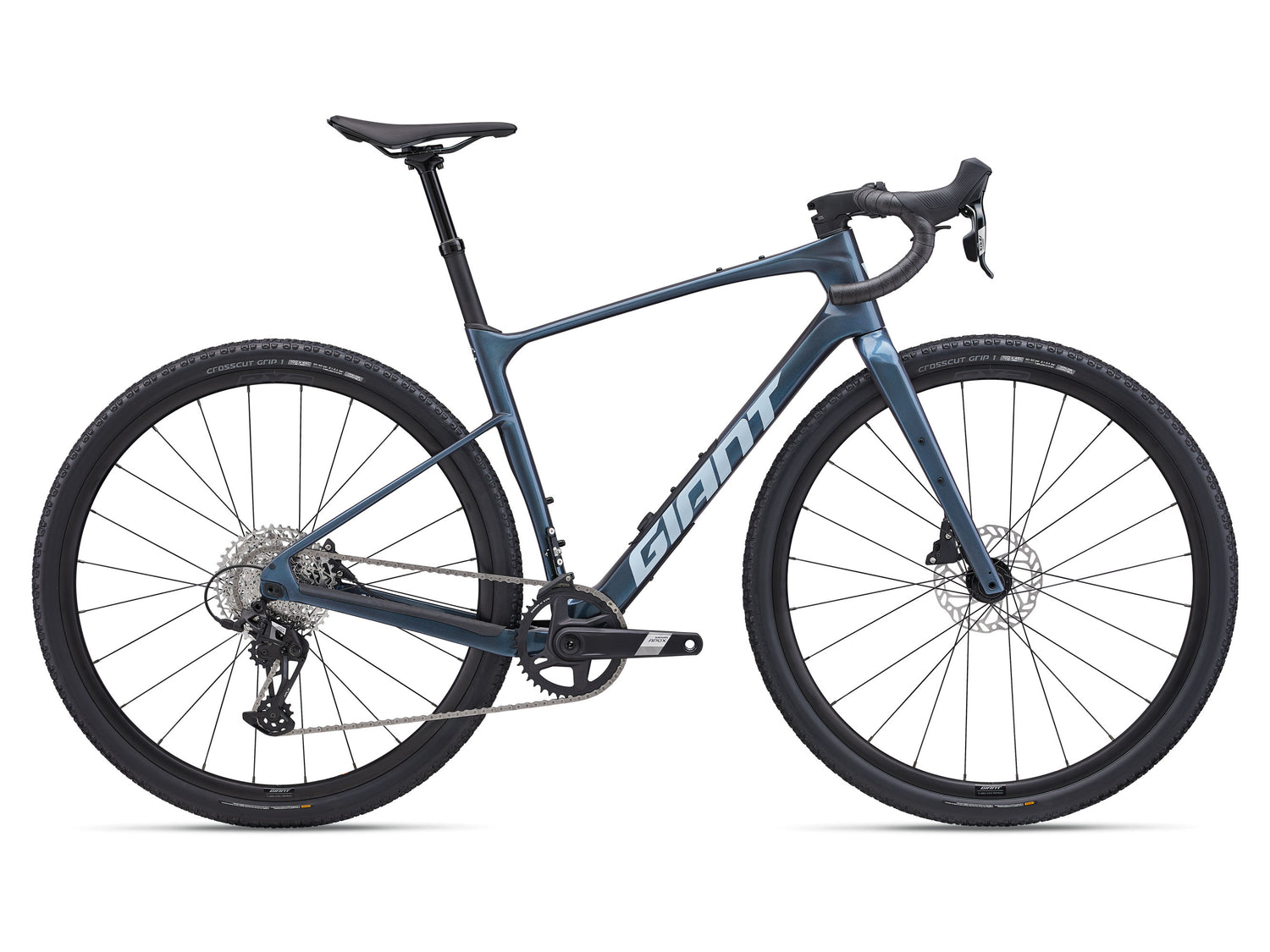

Giant Revolt Advanced 1 (2025)

$3,89900 $4,19900
Colour: Ocean Twilight
Size

Pickup in-store only. Shipping not available.
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay

Sizing Chart

Sizing and Geometry

Giant Revolt

Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.

Sizing Rider Height Rider Height (cm)
S 5′ 3″ – 5′ 7″ 159 – 171
M 5′ 7″ – 5′ 11″ 169 – 181
ML 5′ 9″ – 6′ 1″ 174 – 186
L 5′ 10″ – 6′ 3″ 179 – 191
XL 6′ 2″ – 6′ 7″ 189 – 200


Geometry

bike diagram with measurements referenced in table that follows

    XS S M ML L XL
    SHORT | LONG SHORT | LONG SHORT | LONG SHORT | LONG SHORT | LONG SHORT | LONG
A Seat Tube Length (mm) 430 450 470 490 510 530
B Seat Tube Angle 74.0° 73.5° 73.5° 73.0° 73.0° 73.0°
C Top Tube Length (mm) 540 550 560 575 585 600
D Head Tube Length (mm) 125 135 150 165 180 195
E Head Tube Angle 70.0° 71.0° 71.5° 72.0° 72.0° 72.0°
F Fork Rake (mm) 50 50 50 50 50 50
G Trail (mm) 78 | 82 72 | 75 68 | 72 65 | 68 65 | 68 65 | 68
H Wheelbase (mm) 1024 | 1034 1020 | 1030 1026 | 1036 1031 | 1041 1041 | 1051 1056 | 1066
I Chain Stay Length (mm) 425 | 435 425 | 435 425 | 435 425 | 435 425 | 435 425 | 435
J Bottom Bracket Drop (mm) 80 | 81 80 | 81 80 | 81 80 | 81 80 | 81 80 | 81
K Stack (mm) 556 570 586 602 616 630
L Reach (mm) 381 381 387 391 397 407
M Stand Over Height (mm) 724 | 731 740 | 747 757 | 764 774 | 780 791 | 797 807 | 814
O Stem Length (mm) 50 60 70 80 80 90
P Crank Length (mm) 170 170 172.5 172.5 175 175
Q Wheel Size 700c 700c 700c 700c 700c 700c

Shipping Information

This product: Pickup in-store only. Shipping not available.

Shipping available†

We offer shipping on select brands including: Rocky Mountain, Orbea, XDS, Icon, Jamis, Shogun, Schwinn, BYK, Kidvelo. These bikes are shipped unbuilt in their original box.

†Only bikes stocked at our Warehouse location are available for shipping.

Shipping upon request to your local bike shop

Some brands require the bike is delivered directly to a bicycle shop or mechanic for assembly, and shipping is not available to your residence. These include GT, Cannondale, .

Request a shipping quote to proceed.

Pickup in-store only

Certain bike brands cannot be shipped and are only available for Click and Collect or purchase in-store.

These include but are not limited to the following brands: Giant, Norco, Liv, Momentum, Malvern Star and Mongoose.

Pre-assembled bikes

†Any bikes in stock at our Heidelberg Heights, Hallam or Hoppers Crossing store locations are already fully assembled, and therefore only available for Click and Collect or purchase in-store.

Fully assembled when you Click & Collect in-store
Buy Now, Pay Later with ZIP
Free service adjustment within first 6 months

Giant Revolt Advanced 1 (2025)

For those who like their gravel riding fast and free, this lightweight composite flyer lets you choose your objective:

Pin on a number and go for the win, or chart a weekend adventure and discover how far you can go.

With its composite frame, adjustable wheelbase, and internal storage to carry your essentials, the Revolt Advanced is ready for anything.

Fast and Versatile

An Advanced-grade composite frame and fork combine for lightweight efficiency and smooth control.

A two-position flip chip on the rear dropout lets you adjust the wheelbase: short for quicker handling, or long for added tyre clearance (up to 53mm) and improved stability.

You can use the included D-Fuse seatpost* for more flex and compliance, or switch to a traditional 30.9mm round seatpost or dropper post.

Tuned Compliance

Dropped seatstays with small-diameter tubing absorb road shocks and vibrations on all types of gravel.

The Contact SL XR D-Fuse alloy handlebar and carbon D-Fuse seatpost* help smooth out rough tracks, improving control and minimising fatigue over long distances.

Smart Integration

Internally routed cables offer clean, uncluttered cockpit aesthetics and improved aero performance.

An easily accessed storage compartment inside the top tube lets you securely carry tools, snacks and other essentials.

And additional integrated mounts on the top tube, fork and rear dropout make it easy to modify with additional packs or fenders.

All-new, moulded, chainstay and down tube protection help defend the frame against impacts and quell noise.

Giant Revolt Advanced 1 (2025)

$3,89900 $4,19900

Colour

Size

  • XS
  • S
  • M
  • ML
  • L
  • XL

Motor

N/A

Controller

N/A

Display

N/A

Battery

N/A

Charger

N/A

Sizes

N/A

Frame material

Carbon

Frame

Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout, down tube storage

Fork

Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc

Handlebar

Giant Contact XR D-Fuse, 31.8mm | XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm

Grips

Stratus Lite 3.0

Bar Tape

N/A

Headset

N/A

Stem

Giant Contact AeroLight, -10 degree | XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm

Seatpost

Post Moderne, dropper, 30.9mm with 30mm of suspension | XS:365mm / 75mm drop, S:415mm / 100mm drop, M:415mm / 100mm drop, M/L: 415mm / 100mm drop, L:415mm / 100mm drop, XL: 415mm / 100mm drop

Saddle

Giant Approach

Pedals

N/A

Shifters

SRAM Apex 1, 1x12 speed

Front Derailleur

N/A

Rear Derailleur

SRAM Apex 1, 12 speed

Brakes

SRAM Apex hydraulic, Giant MPH rotors [F]160mm, [R]160mm

Brake Levers

SRAM Rival 1, left lever dropper switch

Cassette/Freewheel

SRAM PG-1231, 12-speed, 11Tx44T

Chain

SRAM Apex D1

Crankset

SRAM Apex 1 Wide DUB, 40t | XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm

Bottom Bracket

SRAM DUB, press fit

Rims

Giant P-X2, alloy

Hubs

Giant alloy, 12mm thru-axle

Spokes

Sapim

Tyres

Giant Crosscut Grip, 700x45c, tubeless

Wheel Size

N/A

Extras

Giant 1x chain guide, tubeless prepared, 53mm max tyre size in "long" flip chip position, 45mm max tyre size in "short" flip chip position, in-frame storage bag
