Giant  |  SKU: 9080002105

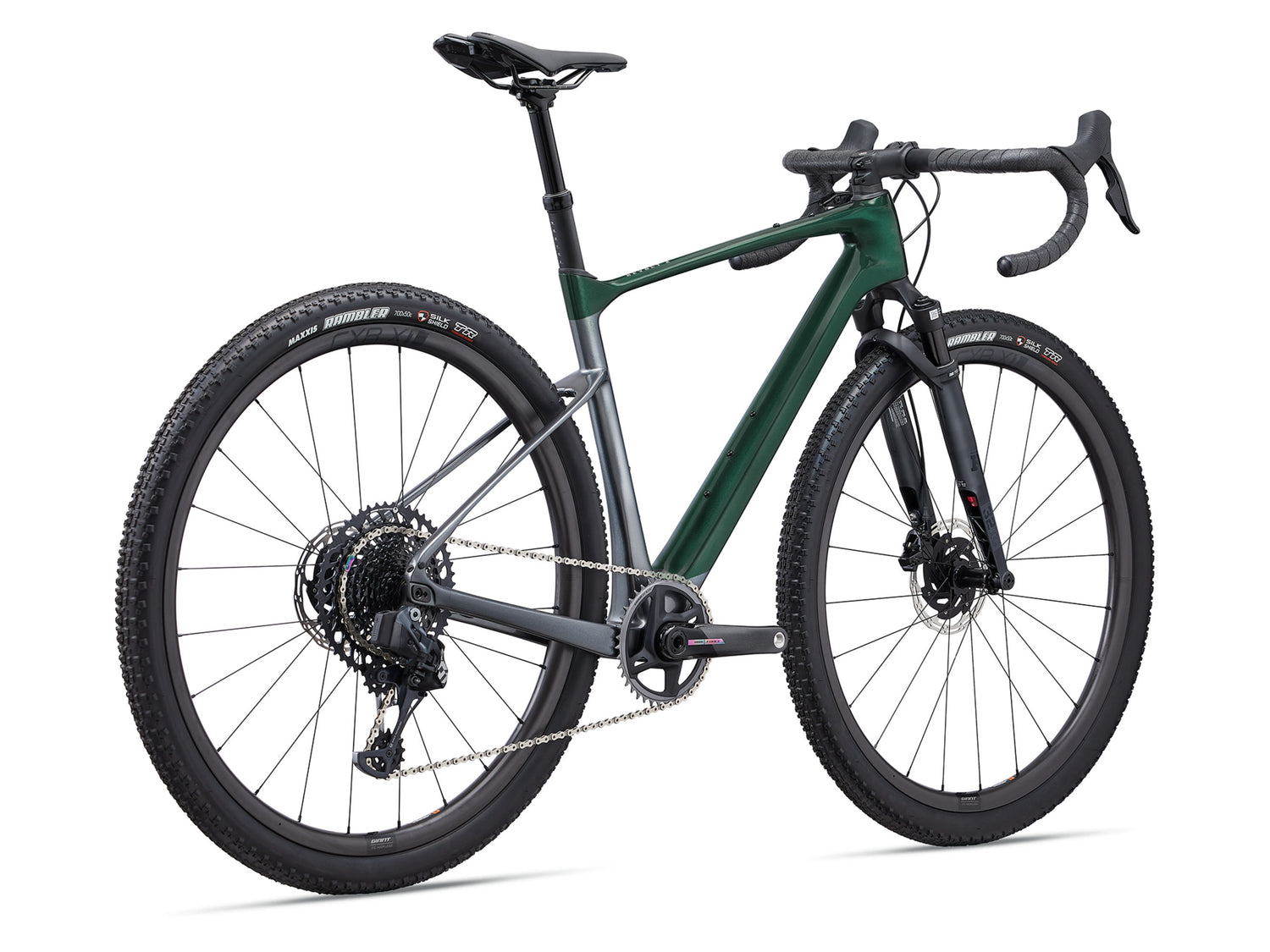

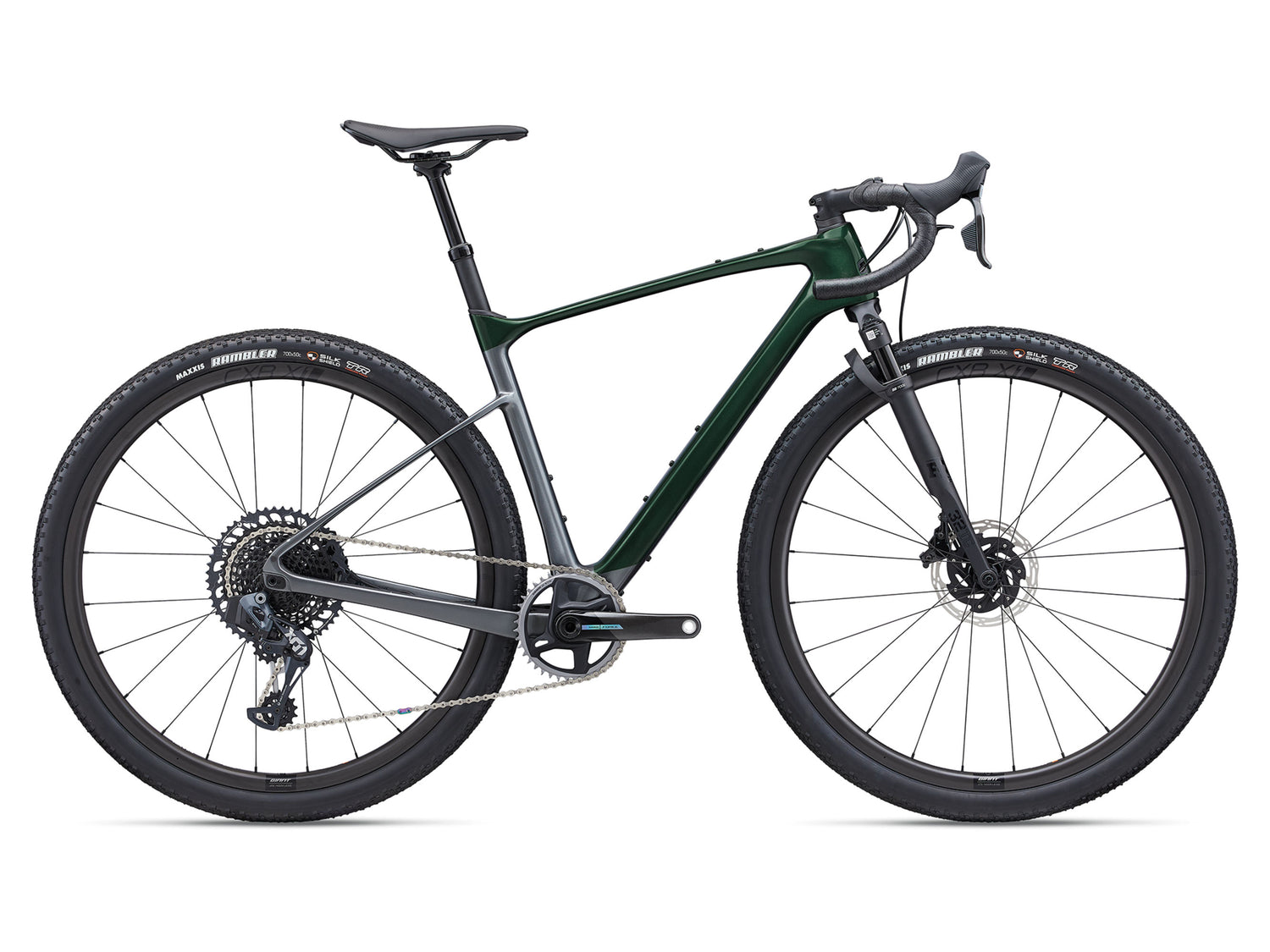

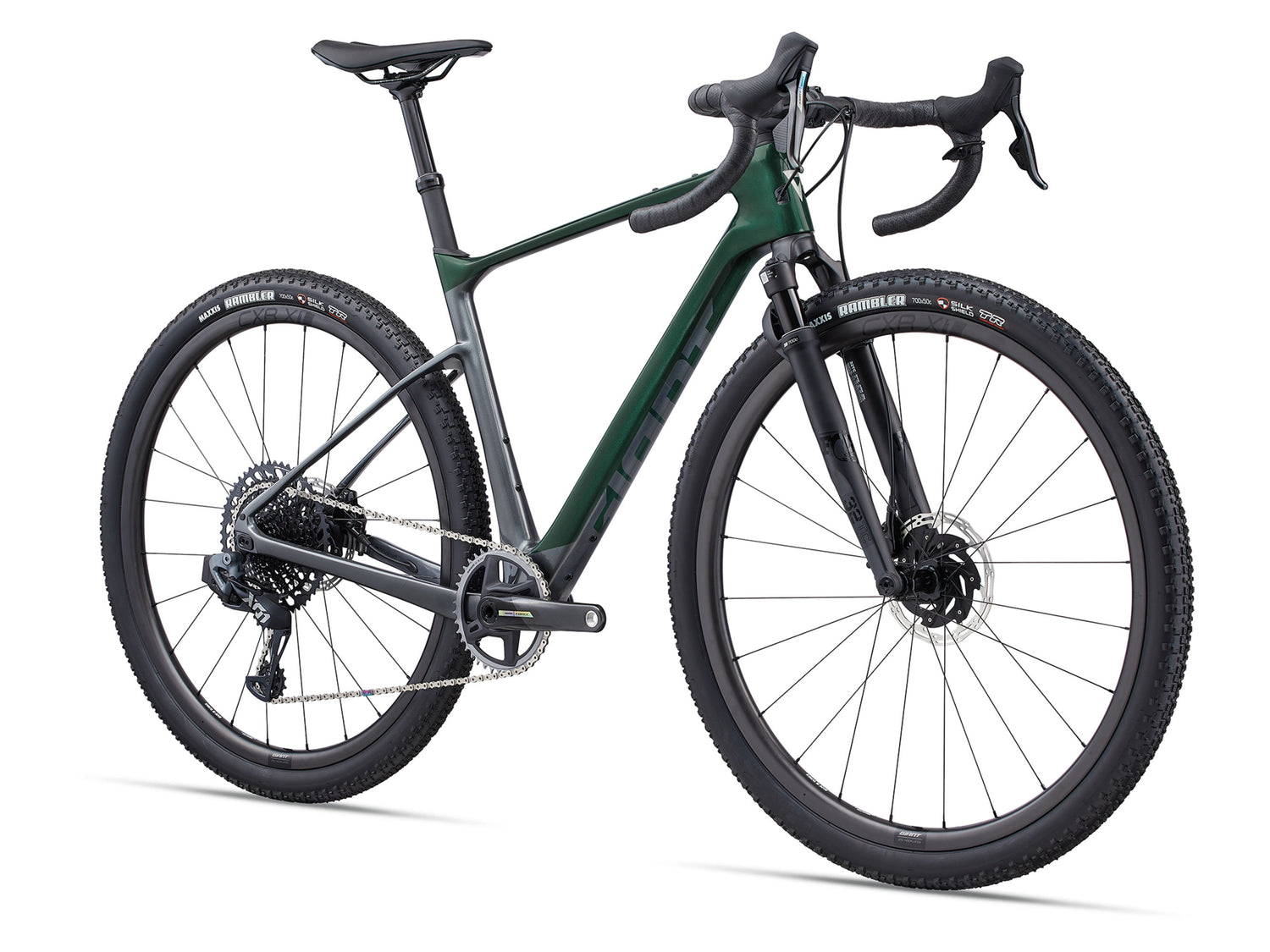

Giant Revolt X Advanced Pro 0 (2024)

$7,49900 $8,99900
Colour: Kelp Forest/Charcoal
Size

PICKUP IN-STORE ONLY. Shipping not available on bikes.

 More payment options

Pickup currently unavailable at HALLAM
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
Fully assembled, ready to ride
Buy Now, Pay Later with ZIP
Free service adjustment within first 6 months
Warehouse - Out of stock
,
Heidelberg Heights - In stock
72 Bell Street Heidelberg Heights, Victoria 3081
+61394505200
Hoppers Crossing - Out of stock
319 Old Geelong Road Hoppers Crossing, Victoria 3029
+61387421975
Hallam - Out of stock
21/2-10 Hallam South Road Hallam, Victoria 3803
+61387951600

Sizing Chart

Sizing and Geometry

Giant Revolt

Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.

Sizing Rider Height Rider Height (cm)
S 5′ 3″ – 5′ 7″ 159 – 171
M 5′ 7″ – 5′ 11″ 169 – 181
ML 5′ 9″ – 6′ 1″ 174 – 186
L 5′ 10″ – 6′ 3″ 179 – 191
XL 6′ 2″ – 6′ 7″ 189 – 200


Geometry

bike diagram with measurements referenced in table that follows

    XS S M ML L XL
    SHORT | LONG SHORT | LONG SHORT | LONG SHORT | LONG SHORT | LONG SHORT | LONG
A Seat Tube Length (mm) 430 450 470 490 510 530
B Seat Tube Angle 74.0° 73.5° 73.5° 73.0° 73.0° 73.0°
C Top Tube Length (mm) 540 550 560 575 585 600
D Head Tube Length (mm) 125 135 150 165 180 195
E Head Tube Angle 70.0° 71.0° 71.5° 72.0° 72.0° 72.0°
F Fork Rake (mm) 50 50 50 50 50 50
G Trail (mm) 78 | 82 72 | 75 68 | 72 65 | 68 65 | 68 65 | 68
H Wheelbase (mm) 1024 | 1034 1020 | 1030 1026 | 1036 1031 | 1041 1041 | 1051 1056 | 1066
I Chain Stay Length (mm) 425 | 435 425 | 435 425 | 435 425 | 435 425 | 435 425 | 435
J Bottom Bracket Drop (mm) 80 | 81 80 | 81 80 | 81 80 | 81 80 | 81 80 | 81
K Stack (mm) 556 570 586 602 616 630
L Reach (mm) 381 381 387 391 397 407
M Stand Over Height (mm) 724 | 731 740 | 747 757 | 764 774 | 780 791 | 797 807 | 814
O Stem Length (mm) 50 60 70 80 80 90
P Crank Length (mm) 170 170 172.5 172.5 175 175
Q Wheel Size 700c 700c 700c 700c 700c 700c

Shipping Information

Certain bike brands cannot be shipped and are only available for Click and Collect.

These include but are not limited to the following brands: Giant, GT, Liv, Momentum and Mongoose.

For all other brands, we can provide a shipping quote to your postcode. Please contact us by email at staff@ivanhoecycles.com.au, or text us on 0417 122 950.

Giant Revolt X Advanced Pro 0 (2024)

Washboard descents, sketchy dirt, gravel and rocks of all shapes and sizes.

You never know what you'll get on a gravel ride.

This new composite gravel machine features a suspension fork and engineered compliance to help you float through all of it with speed and control.

Smooth Control

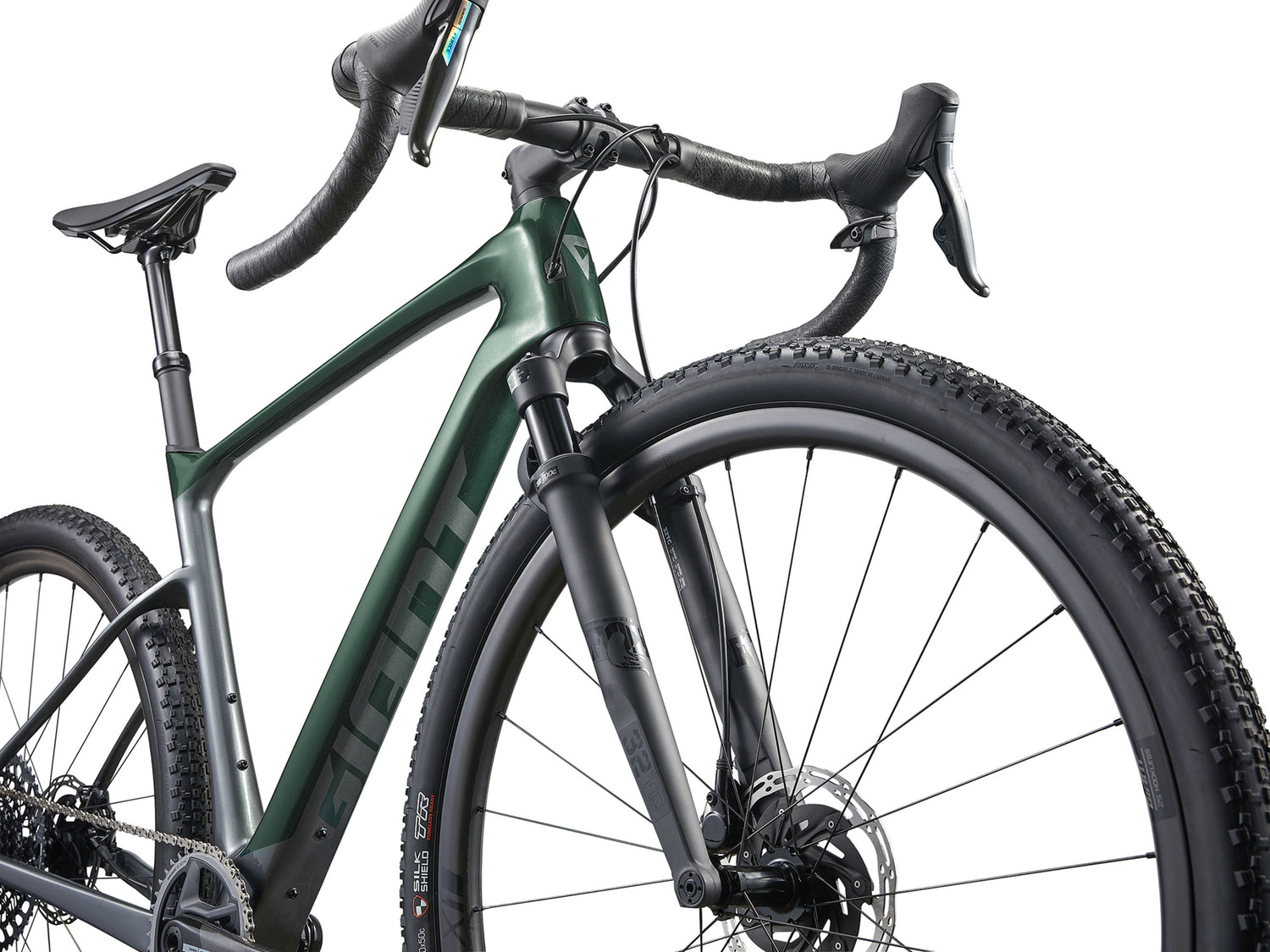

Composite frameset is designed specifically for front suspension. With 40mm of travel, the fork absorbs bumps and impacts so you can ride smoother and faster over rugged gravel and dirt.

Tuned Compliance

Lowered seatstays with smaller diameter tubes absorb road shocks and vibrations. A Contact SL XR D-Fuse handlebar adds more compliance without sacrificing the stiffness needed for cornering, sprinting or climbing.

Adaptable

A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling, or long for improved stability at speed. The long setting also allows for larger diameter tyres up to 53mm.

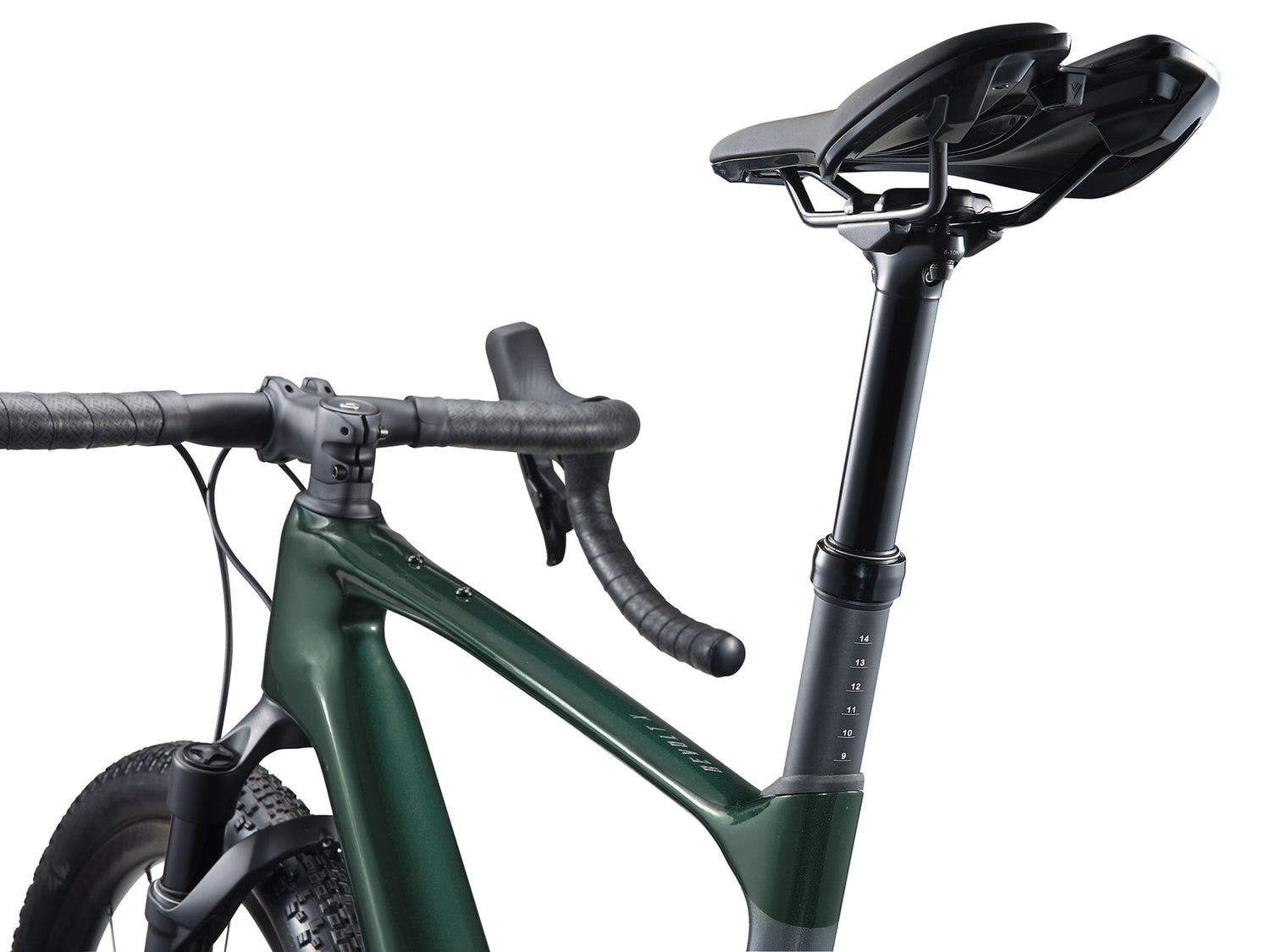

You can use the included dropper seatpost for maximum confidence, or switch to a proprietary D-Fuse seatpost or a standard 30.9mm round seatpost.

New content loaded

Giant Revolt X Advanced Pro 0 (2024)

$7,49900 $8,99900

Colour

Size

  • XS
  • S
  • M
  • ML
  • L
  • XL

Motor

N/A

Controller

N/A

Display

N/A

Battery

N/A

Charger

N/A

Sizes

N/A

Frame material

Carbon

Frame

Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout

Fork

Fox 32 Float TC Performance Elite, 40mm, Fit 4 damper12x100mm thru-axle

Handlebar

Giant Contact SL XR D-Fuse, 16-degree flare, 31.8mm | XS:44cm, S:44cm, M:46cm, M/L:46cm, L:48cm, XL:48cm

Grips

Stratus Lite 3.0

Bar Tape

N/A

Headset

N/A

Stem

Giant Contact, 8-degree | XS:50mm, S:60mm, M:70mm, M/L:70mm, L:80mm, XL:80mm

Seatpost

Post Moderne, dropper, 30.9mm with 25mm of suspension | XS:365mm / 75mm drop S:415mm / 100mm drop M:415mm / 100mm drop M/L: 415mm / 100mm drop L:415mm / 100mm drop XL: 415mm / 100mm drop

Saddle

Giant Approach SL

Pedals

N/A

Shifters

SRAM Force eTap AXS, 1x12 speed

Front Derailleur

N/A

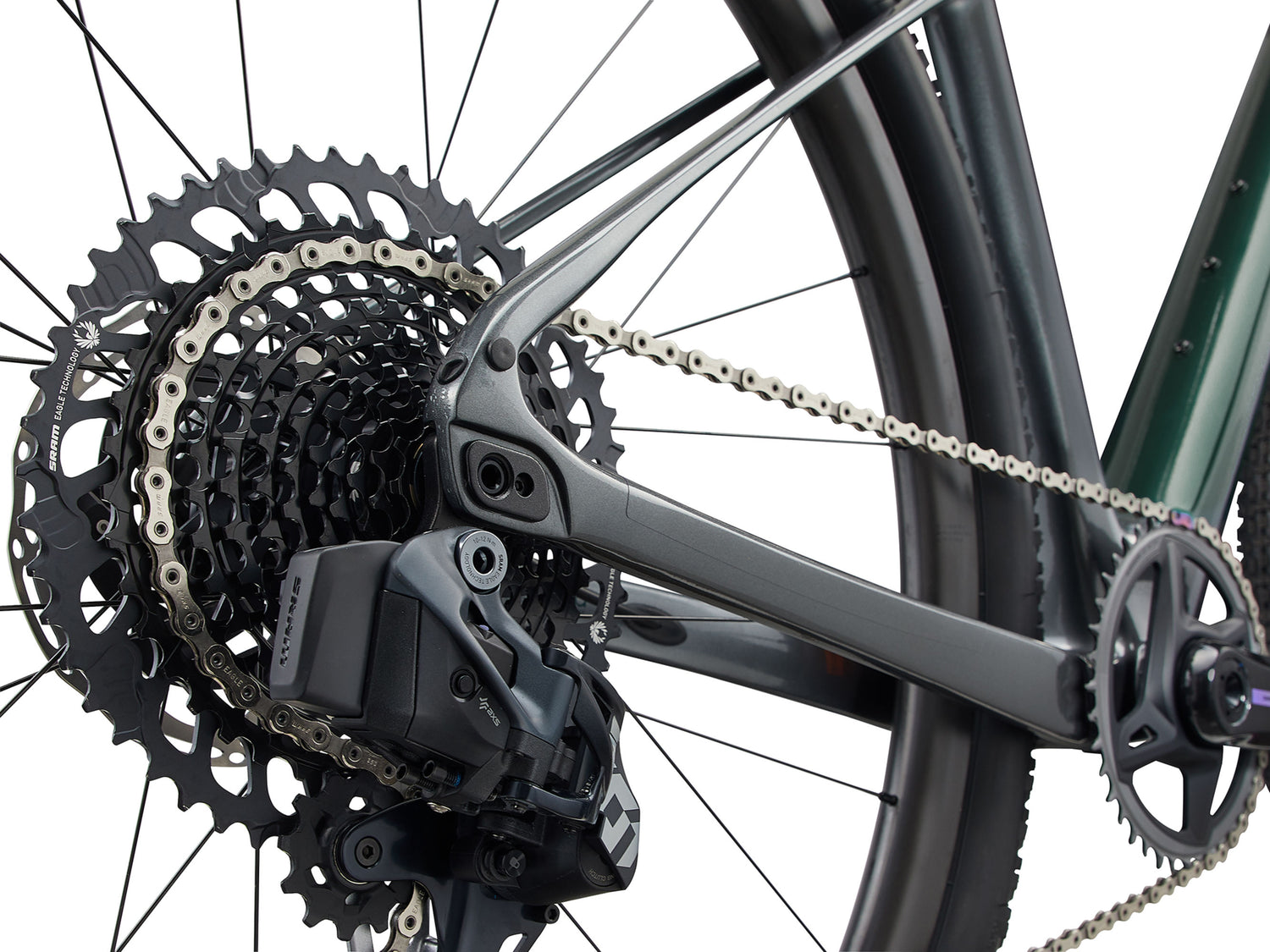

Rear Derailleur

SRAM X01 Eagle AXS, 12 speed

Brakes

SRAM Force eTap AXS hydraulic, SRAM CenterLine rotors [F]160mm, [R]160mm

Brake Levers

SRAM Force eTap AXS hydraulic, left lever dropper switch

Cassette/Freewheel

SRAM XG-1295, 12-speed, 10x52T

Chain

SRAM X01 Eagle, 12 speed

Crankset

SRAM FORCE 1 Wide, DUB 1X 40T | XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm

Bottom Bracket

SRAM DUB, press fit

Rims

Giant CXR 1 X1 Carbon

Hubs

[F] Giant AR alloy, CenterLock, 12mm thru-axle [R] Giant AR alloy, 36t ratchet system, CenterLock, 12mm thru-axle

Spokes

Sapim CX-Ray

Tyres

Maxxis Rambler, 700x50c, tubeless prepared

Wheel Size

N/A

Extras

Tubeless prepared, 53mm max tyre size in "long" flip chip position, 45mm max tyre size in "short" flip chip position
