Giant  |  SKU: 9080004103

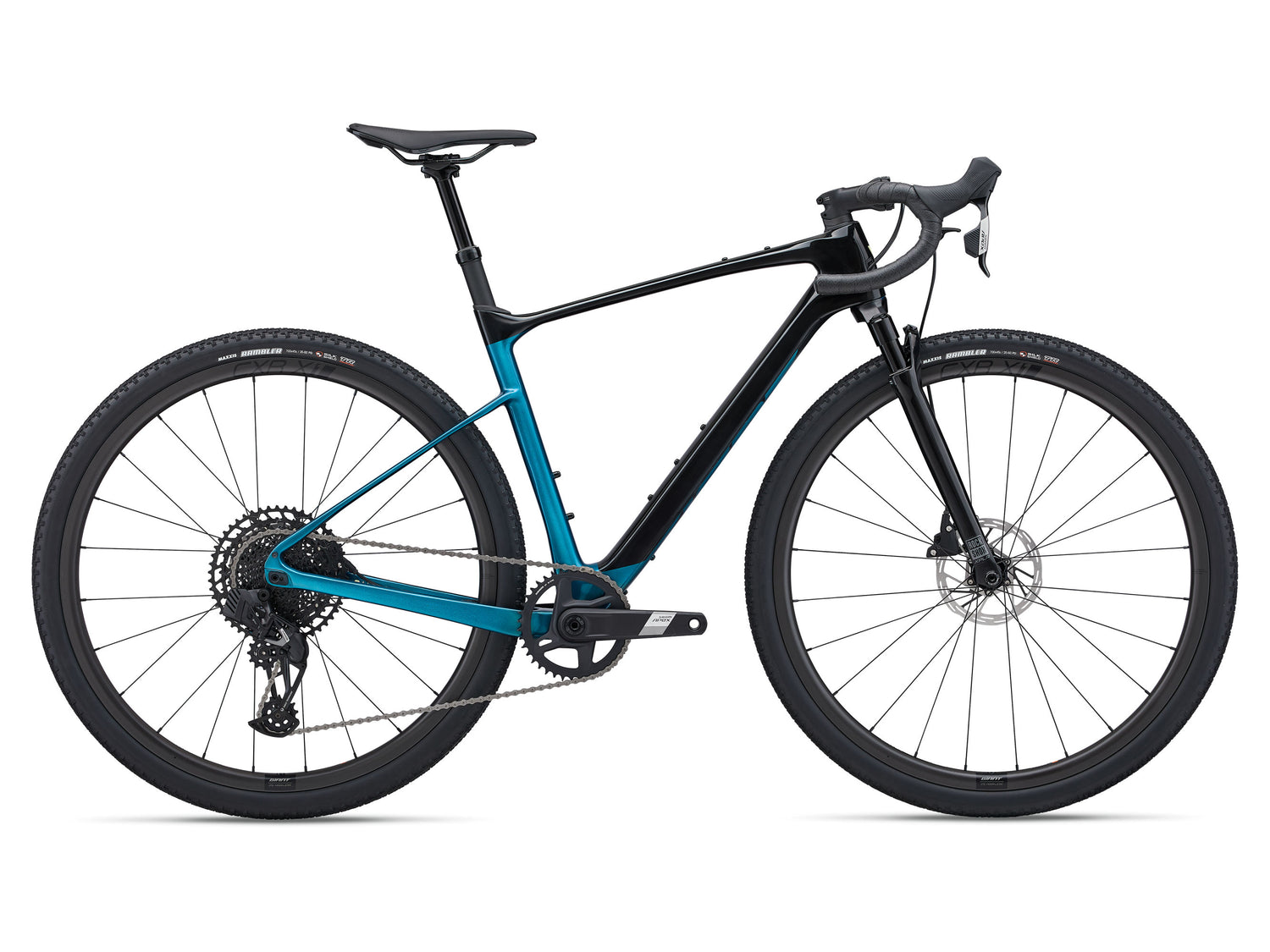

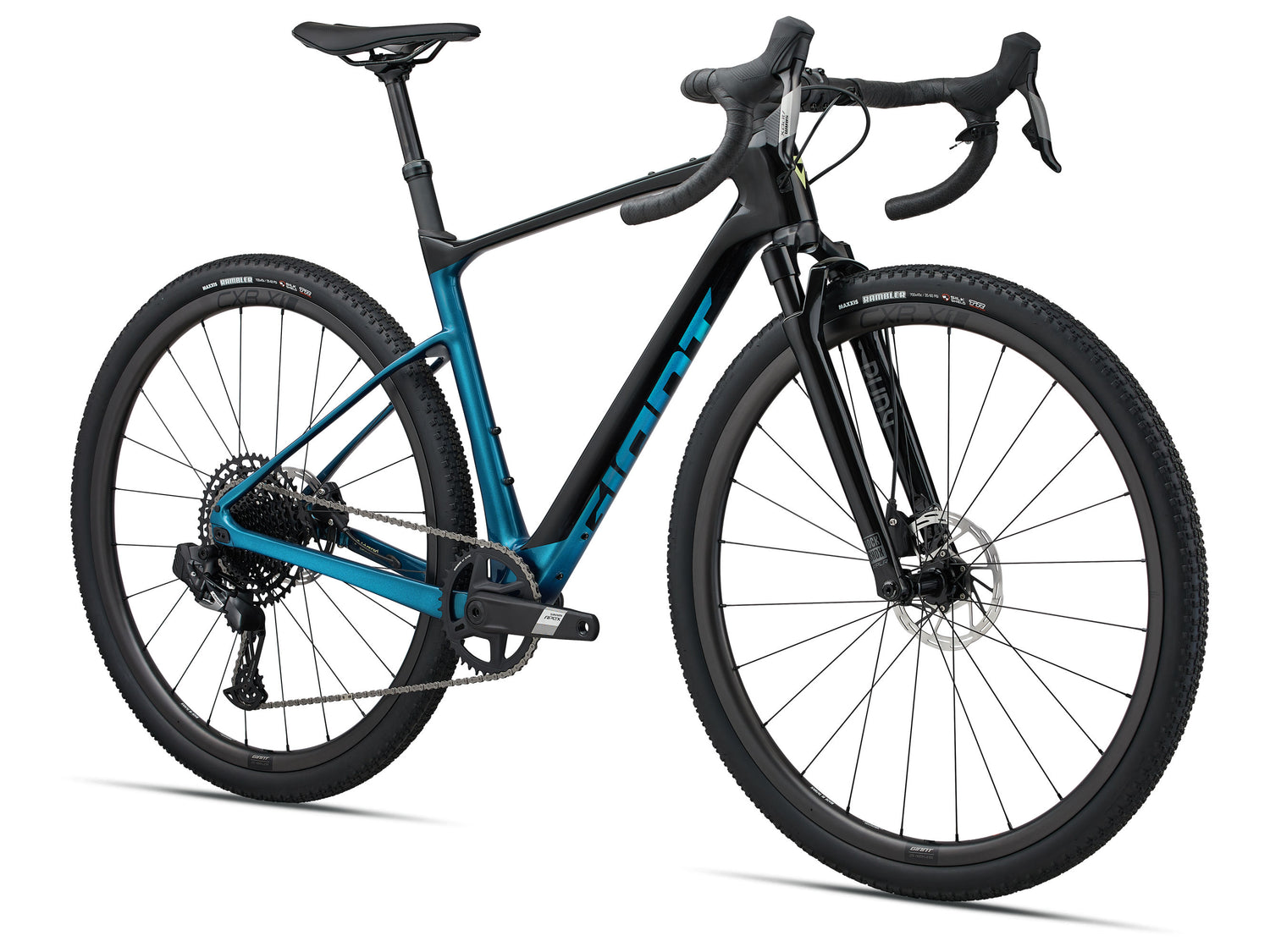

Giant Revolt X Advanced Pro 2 (2024)

$5,19900 $5,99900
Colour: Black/Sea Sparkle
Size

Special Order: This product will be ordered from our supplier upon purchase and available for collection within 7-14 business days. Read T&Cs here.
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
Fully assembled when you Click & Collect in-store
Buy Now, Pay Later with ZIP
Free service adjustment within first 6 months

Sizing Chart

Sizing and Geometry

Giant Revolt

Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.

Sizing Rider Height Rider Height (cm)
S 5′ 3″ – 5′ 7″ 159 – 171
M 5′ 7″ – 5′ 11″ 169 – 181
ML 5′ 9″ – 6′ 1″ 174 – 186
L 5′ 10″ – 6′ 3″ 179 – 191
XL 6′ 2″ – 6′ 7″ 189 – 200


Geometry

bike diagram with measurements referenced in table that follows

    XS S M ML L XL
    SHORT | LONG SHORT | LONG SHORT | LONG SHORT | LONG SHORT | LONG SHORT | LONG
A Seat Tube Length (mm) 430 450 470 490 510 530
B Seat Tube Angle 74.0° 73.5° 73.5° 73.0° 73.0° 73.0°
C Top Tube Length (mm) 540 550 560 575 585 600
D Head Tube Length (mm) 125 135 150 165 180 195
E Head Tube Angle 70.0° 71.0° 71.5° 72.0° 72.0° 72.0°
F Fork Rake (mm) 50 50 50 50 50 50
G Trail (mm) 78 | 82 72 | 75 68 | 72 65 | 68 65 | 68 65 | 68
H Wheelbase (mm) 1024 | 1034 1020 | 1030 1026 | 1036 1031 | 1041 1041 | 1051 1056 | 1066
I Chain Stay Length (mm) 425 | 435 425 | 435 425 | 435 425 | 435 425 | 435 425 | 435
J Bottom Bracket Drop (mm) 80 | 81 80 | 81 80 | 81 80 | 81 80 | 81 80 | 81
K Stack (mm) 556 570 586 602 616 630
L Reach (mm) 381 381 387 391 397 407
M Stand Over Height (mm) 724 | 731 740 | 747 757 | 764 774 | 780 791 | 797 807 | 814
O Stem Length (mm) 50 60 70 80 80 90
P Crank Length (mm) 170 170 172.5 172.5 175 175
Q Wheel Size 700c 700c 700c 700c 700c 700c

Bike Shipping

Delivery is available upon specific request for our special order bikes.

Bikes may only be shipped directly to a qualified bike mechanic or bike shop of your choosing, who must complete the assembly of the bike. We strictly cannot ship an unbuilt bike direct to consumer.

The buyer is responsible for all shipping and assembly costs, and is responsible for arranging assembly with their nominated bike store or mechanic.

To request a shipping quote, please submit a request and include the delivery postcode, business name of your nominated bike shop or bike mechanic, and the exact model & frame size of the bike.

Please note: All bikes sold by Ivanhoe Cycles must be assembled by a qualified mechanic or bike shop. Any assembly undertaken without professional assistance is at the customer's risk and any injury as a result of the build without professional assistance will not be covered by the warranty.

Assembly

Every bike purchased or collected in-store at Ivanhoe Cycles is fully assembled by our qualified mechanics free of charge.

Bikes ordered online for shipping* will require partial assembly, including but not limited to: installing handlebar, seatpost, front wheel; adjusting gears and brakes; tuning suspension; installing accessories or bar tape.

Disclaimer: Ivanhoe Cycles strongly advises having your assembly completed by an experienced bicycle mechanic. Any assembly undertaken without professional assistance is at the customer's risk and any injury as a result of the build without professional assistance will not be covered by the warranty.

*Shipping is restricted to certain brands due to assembly requirements.

Returns / Cancellations

If your special ordered item arrives faulty, damaged, or is differently than described, you are entitled to a full refund or replacement.

Cancellations and returns are not accepted on special orders if the consumer:
- changed their mind
- found the item cheaper elsewhere
- decided they didn't like the purchase or had no use for it
- ordered the wrong item

Contact us with any product enquiries you have prior to purchasing.

For more information, please read our Special Order terms and conditions.

Giant Revolt X Advanced Pro 2 (2024)

WASHBOARD DESCENTS, SKETCHY DIRT, GRAVEL AND ROCKS OF ALL SHAPES AND SIZES. YOU NEVER KNOW WHAT YOU’LL GET ON A GRAVEL RIDE.

THIS COMPOSITE GRAVEL MACHINE HAS FRONT SUSPENSION AND ENGINEERED COMPLIANCE TO HELP YOU FLOAT THROUGH IT ALL WITH SPEED AND CONTROL.

Smooth control

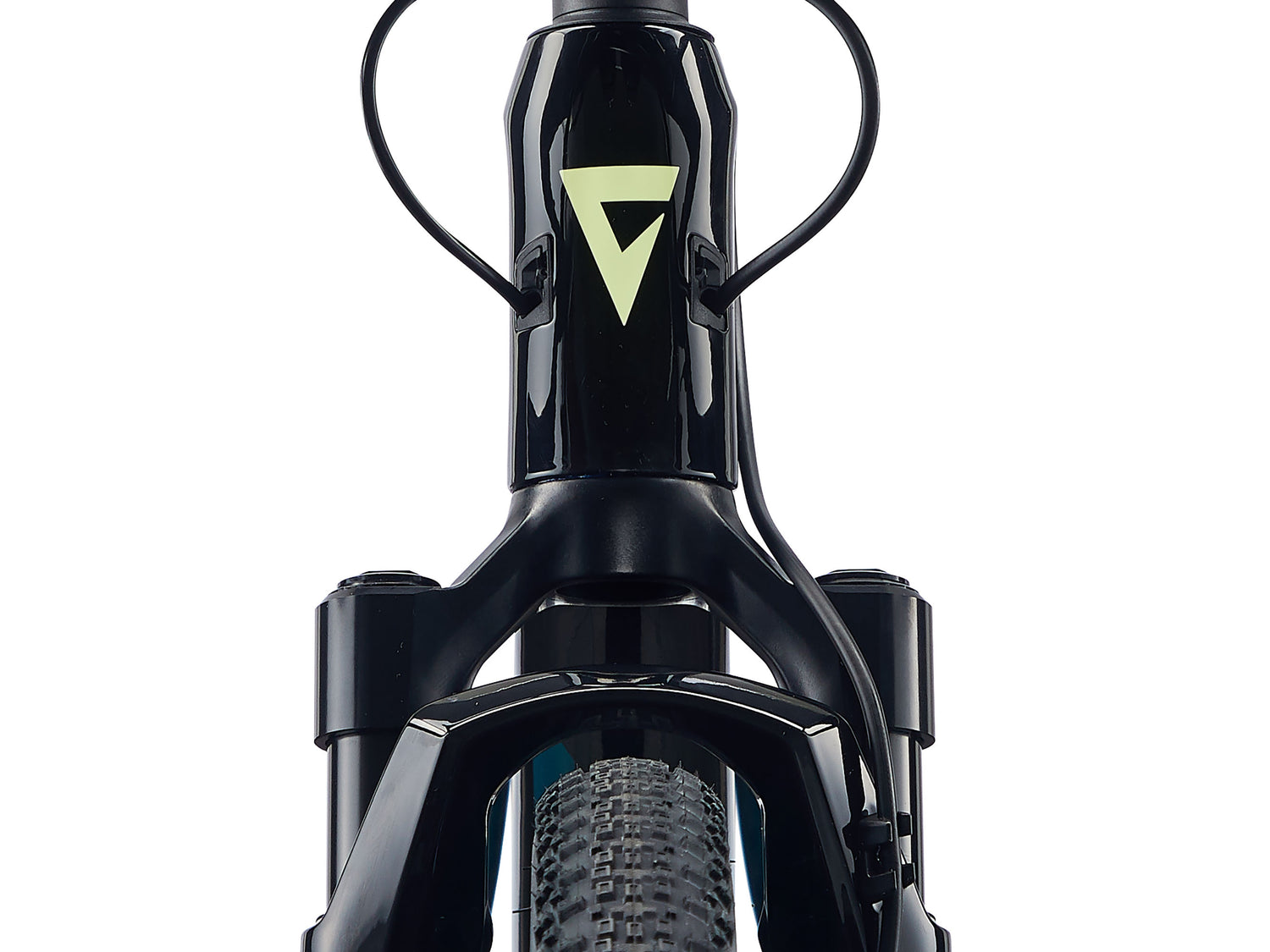

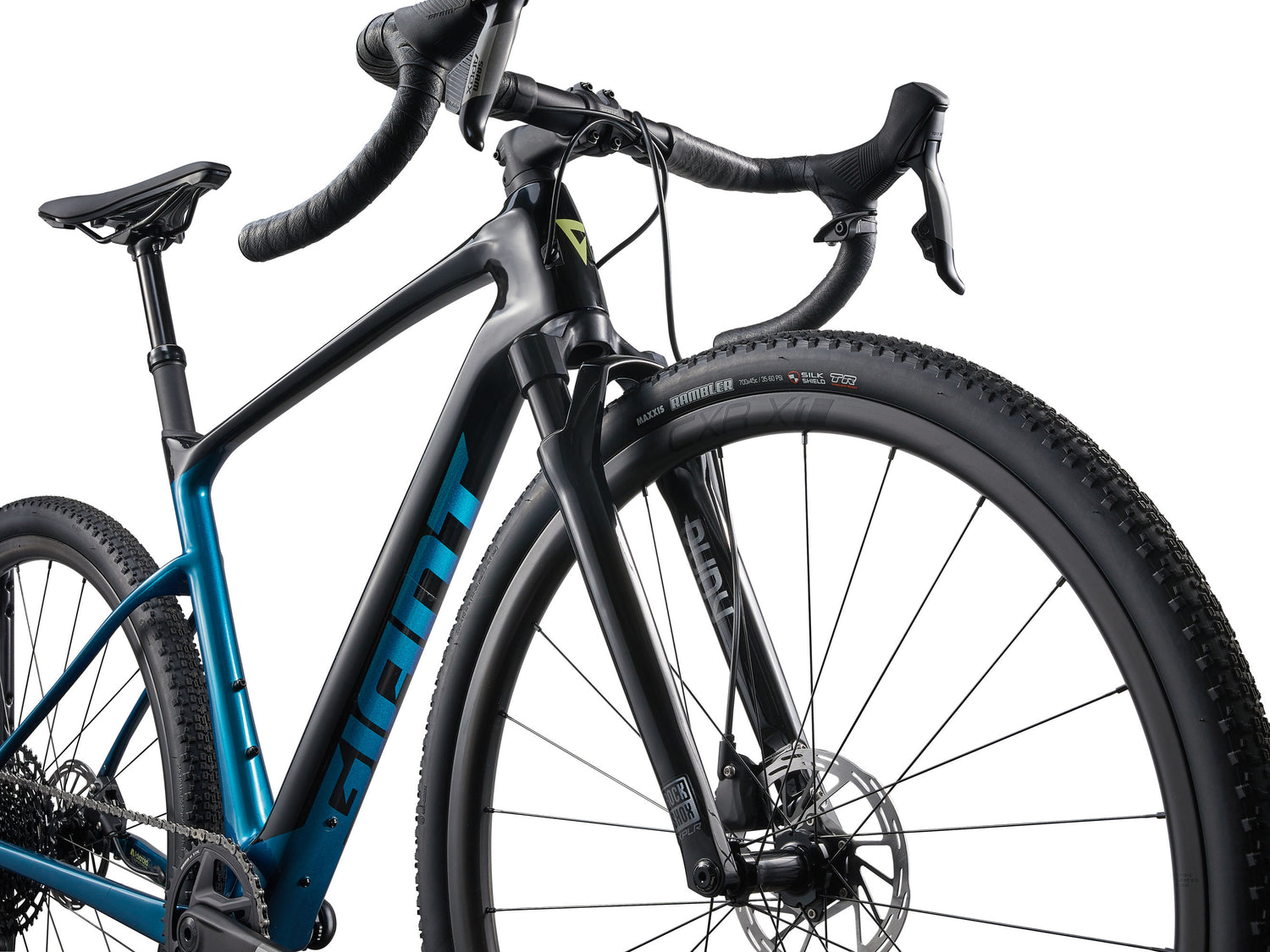

Composite frameset is designed specifically for front suspension. With 40mm of travel, the fork absorbs impacts so you can ride smoother and faster on rugged gravel and dirt.

Tuned compliance

Lowered seatstays with smaller diameter tubes absorb road shocks and vibrations. A Contact SL XR D-Fuse handlebar adds more compliance without sacrificing the stiffness needed for cornering, sprinting or climbing.

Adaptable to the terrain

A flip chip on the rear dropout adjusts the wheelbase short for quicker handling, or long for improved stability at speed. The long setting also allows for larger diameter tyres up to 53mm.

Giant Revolt X Advanced Pro 2 (2024)

$5,19900 $5,99900

Colour

Size

  • XS
  • S
  • M
  • ML
  • L
  • XL

Motor

N/A

Controller

N/A

Display

N/A

Battery

N/A

Charger

N/A

Sizes

N/A

Frame material

Carbon

Frame

Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout

Fork

RockShox Rudy XPLR, 40mm, cartridge damper 12x100mm thru-axle

Handlebar

Giant Contact SL XR D-Fuse, 31.8mm | XS:44cm, S:44cm, M:46cm, M/L:46cm, L:48cm, XL:48cm

Grips

Stratus Lite 3.0

Bar Tape

N/A

Headset

N/A

Stem

Giant Contact, 8-degree | XS:50mm, S:50mm, M:60mm, M/L:70mm, L:70mm, XL:80mm

Seatpost

Post Moderne, dropper, 30.9mm with 25mm of suspension | XS:365mm / 75mm drop S:415mm / 100mm drop M:415mm / 100mm drop M/L: 415mm / 100mm drop L:415mm / 100mm drop XL: 415mm / 100mm drop

Saddle

Giant Approach SL

Pedals

N/A

Shifters

SRAM Apex AXS, 1x12 speed

Front Derailleur

N/A

Rear Derailleur

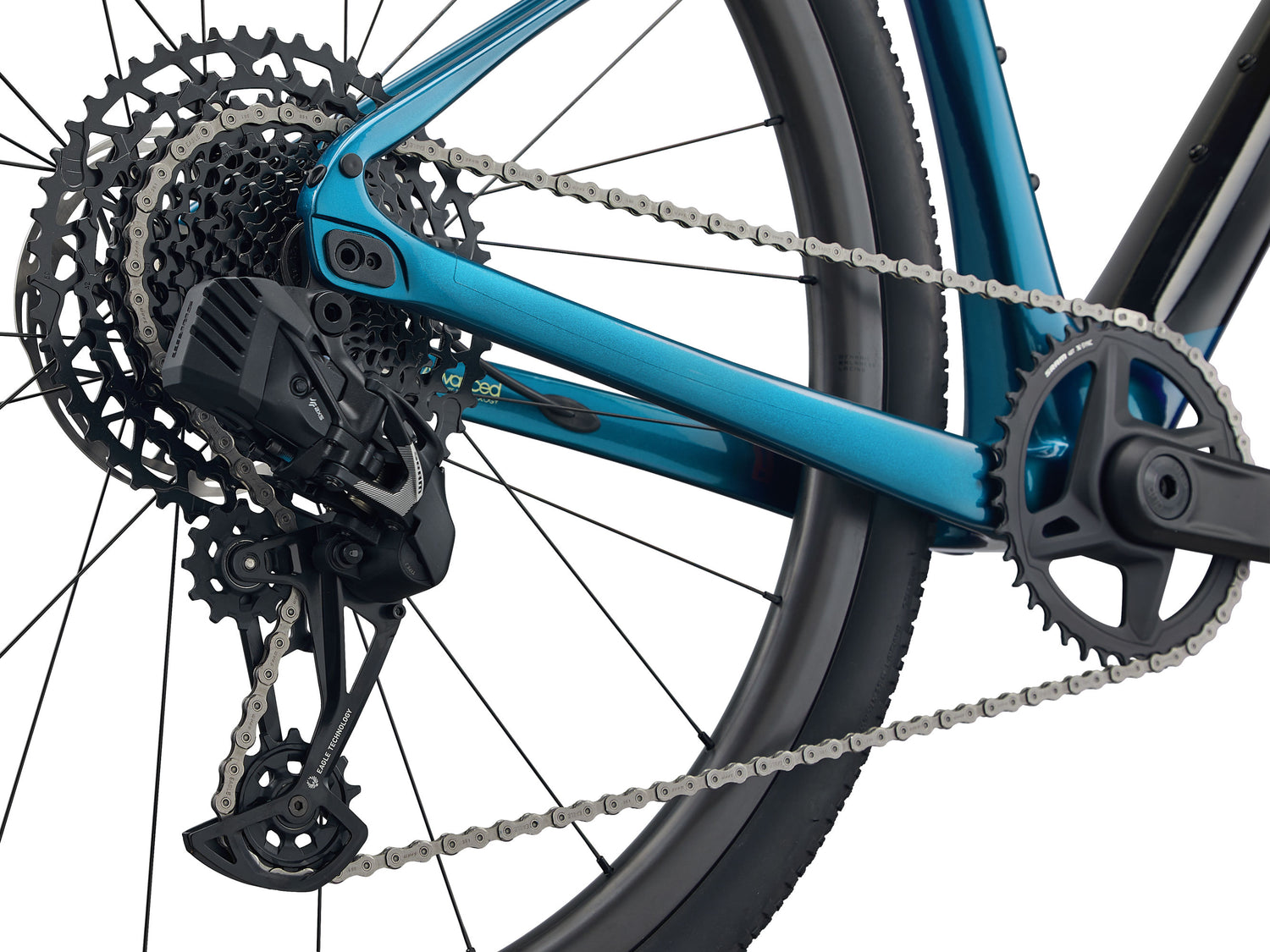

SRAM X1 AXS Eagle w/ battery protector 1X12 speed

Brakes

SRAM hydraulic, SRAM PaceLine rotors [F]160mm, [R]160mm

Brake Levers

SRAM Apex AXS hydraulic, left lever dropper switch

Cassette/Freewheel

SRAM PG-1230, 12-speed, 11x50T

Chain

SRAM CN-EAGL-NX-A1, 12-speed

Crankset

SRAM Apex 1 Wide DUB, 1X40t | XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm

Bottom Bracket

SRAM DUB, press fit

Rims

Giant CXR X1 Carbon

Hubs

[F] Giant CXR X alloy, CenterLock, 12mm thru-axle, [R] Giant CXR X alloy, 60t ratchet driver, CenterLock, 12mm thru-axle

Spokes

Sapim CX-Ray

Tyres

Maxxis Rambler, 700x45c, tubeless prepared

Wheel Size

N/A

Extras

Tubeless prepared, 53mm max tyre size in "long" flip chip position, 45mm max tyre size in "short" flip chip position
