Giant  |  SKU: 9095007125

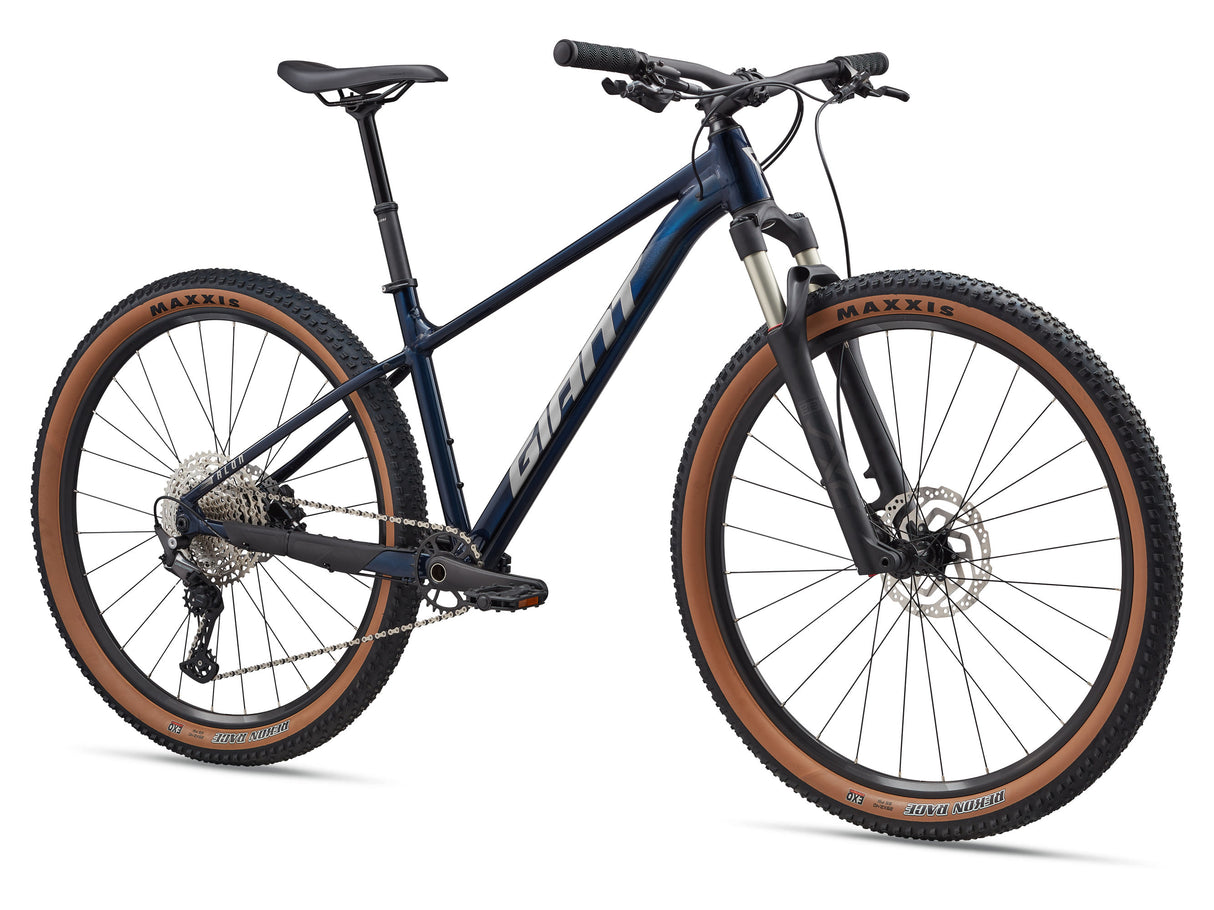

Giant Talon 0 (2025)

$1,69900
Colour: Ultra Navy
Size

Pickup in-store only. Shipping not available.
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay

Sizing Chart

Sizing and Geometry

Giant Talon

Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.

Sizing Rider Height Rider Height (cm)
XS 5′ 1″ – 5′ 5″ 155 – 166
S 5′ 4″ – 5′ 8″ 163 – 172
M 5′ 7″ – 5′ 10″ 169 – 179
L 5′ 9″ – 6′ 1″ 176 – 186
XL 6′ 0″ – 6′ 4″ 183 – 193


Geometry

bike diagram with measurements referenced in table that follows

    S (29") M (29") L (29") XL (29")
A Seat Tube Length (mm) 380 420 450 480
A1 Seat Post Insertion Depth (mm) 340 200 237 292
B Seat Tube Angle 74.5° 74.5° 74.5° 74.5°
C Top Tube Length (mm) 581 604 629 653
D Head Tube Length (mm) 95 105 125 140
E Head Tube Angle 67.5° 67.5° 67.5° 67.5°
F Fork Rake (mm) 44 44 44 44
G Trail (mm) 108.9 108.9 108.9 108.9
H Wheelbase (mm) 1139 1164 1191 1217
I Chain Stay Length (mm) 455 455 455 455
J Bottom Bracket Drop (mm) 55 55 55 55
K Stack (mm) 597 606 625 639
L Reach (mm) 415 436 456 476
M Stand Over Height (mm) 715 709 709 710
O Stem Length (mm) 50 60 70 80
P Crank Length (mm) 170 170 170 175
Q Wheel Size 29" 29" 29" 29"

Shipping Information

Certain bike brands cannot be shipped and are only available for Click and Collect.

These include but are not limited to the following brands: Giant, GT, Liv, Momentum and Mongoose.

For all other brands, we can provide a shipping quote to your postcode. Please contact us by email at staff@ivanhoecycles.com.au, or text us on 0417 122 950.

Fully assembled when you Click & Collect in-store
Buy Now, Pay Later with ZIP
Free service adjustment within first 6 months

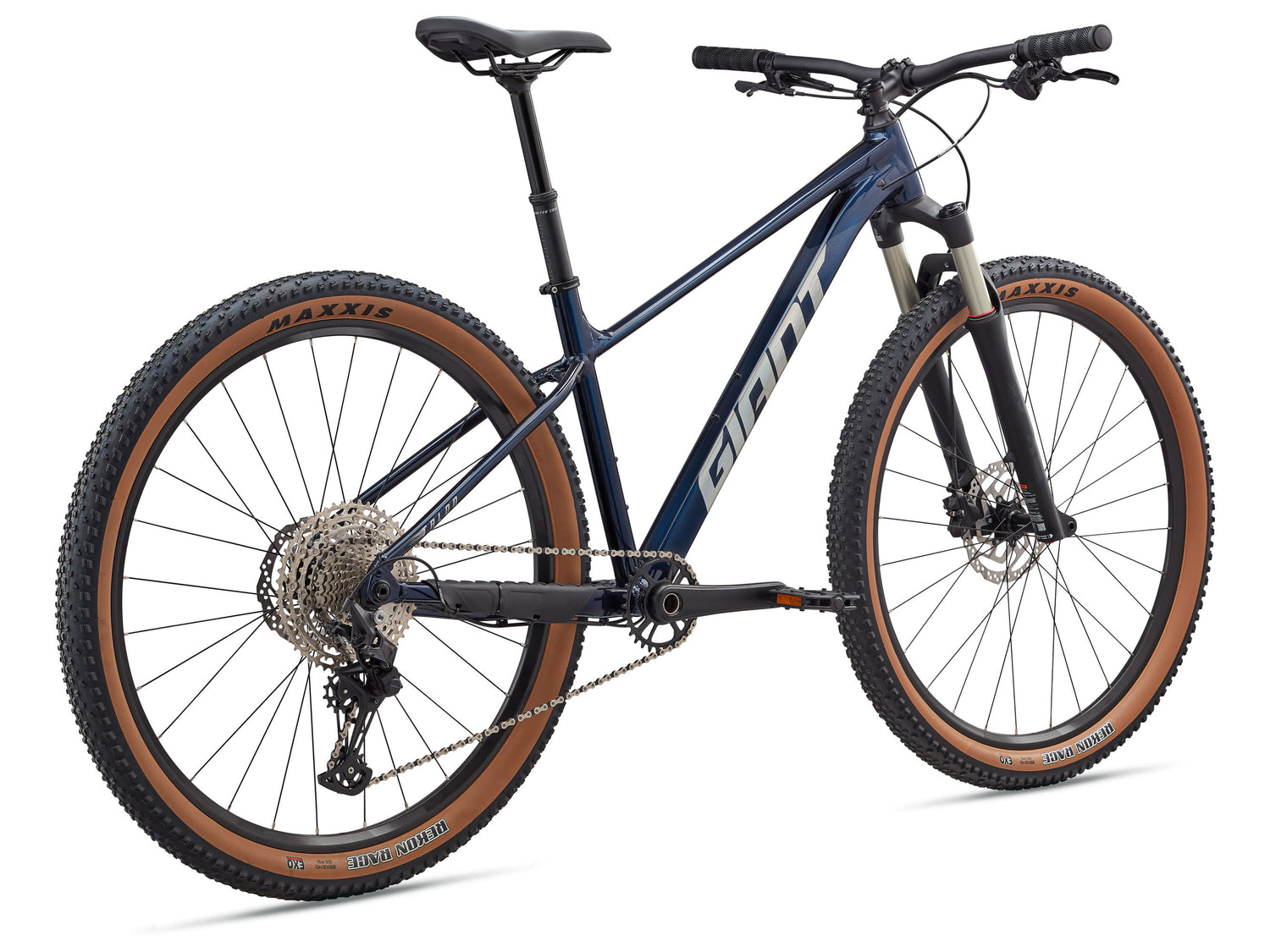

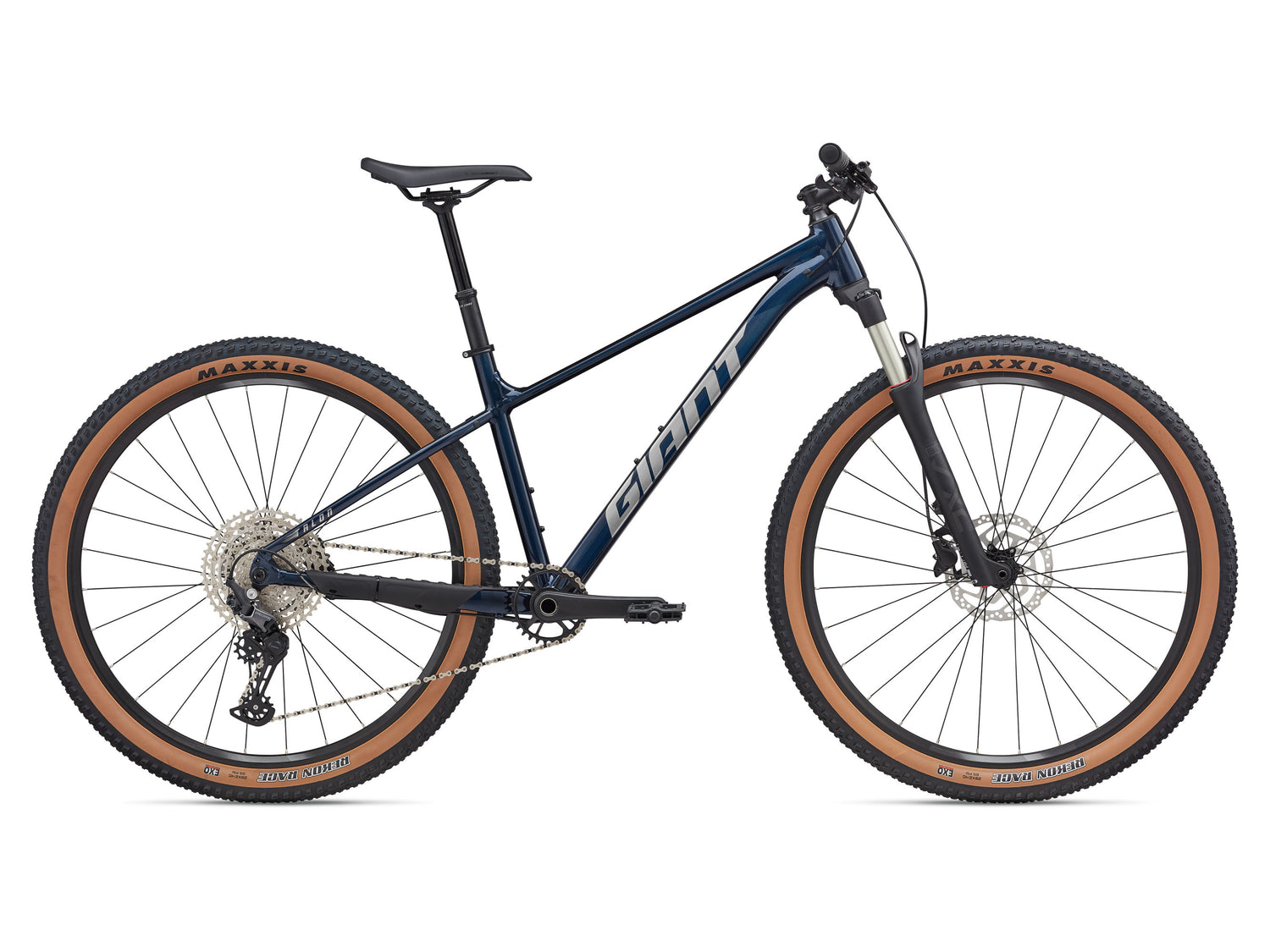

Giant Talon 0 (2025)

The mountain bike experience starts here. With a redesigned frame that’s now lighter and more durable, along with a smooth-riding suspension fork, thru-axle hubs*, and a 1x drivetrain*, this aluminium hardtail is everything an aspiring MTB rider needs to evolve and advance. *on select models

Modern MTB Design

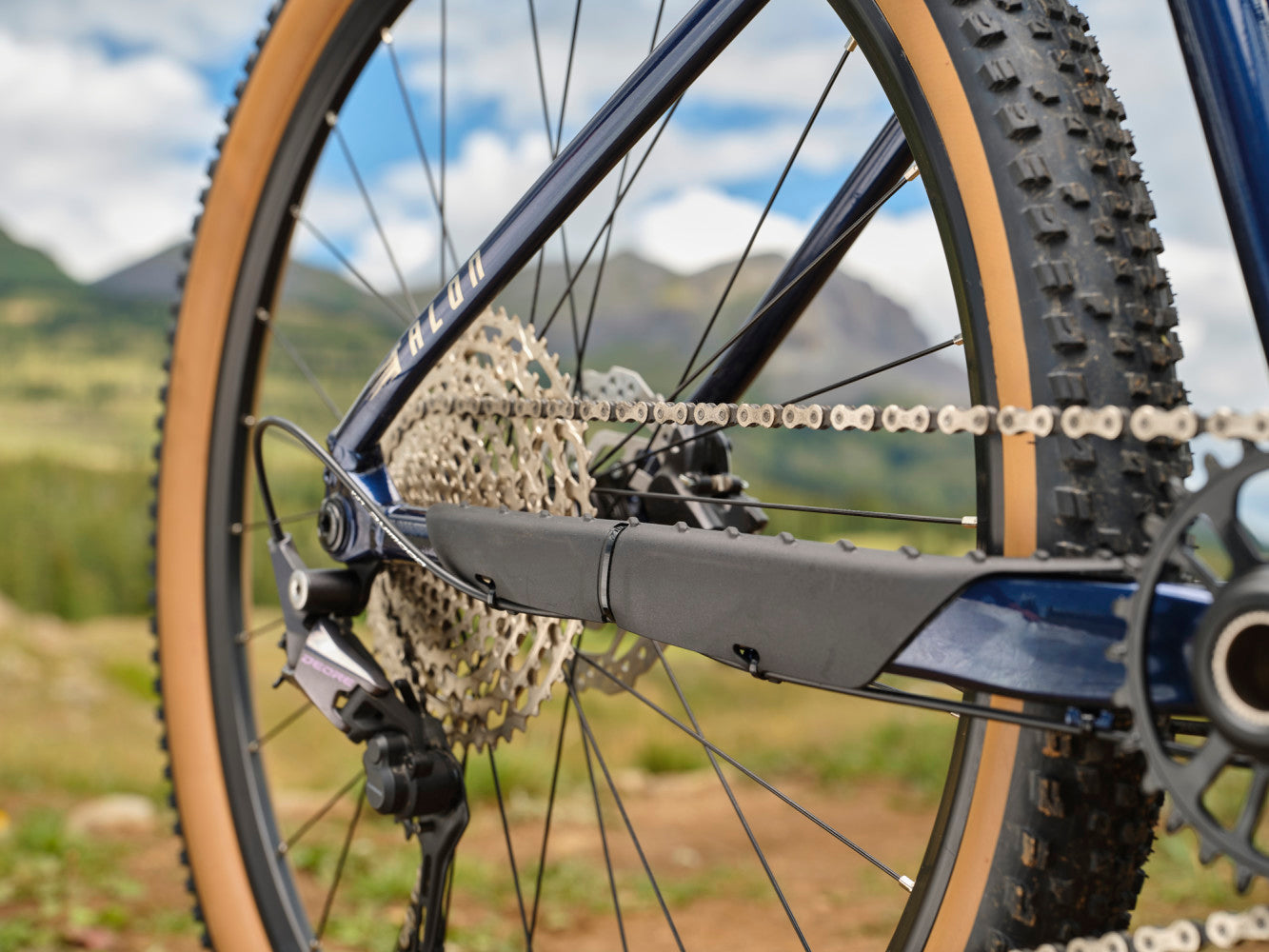

Tapered fork steerer tubes*, quality components including a 1x drivetrain* with clutch-equipped rear derailleurs, thru-axle hubs*, internal cable routing (including dropper seatpost) and an integrated chainstay protector give aspiring trail riders room to grow. *on select models

Off-Road Control

New geometry is optimised for confident trail riding and two different wheel sizes (27.5 or 29-inch) depending on frame size and model. The geometry is also designed for front suspension with either an 80mm or 100mm fork depending on frame size and model. All models have clearance for high-volume tyres (up to 2.4-inch) for traction and grip on technical terrain.

Light and Durable

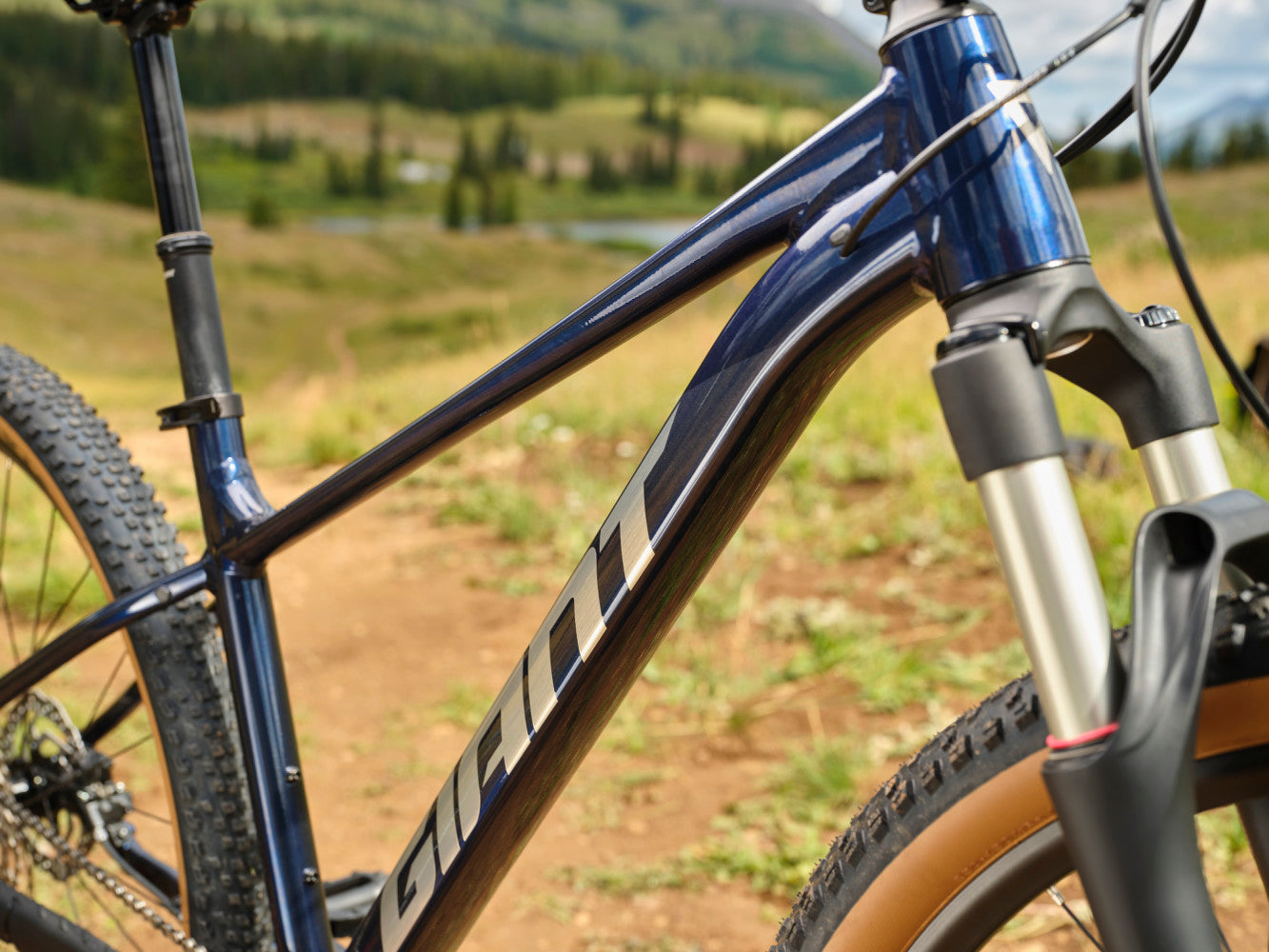

All-new ALUXX aluminium frame features updated shaping and a lighter overall weight for improved performance on off-road terrain.

SPECIFICATIONS

Sizes 29: S, M, L, XL
Colours Ultra Navy
Frame ALUXX-Grade aluminium, disc

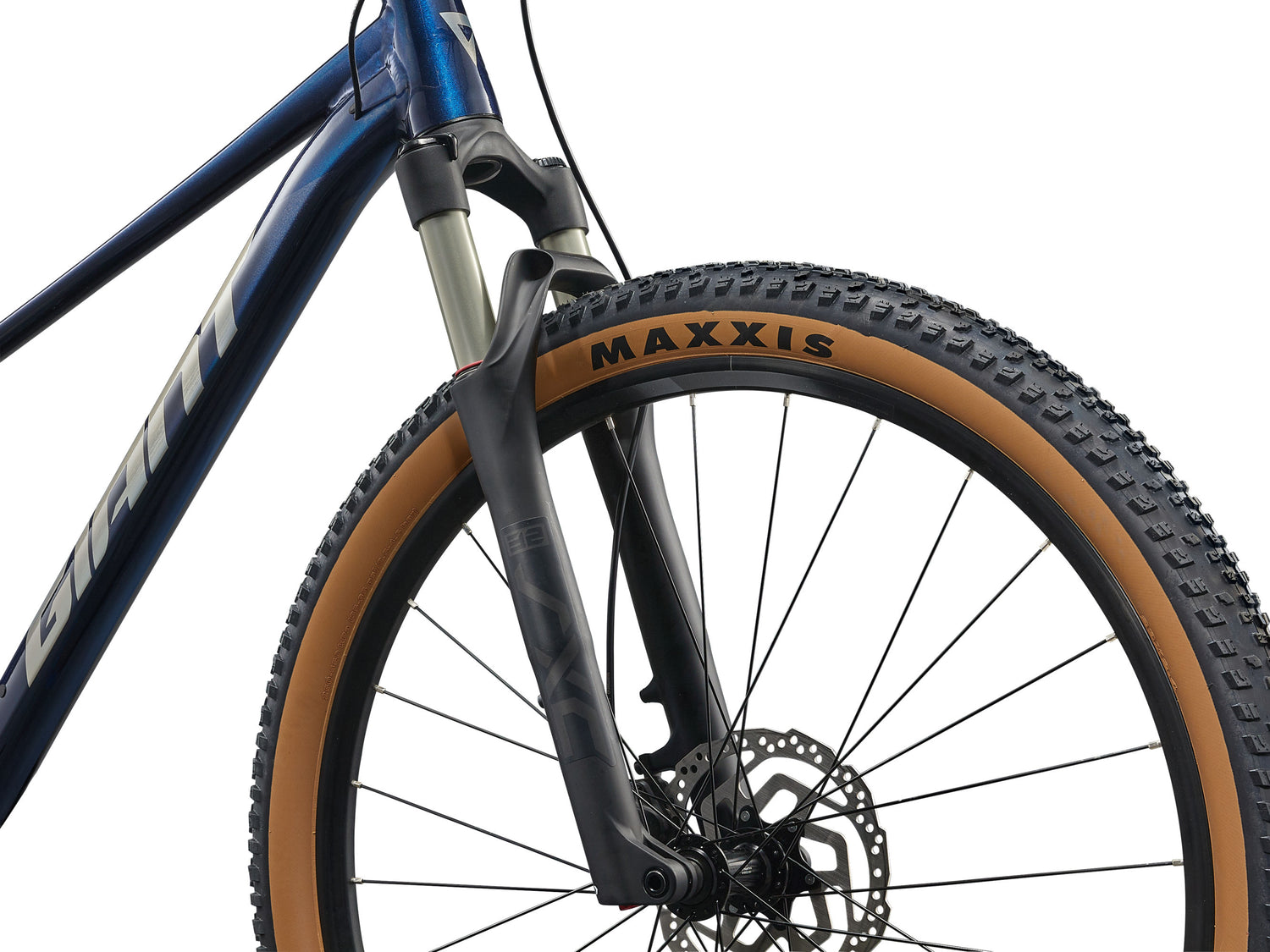

Fork SXC32-2 RL, air spring, Boost 15x110, S: 100mm travel, M: 100mm travel, L: 100mm travel, XL: 100mm travel
Shock N/A
Handlebar Giant Connect Trail, 31.8mm
Grips Giant Sole-O
Stem Giant Sport, 7-degree S: 50mm M: 60mm L: 70mm XL: 80mm

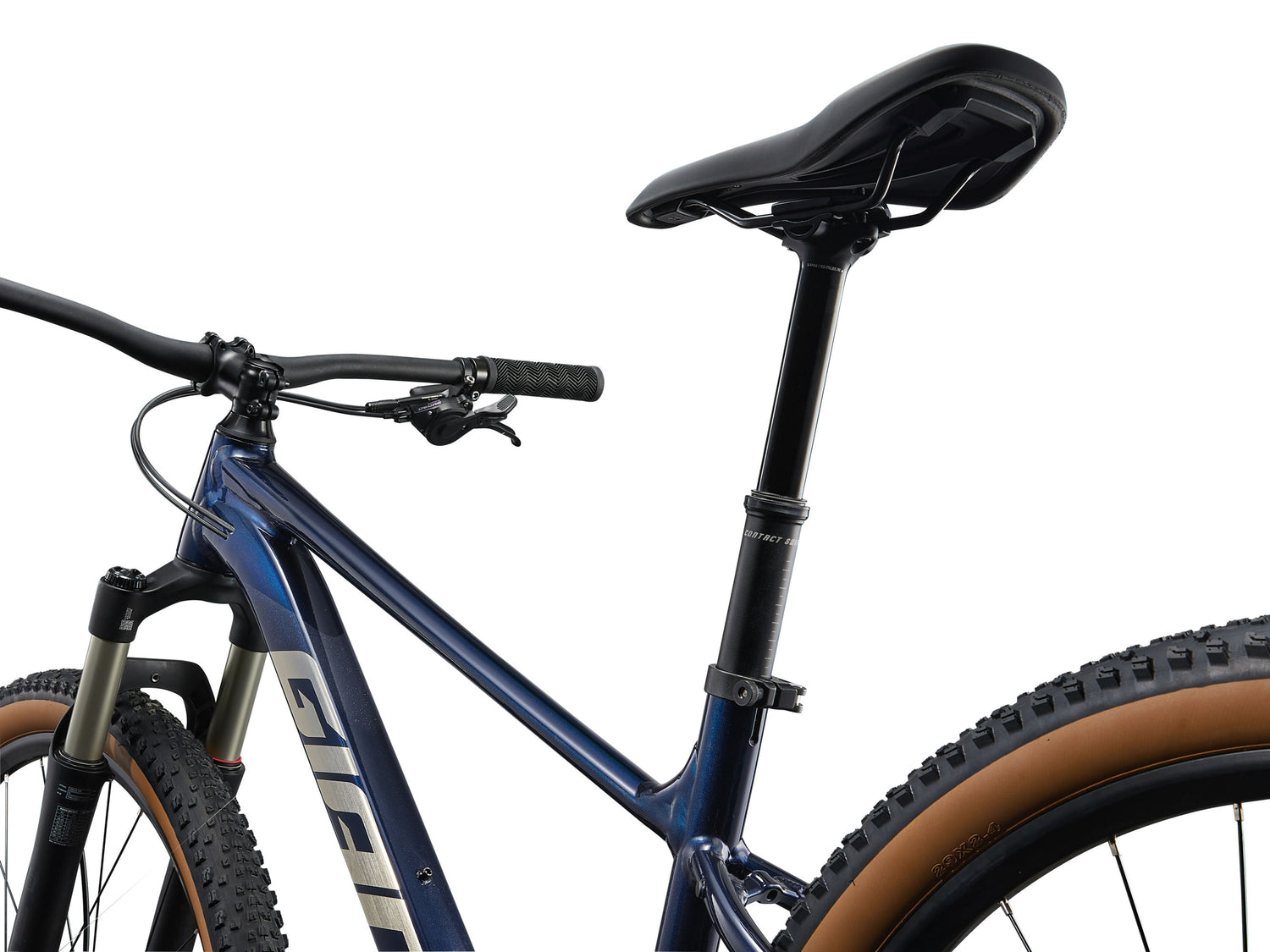

Seatpost Giant Contact Switch Core dropper, remote S: 100mm / 30.9x350mm, M: 125mm / 30.9x400mm, L: 125mm / 30.9x400mm, XL: 125mm / 30.9x400mm
Saddle Giant ErgoContact Trail
Pedals MTB caged

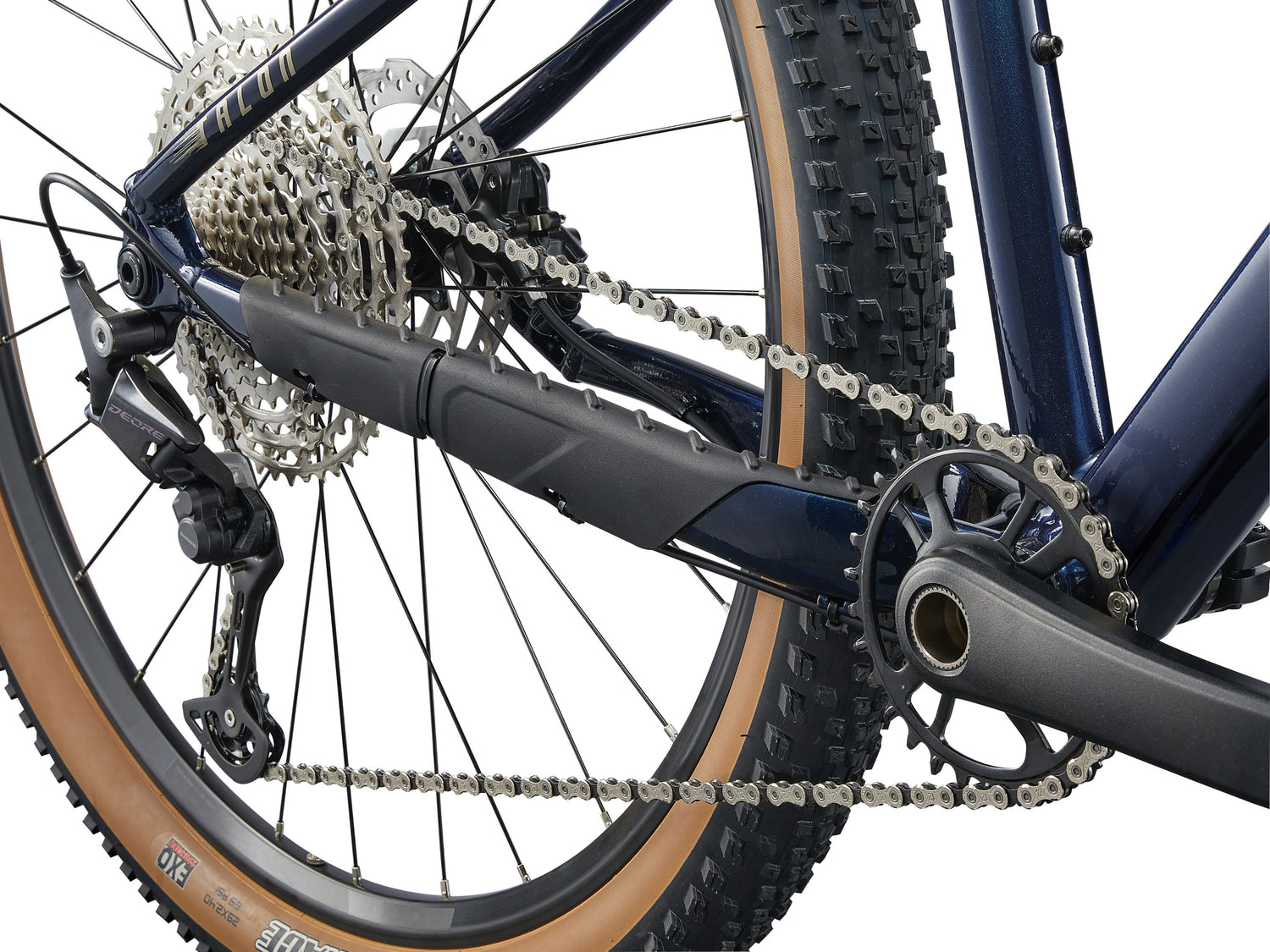

Shifters Shimano Deore M6100, 1x12
Front Derailleur N/A
Rear Derailleur Shimano Deore M6100, Shadow+
Brakes Shimano BR-MT200, hydraulic, Shimano RT-10 rotors [F]180mm, [R]160mm
Brake Levers Shimano BL-MT201

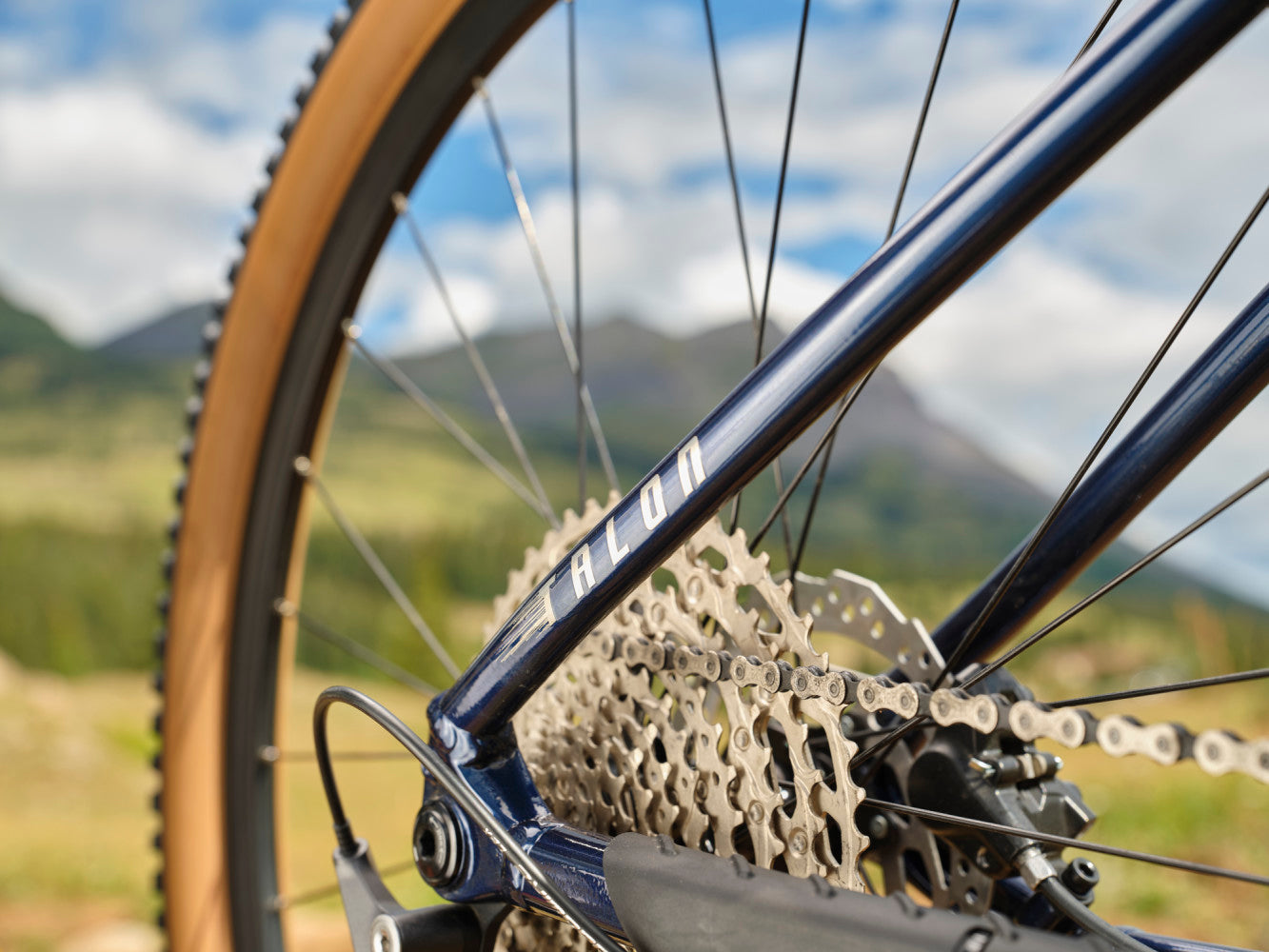

Cassette Shimano Deore M6100, 10x51
Chain KMC X12
Crankset ProWheel MPX, 30t S: 170mm M: 170mm L: 170mm XL: 175mm
Bottom Bracket Cartridge
Rims Giant GX03V 29, alloy, double wall
Hubs [F] Shimano HB-TC500-15-B 110x15, Sealed; [R] Shimano FH-TC500-MS 142x12, Sealed, HG
Spokes Stainless, 14g

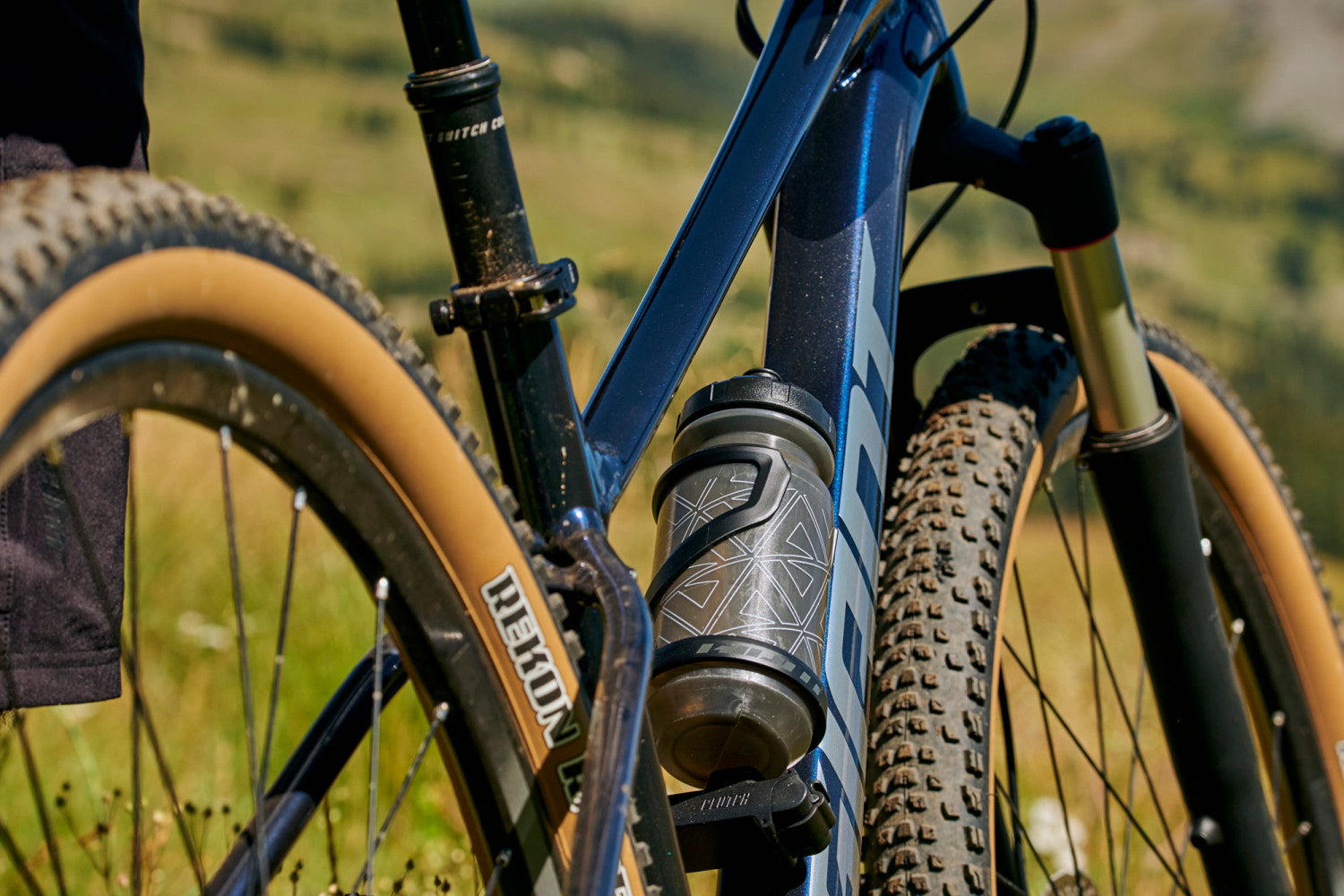

Tires Maxxis Rekon Race 29x2.4", wire bead
Extras 2.4" max tyre size, 32t max chainring size
Weight The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Giant Talon 0 (2025)

$1,69900

Colour

Size

  • S (29")
  • M (29")
  • L (29")
  • XL (29")

Motor

N/A

Controller

N/A

Display

N/A

Battery

N/A

Charger

N/A

Sizes

N/A

Frame material

Aluminium

Frame

ALUXX-Grade aluminium, disc

Fork

SXC32-2 RL, air spring, Boost 15x110, S: 100mm travel, M: 100mm travel, L: 100mm travel, XL: 100mm travel

Handlebar

Giant Connect Trail, 31.8mm

Grips

Giant Sole-O

Bar Tape

N/A

Headset

N/A

Stem

Giant Sport, 7-degree S: 50mm M: 60mm L: 70mm XL: 80mm

Seatpost

Giant Contact Switch Core dropper, remote S: 100mm travel / 30.9 x 350mm M: 125mm travel / 30.9 x 400mm L: 125mm travel / 30.9 x 400mm XL: 125mm travel / 30.9 x 400mm

Saddle

Giant ErgoContact Trail

Pedals

Platform

Shifters

Shimano Deore M6100, 1x12

Front Derailleur

N/A

Rear Derailleur

Shimano Deore M6100, Shadow+

Brakes

Shimano BR-MT200, hydraulic, Shimano RT-10 rotors [F]180mm, [R]160mm

Brake Levers

Shimano BL-MT201

Cassette/Freewheel

Shimano Deore M6100, 10x51

Chain

KMC X12

Crankset

ProWheel MPX, 30t S: 170mm M: 170mm L: 170mm XL: 175mm | Max chainring size 32T

Bottom Bracket

Cartridge

Rims

Giant GX03V 29, alloy, double wall

Hubs

[F] Shimano HB-TC500-15-B 110x15, Sealed [R] Shimano FH-TC500-MS 142x12, Sealed, HG

Spokes

Stainless, 14g

Tyres

Maxxis Rekon Race 29x2.4", wire bead | Max Tyre size 2.40"

Wheel Size

N/A

Extras

N/A
