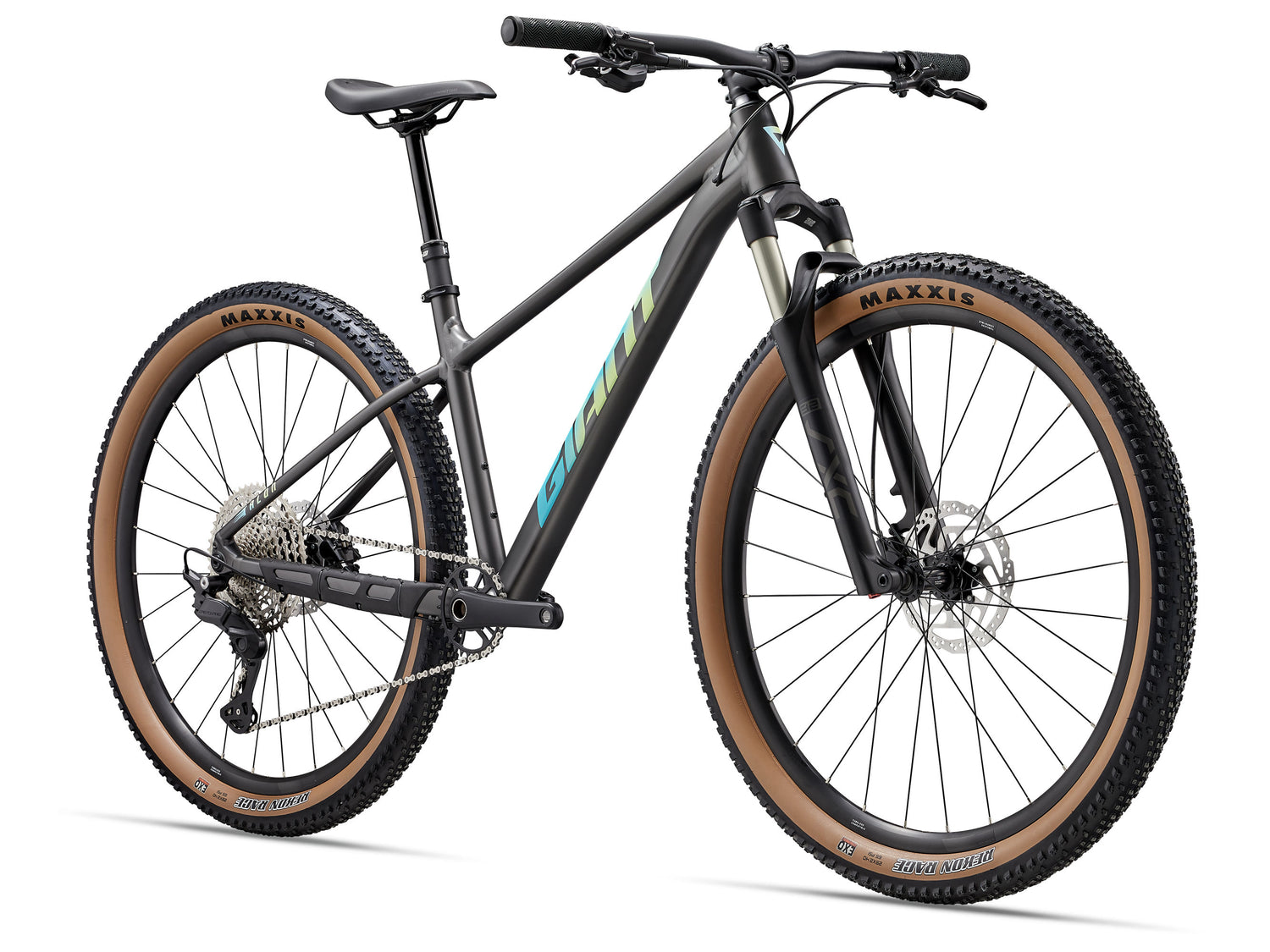

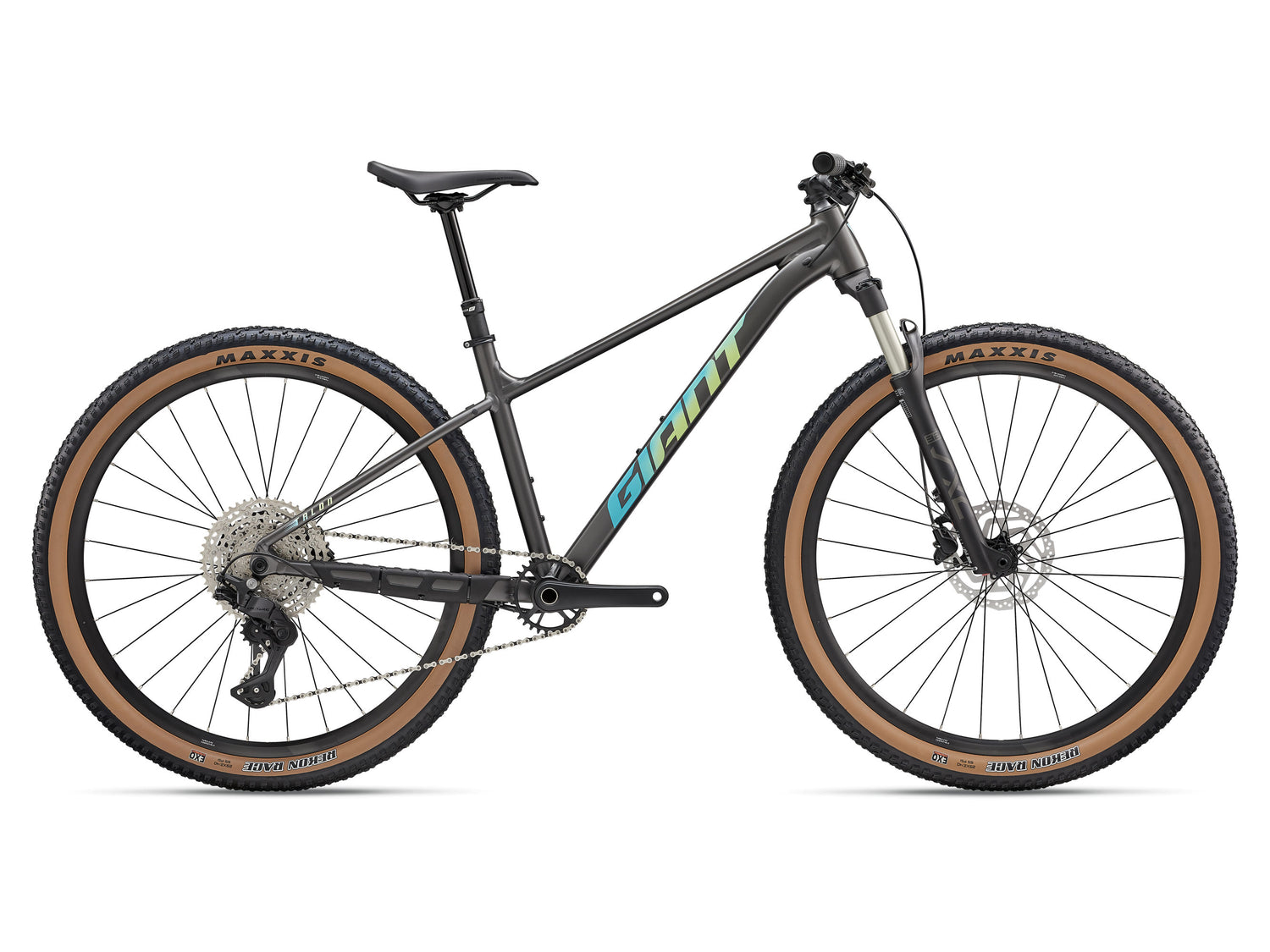

Giant Talon 0 (2027)
Giant Talon 0 (2027) - Stealth Chrome / S (29") : This product is available for backorder only. Will ship as soon as it is back in stock.
Couldn't load pickup availability
Sizing Chart
Sizing Chart
Sizing and Geometry
Giant Talon
Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.
| Sizing | Rider Height | Rider Height (cm) |
|---|---|---|
| XS | 5′ 1″ – 5′ 5″ | 155 – 166 |
| S | 5′ 4″ – 5′ 8″ | 163 – 172 |
| M | 5′ 7″ – 5′ 10″ | 169 – 179 |
| L | 5′ 9″ – 6′ 1″ | 176 – 186 |
| XL | 6′ 0″ – 6′ 4″ | 183 – 193 |
Geometry
| Â | Â | S (29") | M (29") | L (29") | XL (29") |
|---|---|---|---|---|---|
| A | Seat Tube Length (mm) | 380 | 420 | 450 | 480 |
| A1 | Seat Post Insertion Depth (mm) | 340 | 200 | 237 | 292 |
| B | Seat Tube Angle | 74.5° | 74.5° | 74.5° | 74.5° |
| C | Top Tube Length (mm) | 581 | 604 | 629 | 653 |
| D | Head Tube Length (mm) | 95 | 105 | 125 | 140 |
| E | Head Tube Angle | 67.5° | 67.5° | 67.5° | 67.5° |
| F | Fork Rake (mm) | 44 | 44 | 44 | 44 |
| G | Trail (mm) | 108.9 | 108.9 | 108.9 | 108.9 |
| H | Wheelbase (mm) | 1139 | 1164 | 1191 | 1217 |
| I | Chain Stay Length (mm) | 455 | 455 | 455 | 455 |
| J | Bottom Bracket Drop (mm) | 55 | 55 | 55 | 55 |
| K | Stack (mm) | 597 | 606 | 625 | 639 |
| L | Reach (mm) | 415 | 436 | 456 | 476 |
| M | Stand Over Height (mm) | 715 | 709 | 709 | 710 |
| O | Stem Length (mm) | 50 | 60 | 70 | 80 |
| P | Crank Length (mm) | 170 | 170 | 170 | 175 |
| Q | Wheel Size | 29" | 29" | 29" | 29" |
Shipping Information
Shipping Information
This product: Pickup in-store only. Shipping not available.
Shipping availableâ€
We offer shipping on select brands including: Rocky Mountain, Orbea, XDS, Icon, Jamis, Shogun, Schwinn, BYK, Kidvelo. These bikes are shipped unbuilt in their original box.
†Only bikes stocked at our Warehouse location are available for shipping.
Shipping upon request to your local bike shop
Some brands require the bike is delivered directly to a bicycle shop or mechanic for assembly, and shipping is not available to your residence. These include GT, Cannondale, .
Request a shipping quote to proceed.
Pickup in-store only
Certain bike brands cannot be shipped and are only available for Click and Collect or purchase in-store.
These include but are not limited to the following brands:Â Giant, Norco, Liv, Momentum, Malvern Star and Mongoose.Â
Pre-assembled bikes
†Any bikes in stock at our Heidelberg Heights, Hallam or Hoppers Crossing store locations are already fully assembled, and therefore only available for Click and Collect or purchase in-store.
Sizing and Geometry
Giant Talon
Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.
| Sizing | Rider Height | Rider Height (cm) |
|---|---|---|
| XS | 5′ 1″ – 5′ 5″ | 155 – 166 |
| S | 5′ 4″ – 5′ 8″ | 163 – 172 |
| M | 5′ 7″ – 5′ 10″ | 169 – 179 |
| L | 5′ 9″ – 6′ 1″ | 176 – 186 |
| XL | 6′ 0″ – 6′ 4″ | 183 – 193 |
Geometry
| Â | Â | S (29") | M (29") | L (29") | XL (29") |
|---|---|---|---|---|---|
| A | Seat Tube Length (mm) | 380 | 420 | 450 | 480 |
| A1 | Seat Post Insertion Depth (mm) | 340 | 200 | 237 | 292 |
| B | Seat Tube Angle | 74.5° | 74.5° | 74.5° | 74.5° |
| C | Top Tube Length (mm) | 581 | 604 | 629 | 653 |
| D | Head Tube Length (mm) | 95 | 105 | 125 | 140 |
| E | Head Tube Angle | 67.5° | 67.5° | 67.5° | 67.5° |
| F | Fork Rake (mm) | 44 | 44 | 44 | 44 |
| G | Trail (mm) | 108.9 | 108.9 | 108.9 | 108.9 |
| H | Wheelbase (mm) | 1139 | 1164 | 1191 | 1217 |
| I | Chain Stay Length (mm) | 455 | 455 | 455 | 455 |
| J | Bottom Bracket Drop (mm) | 55 | 55 | 55 | 55 |
| K | Stack (mm) | 597 | 606 | 625 | 639 |
| L | Reach (mm) | 415 | 436 | 456 | 476 |
| M | Stand Over Height (mm) | 715 | 709 | 709 | 710 |
| O | Stem Length (mm) | 50 | 60 | 70 | 80 |
| P | Crank Length (mm) | 170 | 170 | 170 | 175 |
| Q | Wheel Size | 29" | 29" | 29" | 29" |
The mountain bike experience starts here. With a lightweight and durable frame, along with a suspension fork and optimised wheel size (29-inch or 27.5-inch depending on frame size), this aluminium hardtail is everything an aspiring MTB rider needs to evolve and advance.
Light and durable
ALUXX aluminium frame features updated shaping and a lighter overall weight for improved performance on off-road terrain.
Off-road control
Geometry is optimised for either 29-inch wheels or 27.5-inch depending on frame size, and a suspension fork of either 100mm or 80mm. The result is in confident off-road performance for riders of all sizes.
Modern MTB design
Wide tyre clearance (up to 2.4-inch), internal cable routing, thru-axle hubs, integrated chainstay protection and quality components (including a 1x drivetrain option) gives aspiring trail riders room to grow.
-
Frame material
-
Frame
-
Fork
-
Shock
-
Handlebar
-
Grips
-
Stem
-
Seatpost
-
Saddle
-
Pedals
-
Shifters
-
Front Derailleur
-
Rear Derailleur
-
Brakes
-
Brake Levers
-
Cassette/Freewheel
-
Chain
-
Crankset
-
Bottom Bracket
-
Rims
-
Hubs
-
Spokes
-
Tyres
-
Notes
-
Compatible Bike Type
-
Speeds (rear)12 Speed
-
Age GroupAdults, Teenagers
-
GenderMens, Unisex
-
DisciplineMountain
-
SKUsStealth Chrome/S (29"): 9095016124, Stealth Chrome/M (29"): 9095016125, Stealth Chrome/L (29"): 9095016127, Stealth Chrome/XL (29"): 9095016128
