Giant  |  SKU: 9095022323

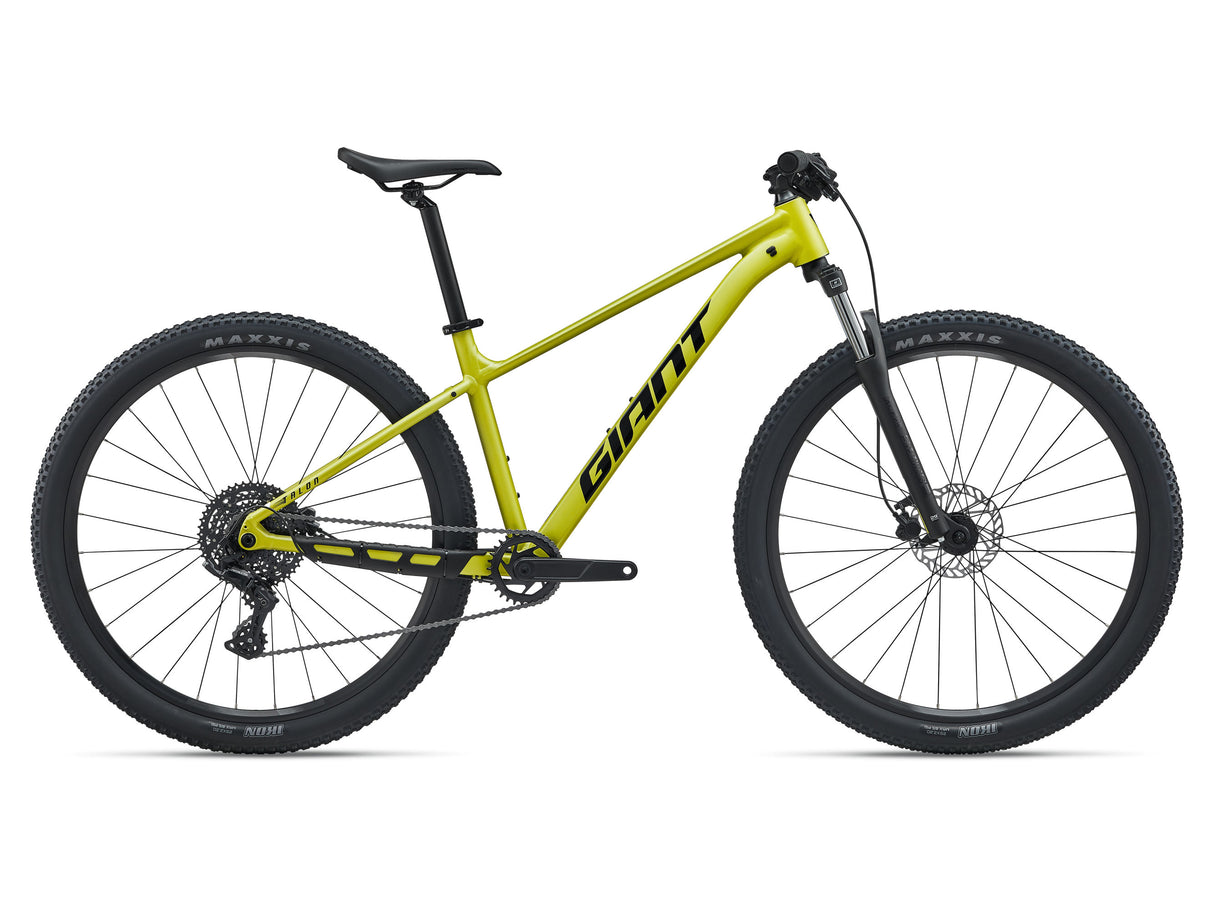

Giant Talon 4 (2027)

$84900
Colour: Cyber Lime
Size

Pickup in-store only. Shipping not available.
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay

Sizing Chart

Sizing and Geometry

Giant Talon

Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.

Sizing Rider Height Rider Height (cm)
XS 5′ 1″ – 5′ 5″ 155 – 166
S 5′ 4″ – 5′ 8″ 163 – 172
M 5′ 7″ – 5′ 10″ 169 – 179
L 5′ 9″ – 6′ 1″ 176 – 186
XL 6′ 0″ – 6′ 4″ 183 – 193


Geometry

bike diagram with measurements referenced in table that follows

    S (29") M (29") L (29") XL (29")
A Seat Tube Length (mm) 380 420 450 480
A1 Seat Post Insertion Depth (mm) 340 200 237 292
B Seat Tube Angle 74.5° 74.5° 74.5° 74.5°
C Top Tube Length (mm) 581 604 629 653
D Head Tube Length (mm) 95 105 125 140
E Head Tube Angle 67.5° 67.5° 67.5° 67.5°
F Fork Rake (mm) 44 44 44 44
G Trail (mm) 108.9 108.9 108.9 108.9
H Wheelbase (mm) 1139 1164 1191 1217
I Chain Stay Length (mm) 455 455 455 455
J Bottom Bracket Drop (mm) 55 55 55 55
K Stack (mm) 597 606 625 639
L Reach (mm) 415 436 456 476
M Stand Over Height (mm) 715 709 709 710
O Stem Length (mm) 50 60 70 80
P Crank Length (mm) 170 170 170 175
Q Wheel Size 29" 29" 29" 29"

Shipping Information

This product: Pickup in-store only. Shipping not available.

Shipping available†

We offer shipping on select brands including: Rocky Mountain, Orbea, XDS, Icon, Jamis, Shogun, Schwinn, BYK, Kidvelo. These bikes are shipped unbuilt in their original box.

†Only bikes stocked at our Warehouse location are available for shipping.

Shipping upon request to your local bike shop

Some brands require the bike is delivered directly to a bicycle shop or mechanic for assembly, and shipping is not available to your residence. These include GT, Cannondale, .

Request a shipping quote to proceed.

Pickup in-store only

Certain bike brands cannot be shipped and are only available for Click and Collect or purchase in-store.

These include but are not limited to the following brands: Giant, Norco, Liv, Momentum, Malvern Star and Mongoose.

Pre-assembled bikes

†Any bikes in stock at our Heidelberg Heights, Hallam or Hoppers Crossing store locations are already fully assembled, and therefore only available for Click and Collect or purchase in-store.

Fully assembled when you Click & Collect
Buy Now, Pay Later with ZIP
Free service adjustment in first 6 months

The mountain bike experience starts here. With a lightweight and durable frame, along with a suspension fork and optimised wheel size (29-inch or 27.5-inch depending on frame size), this aluminium hardtail is everything an aspiring MTB rider needs to evolve and advance.

Light and durable

ALUXX aluminium frame features updated shaping and a lighter overall weight for improved performance on off-road terrain.

Off-road control

Geometry is optimised for either 29-inch wheels or 27.5-inch depending on frame size, and a suspension fork of either 100mm or 80mm. The result is in confident off-road performance for riders of all sizes.

Modern MTB design

Wide tyre clearance (up to 2.4-inch), internal cable routing, thru-axle hubs, integrated chainstay protection and quality components (including a 1x drivetrain option) gives aspiring trail riders room to grow.


SPECIFICATIONS

Sizes 27.5: XS, S 29: S, M, L, XL
Colours Black, Azure Blue, Cyber Lime
Frame ALUXX-Grade aluminium, disc
Fork SR Suntour XCE 28, coil spring, QR, steel steerer XS: 80mm travel (27.5) S: 80mm travel (27.5) / 100mm travel (29) M: 100mm travel (29), L: 100mm travel (29) XL: 100mm travel (29)
Shock N/A
Handlebar Giant Connect Trail, 31.8mm
Grips Giant Sole-O
Stem Giant Sport, 7-degree XS: 40mm (27.5) S: 50mm (27.5) / 50mm (29) M: 60mm (29) L: 70mm (29) XL: 80mm (29)
Seatpost Giant Sport, 30.9mm
Saddle Giant Sport
Pedals MTB caged
Shifters microSHIFT Acolyte, 1x8
Front Derailleur N/A
Rear Derailleur microSHIFT Acolyte, M5185M w/clutch
Brakes Tektro HD TKD-176, hydraulic, Tektro rotors [F]180mm, [R]160mm
Brake Levers Tektro HD TKD-176
Cassette microSHIFT Acolyte H083, 12x46
Chain KMC 8.3
Crankset ProWheel EPRO, 30t (29"), 32t (27.5") XS: 165mm (27.5) S: 165mm (27.5) / 170mm (29) M: 170mm (29) L: 170mm (29) XL: 175mm (29)
Bottom Bracket Cartridge
Rims Giant GX03V 29 or 27.5, alloy, double wall, 28H
Hubs Alloy, [F] 9mm QR, [R] 12x142 thru-axle
Spokes Stainless, 14g
Tyres Maxxis Ikon 27.5" or 29x2.2", wire bead
Max Tyre Clearance 2.4" max tyre size
Max Chainring Size 32t max chainring size
Weight The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Giant Talon 4 (2027)

$84900

Colour

Size

  • XS (27.5")
  • S (27.5")
  • S (29")
  • M (29")
  • L (29")
  • XL (29")

Motor

N/A

Controller

N/A

Display

N/A

Battery

N/A

Charger

N/A

Sizes

N/A

Frame material

N/A

Frame

ALUXX-Grade aluminium, disc

Fork

SR Suntour XCE 28, coil spring, QR, steel steerer XS: 80mm travel (27.5) S: 80mm travel (27.5) / 100mm travel (29) M: 100mm travel (29), L: 100mm travel (29) XL: 100mm travel (29)

Handlebar

Giant Connect Trail, 31.8mm

Grips

Giant Sole-O

Bar Tape

N/A

Headset

N/A

Stem

Giant Sport, 7-degree XS: 40mm (27.5) S: 50mm (27.5) / 50mm (29) M: 60mm (29) L: 70mm (29) XL: 80mm (29)

Seatpost

Giant Sport, 30.9mm

Saddle

Giant Sport

Pedals

Platform

Shifters

microSHIFT Acolyte, 1x8

Front Derailleur

N/A

Rear Derailleur

microSHIFT Acolyte, M5185M w/clutch

Brakes

Tektro HD TKD-176, hydraulic, Tektro rotors [F]180mm, [R]160mm

Brake Levers

Tektro HD TKD-176

Cassette/Freewheel

microSHIFT Acolyte H083, 12x46

Chain

KMC 8.3

Crankset

ProWheel EPRO, 30t (29"), 32t (27.5") XS: 165mm (27.5) S: 165mm (27.5) / 170mm (29) M: 170mm (29) L: 170mm (29) XL: 175mm (29) (32t max chainring size)

Bottom Bracket

Cartridge

Rims

Giant GX03V 29 or 27.5, alloy, double wall, 28H

Hubs

Alloy, [F] 9mm QR, [R] 12x142 thru-axle

Spokes

Stainless, 14g

Tyres

Maxxis Ikon 27.5" or 29x2.2", wire bead (2.4" max tyre size)

Wheel Size

N/A

Extras

N/A
