Giant  |  SKU: 6090000154

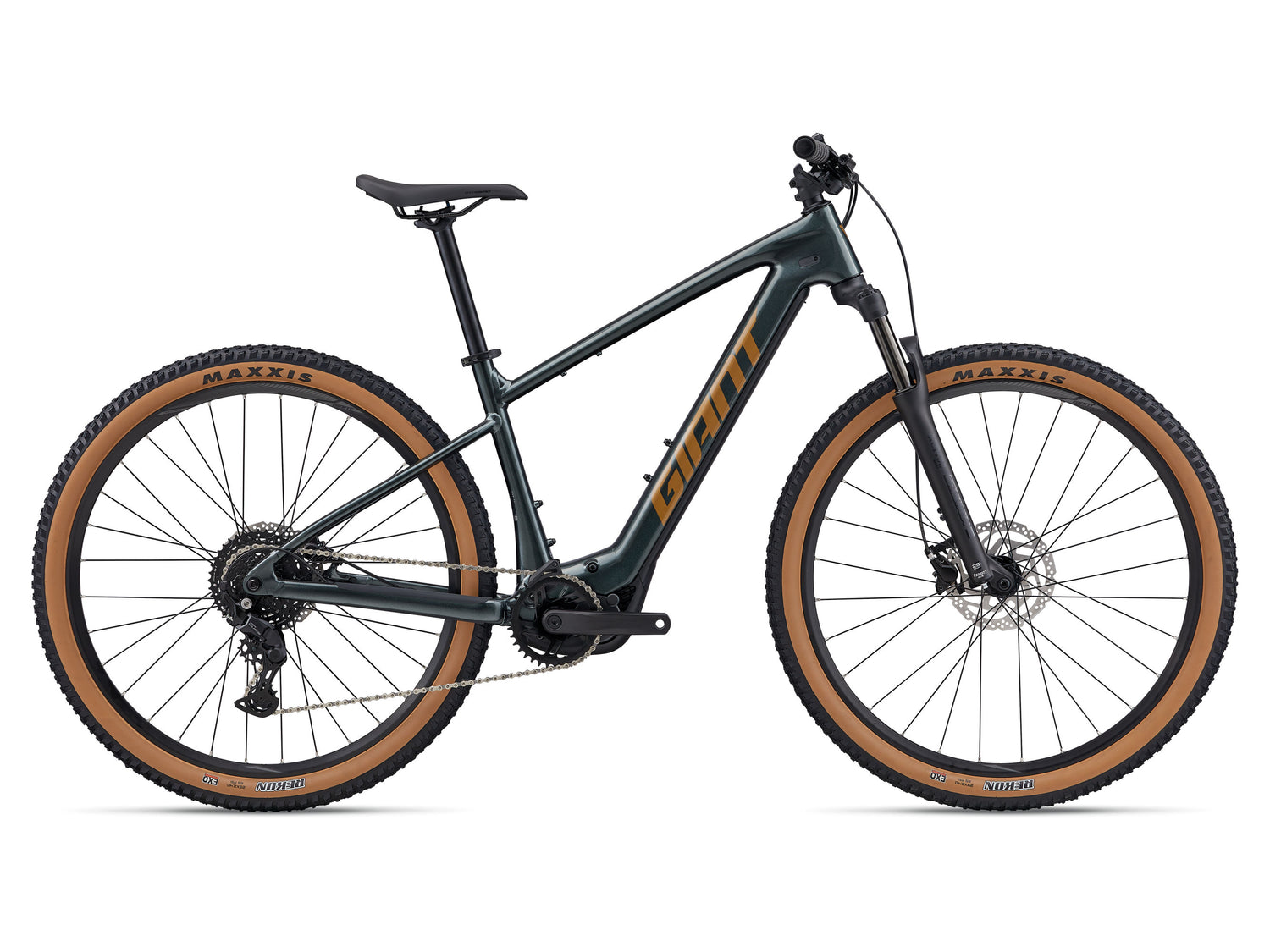

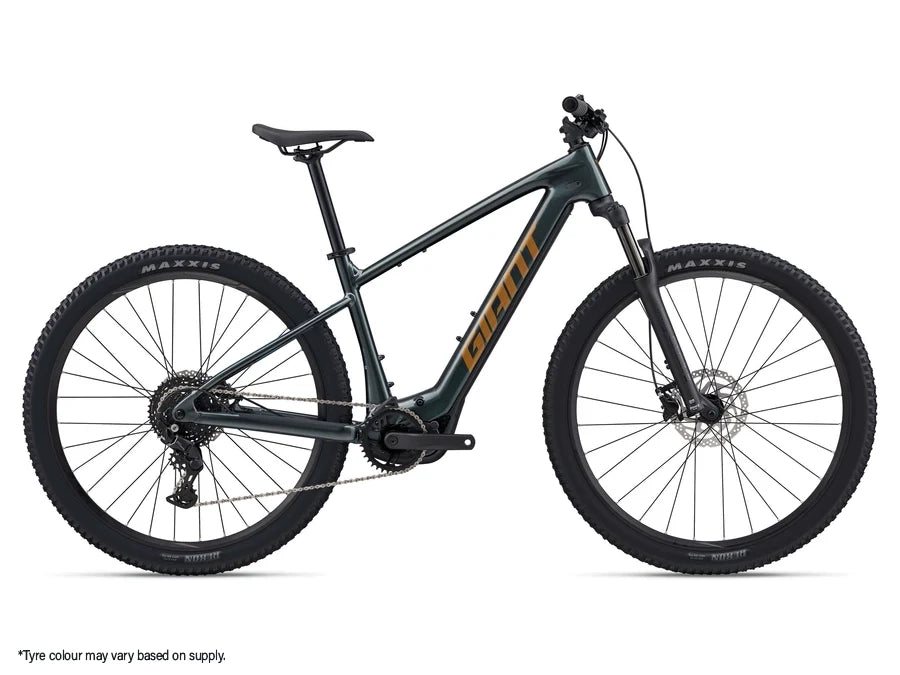

Giant Talon E+ (2026)

$4,49900
Colour: Asphalt Green
Size

Pickup in-store only. Shipping not available.
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay

Sizing Chart

Sizing and Geometry

Giant Talon

Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.

Sizing Rider Height Rider Height (cm)
XS 5′ 1″ – 5′ 5″ 155 – 166
S 5′ 4″ – 5′ 8″ 163 – 172
M 5′ 7″ – 5′ 10″ 169 – 179
L 5′ 9″ – 6′ 1″ 176 – 186
XL 6′ 0″ – 6′ 4″ 183 – 193


Geometry

bike diagram with measurements referenced in table that follows

    S (29") M (29") L (29") XL (29")
A Seat Tube Length (mm) 380 420 450 480
A1 Seat Post Insertion Depth (mm) 340 200 237 292
B Seat Tube Angle 74.5° 74.5° 74.5° 74.5°
C Top Tube Length (mm) 581 604 629 653
D Head Tube Length (mm) 95 105 125 140
E Head Tube Angle 67.5° 67.5° 67.5° 67.5°
F Fork Rake (mm) 44 44 44 44
G Trail (mm) 108.9 108.9 108.9 108.9
H Wheelbase (mm) 1139 1164 1191 1217
I Chain Stay Length (mm) 455 455 455 455
J Bottom Bracket Drop (mm) 55 55 55 55
K Stack (mm) 597 606 625 639
L Reach (mm) 415 436 456 476
M Stand Over Height (mm) 715 709 709 710
O Stem Length (mm) 50 60 70 80
P Crank Length (mm) 170 170 170 175
Q Wheel Size 29" 29" 29" 29"

Shipping Information

Certain bike brands cannot be shipped and are only available for Click and Collect.

These include but are not limited to the following brands: Giant, GT, Liv, Momentum and Mongoose.

For all other brands, we can provide a shipping quote to your postcode. Please contact us by email at staff@ivanhoecycles.com.au, or text us on 0417 122 950.

Fully assembled when you Click & Collect in-store
Buy Now, Pay Later with ZIP
Free service adjustment within first 6 months

Less weight. More Fun

Whether you’re riding trails, exploring dirt roads, or putting some zip in your daily commute, riding an E-bike doesn’t have to be complicated.

The all-new Talon E+ range lets you do it all, combining the exhilarating sensation of pedal-assist power with light and agile off-road handling.

And its integrated system makes it all so seamless, so simple to use, you can forget about the technology and just enjoy the ride.

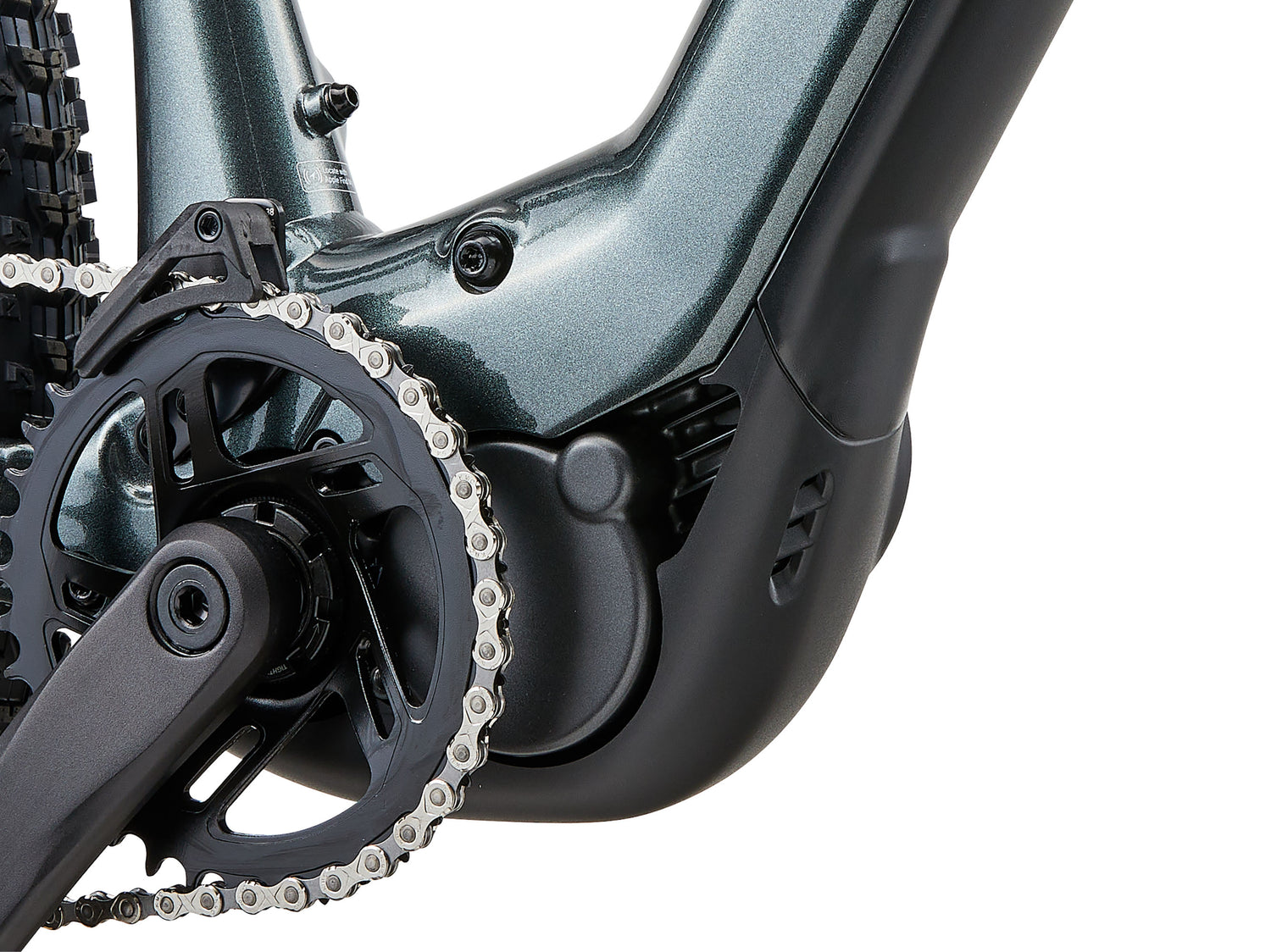

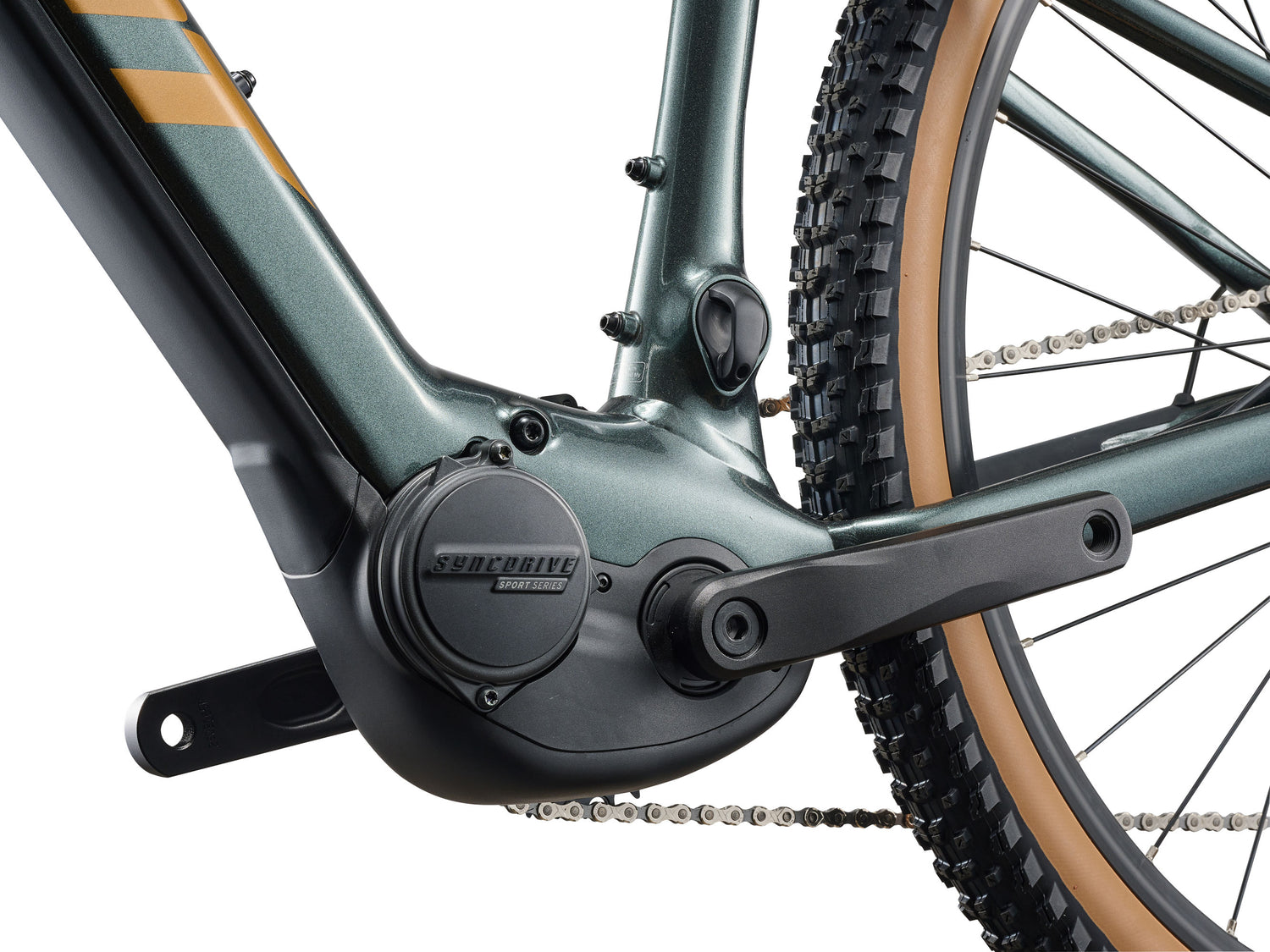

SyncDrive Sport 2

This frame is paired with a SyncDrive Sport 2 motor and removable EnergyPak 430 battery that’s neatly integrated into a slim down tube to help minimise weight.

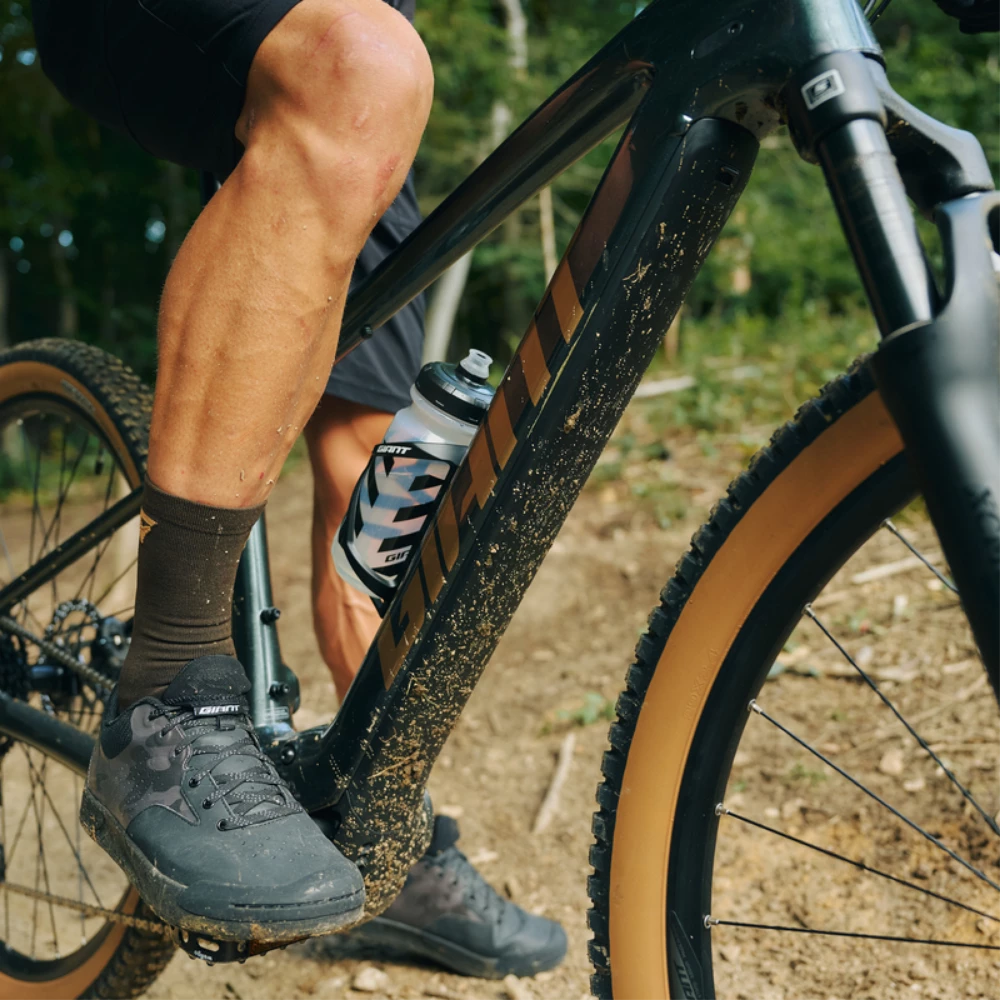

The updated design allows space for two water bottles or a battery range extender for longer rides.

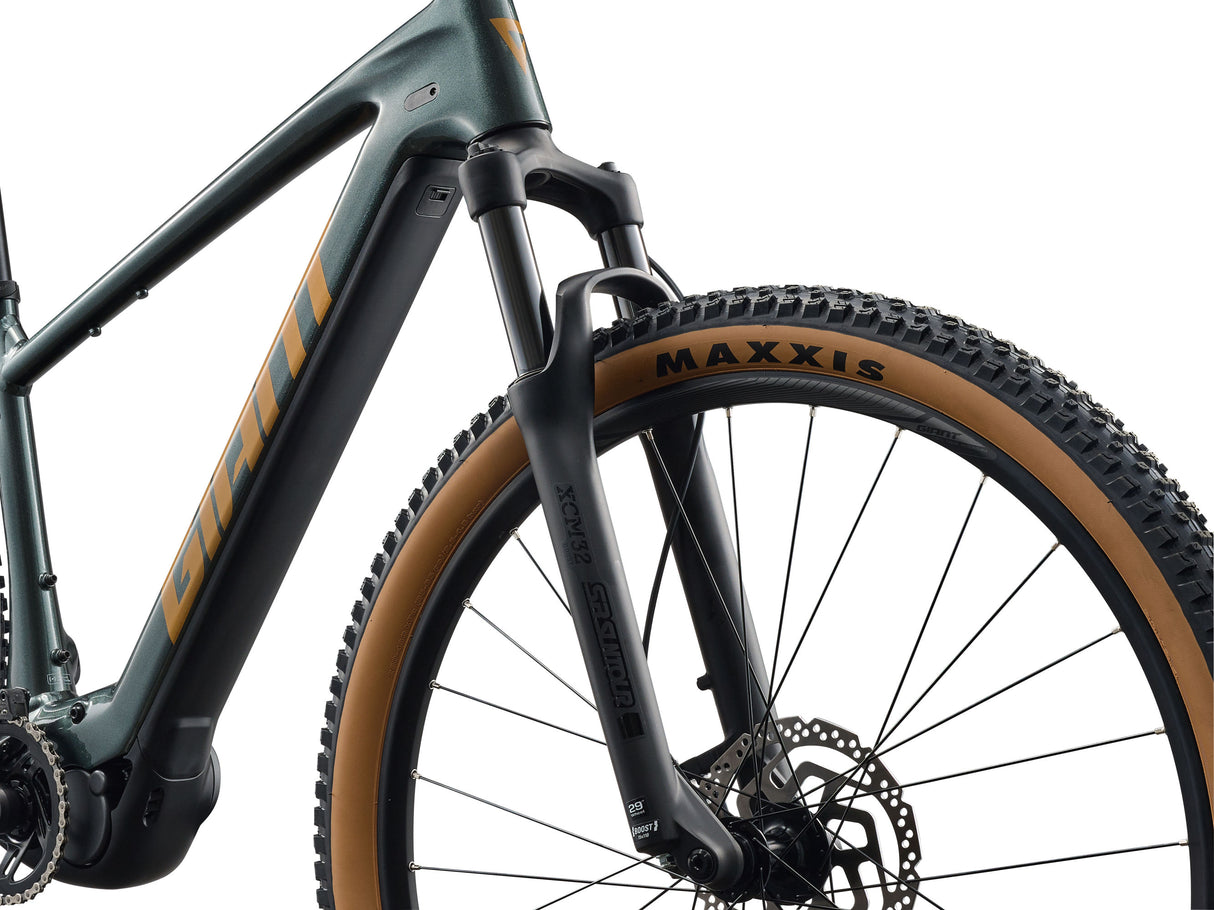

A 100mm suspension fork helps smooth out bumpy terrain, while confident off-road geometry gives it a stable ride quality.

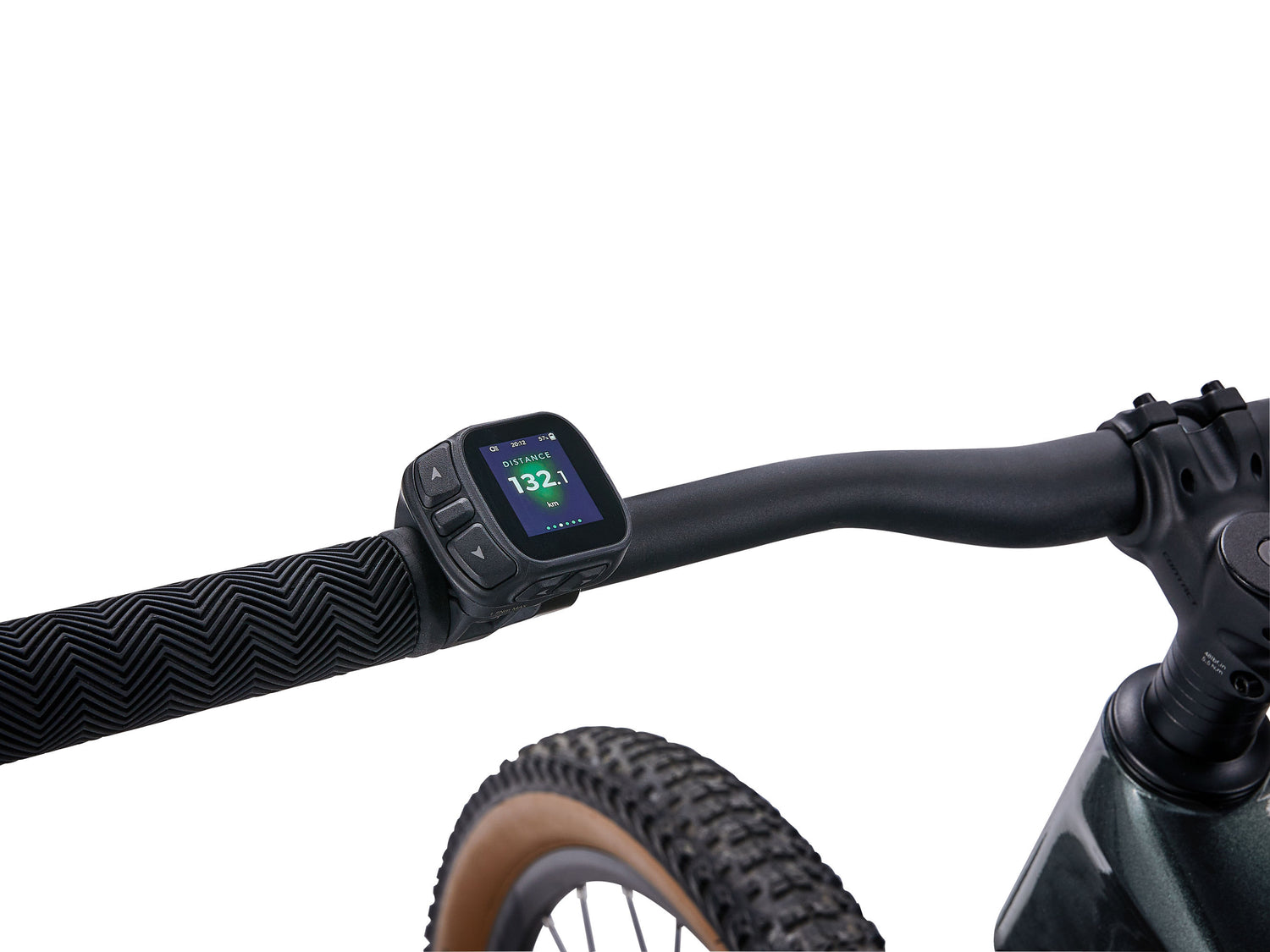

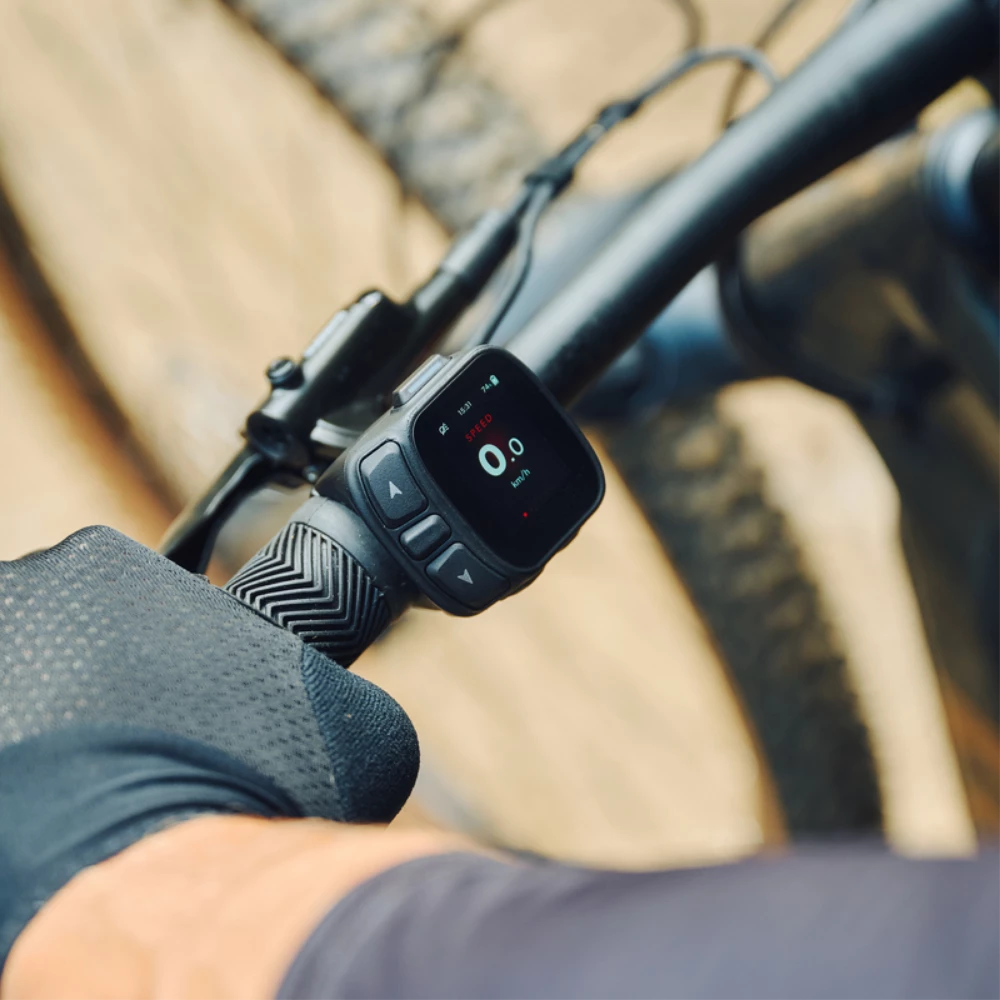

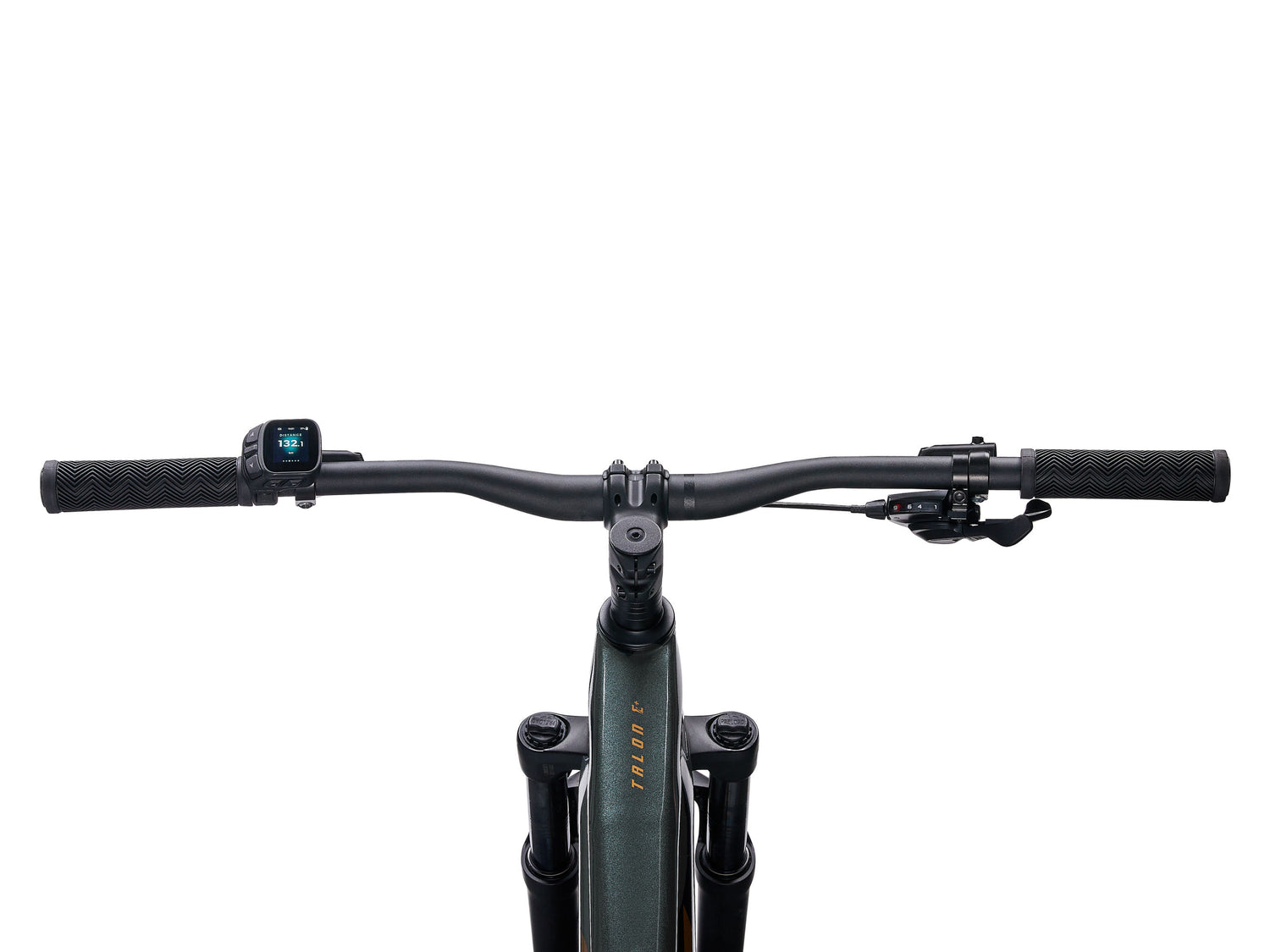

RideControl Dash 2

A new RideControl Dash 2 handlebar-mounted controller makes it easy to power on the bike and adjust support levels while you ride. You can also use the RideControl App to custom-tune the motor output and optimise range capabilities.

Designed Lighter

The frameset is crafted with lightweight aluminium shaped with sleek lines and modern styling. It weighs just 21.7kg (size medium)—significantly lighter than most other bikes in its category.

SPECIFICATIONS

Motor SyncDrive Sport 2, 75Nm, Powered by Yamaha
Controller RideControl Dash 2
Display RideControl Dash 2, full colour LCD screen
Battery EnergyPak 430Wh
Charger Giant EnergyPak smart charger 4A
Maximum assisted speed Pedal-assist limited to 25 km/h in accordance with Australian regulations (EN15194); no motor support above this speed
Connectivity Giant RideControl App enabled, ANT+ wireless display signal with e-bike profile
Sizes S, M, L, XL

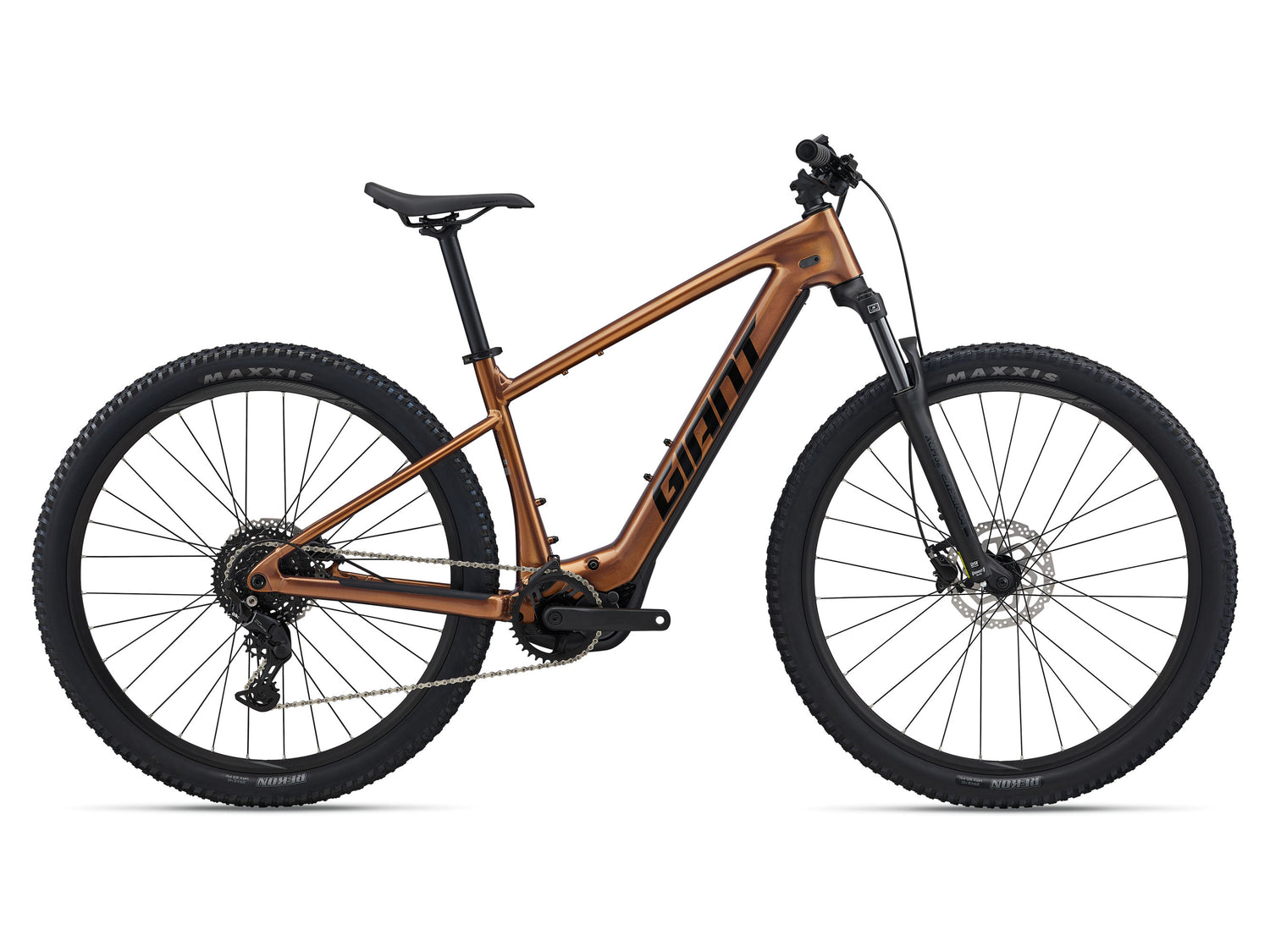

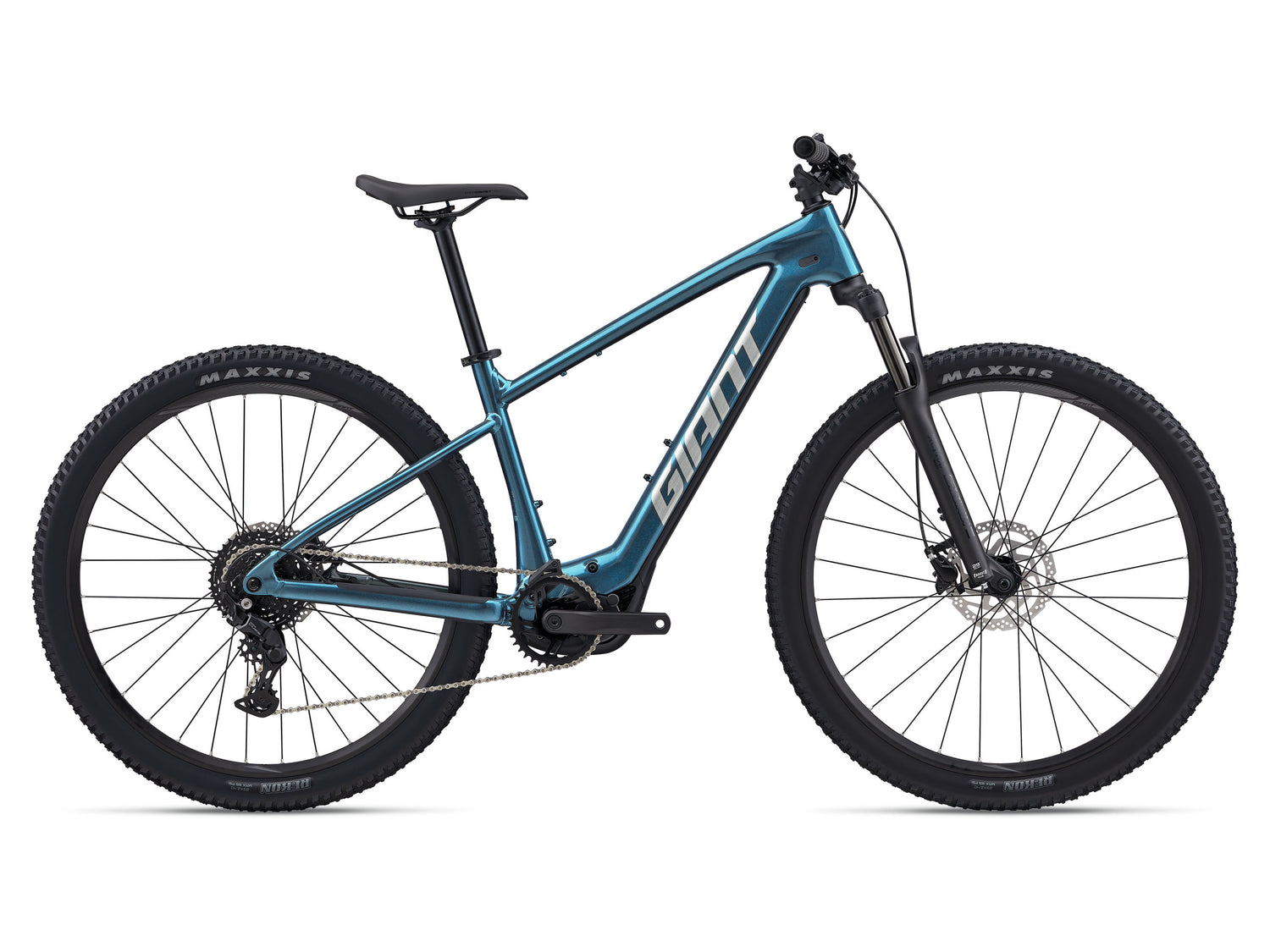

Colours Asphalt Green, Electric Blue, Meteor Storm
Frame ALUXX aluminium, Overdrive 1½ - 1⅛" head tube, integrated KSA40 kickstand mount
Fork SR Suntour XCM 32 DS Coil, Boost 29, 100mm travel
Shock N/A
Handlebar Giant Connect TR Riser, 31.8mm
Grips Giant Sole-O Grip
Stem Giant Contact, alloy, 8-degree, 50mm
Seatpost Giant 30.9mm, 2-bolt Micro Adjust, alloy

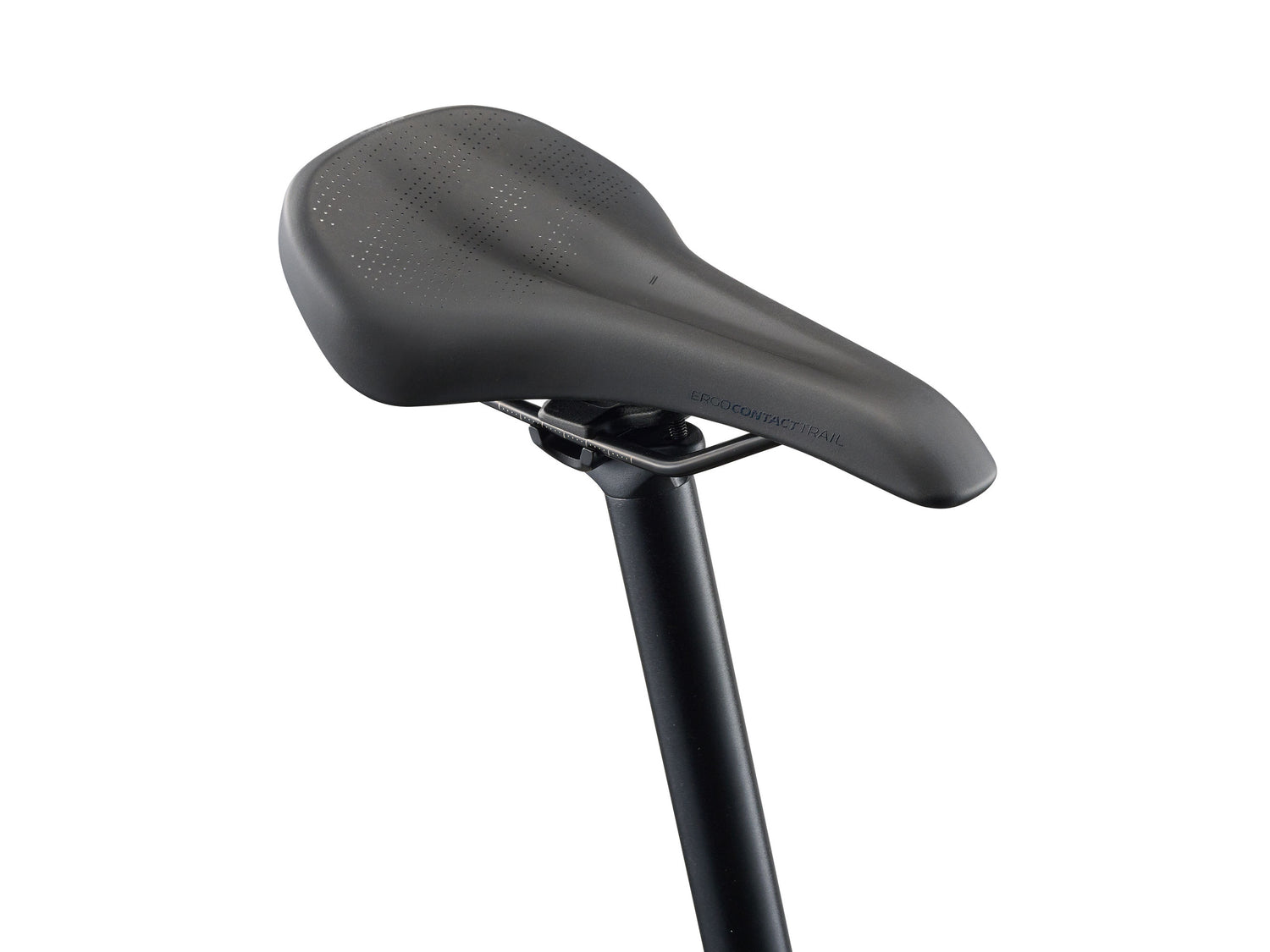

Saddle Giant Ergo Trail
Pedals Platform
Shifters Shimano Cues

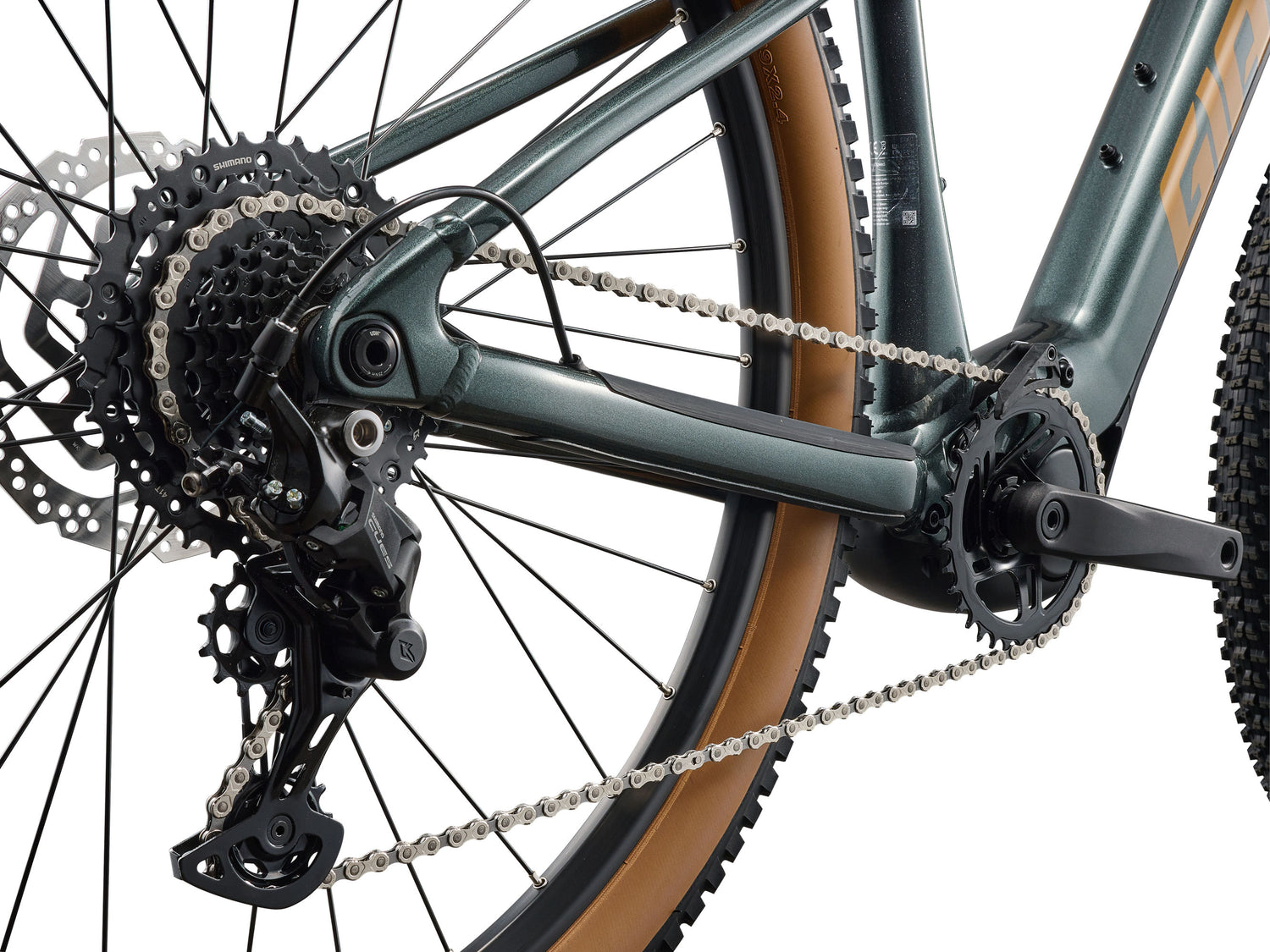

Rear Derailleur Shimano Cues, 9-speed
Brakes Shimano MT200, hydraulic disc, 180mm [F/R]
Brake Levers Shimano MT-200
Cassette Shimano Cues, 11-41T, 9-speed
Chain KMC eGlide, e-bike optimised
Crankset Forged alloy, 36T, 165mm
Bottom Bracket N/A
Rims Giant alloy disc
Hubs Giant eTracker Boost alloy 6-bolt disc, 28H
Spokes Stainless steel
Tyres Maxxis Rekon 29x2.4"
Lighting -
Carrier -
Weight The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Giant Talon E+ (2026)

$4,49900

Colour

Size

  • S
  • M
  • L
  • XL

Motor

Giant SyncDrive Sport, 75Nm PedalPlus 6-sensor technology

Controller

Giant RideControl Dash 2, Smart Assist automatic mode, 5 support levels

Display

Giant RideControl Dash 2, high-angle visibility, full color LCD display

Battery

Giant EnergyPak Smart 430Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, Giant EnergyPak Plus 200 range extender compatible

Charger

Giant EnergyPak smart charger 4A

Sizes

N/A

Frame material

Aluminium

Frame

ALUXX aluminum, Overdrive 1½ - 1⅛" head tube, integrated KSA40 kickstand mount

Fork

SR Suntour XCM ATB DS coil 29" 100mm travel 15x110 AH axle

Handlebar

Giant Connect TR Riser 31.8x690~750mm

Grips

Giant Sole-O Grip

Bar Tape

N/A

Headset

N/A

Stem

Giant Contact

Seatpost

Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium

Saddle

Giant Ergo Trail ESG

Pedals

Platform

Shifters

Shimano Cues, 1x9 speed

Front Derailleur

N/A

Rear Derailleur

Shimano Cues 9-speed

Brakes

Shimano MT200, hydraulic disc, 180mm [F/R]

Brake Levers

Shimano MT-200

Cassette/Freewheel

Shimano Cues, 11-41T, 9-speed

Chain

KMC eGlide NP/BK, e-bike optimized

Crankset

Forged allumin direct-mount chainring steel 36T, Forged alumium crank arms

Bottom Bracket

N/A

Rims

Giant GX03V alluminum

Hubs

[F] eTracker Boost alloy 6-bolt disc 15x110mm | [R] 12x148mm

Spokes

Stainless steel

Tyres

Maxxis Rekon 29x2.4"

Wheel Size

N/A

Extras

N/A
