Giant Talon E+ 3 29 (2023)
Giant Talon E+ 3 29 (2023) - Black / S is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Sizing Chart
Sizing Chart
Sizing and Geometry
Giant Talon
Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.
| Sizing | Rider Height | Rider Height (cm) |
|---|---|---|
| XS | 5′ 1″ – 5′ 5″ | 155 – 166 |
| S | 5′ 4″ – 5′ 8″ | 163 – 172 |
| M | 5′ 7″ – 5′ 10″ | 169 – 179 |
| L | 5′ 9″ – 6′ 1″ | 176 – 186 |
| XL | 6′ 0″ – 6′ 4″ | 183 – 193 |
Geometry
| S (29") | M (29") | L (29") | XL (29") | ||
|---|---|---|---|---|---|
| A | Seat Tube Length (mm) | 380 | 420 | 450 | 480 |
| A1 | Seat Post Insertion Depth (mm) | 340 | 200 | 237 | 292 |
| B | Seat Tube Angle | 74.5° | 74.5° | 74.5° | 74.5° |
| C | Top Tube Length (mm) | 581 | 604 | 629 | 653 |
| D | Head Tube Length (mm) | 95 | 105 | 125 | 140 |
| E | Head Tube Angle | 67.5° | 67.5° | 67.5° | 67.5° |
| F | Fork Rake (mm) | 44 | 44 | 44 | 44 |
| G | Trail (mm) | 108.9 | 108.9 | 108.9 | 108.9 |
| H | Wheelbase (mm) | 1139 | 1164 | 1191 | 1217 |
| I | Chain Stay Length (mm) | 455 | 455 | 455 | 455 |
| J | Bottom Bracket Drop (mm) | 55 | 55 | 55 | 55 |
| K | Stack (mm) | 597 | 606 | 625 | 639 |
| L | Reach (mm) | 415 | 436 | 456 | 476 |
| M | Stand Over Height (mm) | 715 | 709 | 709 | 710 |
| O | Stem Length (mm) | 50 | 60 | 70 | 80 |
| P | Crank Length (mm) | 170 | 170 | 170 | 175 |
| Q | Wheel Size | 29" | 29" | 29" | 29" |
Shipping Information
Shipping Information
Certain bike brands cannot be shipped and are only available for Click and Collect.
These include but are not limited to the following brands: Giant, GT, Liv, Momentum and Mongoose.
For all other brands, we can provide a shipping quote to your postcode. Please contact us by email at staff@ivanhoecycles.com.au, or text us on 0417 122 950.
Sizing and Geometry
Giant Talon
Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.
| Sizing | Rider Height | Rider Height (cm) |
|---|---|---|
| XS | 5′ 1″ – 5′ 5″ | 155 – 166 |
| S | 5′ 4″ – 5′ 8″ | 163 – 172 |
| M | 5′ 7″ – 5′ 10″ | 169 – 179 |
| L | 5′ 9″ – 6′ 1″ | 176 – 186 |
| XL | 6′ 0″ – 6′ 4″ | 183 – 193 |
Geometry
| S (29") | M (29") | L (29") | XL (29") | ||
|---|---|---|---|---|---|
| A | Seat Tube Length (mm) | 380 | 420 | 450 | 480 |
| A1 | Seat Post Insertion Depth (mm) | 340 | 200 | 237 | 292 |
| B | Seat Tube Angle | 74.5° | 74.5° | 74.5° | 74.5° |
| C | Top Tube Length (mm) | 581 | 604 | 629 | 653 |
| D | Head Tube Length (mm) | 95 | 105 | 125 | 140 |
| E | Head Tube Angle | 67.5° | 67.5° | 67.5° | 67.5° |
| F | Fork Rake (mm) | 44 | 44 | 44 | 44 |
| G | Trail (mm) | 108.9 | 108.9 | 108.9 | 108.9 |
| H | Wheelbase (mm) | 1139 | 1164 | 1191 | 1217 |
| I | Chain Stay Length (mm) | 455 | 455 | 455 | 455 |
| J | Bottom Bracket Drop (mm) | 55 | 55 | 55 | 55 |
| K | Stack (mm) | 597 | 606 | 625 | 639 |
| L | Reach (mm) | 415 | 436 | 456 | 476 |
| M | Stand Over Height (mm) | 715 | 709 | 709 | 710 |
| O | Stem Length (mm) | 50 | 60 | 70 | 80 |
| P | Crank Length (mm) | 170 | 170 | 170 | 175 |
| Q | Wheel Size | 29" | 29" | 29" | 29" |

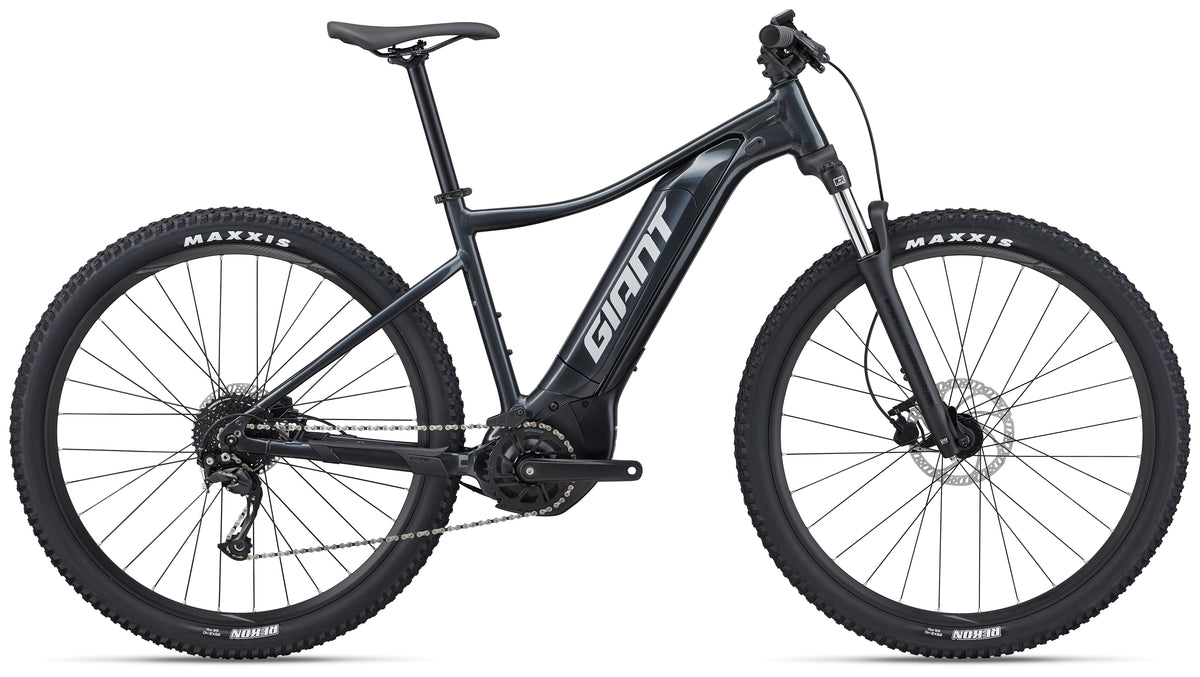

Giant Talon E+ 3 29 (2023)
Trail-Ready Power for Everyday Adventures.
The Giant Talon E+ 3 is a capable hardtail e-bike, built to help you explore more. Use it to re commute ride rail trails or discover your first off-road single-track.
It delivers smooth pedal-assist power, confident and stable handling, and durable components.
- SyncDrive Core motor with 50Nm torque and 5 assist levels.
- Integrated EnergyPak 400Wh battery with smart charger.
- RideControl Dash for battery, speed, and support mode display.
- Lightweight ALUXX-grade aluminium frame.
- 100mm suspension fork for comfort and control.
- 29-inch wheels with durable off-road tyres.
- Reliable Shimano 9-speed drivetrain and hydraulic disc brakes
Smooth Power, Natural Feel
Powered by the SyncDrive Core motor, the Talon E+ 3 delivers up to 50Nm of torque. It has a natural pedaling feel and 5 support modes.
It’s ideal for riders who want gentle assistance on climbs and longer range for everyday riding. Plus, The Talon E+ 3 gives the freedom to ride hilly terrain without overexertion.
Long Range, Easy Control
The integrated EnergyPak 400Wh battery is neatly housed on the downtube and delivers ample range for multi-hour rides.
The battery can be removed from the frame and charged inside the house if needed.
Paired with the RideControl Dash system, you can easily monitor battery life, assist levels, and trip data.
In the real world, expect a range from 80km to 120km.
Confident Trail Handling
Built on a lightweight ALUXX aluminium frame with trail-friendly geometry, the Talon E+ 3 rides like a true mountain bike. It’s equipped with a 100mm suspension fork, 29-inch wheels, and grippy off-road tyres for control on rough paths and dirt trails.
Robust microSHIFT 9-speed Gears
The Talon E+ 3 uses microSHIFT Advent gearing components.
Advent parts are designed to be robust. They are intended for rougher trails and mountain biking. They are not your typical recreational level parts.
9 rear gears are paired to a single front chain ring.
This means there's no front gear shifter, cable or derailleur. Less parts equals less maintenance.
-
Motor
-
Controller
-
Display
-
Battery
-
Charger
-
Frame material
-
Frame
-
Fork
-
Handlebar
-
Grips
-
Stem
-
Seatpost
-
Saddle
-
Pedals
-
Shifters
-
Front Derailleur
-
Rear Derailleur
-
Brakes
-
Brake Levers
-
Cassette/Freewheel
-
Chain
-
Crankset
-
Bottom Bracket
-
Rims
-
Hubs
-
Spokes
-
Tyres
-
Notes
-
Speeds (rear)9 Speed
-
Age GroupAdults
-
GenderMens
-
DisciplineMountain, Electric
-
SKUsBlack/S: 2313402154, Black/M: 2313402155, Black/L: 2313402157, Black/XL: 2313402158
