Giant  |  SKU: 9096002105

Giant TCR Advanced 1 PC (2024)

$4,29900 $4,99900
Colour: Carbon
Size

PICKUP IN-STORE ONLY. Shipping not available on bikes.

 More payment options
Or Rent From
$41.54 per weekReturn any time after minimum rental agreement
Apply NowLearn MoreApply to Purchase Info

Pickup available at HALLAM

Usually ready in 24 hours
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
Fully assembled, ready to ride
Buy Now, Pay Later with ZIP
Free service adjustment within first 6 months
Warehouse - Out of stock
,
Heidelberg Heights - In stock
72 Bell Street Heidelberg Heights, Victoria 3081
+61394505200
Hoppers Crossing - Out of stock
319 Old Geelong Road Hoppers Crossing, Victoria 3029
+61387421975
Hallam - In stock
21/2-10 Hallam South Road Hallam, Victoria 3803
+61387951600

Sizing Chart

Sizing and Geometry

Giant TCR

Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.

Frame size Rider Height Rider Height (cm)
XS 5'2"-5'6" 157-169
S 5'5"-5'9" 165-175
M 5'7"-5'11" 171-181
ML 5'10"-6'2" 177-187
L 6'0"-6'4" 183-193
XL 6'2"-6'6" 189-199



Geometry

bike diagram with measurements referenced in table that follows

    XS S M ML L XL
A Seat Tube Length (mm) 680 710 740 770 800 830
B Seat Tube Angle 74.5° 74.0° 73.5° 73.0° 73.0° 72.5°
C Top Tube Length (mm) 520 535 550 565 580 600
D Head Tube Length (mm) 120 130 145 165 185 200
E Head Tube Angle 71.0° 72.3° 73.0° 73.0° 73.0° 73.0°
F Fork Rake (mm) 45 45 45 45 45 45
G Trail (mm) 72 64 59 59 59 59
H Wheelbase (mm) 976 977 980 991 1006 1020
I Chain Stay Length (mm) 405 405 405 405 405 405
J Bottom Bracket Drop (mm) 72 69.5 69.5 67 67 67
K Stack (mm) 517 528 545 562 581 596
L Reach (mm) 376 383 388 393 402 412
M Stand Over Height (mm) 703 722 743 771 798 822
O Stem Length (mm) 80 90 100 110 110 120
P Crank Length (mm) 170 170 172.5 172.5 175 175
Q Wheel Size 700C 700C 700C 700C 700C 700C

Shipping Information

Certain bike brands cannot be shipped and are only available for Click and Collect.

These include but are not limited to the following brands: Giant, GT, Liv, Momentum and Mongoose.

For all other brands, we can provide a shipping quote to your postcode. Please contact us by email at staff@ivanhoecycles.com.au, or text us on 0417 122 950.

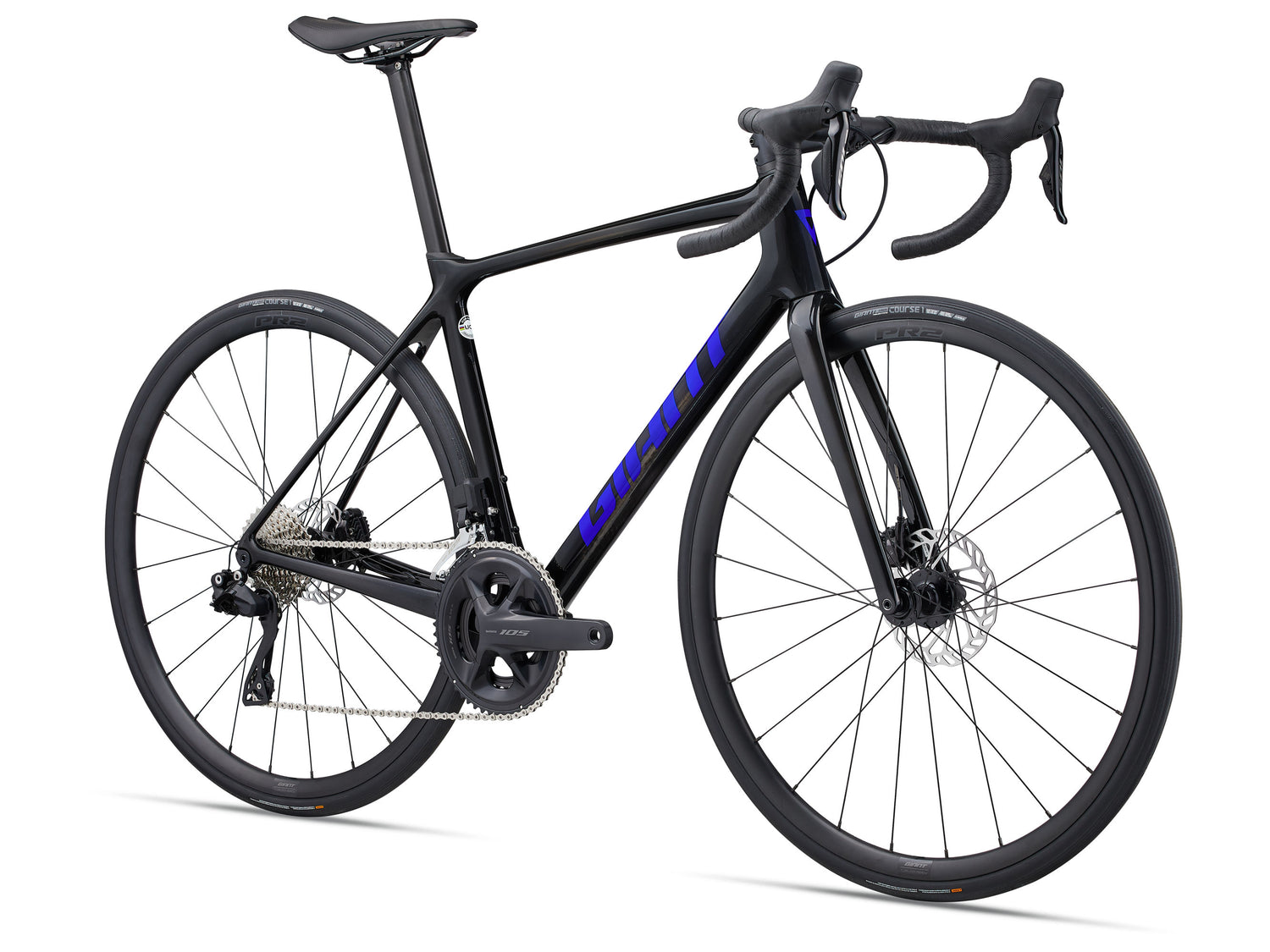

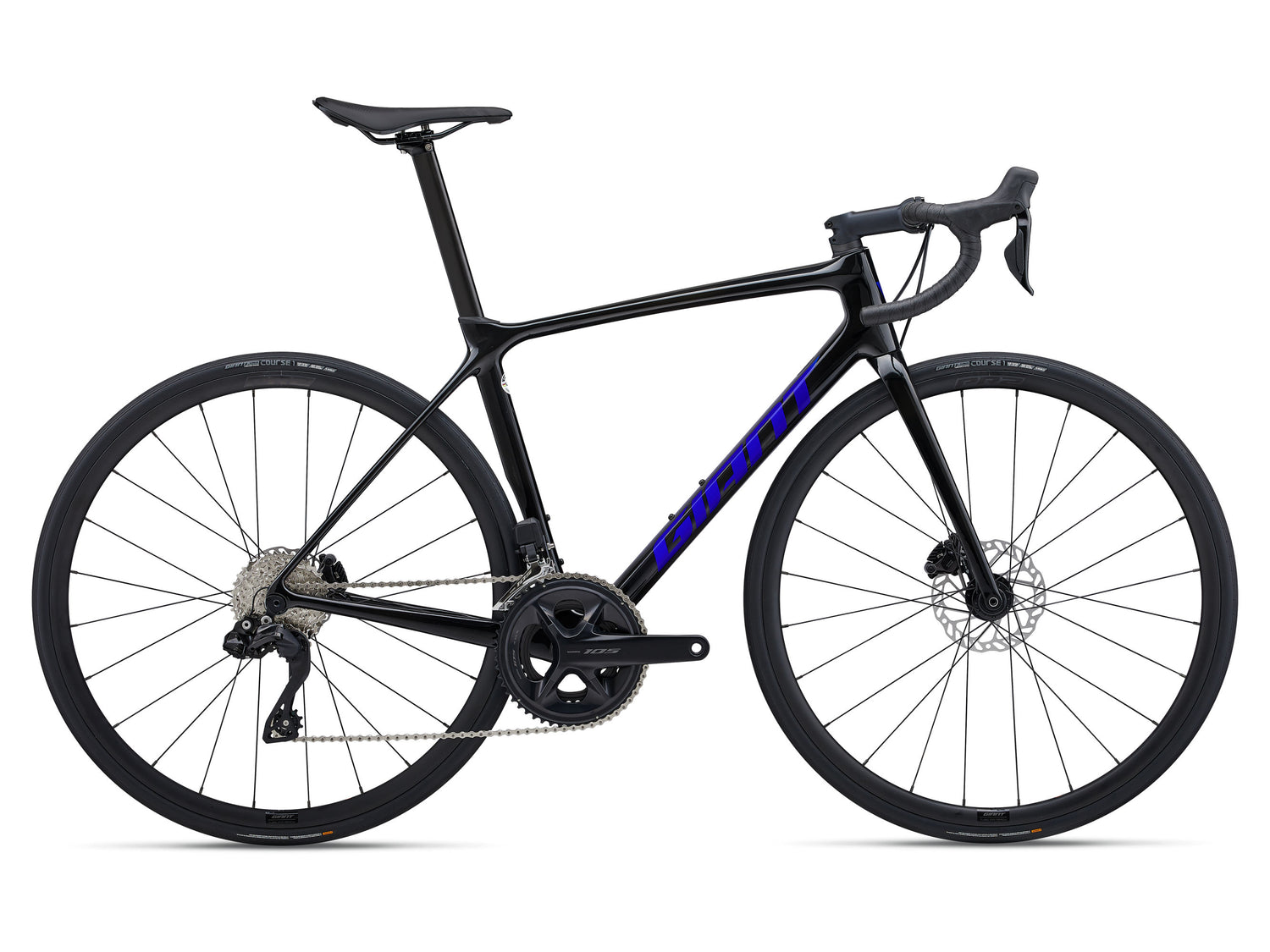

Giant TCR Advanced 1 (2024)

Gunning for the race win or digging deep for a PR, this lightweight composite road bike gives you the speed, efficiency and control to push it to the limit, and then a little bit more.

Class Leading Efficiency

Combining best-in-class stiffness-to-weight with strategically placed aero tube shaping, this frameset is engineered for faster climbing, explosive acceleration and unyielding pedalling stiffness for race-winning performance.

Advanced Aero

This is where the TCR’s most quantifiable gains can be found compared to previous generation models. Every tube shape was analysed, engineered and tested to create an overall structure with significantly lower drag at a wider range of yaw angles.

Total Control

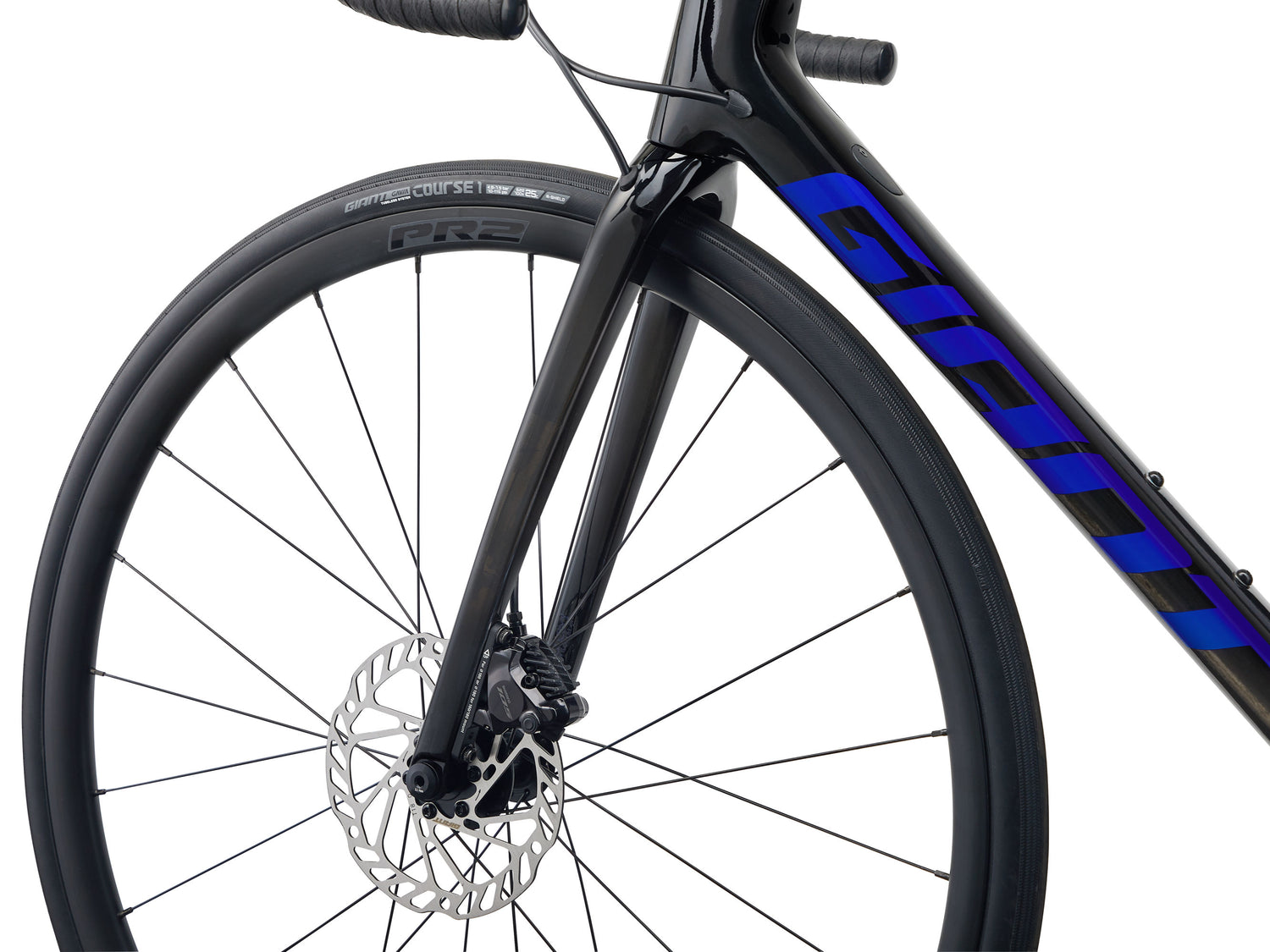

Integrated disc brakes deliver smooth, powerful stopping power and modulation for added control in variable weather and road conditions. Flat mounts and new thru-axles boost stiffness and improve overall handling, while added frame and fork clearance allows for larger diameter tyres up to 32mm.

New content loaded
Giant TCR Advanced 1 (2024) mens carbon race bike.

Giant TCR Advanced 1 PC (2024)

$4,29900 $4,99900

Colour

Size

  • XS
  • S
  • M
  • ML
  • L
  • XL

Motor

N/A

Controller

N/A

Display

N/A

Battery

N/A

Charger

N/A

Sizes

N/A

Frame material

Carbon

Frame

Advanced-grade composite, disc

Fork

Advanced-grade composite, full-composite OverDrive steerer, disc

Handlebar

Giant Contact | XS:40cm, S:40cm, M:42cm, M/L:42cm, L:44cm, XL:44cm

Grips

N/A

Bar Tape

Giant Stratus Lite 2.0

Headset

N/A

Stem

Giant Contact | XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm

Seatpost

Giant Variant, composite, -5/+15mm offset

Saddle

Giant Approach

Pedals

N/A

Shifters

Shimano 105 Di2

Front Derailleur

Shimano 105 Di2

Rear Derailleur

Shimano 105 Di2, 12 speed

Brakes

Shimano 105 Di2 hydraulic | Giant MPH rotors [F]160mm, [R]140mm

Brake Levers

Shimano 105 Di2 hydraulic

Cassette/Freewheel

Shimano 105, 12-speed, 11T-34T

Chain

KMC X12L-1

Crankset

Shimano 105, 36T/52T | XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm

Bottom Bracket

Shimano, press fit

Rims

Giant P-R2 Disc

Hubs

Giant alloy, 12mm thru-axle

Spokes

Sapim

Tyres

Giant Course 1, tubeless, 700x25c (28mm), folding

Wheel Size

N/A

Extras

Tubeless prepared, 32mm max tyre size
