Giant  |  SKU: 9096056103

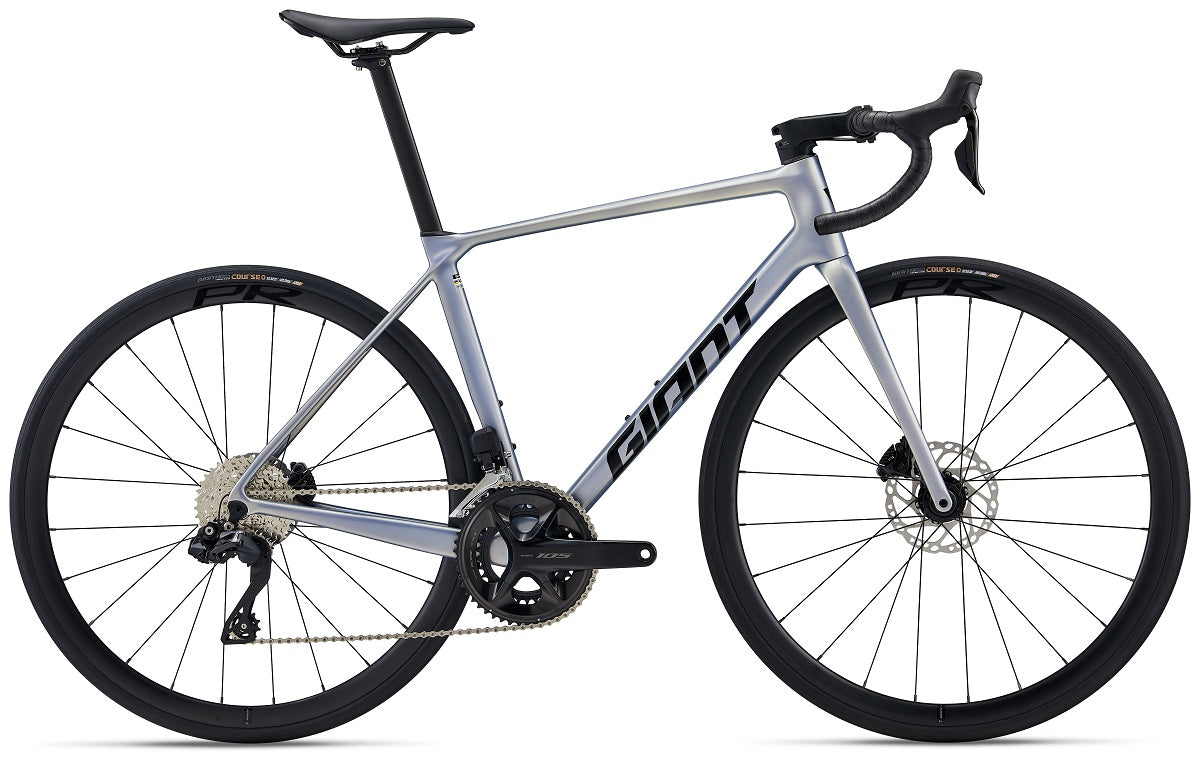

Giant TCR Advanced 1 PC (2026)

$4,99900
Colour: Dreamy Blue
Size

Pickup in-store only. Shipping not available.
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay

Sizing Chart

Sizing and Geometry

Giant TCR

Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.

Frame size Rider Height Rider Height (cm)
XS 5'2"-5'6" 157-169
S 5'5"-5'9" 165-175
M 5'7"-5'11" 171-181
ML 5'10"-6'2" 177-187
L 6'0"-6'4" 183-193
XL 6'2"-6'6" 189-199



Geometry

bike diagram with measurements referenced in table that follows

    XS S M ML L XL
A Seat Tube Length (mm) 680 710 740 770 800 830
B Seat Tube Angle 74.5° 74.0° 73.5° 73.0° 73.0° 72.5°
C Top Tube Length (mm) 520 535 550 565 580 600
D Head Tube Length (mm) 120 130 145 165 185 200
E Head Tube Angle 71.0° 72.3° 73.0° 73.0° 73.0° 73.0°
F Fork Rake (mm) 45 45 45 45 45 45
G Trail (mm) 72 64 59 59 59 59
H Wheelbase (mm) 976 977 980 991 1006 1020
I Chain Stay Length (mm) 405 405 405 405 405 405
J Bottom Bracket Drop (mm) 72 69.5 69.5 67 67 67
K Stack (mm) 517 528 545 562 581 596
L Reach (mm) 376 383 388 393 402 412
M Stand Over Height (mm) 703 722 743 771 798 822
O Stem Length (mm) 80 90 100 110 110 120
P Crank Length (mm) 170 170 172.5 172.5 175 175
Q Wheel Size 700C 700C 700C 700C 700C 700C

Shipping Information

This product: Pickup in-store only. Shipping not available.

Shipping available†

We offer shipping on select brands including: Rocky Mountain, Orbea, XDS, Icon, Jamis, Shogun, Schwinn, BYK, Kidvelo. These bikes are shipped unbuilt in their original box.

†Only bikes stocked at our Warehouse location are available for shipping.

Shipping upon request to your local bike shop

Some brands require the bike is delivered directly to a bicycle shop or mechanic for assembly, and shipping is not available to your residence. These include GT, Cannondale, .

Request a shipping quote to proceed.

Pickup in-store only

Certain bike brands cannot be shipped and are only available for Click and Collect or purchase in-store.

These include but are not limited to the following brands: Giant, Norco, Liv, Momentum, Malvern Star and Mongoose.

Pre-assembled bikes

†Any bikes in stock at our Heidelberg Heights, Hallam or Hoppers Crossing store locations are already fully assembled, and therefore only available for Click and Collect or purchase in-store.

Fully assembled when you Click & Collect in-store
Buy Now, Pay Later with ZIP
Free service adjustment within first 6 months

Winning race bikes have just the right balance of light weight, superior stiffness and smooth compliance on the road. TCR Advanced delivers on all three.

Class-leading efficiency

A high stiffness-to-weight ratio combined with strategically placed aero tube shaping results in faster climbing, explosive acceleration and unyielding pedalling stiffness for race-winning performance.

Advanced aerodynamics

This is where the TCR’s most quantifiable gains can be found compared to previous generation models. Every tube shape was analysed, engineered and tested to create an overall structure with significantly lower drag at a wider range of yaw angles.

Total control

A composite fork delivers torsional stiffness for sharp handling and steering precision, while a Giant WheelSystem with tubeless technology allows you to run lower tyre pressures for increased grip and a reduced risk of punctures.

Giant TCR Advanced 1 PC (2026)

$4,99900

Colour

Size

  • XS
  • S
  • M
  • ML
  • L
  • XL

Motor

N/A

Controller

N/A

Display

N/A

Battery

N/A

Charger

N/A

Sizes

N/A

Frame material

Carbon

Frame

Advanced-grade Carbon, 12x142mm thru-axle, disc

Fork

Advanced-grade Carbon, full-composite OverDrive steerer, 12x100mm thru-axle, disc

Handlebar

Giant Contact | XS:38cm, S:38cm, M:40cm, M/L:40cm, L:42cm, XL:42cm

Grips

Stratus Lite 2.0

Bar Tape

N/A

Headset

N/A

Stem

Giant Contact AeroLight | XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm

Seatpost

Giant Variant, carbon, -5/+15mm offset

Saddle

Giant Approach

Pedals

N/A

Shifters

Shimano 105 Di2, 2x12 speed

Front Derailleur

Shimano 105 Di2 FD-7150

Rear Derailleur

Shimano 105 Di2 RD-7150

Brakes

Shimano 105 Di2 hydraulic | Shimano SM-RT64 rotors [F]160mm, [R]140mm

Brake Levers

Shimano 105 Di2

Cassette/Freewheel

Shimano 105, 12-speed, 11x34T

Chain

KMC X12L-1

Crankset

Shimano 105, 36/52T | XS:165mm, S:165mm, M:170mm, M/L:170mm, L:172.5mm, XL:172.5mm

Bottom Bracket

Shimano, press fit

Rims

Giant P-R1, [F]30mm, [R]30mm

Hubs

Giant alloy, 12mm thru-axle

Spokes

Stainless

Tyres

Giant Gavia Course 0, tubeless, 700x28c (28mm), folding

Wheel Size

N/A

Extras

Tubeless prepared, 33mm max tyre size
