Giant TCR Advanced Pro 0 Disc AR (2024)
Giant TCR Advanced Pro 0 Disc AR (2024) - Dark Iridescent / M : This product is available for backorder only. Will ship as soon as it is back in stock.
Couldn't load pickup availability
Sizing Chart
Sizing Chart
Sizing and Geometry
Giant TCR
Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.
| Frame size | Rider Height | Rider Height (cm) |
| XS | 5'2"-5'6" | 157-169 |
| S | 5'5"-5'9" | 165-175 |
| M | 5'7"-5'11" | 171-181 |
| ML | 5'10"-6'2" | 177-187 |
| L | 6'0"-6'4" | 183-193 |
| XL | 6'2"-6'6" | 189-199 |
Geometry
| XS | S | M | ML | L | XL | ||
|---|---|---|---|---|---|---|---|
| A | Seat Tube Length (mm) | 680 | 710 | 740 | 770 | 800 | 830 |
| B | Seat Tube Angle | 74.5° | 74.0° | 73.5° | 73.0° | 73.0° | 72.5° |
| C | Top Tube Length (mm) | 520 | 535 | 550 | 565 | 580 | 600 |
| D | Head Tube Length (mm) | 120 | 130 | 145 | 165 | 185 | 200 |
| E | Head Tube Angle | 71.0° | 72.3° | 73.0° | 73.0° | 73.0° | 73.0° |
| F | Fork Rake (mm) | 45 | 45 | 45 | 45 | 45 | 45 |
| G | Trail (mm) | 72 | 64 | 59 | 59 | 59 | 59 |
| H | Wheelbase (mm) | 976 | 977 | 980 | 991 | 1006 | 1020 |
| I | Chain Stay Length (mm) | 405 | 405 | 405 | 405 | 405 | 405 |
| J | Bottom Bracket Drop (mm) | 72 | 69.5 | 69.5 | 67 | 67 | 67 |
| K | Stack (mm) | 517 | 528 | 545 | 562 | 581 | 596 |
| L | Reach (mm) | 376 | 383 | 388 | 393 | 402 | 412 |
| M | Stand Over Height (mm) | 703 | 722 | 743 | 771 | 798 | 822 |
| O | Stem Length (mm) | 80 | 90 | 100 | 110 | 110 | 120 |
| P | Crank Length (mm) | 170 | 170 | 172.5 | 172.5 | 175 | 175 |
| Q | Wheel Size | 700C | 700C | 700C | 700C | 700C | 700C |
Shipping Information
Shipping Information
This product: Pickup in-store only. Shipping not available.
Shipping available†
We offer shipping on select brands including: Rocky Mountain, Orbea, XDS, Icon, Jamis, Shogun, Schwinn, BYK, Kidvelo. These bikes are shipped unbuilt in their original box.
†Only bikes stocked at our Warehouse location are available for shipping.
Shipping upon request to your local bike shop
Some brands require the bike is delivered directly to a bicycle shop or mechanic for assembly, and shipping is not available to your residence. These include GT, Cannondale, .
Request a shipping quote to proceed.
Pickup in-store only
Certain bike brands cannot be shipped and are only available for Click and Collect or purchase in-store.
These include but are not limited to the following brands: Giant, Norco, Liv, Momentum, Malvern Star and Mongoose.
Pre-assembled bikes
†Any bikes in stock at our Heidelberg Heights, Hallam or Hoppers Crossing store locations are already fully assembled, and therefore only available for Click and Collect or purchase in-store.
Sizing and Geometry
Giant TCR
Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.
| Frame size | Rider Height | Rider Height (cm) |
| XS | 5'2"-5'6" | 157-169 |
| S | 5'5"-5'9" | 165-175 |
| M | 5'7"-5'11" | 171-181 |
| ML | 5'10"-6'2" | 177-187 |
| L | 6'0"-6'4" | 183-193 |
| XL | 6'2"-6'6" | 189-199 |
Geometry
| XS | S | M | ML | L | XL | ||
|---|---|---|---|---|---|---|---|
| A | Seat Tube Length (mm) | 680 | 710 | 740 | 770 | 800 | 830 |
| B | Seat Tube Angle | 74.5° | 74.0° | 73.5° | 73.0° | 73.0° | 72.5° |
| C | Top Tube Length (mm) | 520 | 535 | 550 | 565 | 580 | 600 |
| D | Head Tube Length (mm) | 120 | 130 | 145 | 165 | 185 | 200 |
| E | Head Tube Angle | 71.0° | 72.3° | 73.0° | 73.0° | 73.0° | 73.0° |
| F | Fork Rake (mm) | 45 | 45 | 45 | 45 | 45 | 45 |
| G | Trail (mm) | 72 | 64 | 59 | 59 | 59 | 59 |
| H | Wheelbase (mm) | 976 | 977 | 980 | 991 | 1006 | 1020 |
| I | Chain Stay Length (mm) | 405 | 405 | 405 | 405 | 405 | 405 |
| J | Bottom Bracket Drop (mm) | 72 | 69.5 | 69.5 | 67 | 67 | 67 |
| K | Stack (mm) | 517 | 528 | 545 | 562 | 581 | 596 |
| L | Reach (mm) | 376 | 383 | 388 | 393 | 402 | 412 |
| M | Stand Over Height (mm) | 703 | 722 | 743 | 771 | 798 | 822 |
| O | Stem Length (mm) | 80 | 90 | 100 | 110 | 110 | 120 |
| P | Crank Length (mm) | 170 | 170 | 172.5 | 172.5 | 175 | 175 |
| Q | Wheel Size | 700C | 700C | 700C | 700C | 700C | 700C |

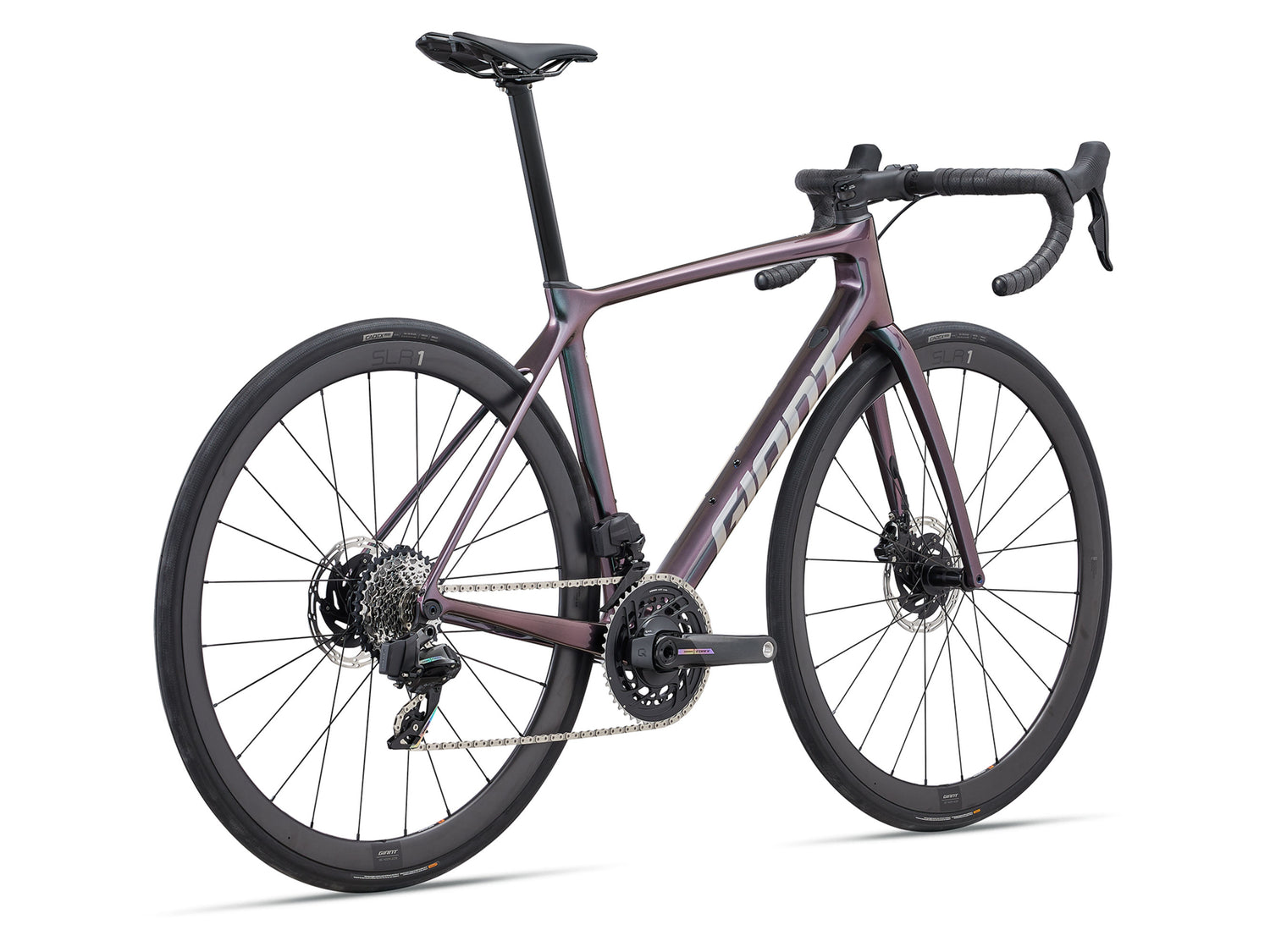

Giant TCR Advanced Pro 0 Disc AR (2024)
Giant TCR Advanced Pro 0 Disc AR (2024)
Climb, corner and descent with greater speed, more control and maximum efficiency. From the mountains to the flats, in all conditions, this lightweight composite road racer takes you to the next level.
Class-leading efficiency
Combining best-in-class stiffness-to-weight with strategically placed aero tube shaping, this frameset is engineered for faster climbing, explosive acceleration and unyielding pedaling stiffness for race-winning performance.
Advanced aerodynamics
This is where the TCR’s most quantifiable gains can be found compared to previous generation models. Every tube shape was analysed, engineered and tested to create an overall structure with significantly lower drag at a wider range of yaw angles.
Total control

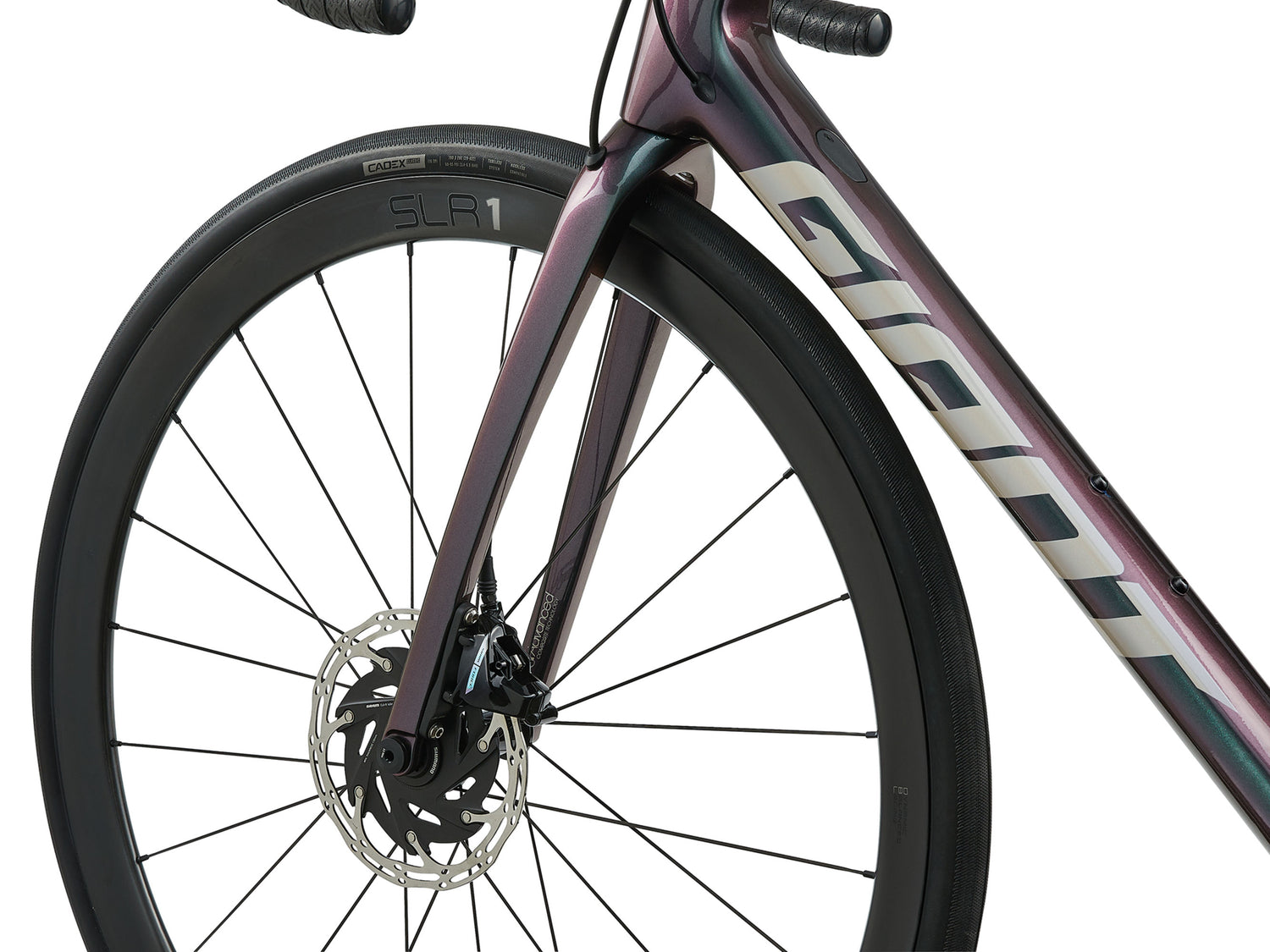

Integrated disc brakes deliver smooth, powerful stopping power and modulation for added control in variable weather and road conditions. Flat mount brakes and thru-axles boost stiffness and improve overall handling, while added frame and fork clearance allows for larger diameter tyres up to 32mm.
-
Frame material
-
Frame
-
Fork
-
Handlebar
-
Bar Tape
-
Stem
-
Seatpost
-
Saddle
-
Pedals
-
Shifters
-
Front Derailleur
-
Rear Derailleur
-
Brakes
-
Brake Levers
-
Cassette/Freewheel
-
Chain
-
Crankset
-
Bottom Bracket
-
Rims
-
Hubs
-
Spokes
-
Tyres
-
Extras
-
Notes
-
Speeds (rear)12 Speed
-
Age GroupAdults
-
GenderMens
-
SKUsDark Iridescent/XS: 9096009103, Dark Iridescent/S: 9096009104, Dark Iridescent/M: 9096009105, Dark Iridescent/ML: 9096009106, Dark Iridescent/L: 9096009107, Dark Iridescent/XL: 9096009108
