Giant  |  SKU: 9096049103

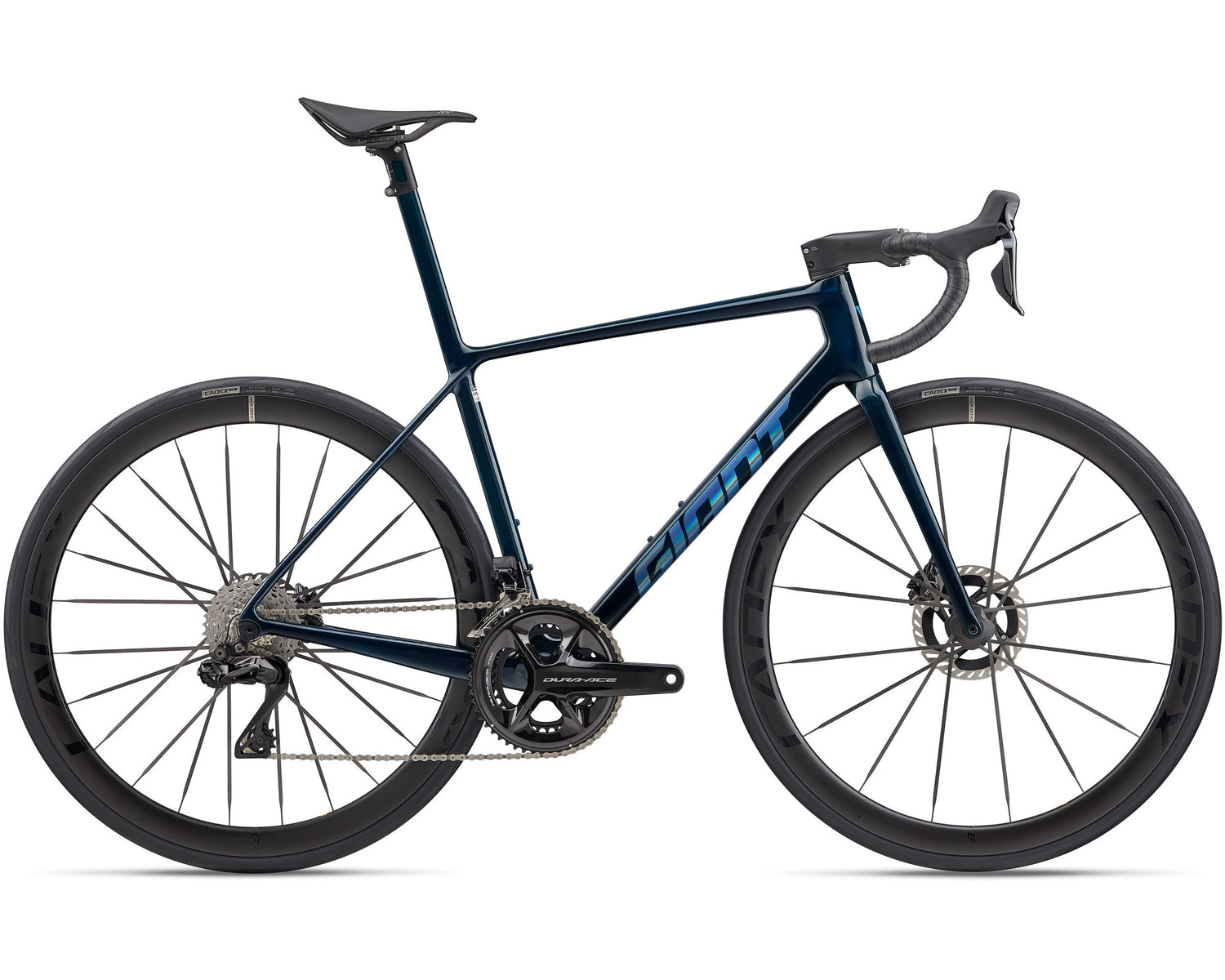

Giant TCR Advanced SL 0 DA Road Bike (2026)

$12,99900
  • Advanced SL-grade Composite frame
  • Advanced SL-grade Composite fork
  • Shimano Dura-Ace Di2 RD-R9250 12-speed drivetrain
  • CADEX Carbon Max 40 WheelSystem
Colour: Mariana Blue
Size

Pickup in-store only. Shipping not available.
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay

Sizing Chart

Sizing and Geometry

Giant TCR

Sizing chart to be used as a reference only. The best way to determine your size is to visit us in-store and get fitted.

Frame size Rider Height Rider Height (cm)
XS 5'2"-5'6" 157-169
S 5'5"-5'9" 165-175
M 5'7"-5'11" 171-181
ML 5'10"-6'2" 177-187
L 6'0"-6'4" 183-193
XL 6'2"-6'6" 189-199



Geometry

bike diagram with measurements referenced in table that follows

    XS S M ML L XL
A Seat Tube Length (mm) 680 710 740 770 800 830
B Seat Tube Angle 74.5° 74.0° 73.5° 73.0° 73.0° 72.5°
C Top Tube Length (mm) 520 535 550 565 580 600
D Head Tube Length (mm) 120 130 145 165 185 200
E Head Tube Angle 71.0° 72.3° 73.0° 73.0° 73.0° 73.0°
F Fork Rake (mm) 45 45 45 45 45 45
G Trail (mm) 72 64 59 59 59 59
H Wheelbase (mm) 976 977 980 991 1006 1020
I Chain Stay Length (mm) 405 405 405 405 405 405
J Bottom Bracket Drop (mm) 72 69.5 69.5 67 67 67
K Stack (mm) 517 528 545 562 581 596
L Reach (mm) 376 383 388 393 402 412
M Stand Over Height (mm) 703 722 743 771 798 822
O Stem Length (mm) 80 90 100 110 110 120
P Crank Length (mm) 170 170 172.5 172.5 175 175
Q Wheel Size 700C 700C 700C 700C 700C 700C

Shipping Information

Certain bike brands cannot be shipped and are only available for Click and Collect.

These include but are not limited to the following brands: Giant, GT, Liv, Momentum and Mongoose.

For all other brands, we can provide a shipping quote to your postcode. Please contact us by email at staff@ivanhoecycles.com.au, or text us on 0417 122 950.

Fully assembled when you Click & Collect in-store
Buy Now, Pay Later with ZIP
Free service adjustment within first 6 months

Giant TCR Advanced SL 0 DA Road Bike (2026)

From hors catégorie climbs to rolling terrain and flats, this WorldTour-level race bike is the pro’s choice for all-round performance. The all-new flagship TCR features advanced system integration and cutting-edge construction for superior stiffness, efficiency, and aerodynamics. Designed for riders chasing every advantage, it delivers lightweight speed, precise handling, and unmatched performance across every road condition.

Key Performance Factors

SYSTEM OPTIMISATION

The frameset, wheels, cockpit and other parts are engineered, developed and tested together to perform best as a system. The all-new OverDrive Aero steerer tube technology is combined with a Contact SLR AeroLight stem and Contact SLR handlebar to incorporate internal cable routing that also integrates the top cap, cables and spacers in a more aerodynamic, user-friendly setup

WINNING EFFICIENCY

Featuring a greater stiffness-to-weight ratio than the previous generation, along with new aero tube shaping and a lighter overall weight, this uncompromising race bike delivers explosive acceleration and unyielding pedalling stiffness. The result is race-winning performance in the moments that count.

INTEGRATED AERODYNAMICS

From the truncated ellipse shape of frameset tubing to a new cockpit design and component integration, it all adds up to a more streamlined profile that helps give the flagship TCR Advanced SL 0 model a 4.19-watt advantage over the previous generation.

Giant TCR Advanced SL 0 DA (2026)

$12,99900

Colour

Size

  • XS
  • S
  • M
  • ML
  • L
  • XL

Motor

N/A

Controller

N/A

Display

N/A

Battery

N/A

Charger

N/A

Sizes

N/A

Frame material

Carbon

Frame

Advanced SL-grade Composite, 12x142mm thru-axle, integrated seatpost, disc

Fork

Advanced SL-grade Composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc

Handlebar

Giant Contact SLR XS:37/42cm, S:37/42cm, M:39/44cm, M/L:39/44cm, L:39/44cm, XL:39/44cm

Grips

Stratus Lite 2.0

Bar Tape

N/A

Headset

N/A

Stem

Giant Contact SLR AeroLight XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm

Seatpost

Giant Integrated Seatpost, -5/+15mm offset

Saddle

CADEX AMP

Pedals

N/A

Shifters

Shimano Dura-Ace Di2

Front Derailleur

Shimano Dura-Ace Di2 FD-R9250

Rear Derailleur

Shimano Dura-Ace Di2 FD-R9250

Brakes

Shimano Dura-Ace Di2 hydraulic, Shimano RT-CL900 rotors [F]160mm, [R]140mm

Brake Levers

Shimano Dura-Ace Di2

Cassette/Freewheel

Shimano Dura-Ace, 12-speed, 11x34

Chain

Shimano CN-M9100

Crankset

Shimano Dura-Ace, 36/52 XS:165mm, S:165mm, M:170mm, M/L:170mm, L:172.5mm, XL:172.5mm

Bottom Bracket

CEMA ceramic, press fit

Rims

CADEX Max 40 WheelSystem, [F]40mm, [R]40mm

Hubs

[F] CADEX R3 Aero Hub, CenterLock, 12mm thru-axle, [R] CADEX R3-C48 Aero Hub, 48t ratchet driver, CenterLock, 12mm thru-axle

Spokes

CADEX Aero Carbon Spoke

Tyres

CADEX Race GC, tubeless, 700x30c (30mm), folding

Wheel Size

N/A

Extras

Computer mount, tubeless prepared, 33mm max tyre size
